TRENDnet TV-IP400 User manual
TV-IP400
TV-IP400W
Quick Installation Guide
Table of Contents
English ......................................................................................................
Troubleshooting ........................................................................................
1
1
3
2
5
1. Before You Start
2. Hardware Installation .........................................................................
3. Configure the Internet Camera ..........................................................
.................................................................................
Table of Contents
Version 10.24.2006
System Requirements
Application
TV-IP400/TV-IP400W
Quick Installation Guide
Mounting plate
Utility CD-ROM
AC Power Adapter
CD-ROM Drive
10/100Mbps Ethernet
CPU: 1GHz or above
Memory: 256MB or above
VGA Resolution: 800 x 640 or above
Web Browser: Internet Explorer 5.0 or above
Package Contents
1. Before You Start
English
1

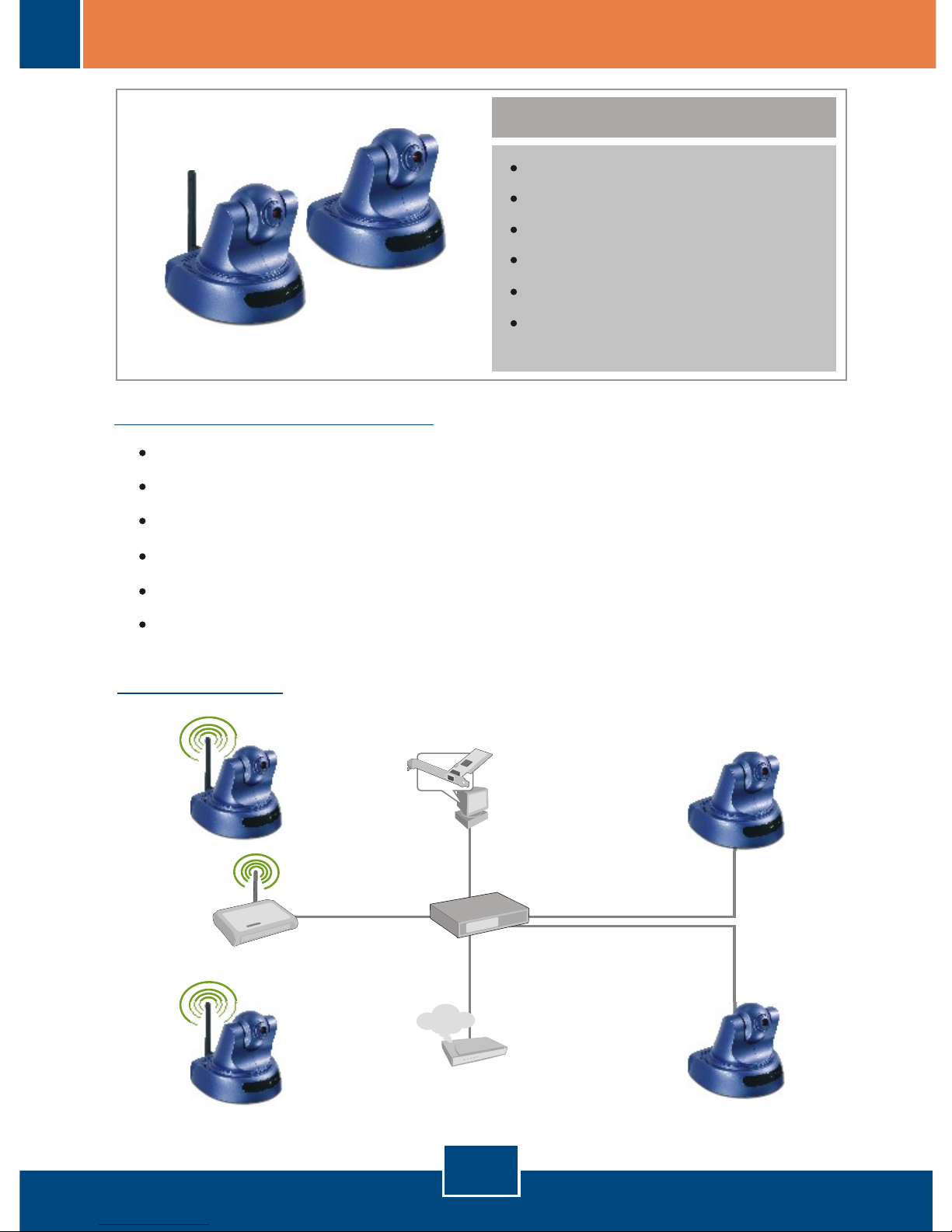

1 x 2dBi Detachable Antenna
(TV-IP400W)
Parking
Monitoring
(TV-IP400W)
Warehouse
Monitoring
(TV-IP400W)
Firewall Router
(TW100-BRF114)
Workstation with
PCI Adapter
(TE100-PCIWN)
Wireless Access Point
(TEW-430APB)
Cable/DSL
Modem
Internet
Office
Monitoring
(TV-IP400)
Front Gate
Monitoring
(TV-IP400)
2. Hardware Installation
English
2

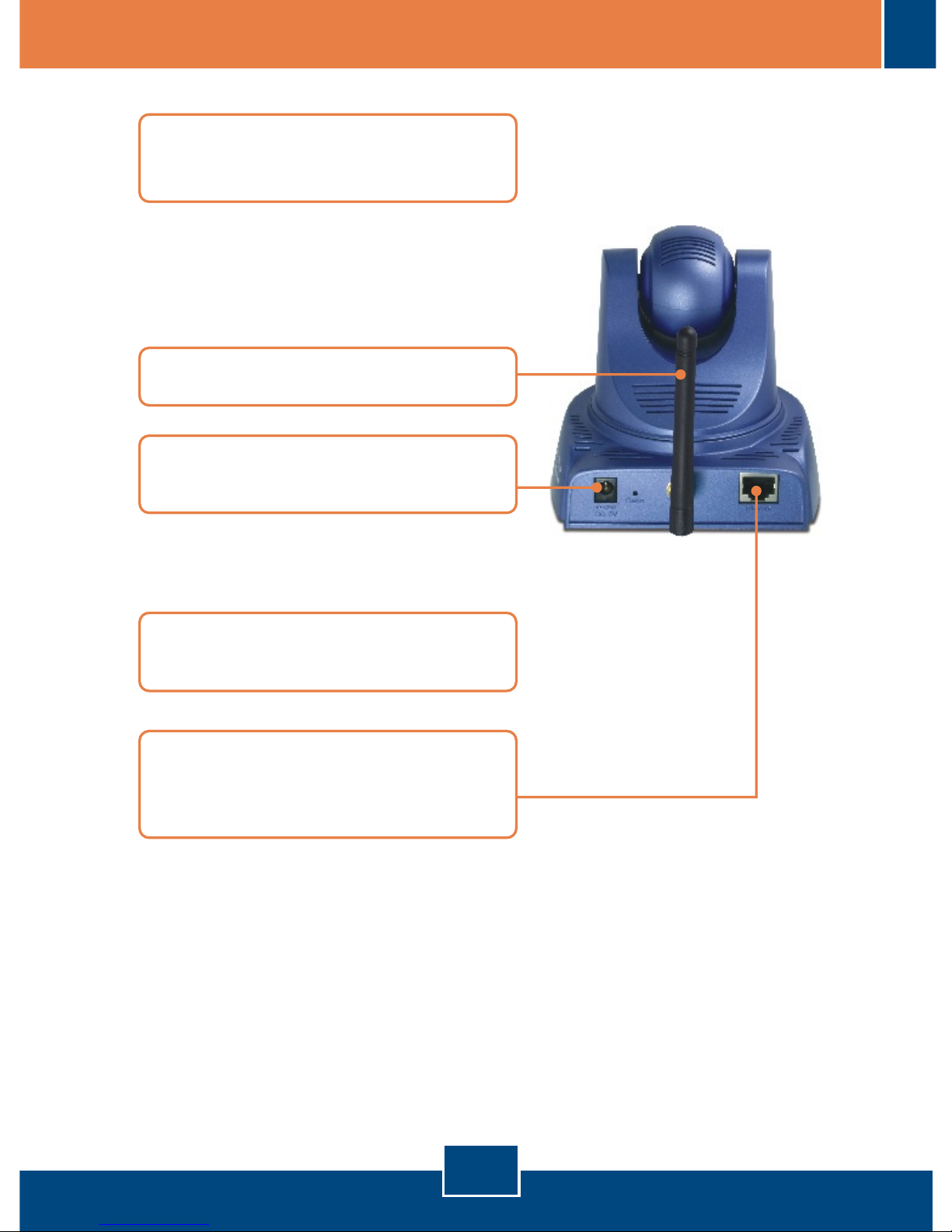

1. Place the camera on a flat, level
surface.
2. Attach the Antenna. (TV-IP400W)
3. Connect the AC Power Adapter to
the back of the camera.
4. Connect the AC Power Adapter to
a power outlet.
5. Connect a RJ-45 network cable
from a Switch/Hub to the Ethernet
port of the Internet Camera.
English
3

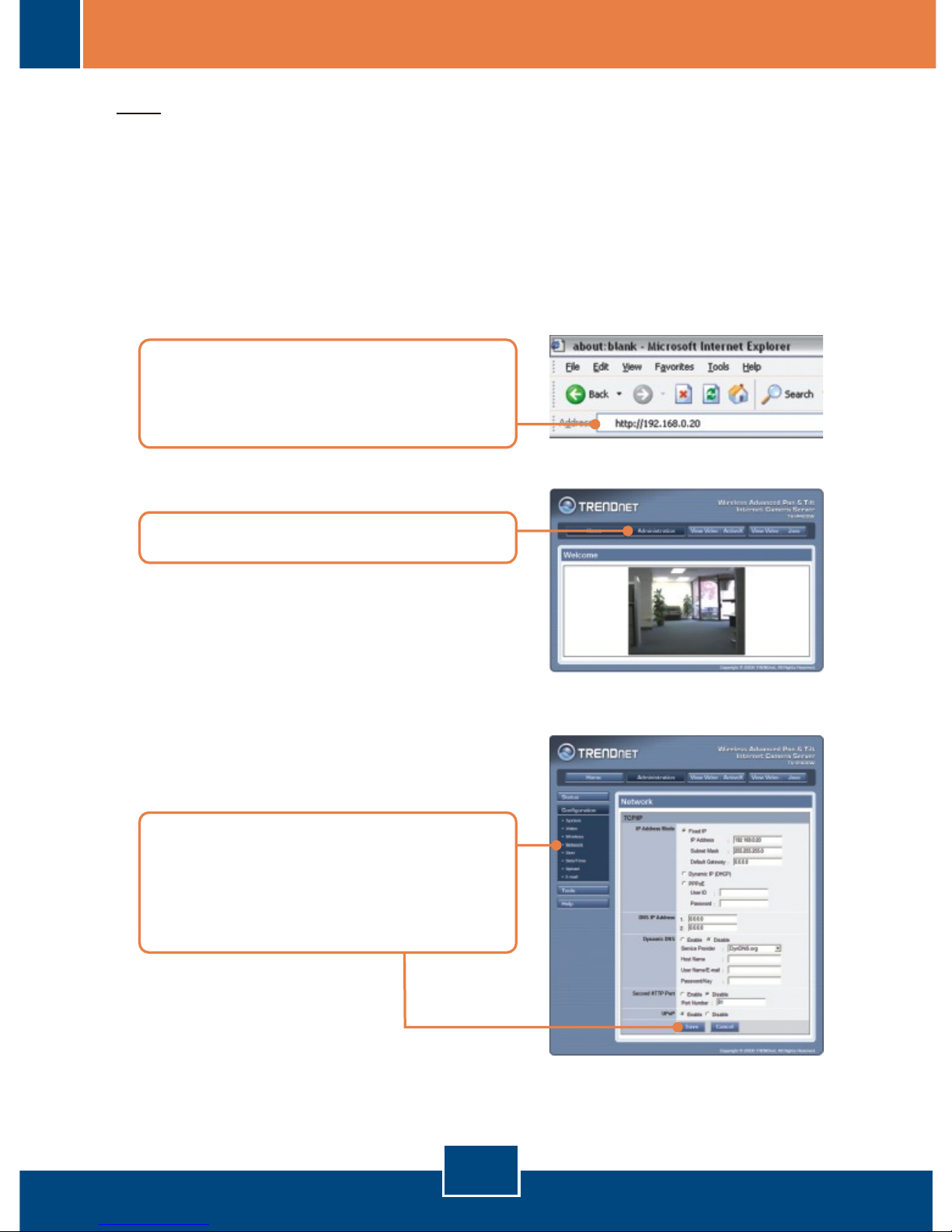

1. Open your web browser, type
http://192.168.0.20 in the Address
bar, and press Enter.
3. Configure the Internet Camera
Note: It is recommended that you configure the Internet Camera from a wired
computer. Before the Internet Camera can be configured, a Static IP address
must be assigned on your computer's network adapter in the subnet of
192.168.0.x. Since the Internet Camera's default IP address is 192.168.0.20,
make sure no other network devices are assigned an IP address of
192.168.0.20. (Refer to the Troubleshooting section on how to configure
TCP/IP settings on your PC.)
2. Click Administration.
3. Click Configuration and then click
Network. Configure the network
settings to be in the same subnet
as your network. Then click Save.
English
4

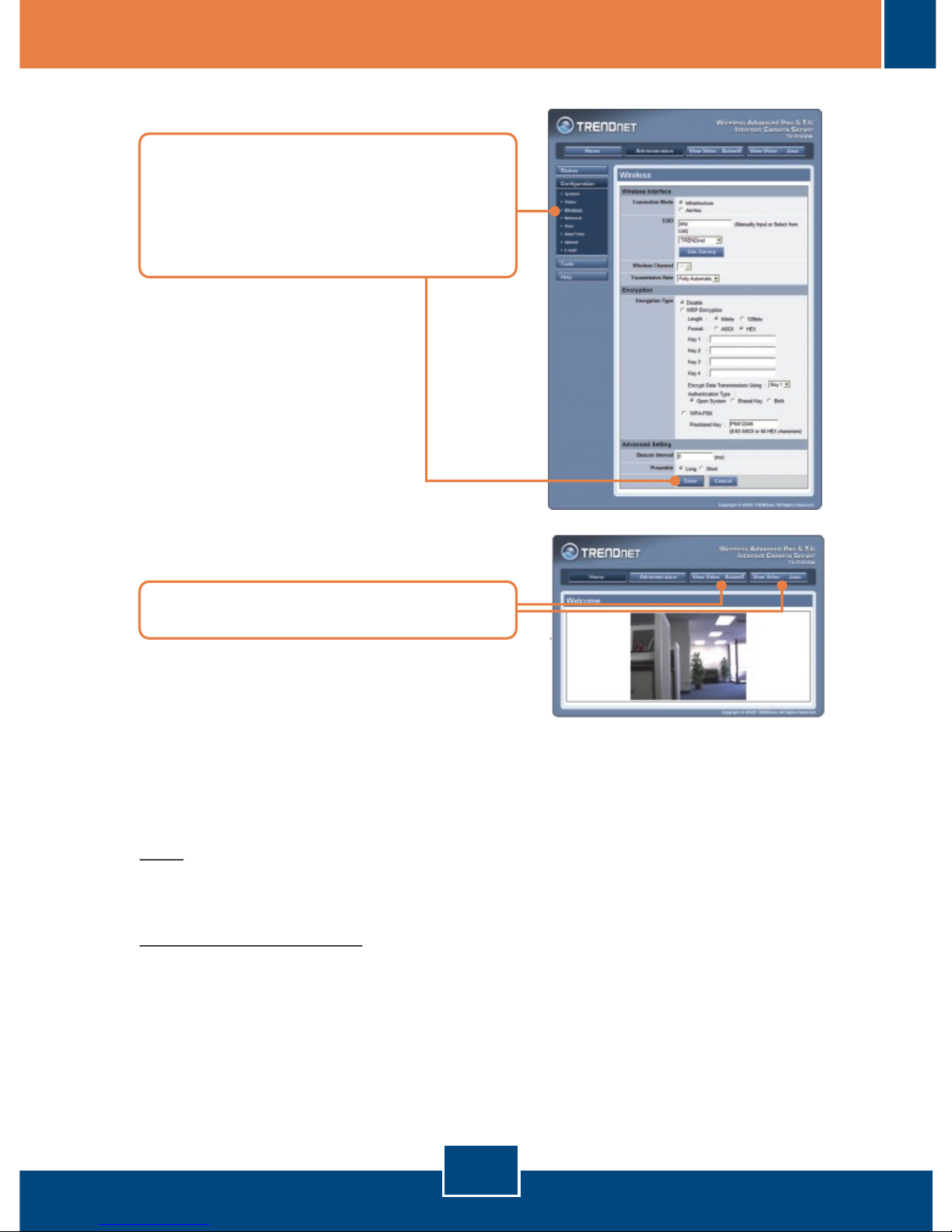

4. Click Wireless. Configure your
wireless settings to match your
wireless network's settings and
then click Save. (TV-IP400W only)
5. Click ActiveX or Java Mode.
Note: For detailed information regarding the TV-IP400/TV-IP400W
configuration and advanced settings, please refer to the Troubleshooting
section, User's Guide on the Utility CD-ROM, or TRENDnet's website at
http://www.trendnet.com.
Your installation is now complete.
5
Troubleshooting
Q1:
Q2:
A2:
Q3:
A3:
Q4:
A4:
How do I configure TCP/IP settings on my computer?
When I click on ActiveX or Java, the image does not load?
First, make sure that you are using a browser that supports ActiveX or Java.
Second, make sure that ActiveX or Java is installed and enabled.
How do I connect the TV-IP400W to my wireless router or access point?
Make sure that you configure the camera to have the same SSID, encryption
mode and key (if enabled). Follow the instructions in section 2 to configure the
camera with the SSID and encryption key.
After I successfully configured the TV-IP400/TV-IP400W to match my wireless
network settings, I can not connect to the camera.
First, verify that the wireless settings match your wireless network settings.
Second, verify that the LINK LED is lit orange. Third, press on the reset button
using a paper clip for 15 seconds, then let go. Then reconfigure the camera.
If you still encounter problems or have any questions regarding the
TV-IP400/TV-IP400W, please contact TRENDnet's Technical Support Department.

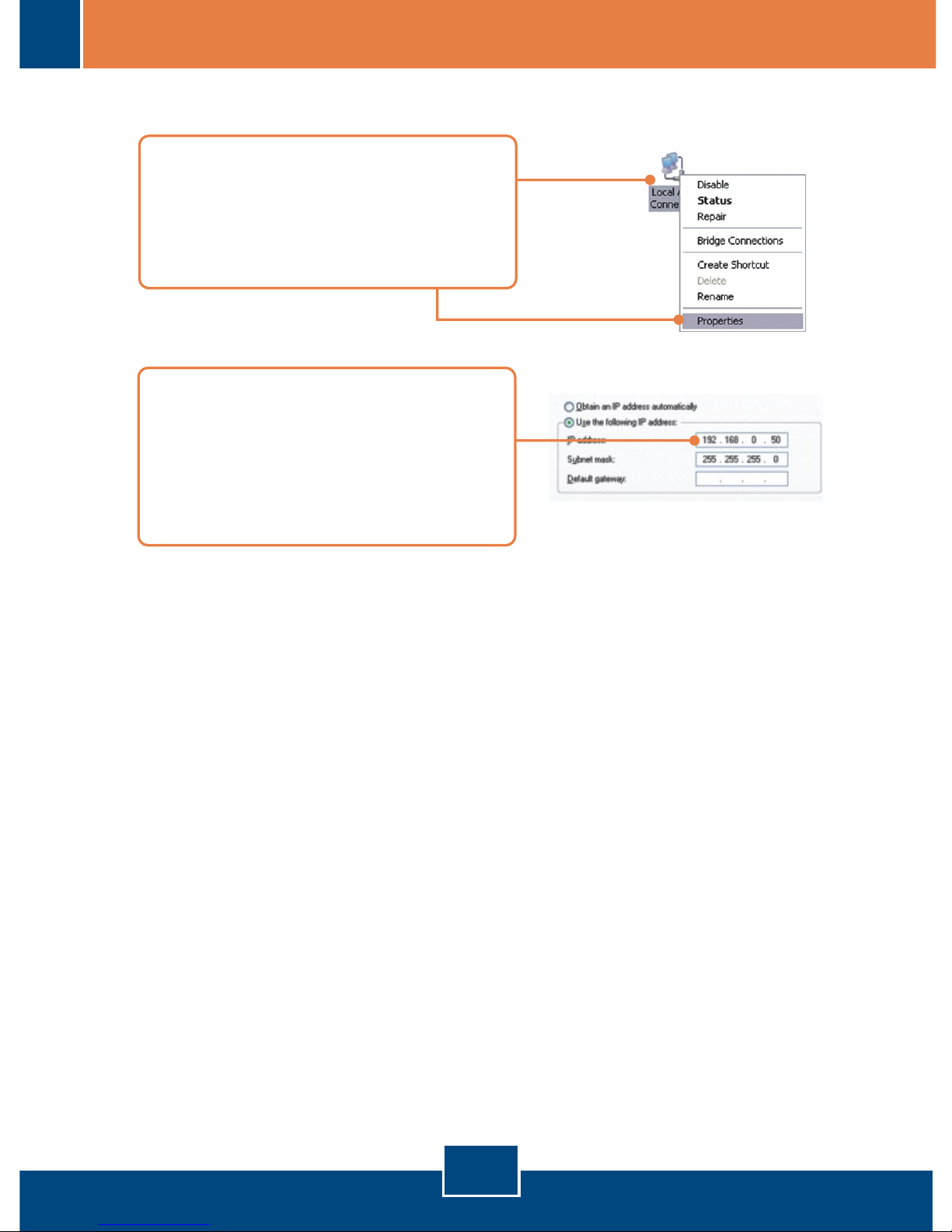

1. Go into the Control Panel and double-
click the Network Connections icon,
and then right-click the Local Area
Connection icon and then click
Properties.
2. Click Internet Protocol (TCP/IP) and
then click Properties. Then click on
Use the following IP address, and
make sure you assign your network
adapter an IP address in the subnet of
192.168.0.x.
Certifications
This equipment has been tested and found to comply with FCC and CE Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received. Including interference that may
cause undesired operation.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO
OPERATE THE EQUIPMENT.
Waste electrical and electronic products must not
be disposed of with household waste. Please
recycle where facilities exist. Check with you Local
Authority or Retailer for recycling advice.
ADVERTENCIA
En todos nuestros equipos se mencionan claramente las caracteristicas del adaptador de
alimentacón necesario para su funcionamiento. El uso de un adaptador distinto al
mencionado puede producir daños fisicos y/o daños al equipo conectado. El adaptador
de alimentación debe operar con voltaje y frecuencia de la energia electrica domiciliaria
existente en el pais o zona de instalación.
Copyright ©2006. All Rights Reserved. TRENDnet.
Product Warranty Registration
Please take a moment to register your product online.
Go to TRENDnet’s website at http://www.trendnet.com
TRENDnet Technical Support
US Canada
24/7 Tech Support
Toll Free Telephone: 1(866) 845-3673
Europe (Germany France Italy Spain Switzerland UK)
English/Espanol - 24/7
Francais/Deutsch - 11am-8pm, Monday - Friday MET
English/Espanol - 24/7
Francais/Deutsch - 11am-8pm, Monday - Friday MET
Worldwide
Telephone: +(31) (0) 20 504 05 35
Toll Free Telephone: +00800 60 76 76 67
.
. . . . .
20675 Manhattan Place
Torrance, CA 90501
USA
