TRENDnet TV-IP201P User manual
TV-IP201P
Quick Installation Guide
Table of Contents
English ......................................................................................................
Troubleshooting ........................................................................................
1
1
3
2
7
9
1. Before You Start
2. Hardware Installation ........................................................................
3. Configure the Internet Camera ..........................................................
4. Power over Ethernet (PoE) Installation .............................................
.................................................................................
Table of Contents
Version 06.08.2007

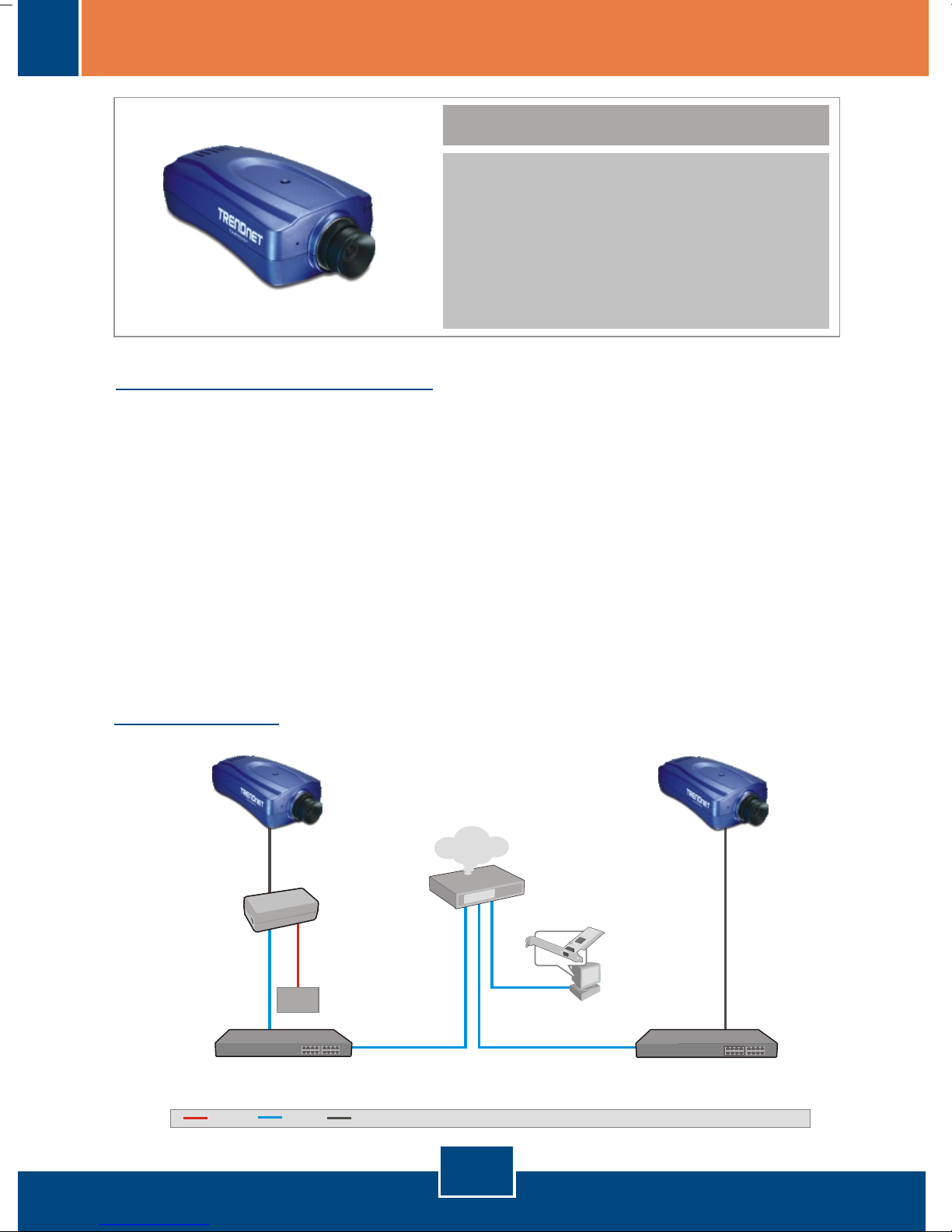

System Requirements
Package Contents
1. Before You Start
English
1
?
?
?
TV-IP201P
Quick Installation Guide
Utility CD-ROM?
Metal Stand
?AC Power Adapter (5V, 2.5A)
?
?
?
?
?
?
?
?
CPU: 1.1GHz or above
Memory: 256MB or above / 512MB RAM or above (Windows Vista)
VGA resolution: 800 x 600 or above
Web Browser: Internet Explorer (5.0 or higher) or FireFox
A network Switch or Hub with an available network LAN port.
A RJ-45 network cable.
Power over Ethernet (PoE) Switch (e.g. TPE-S88)(Optional)
Injector (e.g TPE-101I )(Optional)
Application
16-Port 10/100Mbps Web Smart
PoE Switch (TPE-S88)
Power + Data
(PoE)
Workstation
Router/Modem
16-Port 10/100Mbps Fast
Ethernet Switch (TE100-S16)
PoE Internet Camera Server
with Audio (TV-IP201P)
Power over Ethernet
(PoE) Injector
(TPE-101I)
Internet
Power + Data
(PoE)
Power
Jack
Data Data
Data
Power
Data
Power Data Data + Power

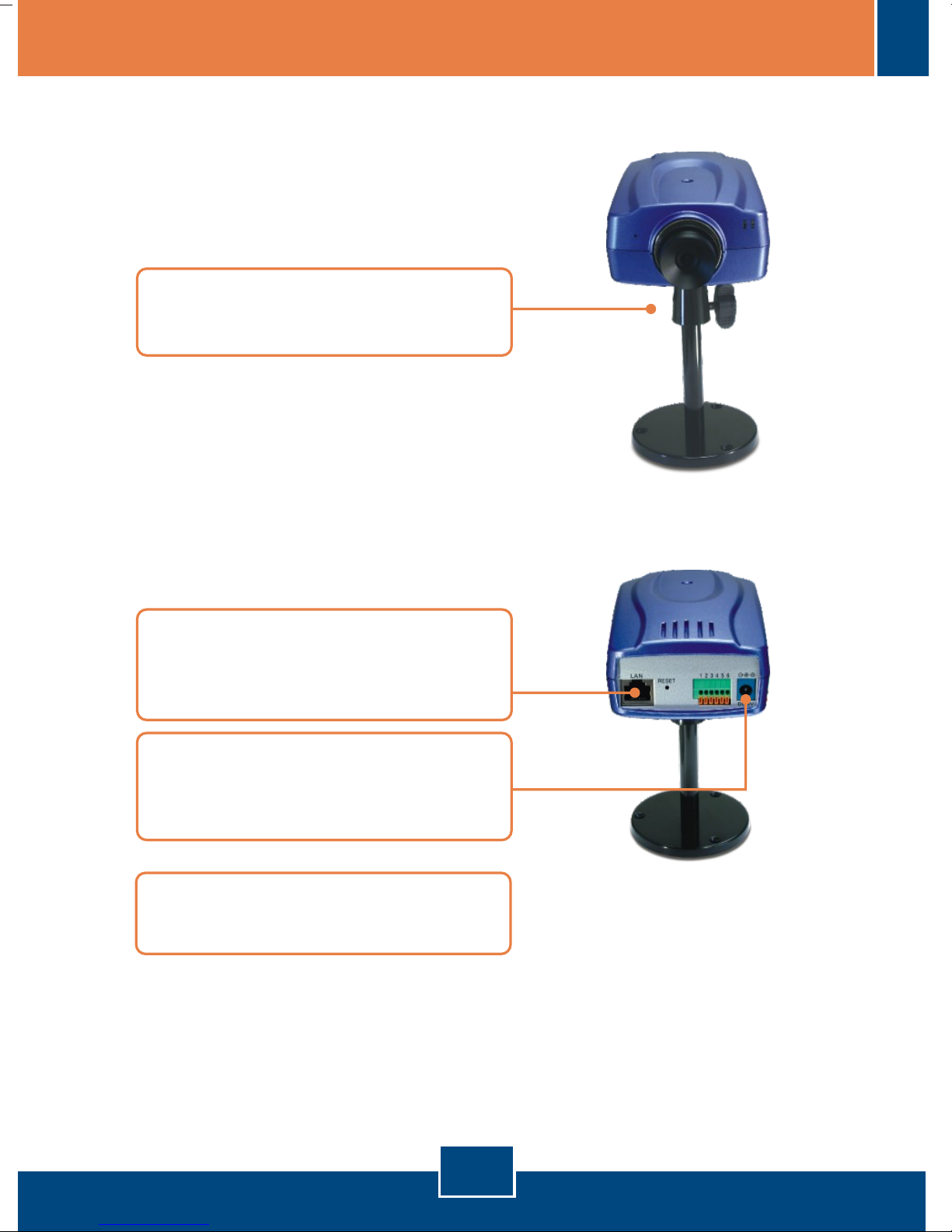

2. Hardware Installation
English
2
1. Mount the Internet Camera to the
metal stand.
2. Connect a RJ-45 network cable
from a Switch/Router to the
LAN port of the Internet Camera.
3. Connect the AC Power Adapter to
the Internet Camera and then to a
power outlet.
4. Verify that the Power and Link
lights are on.
English
3

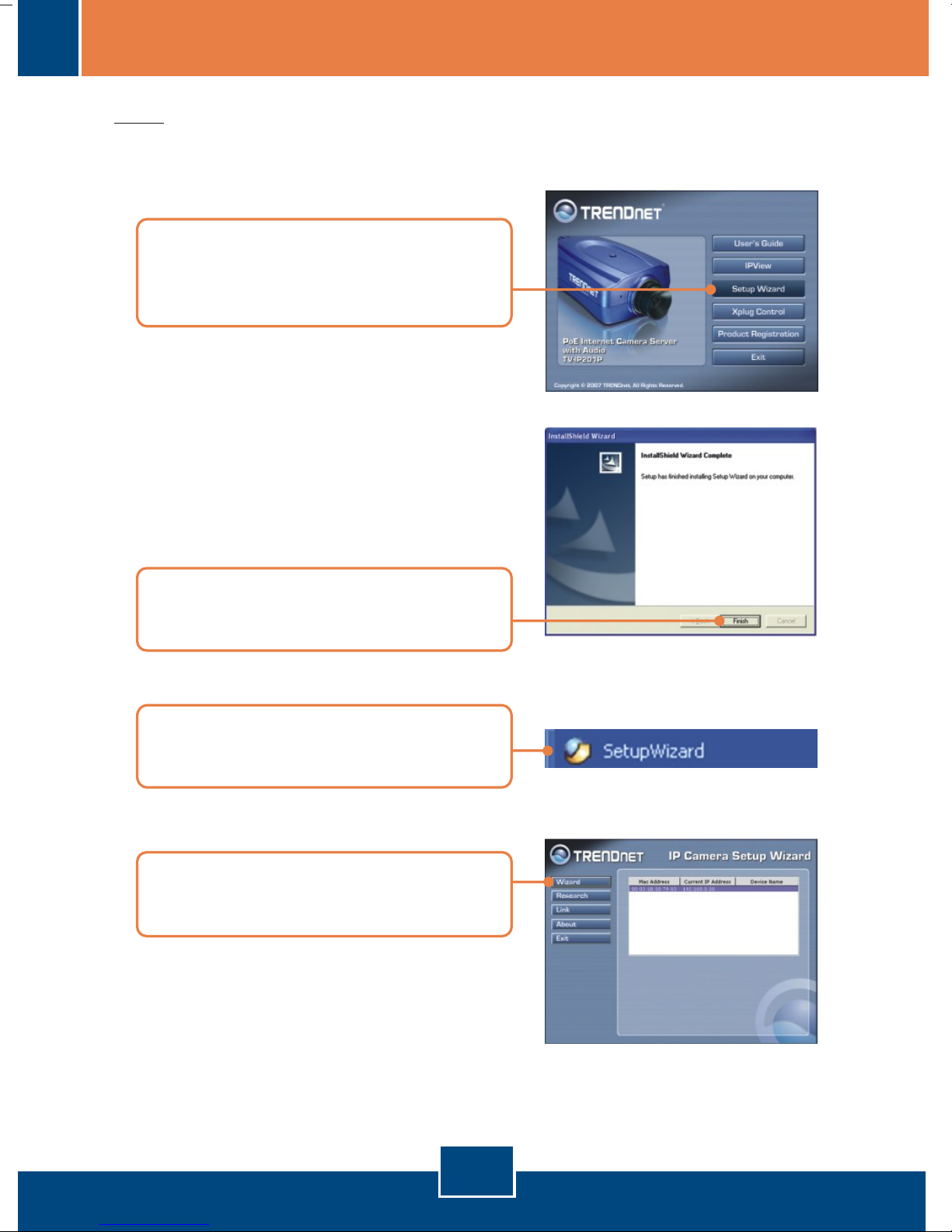

1. Insert the Utility CD-ROM into your
CD-ROM drive and then click
Setup Wizard.
3. Configure the Internet Camera
Note: Since the Internet Camera's default IP address is 192.168.0.30, make
sure no other network devices are assigned an IP address of 192.168.0.30
3. Go to Start -> Programs -> Setup
Wizard and click SetupWizard.
2. Follow the InstallShield Wizard
instructions and then click Finish.
4. Select the camera and then click
Wizard.
English
4
6. Enter the Admin ID and Password,
and then click OK. By default:
User Name: admin
Password: admin

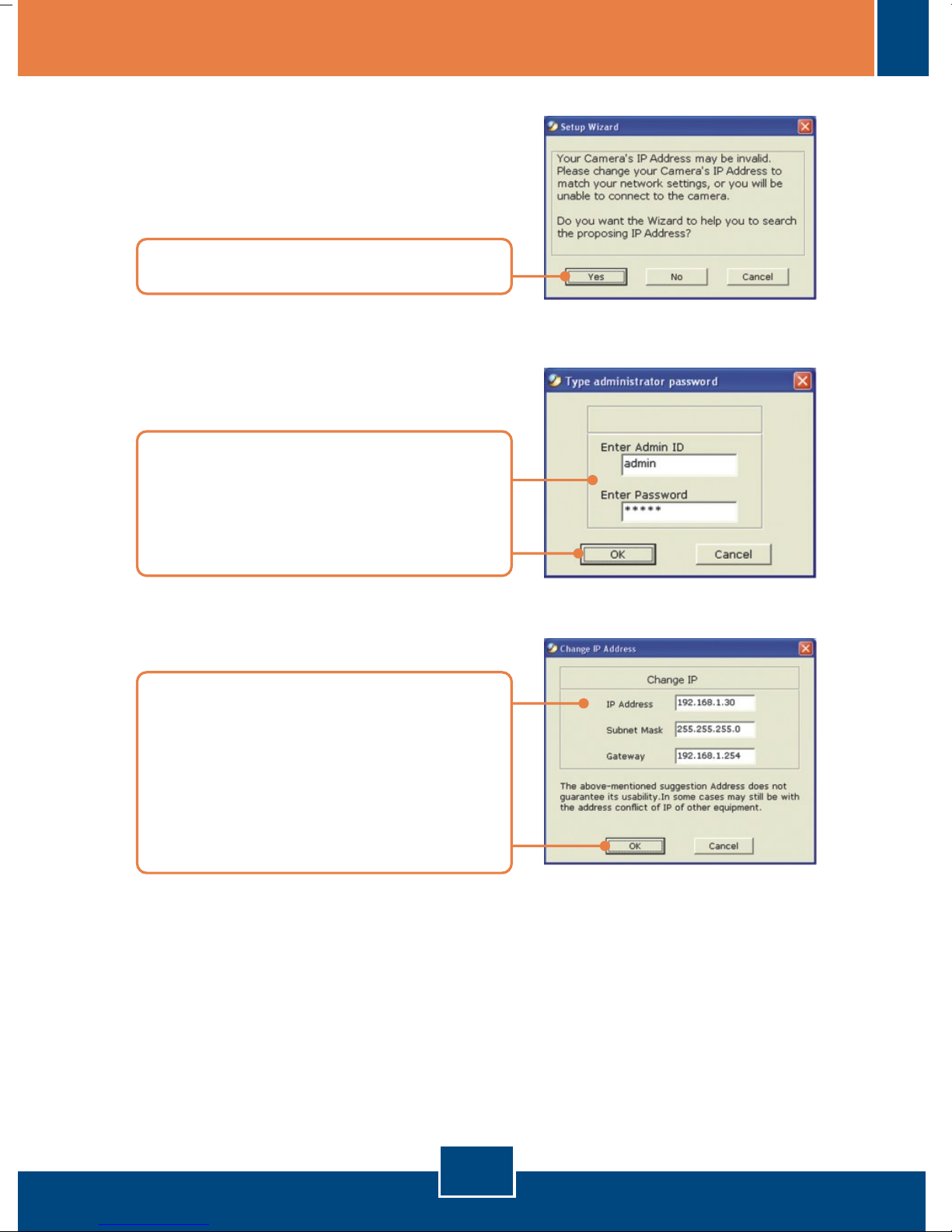

5. Click Yes.
7. If your network is on a different
subnet, an IP address in your
network's subnet will automatically
be generated. If this IP address is
not used by another device in your
network, click OK.
8. Enter the Admin ID and Password,
and then click OK. By default:
Admin ID: admin
Password: admin
If you like to change the Admin ID
and password, click Change, enter
the New ID and the New Password
and confirm the New ID and News
Password. Click on the right arrow
to continue.
9. Click on the right arrow.
10. Copy down the IP Address and
then click the restart button.
English
5

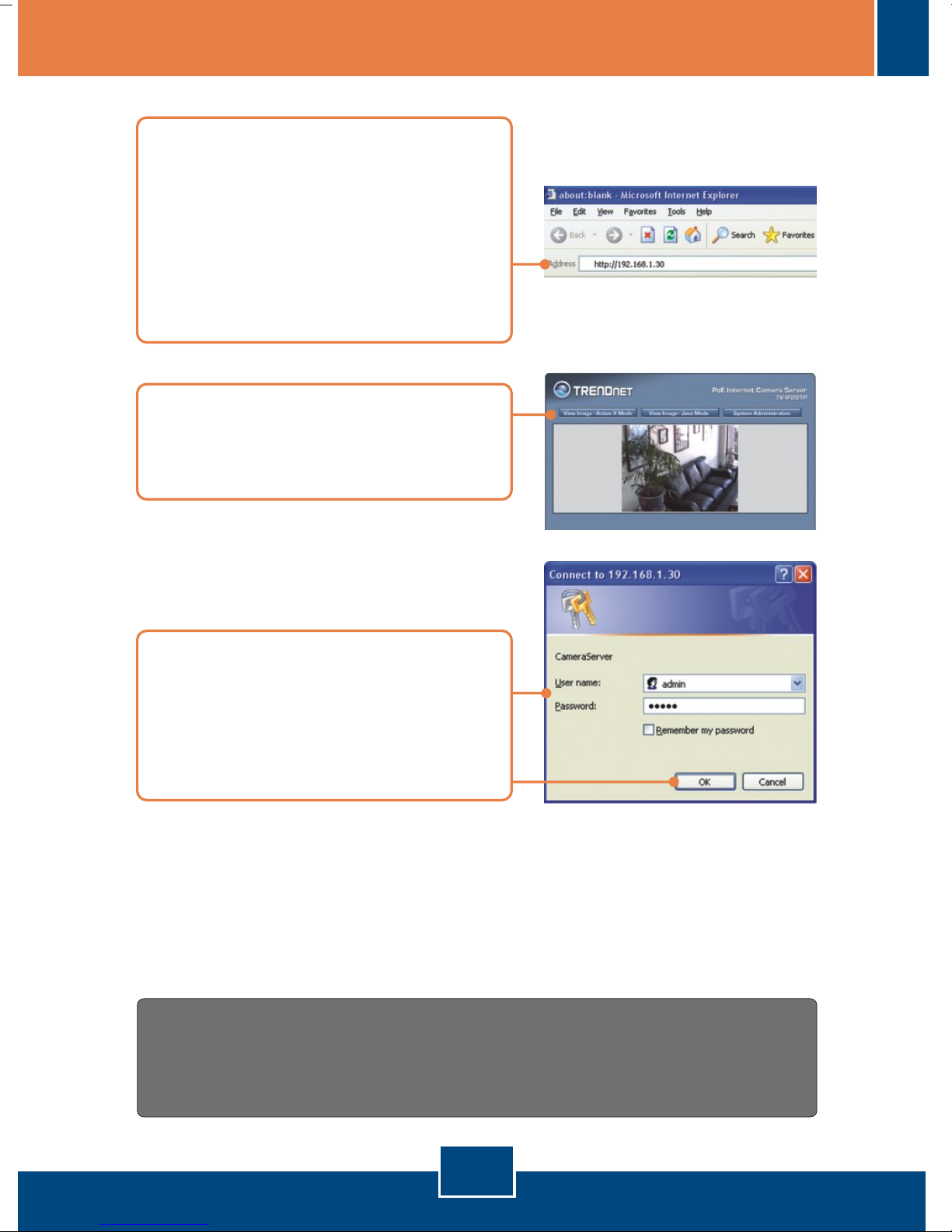

11. Open your web browser, type in
the IP address of the camera in
the Address bar, and then press
Enter. If you changed the IP
address of the camera, type in the
new IP address. By default, the IP
address is 192.168.0.30
12. Click View Image – Active X
Mode or View Image – Java
Mode.
13. Enter the Admin ID and
Password, and then click OK.
By default:
Admin ID: admin
Password: admin
Note: For detailed information regarding the TV-IP201P configuration and
advanced settings, please refer to the Troubleshooting section, User’s Guide
on the Utility CD-ROM, or TRENDnet’s website at http://www.trendnet.com.
Your installation is now complete.
Register Your Product
To ensure the highest level of customer service and support, please take a moment to
register your product Online at: www.trendnet.com/register
Thank you for choosing TRENDnet
English
6
English
7
4. Power over Ethernet (PoE) Installation
Using the TV-IP201P with a PoE switch
2. Verify that the LEDs are on.
Please refer to step 4 in the
Hardware Installation section.
1. Connect a RJ-45 cable from the
Power over Ethernet Switch to the
LAN port of the Internet Camera
Server.

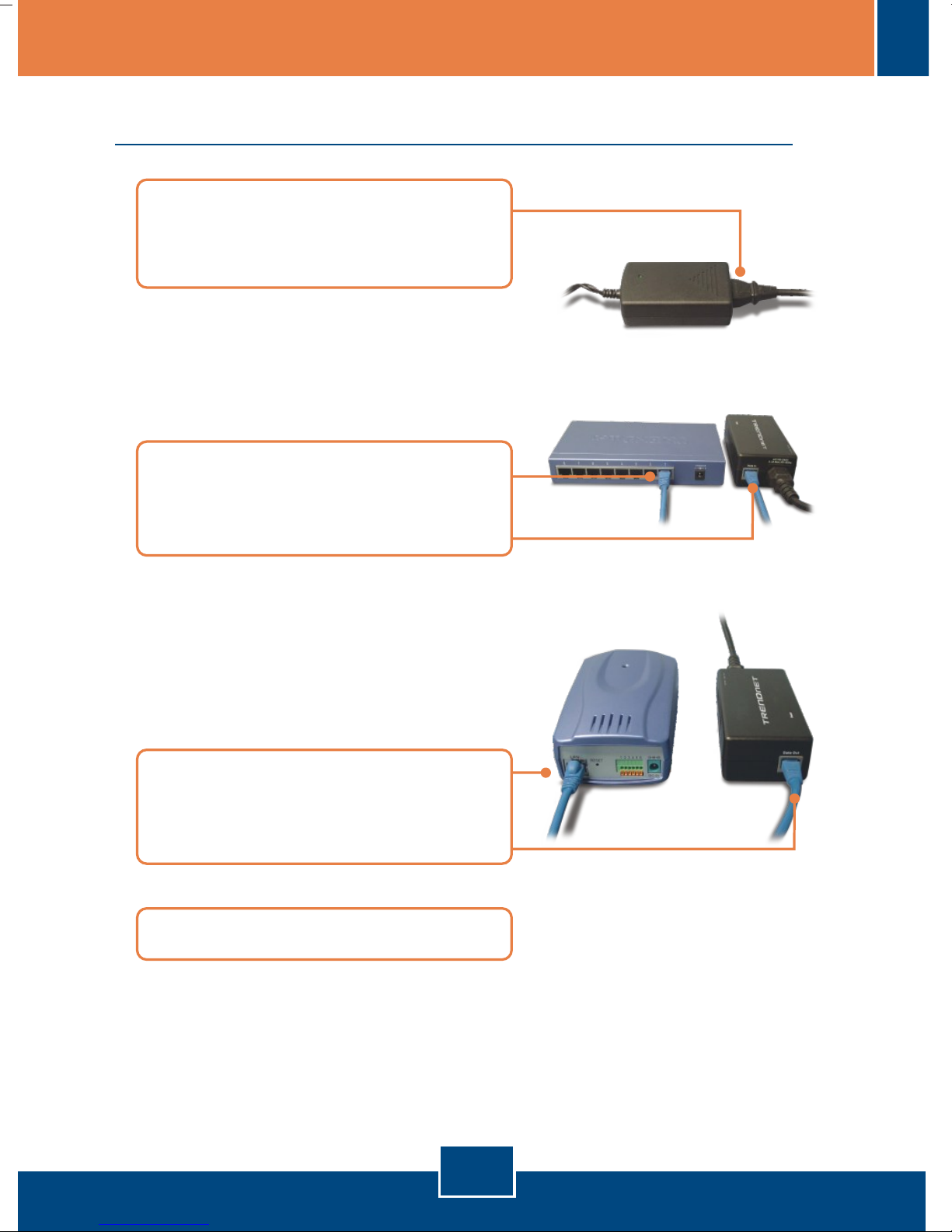

Using the TV-IP201P with an Injector (TPE-101I)
4. Verify that the LEDs are on.
English
8
1. Connect the Power Cord to the
Injector. Then connect the Power
Cord to an outlet.
2. Connect a CAT-5 cable from a
switch to the TPE-101I's Data In
port.
3. Connect a CAT-5 cable from the
TV-IP201P's LAN port to the
Injector's PoE OUT port
