TRENDnet TEW-PS1U Instruction Manual
Step 2. Change IP Address:
In this dialog box, you can Manually Assign. When completed, click “OK”.
TEW-PS1U F.A.Q.
Q: Why doesn't PS-Admin utility detect my print server?
A:
Q: How do I change the IP address of my print server?
A:
If you are using Windows XP you will have to disable the built in firewall. But for all operating
systems you have to disable any other form of firewall software such as Norton Internet Security,
Black Ice, and ZoneAlarm.
Make sure that you have “Client Services for Netware” installed, it should automatically install
IPX/SPX. If not please do so.
Note: Windows XP Home edition does not have the capability to install Client Services for
Netware.
Step 1. Open up the PS-Admin Utility and click on “TCP IP Protocol”.

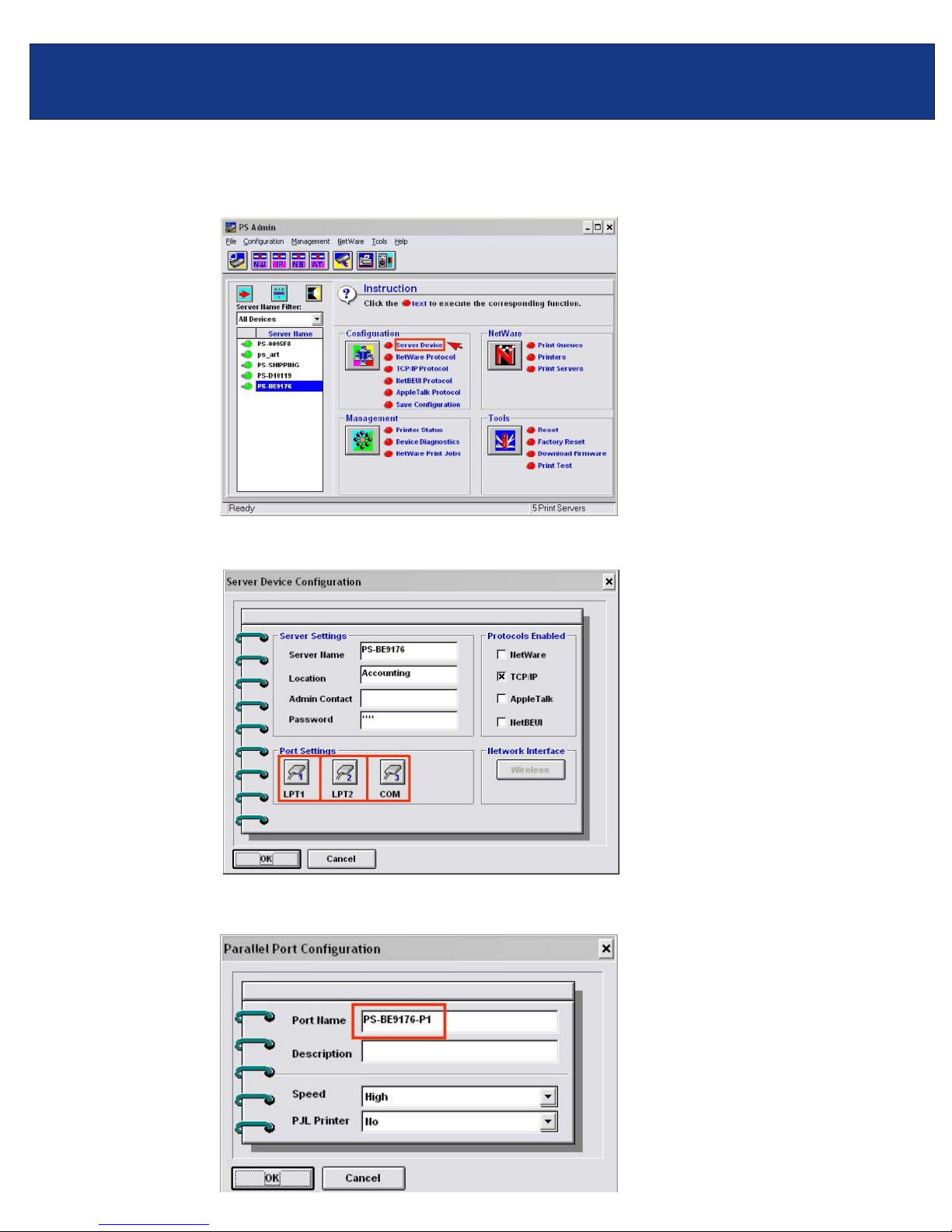

Q: How do I find the Port Name of the Print Server?
A:Step 1. Click on “Server Device”.
Step 2. Click on the port that you have your printer plugged into.
Step 3. Write down the Port Name for future reference.
TEW-PS1U F.A.Q.
TEW-PS1U F.A.Q.
Q: How do I setup my wireless settings?
A:Step 1. Click on “Server Device”.
Step 2. Click on the “Wireless” button.
TEW-PS1U F.A.Q.
Step 3. Input the ESS-ID and channel of your wireless access point or router. If you are using Encryption
on your wireless network, you will be required to input the WEP key. For 64 bit hex you will be
required to input 10 characters and for 128 bit WEP, you will be required to input 26 characters.
If you are using ASCII you will be required to input 5 characters for 64 bit and 13 characters for
128 bit encryption then click “OK”.
Q: How do I install my printer on Windows 95/98/ME?
A:In Windows 98/Me you will need to install the LPR client.
Installing LPR:
Step 1. Once the file is downloaded and extracted, Go to Start > Settings > Control Panel >
double-click on Networks. Click on Add.
For Windows 98/ME you will also need to know the port name that you are printing to (The Port Name is the
PS-xxxxxx-P1, x being the actual number listed in the Port Name box).
Step 2 Highlight Client and click on Add.
TEW-PS1U F.A.Q.
Step 3. Click on Have Disk > Browse. Browse to the location of the extracted LPR Client.
Step 4. Click OK 3 times.
Step 5. From the list highlight LPR for TCP/IP and click on Properties.
Step 6. Click on Add Port.
In the top field type in the IP address of your print server. In the bottom field type in the port name
of your print server, the Port Name is the PS-xxxxxx-P1, x being the actual number listed in the
Port Name box. Click on OK.
TEW-PS1U F.A.Q.
Step 7. Click on OK. Windows will ask you to restart. Click Yes.
LPR is now properly installed on your computer.
TEW-PS1U F.A.Q.
Printer Installation
Step 1. Open your printers folder. Go to Start > Settings > Printers.
Step 2. Double-click on the Add Printer icon which will launch the Add Printer Wizard.
Step 3. Select Network Printer and click on Next.
TEW-PS1U F.A.Q.
Step 4. Highlight the Print Server and click on OK to return to the Add Printer Wizard.
Step 3. Click on the Browse button and browse to the print server.
Step 5. Click on Next. If you are unable to do this you can manually enter the Print Server by
using two backlashes, the IP address, one backlash and the port name of you printer.
TEW-PS1U F.A.Q.
Step 6. You will now be asked to select a printer to install.
If you can not find your printer from the list, click on the Have Disk button and browse to the
printer drivers for your printer (floppy, CD, or downloaded).
Step 7. If you find your printer in the list, click on it and then click on OK. Windows will install the
drivers.
Step 8. Once the drivers been installed, click Finish to complete the installation. You may be
prompted for your Windows CD. If you are prompted for the CD, browse to the Win98 f
older on the Windows CD and click on OK
Step 9. After the drivers have been installed for your printer, you will be prompted to print a test
page. Select Yes and click on Finish.
TEW-PS1U F.A.Q.
Step 1. Go to Start>Settings>Printers>Add New Printer (Win XP - Start>Printers and
Faxes>Add a Printer).
Step 2. Select Local Printer. Make sure to uncheck Automatically detect and install my plug
and play printer. Click Next.
Q: How do I install my printer on Windows 2000/XP?
A:
Step 3. Select Create a New Port and select Standard TCP/IP port. Click Next.
