TRENDnet TEW-P1PG SHEETS Installation guide
Step 2. Change IP Address:
Click this button to bring up the following dialog box, allowing you to change the IP
Address. In this dialog box you can select either Manually Assign or DHCP Assign
Automatically. When completed click “OK”.
TEW-P1PG F.A.Q.
Q: Why doesn't PS-Utility detect my print server?
A:
Q: How do I change the IP address of my print server?
A:
If you are using Windows XP you will have to disable the built in firewall. But for all operating
systems you have to disable any other form of firewall software such as Norton Internet Security,
Black Ice, and ZoneAlarm.
Step 1. Open up the PS-Utility and click on “Change IP Address”.
Q: How do I find the Port Name of the Print Server?
A:First, launch your web browser (such as the Internet Explorer 6.0 used in this manual). Then, type
http://192.168.0.1 (the default IP address) in the Address bar and press [Enter] to enter the
Management screen of the Configuration Utility. Or use the IP address that you manually assigned
to the Print Server. Click on “System” and the Port Name is the PS-xxxxxx-P1, x being the actual
number listed in the Port Name box. Please write this information down on a piece of paper for
future reference.
Q: How do I make it Wireless?
A:Step 1. First you will need to know the SSID of your wireless router or access point, along with
the Channel. If you are using any type of wireless security like WEP, you will need to
know the key values.
Step 2. Launch your web browser (such as the Internet Explorer 6.0 used in this manual). Then,
type http://192.168.0.1 (the default IP address) in the Address bar and press [Enter] to
enter the Management screen of the Configuration Utility. Or use the IP address that you
manually assigned to the Print Server.
TEW-P1PG F.A.Q.
TEW-P1PG F.A.Q.

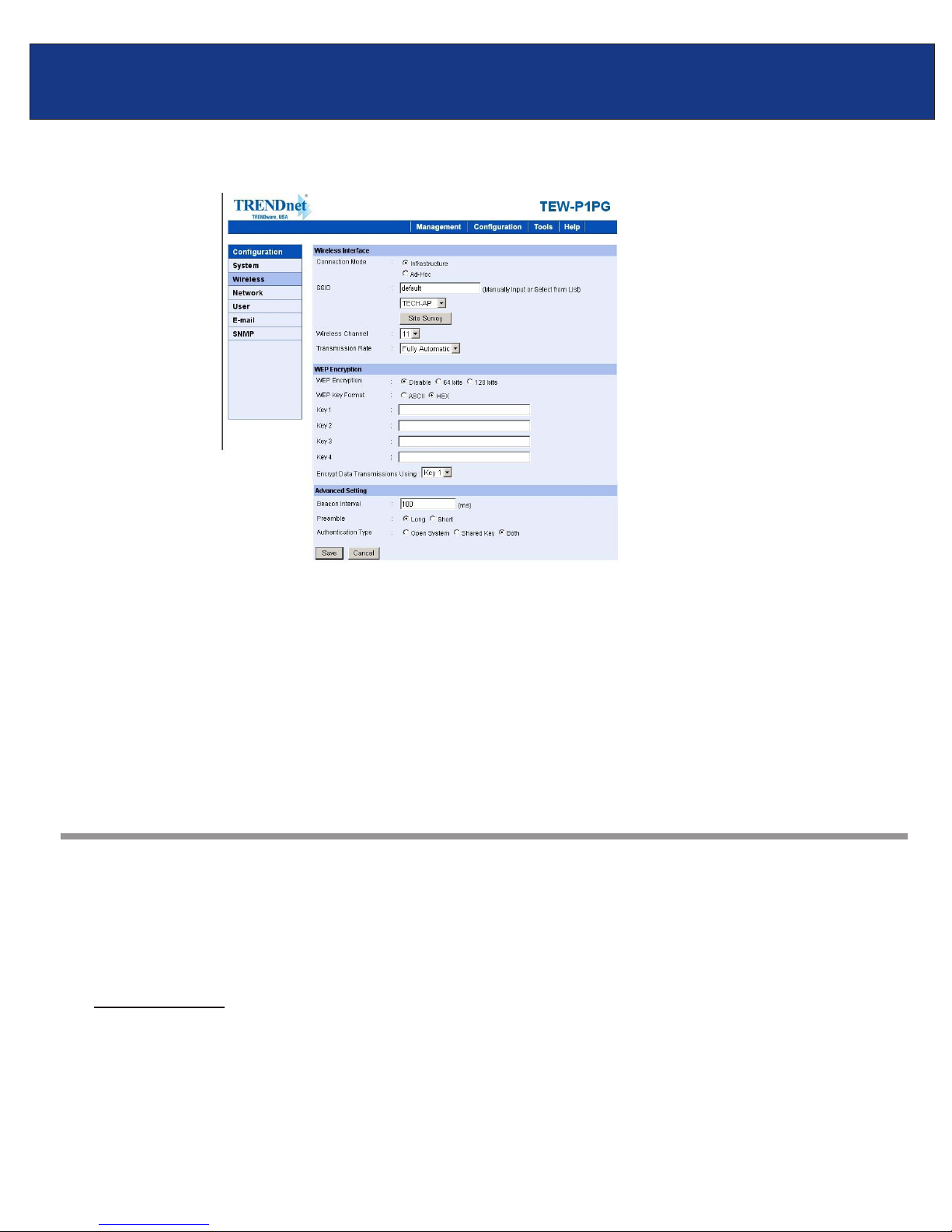

Step 3. Click on “Configuration” on the top Menu bar and click on “Wireless” on the side bar.
You can now input the SSID and Channel or you can click on “Site Survey”. If you are using WEP
Encryption, select the type of encryption and key in the value in Key 1 and click “Save”.
Once you have saved the settings, unplug the Ethernet cable from the back of the Print
Server and unplug the electrical power for 15 seconds then plug the power back in. Start
the PS-Utility and see if the utility finds the print server. If it does, then the unit is wireless
at this point. If not, plug the Ethernet cable back into the print server and confirm the
Wireless information.
Note: The Encryption method and key value is case sensitive and must match your router or
access Point.
Step 4.
Q: How do I install my printer on Windows 95/98/ME?
A:In Windows 98/Me you will need to install the LPR client.
Installing LPR:
Step 1. Once the file is downloaded and extracted, Go to Start > Settings > Control Panel >
double-click on Networks. Click on Add.
For Windows 98/ME you will also need to know the port name that you are printing to (The Port
Name is the PS-xxxxxx-P1. X being the actual number listed in the Port Name box).
TEW-P1PG F.A.Q.
Step 2. Highlight Client and click on Add.
Step 3. Click on Have Disk > Browse. Browse to the location of the extracted LPR Client.
Step 4. Click OK 3 times.
Step 6. Click on Add Port.
TEW-P1PG F.A.Q.
Step 5. From the list highlight LPR For TCP/IP and click on Properties.
Step 7. Click on OK. Windows will ask you to restart. Click Yes.
LPR is now properly installed on your computer.
Printer Installation
Step 1. Open your printers folder. Go to Start > Settings > Printers.
Step 2. Double-click on the Add Printer icon which will launch the Add Printer Wizard.
In the top field type in the IP address of your print server. In the bottom field type in the port name
of your print server, the Port Name is the PS-xxxxxx-P1. X being the actual number listed in the
Port Name box. Click on OK.
TEW-P1PG F.A.Q.
Step 3. Select Network Printer and click on Next.
Step 4. Click on the Browse button and browse to the print server.
TEW-P1PG F.A.Q.
Step 6.
Step 7.
Click on Next. If you are unable to do this you can manually enter the Print Server by
using two backlashes, the IP address, one backlash and the port name of you printer.
You will now be asked to select a printer to install.
TEW-P1PG F.A.Q.
Step 5. Highlight the Print Server and click on OK to return to the Add Printer Wizard.
If you can not find your printer from the list, click on the Have Disk button and browse to the
printer drivers for your printer (floppy, CD, or downloaded).
Step 8. If you find your printer in the list, click on it and then click on OK. Windows will install the
drivers.
Step 1. Go to Start>Settings>Printers>Add New Printer (Win XP - Start>Printers and
Faxes>Add a Printer).
Step 2. Select Local Printer. Make sure to uncheck Automatically detect and install my plug
and play printer. Click Next.
Step 3. Select Create a New Port and select Standard TCP/IP port. Click Next.
Q: How do I install my printer on Windows 2000/XP?
A:
TEW-P1PG F.A.Q.
Step 9. Once the drivers been installed, click Finish to complete the installation. You may be
prompted for your Windows CD. If you are prompted for the CD, browse to the Win98 f
older on the Windows CD and click on OK
Step 10. After the drivers have been installed for your printer, you will be prompted to print a test
page. Select Yes and click on Finish.
Step 4. Enter the IP address of the router (192.168.0.1). Leave the port name with the default
name. Click Next.
Step 5. You will get a message saying that additional port information required.
Step 6. Select Custom and then click Settings.
TEW-P1PG F.A.Q.
