TRENDnet TEW-P1P Installation guide

F.A.Q TEW-P1P & TEW-P1U

Q: Why doesn't Wireless Setup Wizard detect my print server?

1.If you are using Windows XP you will have to disable the built in firewall. But for all

operating systems you have to disable any other form of firewall software such as Norton

Internet Security, Black Ice, and ZoneAlarm.

Q: How do I change the IP address of my print server?

1. Make sure that on the print server, the switch is set to Diag, unplug the unit for 15

seconds then apply the power. Note: The unit will broadcast its default SSID of WLAN-

PS.

2. Perform a site survey from your wireless network adapter and connect to the WLAN-

PS network.

3. Insert the Setup CD into your CD-ROM drive.

4. Run the setup.exe from Windows 95/98/Me/NT/2000/XP/2003. The Network Print

Monitor for Windows welcome message then appears. Choose Install Setup Utility or

Manual Installation.

5. Choose Install Setup Utility, the program will auto install the Network Print Monitor,

PS Admin and Setup Wizard into your computer. The default installation directory will

be C:\Program files\Network Print Monitor.

03/20/2006

6. After installation completes, the Setup Wizard message appears.

7. Click Wireless Setup Wizard and the following message appears.

8. Click NEXT; the wizard will automatically discover the wireless print server.

03/20/2006

9. Select the print server, which you want to configure and press NEXT.

03/20/2006

10. Select YES if you want to change the configuration and press NEXT then the

following window appears. For communication type please choose Infrastructure. For

SSID, Input the proper SSID of your wireless network. Click NEXT.

11. Choose Enable WEP Encryption as you need, and click NEXT.

03/20/2006

12. Specify a fixed IP address or use dynamic IP address, then click NEXT.

03/20/2006

Q: How do I find the Port Name of the Print Server?

The Port Name is already defined. The port name is lp1.

Q: How do I install my printer on Windows 95/98/ME?

In Windows 98/Me you will need to install the LPR client.

For Windows 98/ME you will also need to know the port name that you are printing to

(The Port Name is the lp1. )

Installing LPR:

Step 1 Once the file is downloaded and extracted, Go to Start > Settings > Control Panel

> double-click on Networks. Click on Add

Step 2 Highlight Client and click on Add.

Step 3 Click on Have Disk > Browse. Browse to the location of the extracted LPR Client.

03/20/2006

Step 4 Click OK 3 times.

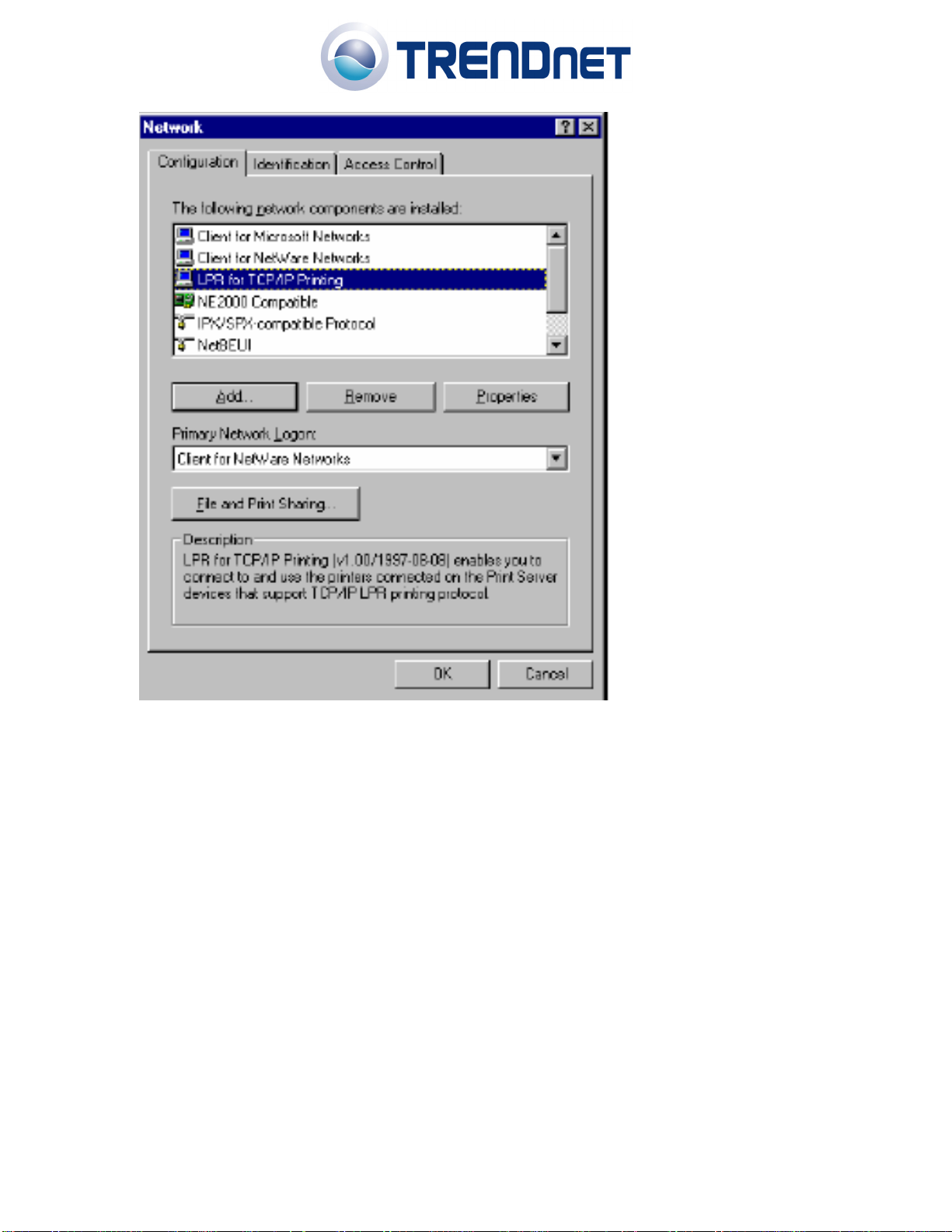

Step 5 From the list highlight LPR For TCP/IP and click on Properties

03/20/2006

Step 6 Click on Add Port

03/20/2006

In the top field type in the IP address of your print server. In the bottom field type in the

port name of your print server, the Port Name is lp1 then click OK.

Step 7 Click on OK. Windows will ask you to restart. Click Yes.

LPR is now properly installed on your computer.

Printer Installation

Step 1 Open your printers folder. Go to Start > Settings > Printers.

Step 2 Double-click on the Add Printer icon, which will launch the Add Printer

Wizard.

03/20/2006

Select Network Printer and click on Next.

Step 3 Click on the Browse button and browse to the print server.

03/20/2006
