TRENDnet TU2-ET100 User manual
Copyright ©2005. All Rights Reserved. TRENDware International, Inc.
TRENDnet
TRENDware, USA
What's Next in Networking
TU2-ET100
Version 01.26.05
USB 2.0 Fast Ethernet Adapter
Quick Installation Guide
GAdaptateur Fast Ethernet USB 2.0
Guide d'installation rapide
USB 2.0 Fast-Ethernet-Adapter
Kurzanleitung zur Installation
Guía de instalación rápida del
adaptador Fast Ethernet con USB 2.0
Table of Contents
English ......................................................................................................
Troubleshooting ........................................................................................
1
1
2
3
4
14
1. Prepare for Installation ......................................................................
2. Product Detail ....................................................................................
3. Hardware Installation .........................................................................
4. Driver Installation ...............................................................................
Thank you for purchasing TRENDnet's TU2-ET100 USB 2.0 Fast Ethernet
Adapter.
This guide will help you set-up your USB 2.0 Fast Ethernet Adapter. Following
the installations should be quick and easy. If you run into problems, please
refer to the Troubleshooting section. If you need further technical support,
please visit www.TRENDNET.com or call technical support by phone.
Verify Package Contents
Please make sure you have everything in the box:
1
1. Prepare for Installation
English QIG
English
Minimum System Requirements
1. Pentium 300Mhz or faster with at least 64MB RAM
2. Computer with an available USB slot
3. Windows XP, 2000, ME, 98SE
TU2-ET100 CD-ROM Quick Installation Guide
Copyright ©2005. All Rights Reserved. TRENDware International, Inc.
TRENDnet
TRENDware, USA
What's Next in Networking
TU2-ET100
Version 01.26.05
USB 2.0 Fast Ethernet Adapter
Quick Installation Guide
GAdaptateur Fast Ethernet USB 2.0
Guide d'installation rapide
USB 2.0 Fast-Ethernet-Adapter
Kurzanleitung zur Installation
Guía de instalación rápida del
adaptador Fast Ethernet con USB 2.0
2
2. Product Detail
The USB 2.0 Fast Ethernet Adapter has one RJ-45 connector, an LED for
network activity and an attached USB cable.
English
LED for network activity
RJ-45 connector
Attached USB cable
3
3. Hardware Installation
1. Turn on your computer and allow your operating system to fully load into the
system.
2. Connect the Type-A connector of your TU2-ET100 into a USB slot of your
desktop or notebook.
English
3. Connect one end of the CAT-5 cable into the TU2-ET100's RJ-45 port, and
connect the other end into your switch, router, cable modem, or DSL modem.
4
4. Driver Installation
English

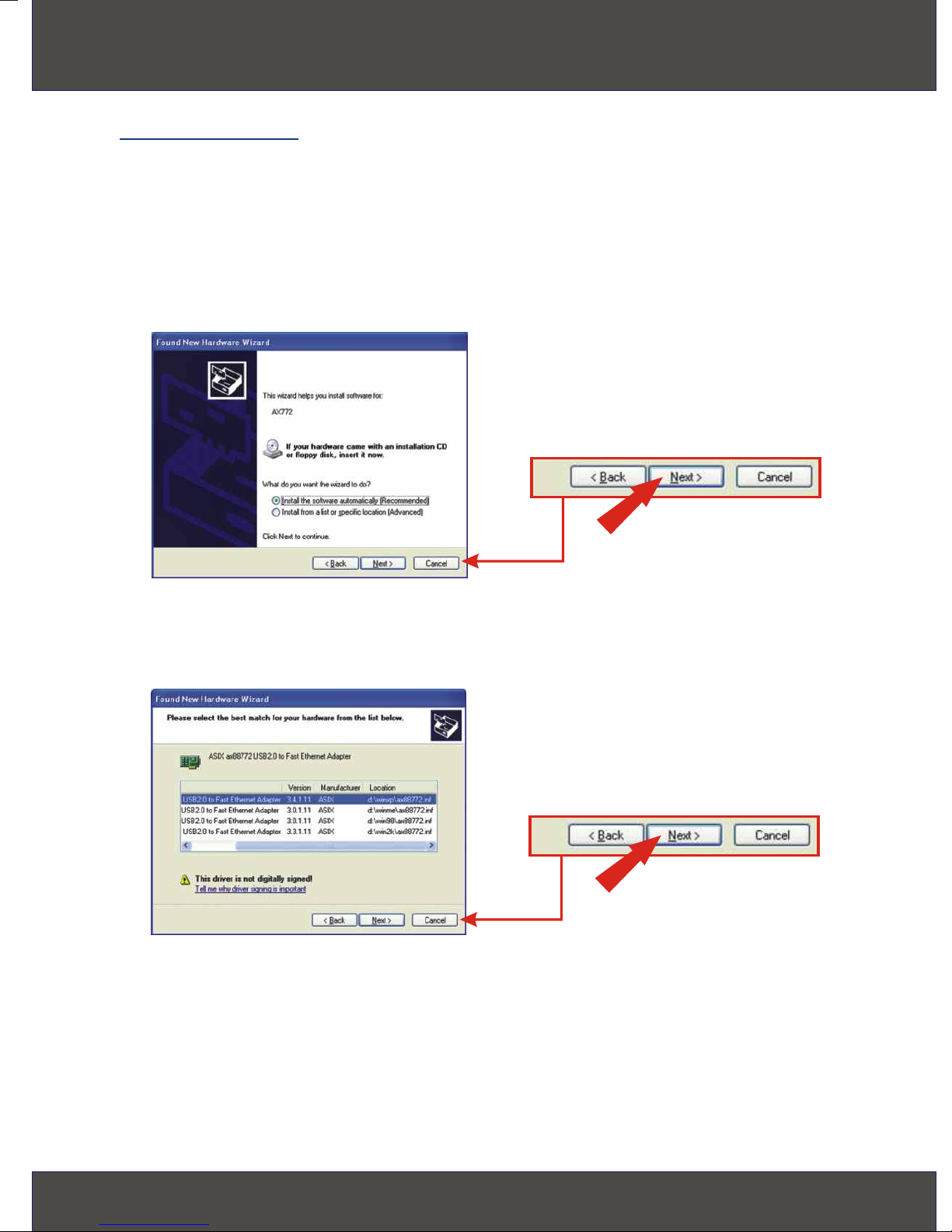

Windows XP
After inserting the TU2-ET100 into one of your USB ports, the “Found New
Hardware” message appears. Please insert the TU2-ET100 Driver CD-ROM
into your computer's CD-ROM drive.
1. Click Install the software automatically (Recommended) and Click Next.
2. Select d:\winxp\ax88772.inf and Click Next.
5English
NOTE: TRENDnet's USB 2.0 Fast Ethernet Adapter has been fully
tested under all supported Windows Operating Systems and has been
approved for their functionality; click Continue Anyway.
3. Click Finish.
Your driver installation is now complete.
6English

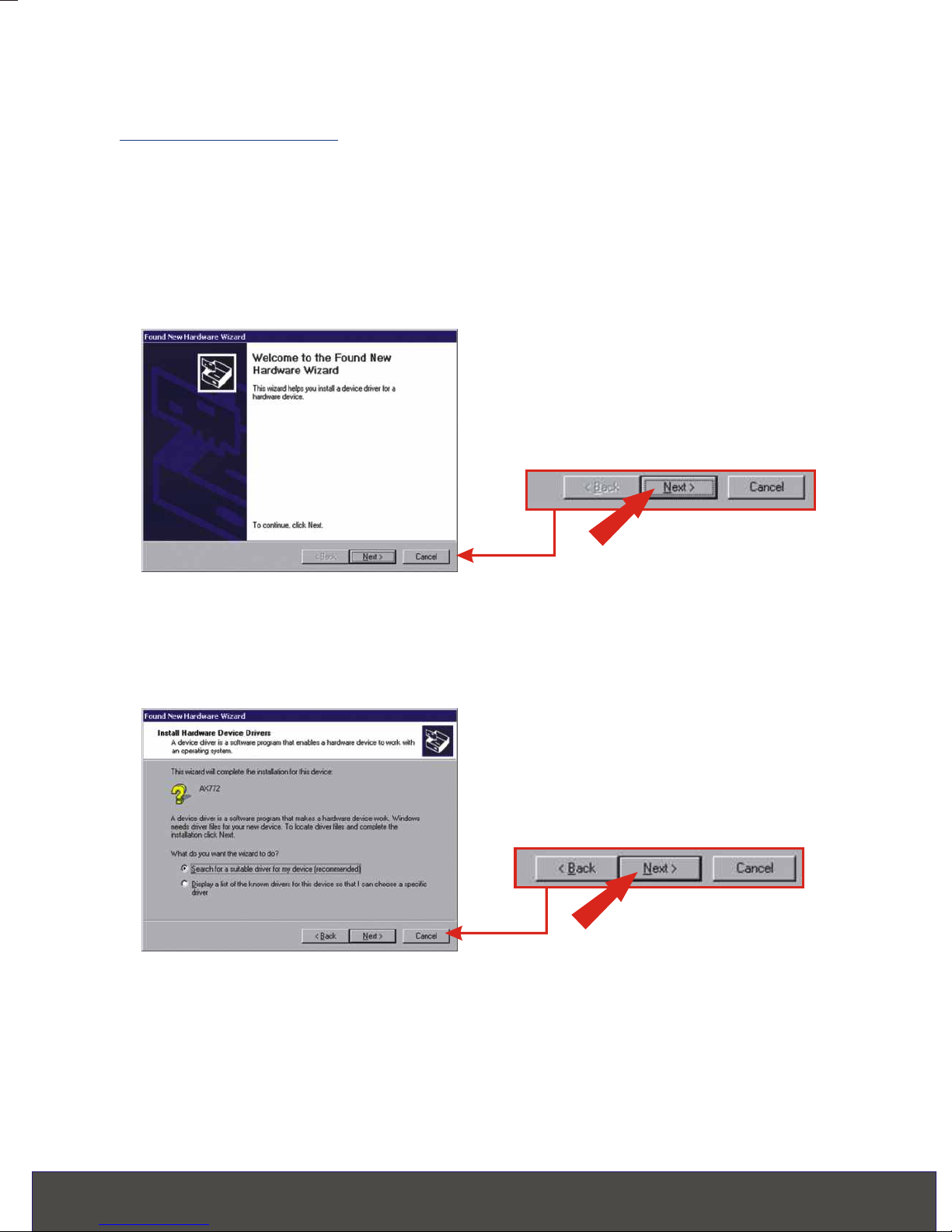

After inserting the TU2-ET100 into one of your USB slots, the “Found New
Hardware” message appears.
1. Insert the TU2-ET100 Driver CD-ROM that came with this product. Click
Next.
2. Select Search for suitable driver for my device (recommended) and Click
Next.
Windows 2000
7English

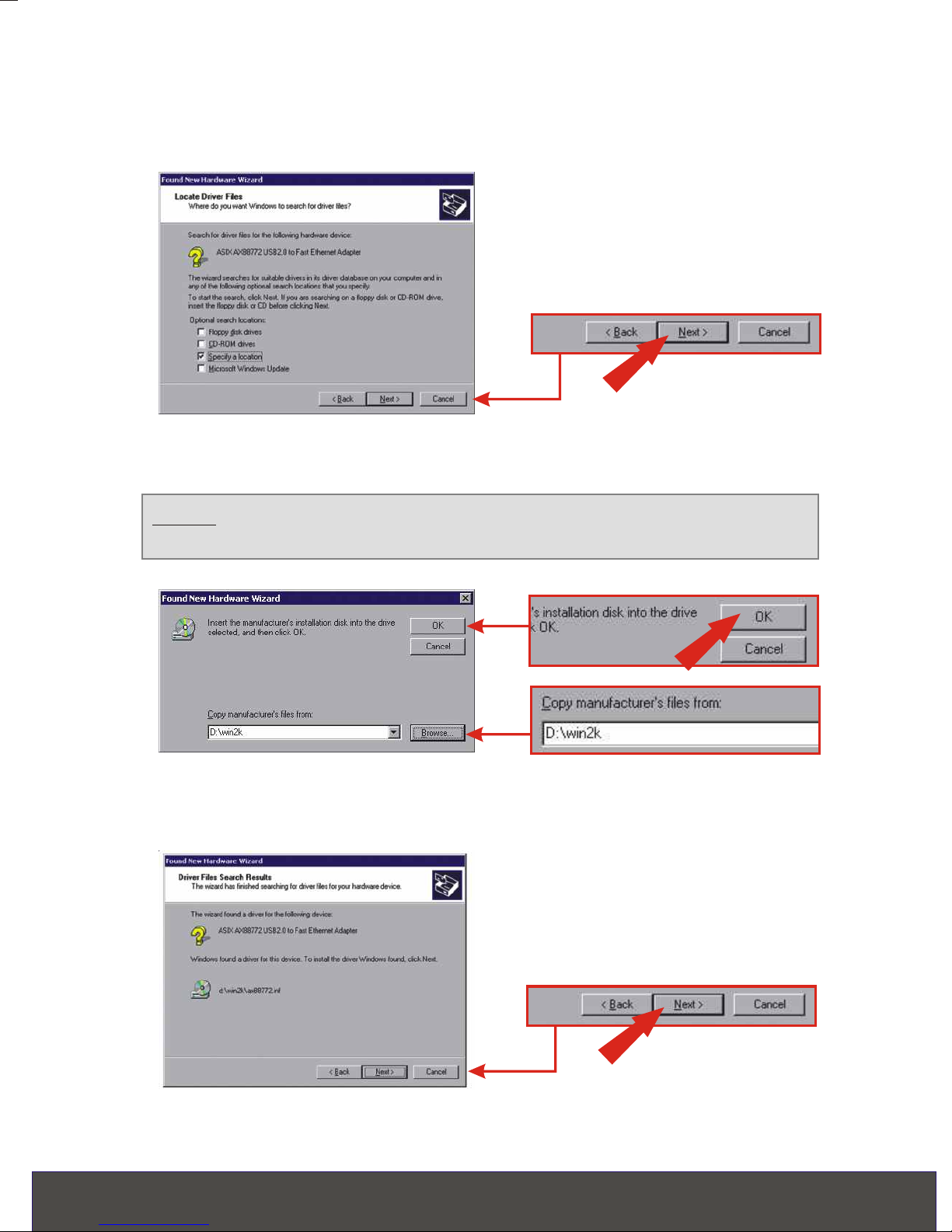

3. Select Specify a location and Click Next.
4. Type D:\win2k in the text box and Click OK.
5. Click Next.
NOTE: Replace “D” in “D:\win2k” with whichever letter is assigned to
your CD-ROM drive.
8English
NOTE: TRENDnet's USB 2.0 Fast Ethernet Adapter has been fully
tested under all supported Windows Operating Systems and has been
approved for their functionality; click Yes.
6. Click Finish.
Your driver installation is now complete.
