TRENDnet TU-ET10 User manual

TRENDnet

TU-ET10

Universal Serial Bus

Ethernet Adapter

USER's Guide

FCC Certification

Part 15, Class B

FCC ID: MQ4USB10TA

The United States Federal Communication

Commission (FCC) and the Canadian

Department of Communications have

established certain rules governing the use of

modems and other electronic equipment.

FCC Part 15 Registration

This modem complies with Part 15 of FCC rules.

Operation is subject to the following two

conditions:

1) This device may not cause harmful interface,

and

2) this device must accept any interface

received, including interface that may

cause undesired operation.

This equipment has been tested and found to

comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable

protection against harmful interference in a

residential installation. This equipment

generates, uses and can radiate radio frequency

energy, and if not installed and used in

accordance with the instructions, may cause

harmful interference to radio communications.

However, there is no guarantee that interference

will not occur in a particular installation. If this

equipment does cause harmful interference to

radio or television reception, which can be

determined by turning off and on, the user is

encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the distance between the

equipment and receiver.

• Connect the equipment into an outlet on a

circuit different from that to which the

receiver is connected.

Now you can experience a true plug-and-play

Network device easier than ever. The USB

(Universal Serial Bus) Network Adapter allows

you to connect a 10Mbps network from an

USB-enabled PC, notebook, or USB HUB.

With instant hardware recognition from

Windows 98 and “Hot Swap” feature from USB

specification, you don’t need to be a MIS

specialist to operate it. Just simply hook up the

USB cable at one end and plug a standard twist

pair (RJ45) network cable in the other end, and

you will be networked within no time!

Package Contents:

 USB Network Adapter

 One USB cable

 One Driver Disk

 User’s guide

Hardware Installation

Note: Before you install USB LAN adapter,

please check the USB port is in your PC and

enabled. You need to have USB port enabled to

continue the next step. Otherwise, please

STOP this installation.

Hardware Recognition

To properly install the USB LAN adapter, it is

very important to recognize the USB hardware.

1. USB Cable

USB cable has two ends – One has rectangular

plug, or called A-Type connector; another one

has a square plug, or called B-type connector.

2. USB LAN Adapter

USB LAN adapter has two ports. One port is

USB B-type port and the other is RJ45

Networking port – it looks like an over-sized

phone jack.

Hardware Installation Procedure –

Step 1 -- Make sure the PC is powered on and

run Windows 98.

Step 2 -- Connect cable B-type plug into

adapter’s B-type port.

Step 3 – Insert USB A-type cable into the PC’s

USB port.

Step 4 – Connect the adapter to a 10Mbps or

10Mbps/100Mbps auto-sensing HUB.

Before you go any further, please note that

your USB LAN adapter can ONLY work with

Windows 98. If you don’t have Windows 98

installed, please STOP now.

Windows 98 Setup

Note: Before you begin the driver installation,

please make sure disable any network card

currently installed into your system. And, have

your Windows 98 CD-ROM copy handy.

Step 1: Install the USB LAN Adapter into your

PC or Notebook

Step 2: Start up your computer and Windows 98

Step 3: Windows 98 will show a” New

Hardware Found” window. Click “Next”

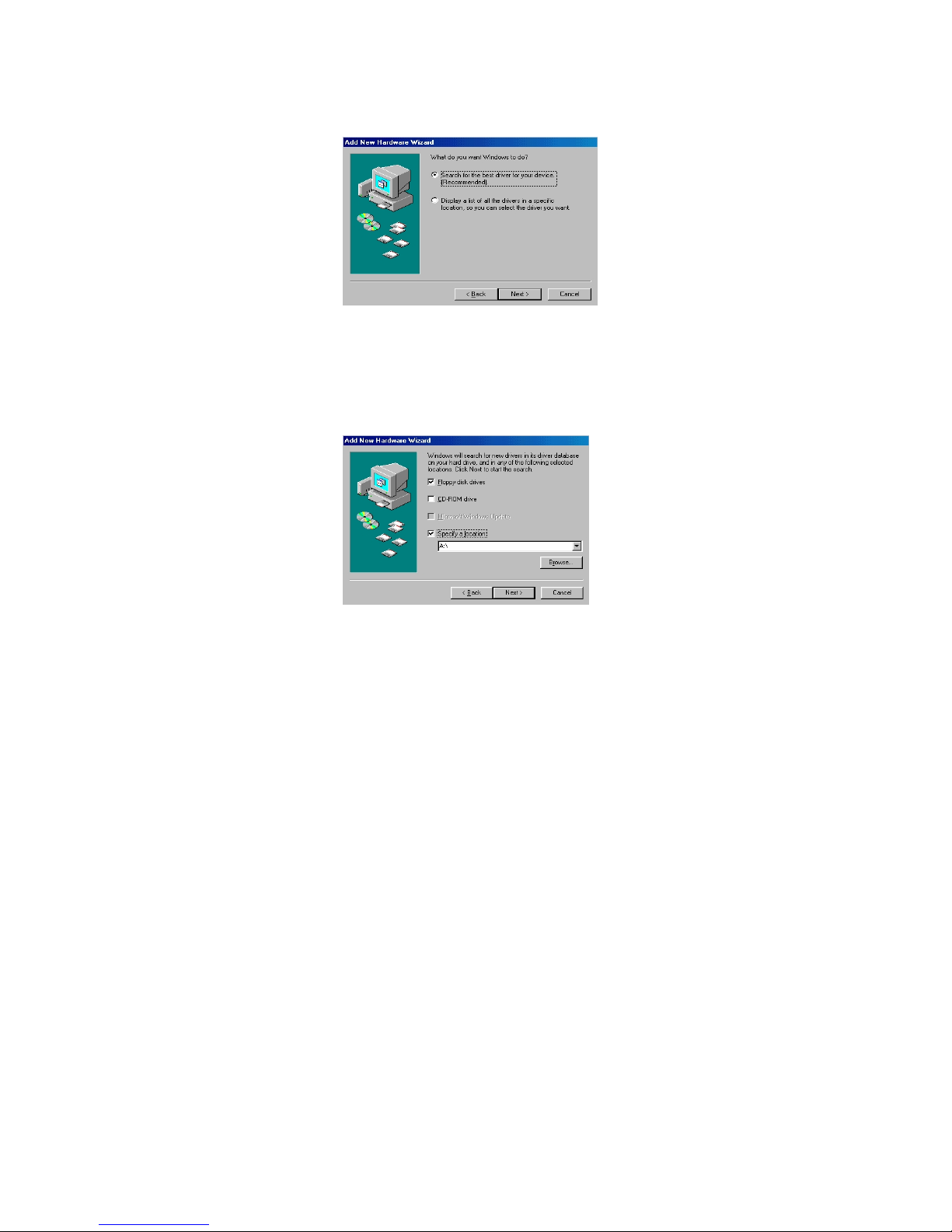

Step 4: Put the USB Network Adapter program

diskette into Driver A and select “Search for the

best driver for your device (Recommended).”

Click “Next.”

Step 5: Windows 98 will ask you to indicate the

best driver. Make sure the floppy disk driver is

selected and drive a:\ is specified. Click “Next”

to continue.

Step 6: Windows 98 will search the specified

driver and start the download the driver. Click

“Next” to continue.

Step 7: When Windows 98 finish the driver

installation, click “Finish” button.

Step 8: Then Windows will ask you to restart

your computer. Click “No” to continue.

Step 9: Once you are back at the desktop, click

on the “Start” button. Then click on ”Settings,”

then “Control Panel.”

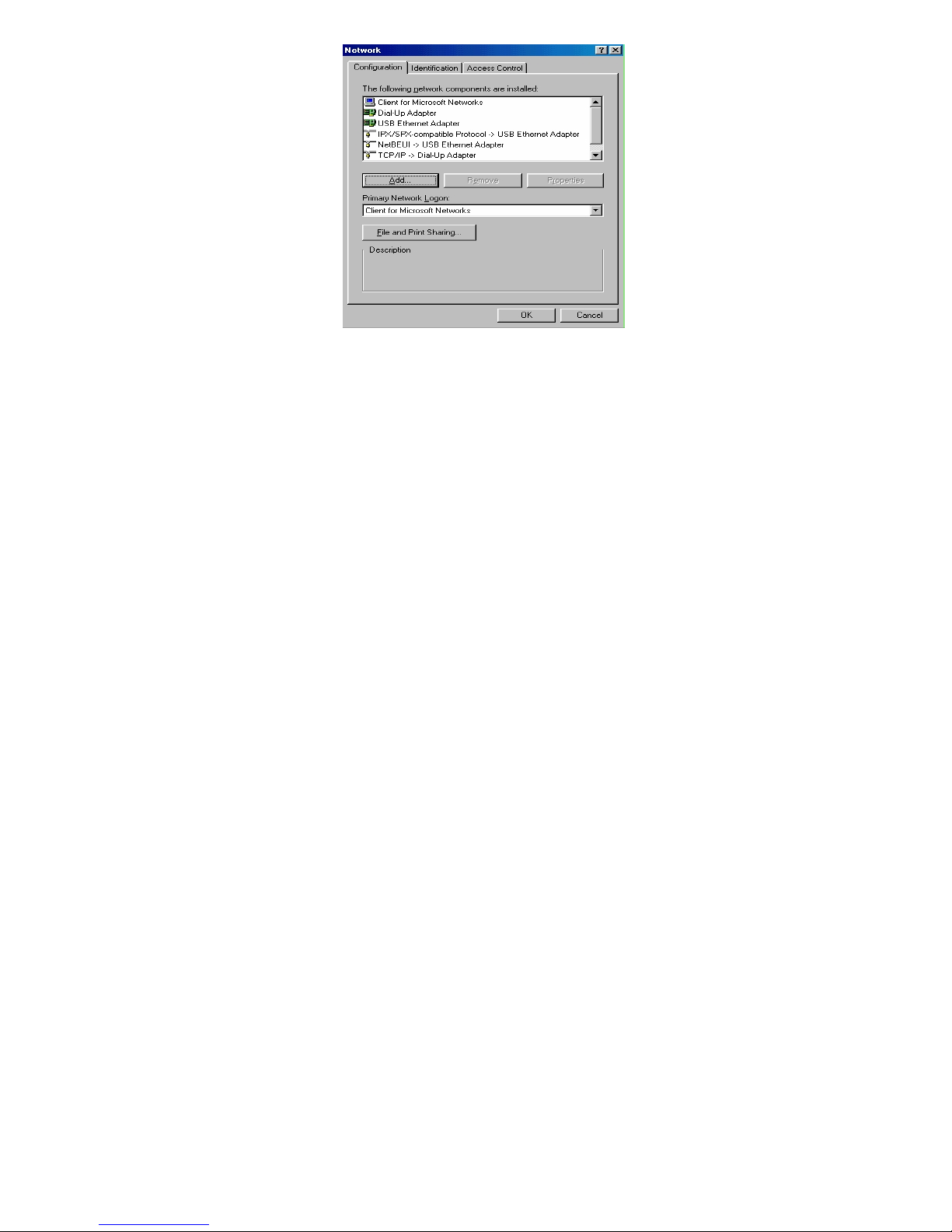

Step 10: Double-click the Network icon. Then

select “Configuration” tab. Make sure the

network components are installed.

Step 11: Now you can select the network

protocol. After that the system restart your

computer to let the setting be permanent.

LED Indicator

 Link: Indicates a good linkage between the

ALN adapter and supporting HUB or

Switch

 Activity (Tx/Rx): Flash when data is

transmitting between network.
