TRENDnet TEW-648UBM User manual

TRENDnet User’s Guide

Cover Page

TRENDnet User’s Guide

Table of Contents

Contents

Product Overview............................................................................ 1

Package Contents........................................................................................................1

Features......................................................................................................................1

Installing your Wireless Adapter ...................................................... 2

Windows® OS Installation ...........................................................................................2

Mac® OS Installation ...................................................................................................6

Connect to your wireless network using WPS ................................ 11

Windows® OS............................................................................................................11

WPS connection using the built in utility (Virtual Push Button) .............................11

Mac® OS ...................................................................................................................12

WPS connection using the built in utility (Virtual Push Button) .............................12

Technical Specifications................................................................. 14

Troubleshooting ............................................................................ 15

Appendix ....................................................................................... 16

TRENDnet User’s Guide

TEW-648UBM

Product Overview

TEW-648UBM

Package Contents

The package includes:

TEW-648UBM Micro N150 Wireless USB Adapter

CD-ROM (Drivers and User’s Guide)

Quick Installation Guide

If any package contents are missing or damaged, please contact the retail store, online

retailer, or reseller/distributor that the item was purchased.

Features

TRENDnet’s Micro N150 Wireless USB Adapter, model TEW-648UBM, connects a laptop

or desktop computer to a high-speed WiFi N network. Seamlessly stream video,

download files, and play games with this ultra-compact wireless n adapter. WiFi

Multimedia Quality of Service prioritizes important video, audio, and gaming traffic.

Easy Setup

Get up and running in minutes with the intuitive guided setup

N150 WiFi

Connect your laptop or computer to high-speed WiFi N150 to download files, play

games, stream video, and more.

Wireless Encryption

Supports up to WPA2 encryption

Ultra-Compact Design

Micro design length is just over a quarter inch (7mm)

Operating Systems

Compatible with Windows® and Mac® operating systems

TRENDnet User’s Guide

TEW-648UBM

Installing your Wireless Adapter

This section describes how to install the software driver for the wireless adapter.

Windows® OS Installation

Supported operating systems: Windows® 10, 8.1, 8, 7, Vista, XP

For any updates, please check the TRENDnet website www.trendnet.com.

1. Insert the included CD-ROM into your computer’s CD-ROM drive.

Note: If you do not have the included CD-ROM, you can download the drivers from

http://www.trendnet.com/support/.

2. At the CD Autorun Prompt window, click Run Autorun.exe.

Note: If the Autorun prompt does not appear automatically, open the CD contents and

double-click Autorun.exe.

At the CD-ROM main menu, click Install Drivers.

Note: During the installation, you might see these warning message, please select

continue anyway to install the software.

(Windows 10)

TRENDnet User’s Guide

TEW-648UBM

3. Select a language preference from the options provided.

4. Follow the InstallShield Wizard Instructions.

5. You will be prompted to accept the end user license agreement. Select I accept

the terms of the license agreement and click Next.

6. Wait for the driver installation to complete. This may take a few minutes.

Note: If you do not receive a security prompt, continue to the next step. If prompted,

click Install this driver software anyway.

TRENDnet User’s Guide

TEW-648UBM

7. Click Finish to restart the computer.

8. After the computer is rebooted, plug the Wireless N USB Adapter into an

available USB slot on your computer.

Link/Activity LED

Blinking On

A steady blinking LED means that the network adapter has

been successfully installed.

Fast Blinking

When the LED is blinking fast, the network adapter is

transmitting or receiving data.

Off

When the LED is off, the network adapter has not been

correctly installed.

9. Click on the wireless icon in the taskbar located in the bottom right corner.

TRENDnet User’s Guide

TEW-648UBM

10. Click on the wireless network you would like to connect and click Connect.

11. Enter the WiFi Key (password) and click Next.

12. The status will display “Connected” to indicate a successful connection.

Note: If the connected message does not display, double check your WiFi key (password)

and re-enter it.

TRENDnet User’s Guide

TEW-648UBM

Mac® OS Installation

Supported operating systems: Mac® OS 10.7-10.12

For any updates, please check the TRENDnet website www.trendnet.com.

1. Insert the included CD-ROM into your computer’s CD-ROM drive.

Note: If you do not have the included CD-ROM, you can download the utility and drivers

from http://www.trendnet.com/support/

2. Open the folder named “Mac” on the included Utility and Driver CD ROM.

3. Open the folder according to the Mac® OS version you are running. For Mac® OS 10.7-

10.12, the folder will be named “Mac OS 10.7-10.12”.

4. Double click the Installer.pkg file to start the installation.

TRENDnet User’s Guide

TEW-648UBM

5. At the Introduction window, click Continue.

6. At the Read Me window, click Continue.

TRENDnet User’s Guide

TEW-648UBM

7.At the License Agreement window, click Continue.

8. When prompted, click Agree.

9.At the Install window, click Install.

Other manuals for TEW-648UBM

Table of contents

Other TRENDnet Adapter manuals

TRENDnet

TRENDnet TPL-331EP User manual

TRENDnet

TRENDnet TU2-ET100 User manual

TRENDnet

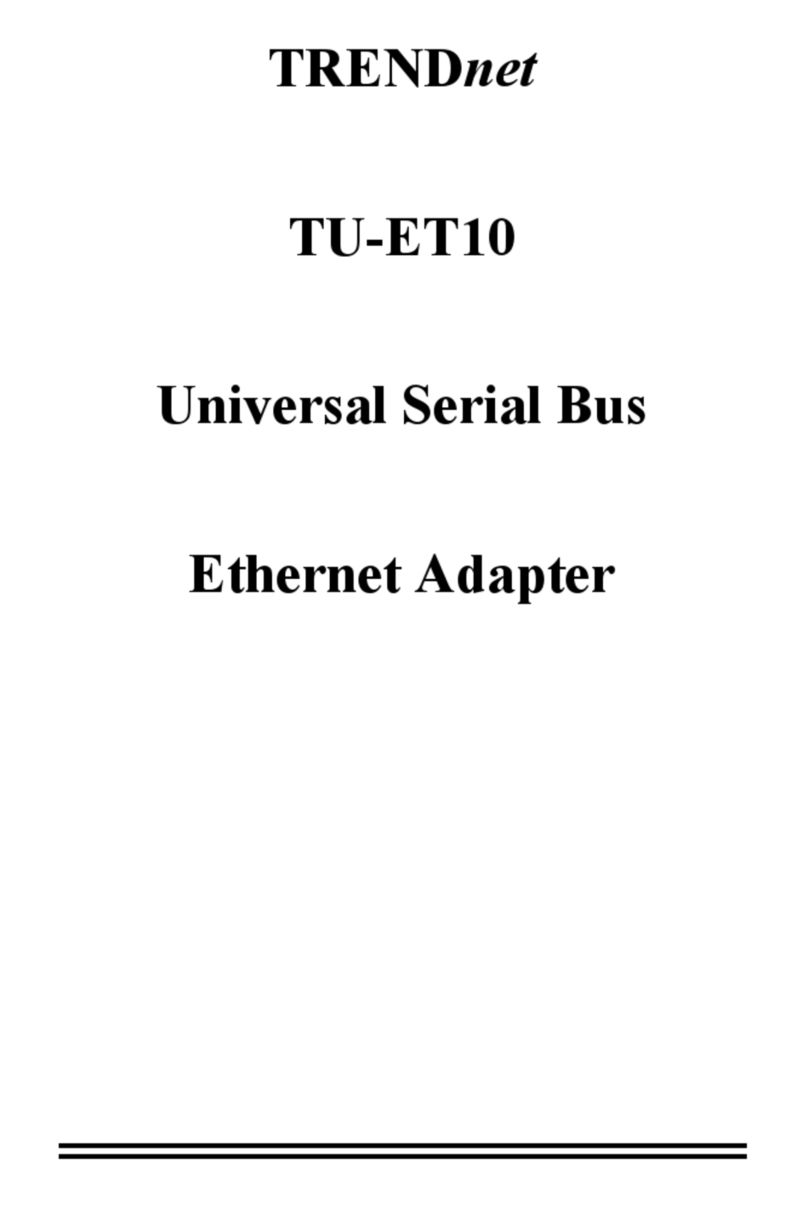

TRENDnet TU-ET10 User manual

TRENDnet

TRENDnet HotFlash TEW-429UF User manual

TRENDnet

TRENDnet HotFlash TEW-429UF User manual

TRENDnet

TRENDnet TBW-101UB User manual

TRENDnet

TRENDnet TU2-ETG User manual

TRENDnet

TRENDnet TEW-805UB User manual

TRENDnet

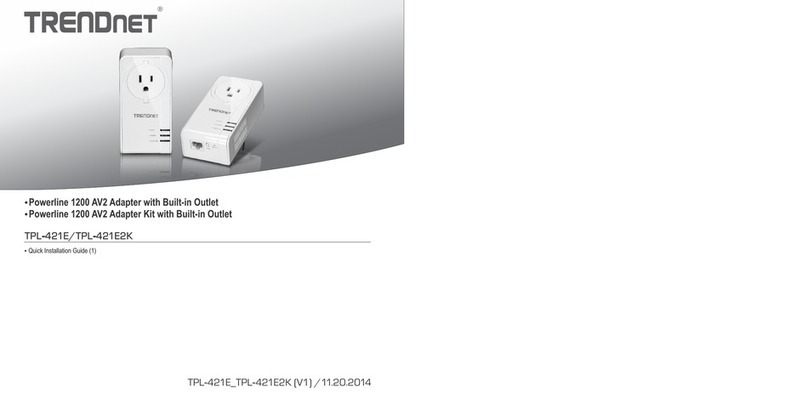

TRENDnet TPL-421E User manual
