TRENDnet TEG-ECTX User manual

TEG-ECTX

TEG-ECSX

1.01

Windows 7 Quick Installation Guide

Table of Contents

Version 11.18.2009

English 1

1. Before You Start

2. Hardware Installation 2

Troubleshooting 4

ENGLISH

1. Before You Start

?CPU: 1GHz or above

?Memory: 1GB or above

?RJ-45 Ethernet cable (TEG-ECTX)

?50/125ìm or 62.5/125ìm multi-mode fiber cable (TEG-ECSX)

PCI Express 1.0a slot

Application

Gigabit

24-Port Gigabit

Web Smart Switch

(TEG-240WS)

300Mbps Wireless N

Gigabit Router

(TEW-633GR)

1000Base-T to 1000Base-SX

Multi-Mode SC Fiber Converter

(TFC-2000MSC)

Internet

Cable/DSL

Modem

Gigabit Fiber PCI

Express Adapter

(TEG-ECSX)

Gigabit PCI

Express Adapter

(TEG-ECTX)

Package Contents

TEG-ECTX/TEG-ECSX

Multi-Language Quick Installation Guide

CD-ROM (Driver & User’s Guide)

System Requirements

ENGLISH

2. How to Installation

1. Go to

http://www.trendnet.com/download.

From the Select Product dropdown

list, scroll down until you see TEG-

ECTX or TEG-ECSX. Then click

Go. Select the hardware version of

your TEG-ECTX/TEG-ECSX, click

the Windows 7 driver link and save

the drivers to your computer.

3. Click Next. Then follow the

InstallShield Wizard instructions.

2. Browse the Windows 7 drivers

folder until you see the Setup.exe

icon. Double click on the

setup.exe icon.

Note:

1. DO NOT install the TEG-ECTX/TEG-ECSX in the computer until

instructed to do so.

2. You will need to uncompress the drivers after you download it.

4. Click OK.

ENGLISH

9. Drivers will install automatically.

7. Shutdown your computer and then

open your computer's case.

8. Insert the PCIE card firmly into an

available PCIe slot, and then turn

ON the computer and wait until the

Windows desktop appears.

5. Click Finish.

Your Installation is complete

To ensure the highest level of customer service and support, please take a moment to

Thank you for choosing TRENDnet

For detailed information regarding the configuration and advanced

settings, please refer to the Troubleshooting section, User's Guide on the Utility CD-ROM, or

TRENDnet's website at http://www.trendnet.com.

TEG-ECTX/TEG-ECSX

Troubleshooting

Windows doesn't recognize my new hardware. What should I do?

erify that your computer meets the system requirements as specified in

Section 1.

2. Go to Start -> Control Panel -> System > Hardware ->

Device Manager. In the list of device types, double-click on Network

Adapters. If you see the device with a yellow question mark or exclamation

point next to it, double-click on it, click on Drivers and click Update Drivers.

3. If the device manager fails to recognize the presence of a new networking

adapter, verify that the network adapter is firmly seated in the PCIE Slot.

Windows recognizes my new hardware, but I'm unable to connect to my network.

What should I do?

Verify that the cable is securely connected from your switch or router to

your network adapter.

2. Verify that the LEDs on your network card are lit. Third, verify that the TCP/IP

settings are set to Obtain an IP address automatically.

Why am I only getting a network connection speed of 100Mbps instead of

1000Mbps for the TEG-ECTX?

1. Check the Ethernet Cable. Make sure you are using CAT-5e or CAT-6 E

thernet Cables. Some CAT-5 cables are not rated to run in Gigabit.

2. Make sure you are connected to a 1000Mbps switch.

I am not getting a network connection when I connect the TEG-ECSX to my

network. What should I do?

1. Check the fiber cable. Make sure you are using 50/125ìm or 62.5/125ìm multi-

mode fiber cable.

2. Make sure that the opposing connection is Gigabit multi-mode fiber connection.

The TEG-ECSX will not auto negotiate to 10 or 100Mbps.

What is the maximum distance that is supported by the adapters?

TEG-ECTX: 100 Meters. TEG-ECSX: 550 meters.

If you still encounter problems or have any questions regarding the TEG-ECTX/TEG-

ECSX, please contact TRENDnet's Technical Support Department.

1. V

Certifications

This equipment has been tested and found to comply with FCC and CE Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received. Including interference that may

cause undesired operation.

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV

INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS

EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO

OPERATE THE EQUIPMENT.

Waste electrical and electronic products must not

be disposed of with household waste. Please

recycle where facilities exist. Check with you Local

Authority or Retailer for recycling advice.

ADVERTENCIA

En todos nuestros equipos se mencionan claramente las caracteristicas del adaptador de

alimentacón necesario para su funcionamiento. El uso de un adaptador distinto al

mencionado puede producir daños fisicos y/o daños al equipo conectado. El adaptador

de alimentación debe operar con voltaje y frecuencia de la energia electrica domiciliaria

existente en el pais o zona de instalación.

Product Warranty Registration

Please take a moment to register your product online.

Go to TRENDnet’s website at http://www.trendnet.com/register

Other manuals for TEG-ECTX

This manual suits for next models

Table of contents

Other TRENDnet Adapter manuals

TRENDnet

TRENDnet TEW-444UB User manual

TRENDnet

TRENDnet TPL-302E2K - Powerline AV Fast EN Adapter User manual

TRENDnet

TRENDnet TEW-USB User manual

TRENDnet

TRENDnet TU2-ETG User manual

TRENDnet

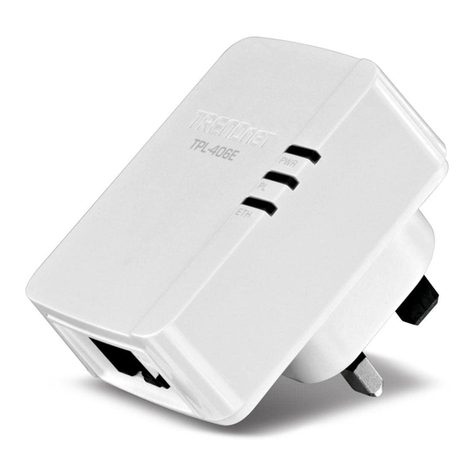

TRENDnet TPL-406E User manual
