TRENDnet TBW-106UB User manual

The Micro Bluetooth USB Adapter (Model TBW-106UB) networks

Bluetooth enabled devices such as cell phones, keyboards and

headsets.

The size of a penny, simply plug this micro-device into an available USB

port on your laptop or desktop and experience exceptional Bluetooth

connectivity.

Connect as many as 7 Bluetooth devices at distances of up to 100m

(328ft). Enhanced Data Rate (EDR) technology transfers your data

quickly. Adaptive Frequency Hopping (AFH) minimizes interference from

other wireless technologies. This compact device also provides secure

encrypted data communication.

TBW-106UB

Micro-Bluetooth USB Adapter

TBW-106UB

rev: 02.03.2010

• Connect Bluetooth-enabled devices such as printers, headsets, audio/video devices and mobile phones

• Compliant with Class I Bluetooth v2.0 and V2.1 specifications

• Enhanced Data Rate (EDR) support

• Bluetooth IVT software technology

• Adaptive Frequency Hopping (AFH) support

• Enhanced SCO (ESCO) for crisp and clear voice quality

• Compatible with Windows Vista/98SE/ME/2000/XP and Media Center Edition operating systems

• Communicates wirelessly up to 100 meters (328ft.) (depends on environment)

• Trouble free Plug-n-Play Installation

• 2-Year Limited Warranty

FEATURES

Antenna

Data Range

Supported OS

Operating Voltage

Temperature

Humidity

LED Indicator

Module Technique

Frequency

RF Output Power

Receiving Sensitivity

Data Rate

Profile Support

• Class I Bluetooth v2.0 with EDR • USB 2.0 • Backward Compatible with Bluetooth v1.1, v1.2 and USB1.1and V2.1

• 1.8g (0.063 oz.)

• DUN (Dial-up Networking)

• FAX Profile, BPP ( Basic Printing Profile)

• Internal

• Enhanced data rate: up to 3Mbps

• Windows Vista/XP/2000/ME/98SE

• Typical: 95mA; idle: 12mA • Tx max: 136mA @19dBm; Rx max: 45mA

• Single LED activity/connection

• 19 x 12 x 5.5 mm (0.75 x 0.47 x 0.22 in.)

• Operating: 0° ~ 40° C (32° ~ 104° F) • Storage: -10° ~ 65° C (-14° ~ 149° F)

• 5%~95%RH (no-condensation)

• GFSK (Gaussian Frequency Shift Keying). ð/4 DQPSK, 8DPSK

• 2.4 ~ 2.4833 GHz

• -6~4dBm (typical)

• 128 bit data encryption

• - 82dBm ( typical)

Dimensions

Weights

Bluetooth

Standards

Hardware

• LAP (LAN Access Profile)

• A2DP (Advanced Audio Distribution Profile)

• SPP (Serial Port Profile)

• GAP (Generic Access Profile)

• HID (Human Interface Device)

• HCRP (Hardcopy Cable Replacement Profile)

Micro-Bluetooth USB Adapter

TBW-106UB

SPECIFICATIONS

Power Consumption

• 5V (USB bus-powered)

• CE, FCC

Certification

• FTP (File Transfer Profile)

• OPP (Object Push Profile)

• GAVDP (Generic Audio/Video Distribution Profile)

• HSP (Headset Profile)

• PAN (Personal Area Networking)

• BIP (Basic Image Profile)

• GOEP (Generic Object Exchange Profile)

• SYNC (Synchronization Profile)

• AV (Audio Video)

• Basic data rate: up to 723.2Kbps

• Up to 100m (328 ft.)

Encryption

TBW-106UB

rev: 02.03.2010

TRENDnet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDnet

products and is subject to change at any time, without notice. For the most recent product information please visit

http://www.trendnet.com.

Micro-Bluetooth USB Adapter

TBW-106UB

RELATED PRODUCTS

PACKAGE CONTENTS

TBW-105UB

• CD-ROM (Driver & Utility)

Compact Bluetooth USB Adapter

• TBW-106UB

• Multi-Language Quick Installation Guide

ORDERING INFORMATION

NETWORKING SOLUTIONS

20675 Manhattan Place,Torrance, CA 90501 USA

Tel: 1-310-961-5500

Fax: 1-310-961-5511

Web:

Email: [email protected]

1-888-326-6061

www.trendnet.com

* Backwards compatible with USB 1.1 at 12Mbps

Keyboard

Bluetooth

Headset

Printer

(TBW-106UB)

Micro Bluetooth USB Adapter

Cell Phone

Other manuals for TBW-106UB

Other TRENDnet Adapter manuals

TRENDnet

TRENDnet TBW-103UB User manual

TRENDnet

TRENDnet TBW-101UB User manual

TRENDnet

TRENDnet HotFlash TEW-429UF User manual

TRENDnet

TRENDnet TPL-302E User manual

TRENDnet

TRENDnet TPL-4052E User manual

TRENDnet

TRENDnet TEW-726EC User manual

TRENDnet

TRENDnet TPE-101I Instruction Manual

TRENDnet

TRENDnet TEW-647GA User manual

TRENDnet

TRENDnet TEW-644UB User manual

TRENDnet

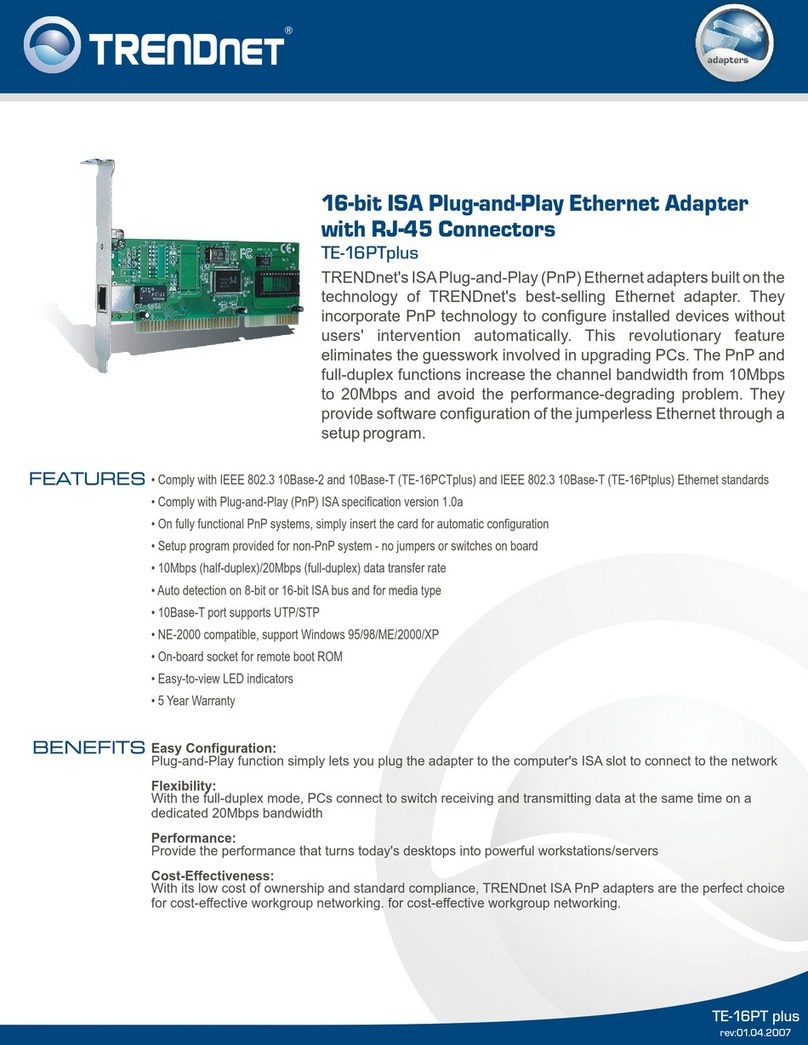

TRENDnet TE-16PTplus User manual
