Transcend Tsonic 820 4GB User manual

TS2G/4GMP820

Description

TS2G/4GMP820 is a 2GB/4GB USB

Flash Drive with 1 pcs of 2Gx8/4Gx8

Flash Memory assembled on the printed

circuit board. It combines a USB Flash

Drive with an MP3 player, AB repeater,

voice recorder and an FM radio.

Outline

Dimensions

Side Millimeters

A 82.00 ± 0.20

B 40.50 ± 0.20

C 12.00 ± 0.20

Features

 1.5-inch (128 x 128 pixel) SuperColor

Display for Playing Videos (.mtv) and

Photos (.jpg, .bmp)

 MP3 Player that supports MP3, WMA,

WMA-DRM10 (subscription music)

and WAV music formats

 Ability to read E-books (.txt)

 FM Radio (FM Radio recording and

the ability to preset 9 FM radio

stations)

 Advanced Digital Voice Recorder

 Karaoke-type lyrics display

 Direct Line-In recording from a CD

Player, or external Microphone

 VAD (Voice Activation Detection), Very

High quality Gapless Audio

Recordings

 Playlist Builder

 A-B repeat function allows you to

continuously replay a designated

section of a track

 Variable Track Playback speeds

 Supports 13 user languages including

song/artist name display

 USB Flash Drive capabilities for data

transfer and storage, plus additional

software

 7 Equalizer effects, including a

customizable USER EQ setting

 Powered using a rechargeable Li-ion

battery (fully charged battery supports

over 15 hours of continuous operation)

 Hi-Speed Mini USB 2.0 port for easy

computer connectivity and fast file

transfers

 Sleep Mode, preset the player to

Auto-Power OFF after 15, 30, or 60

minutes

 Automatic screen saver runs if the unit

is idle for more than a few seconds,

this acts as a battery saving measure

 Real Time Clock (RTC) displays local

and world times

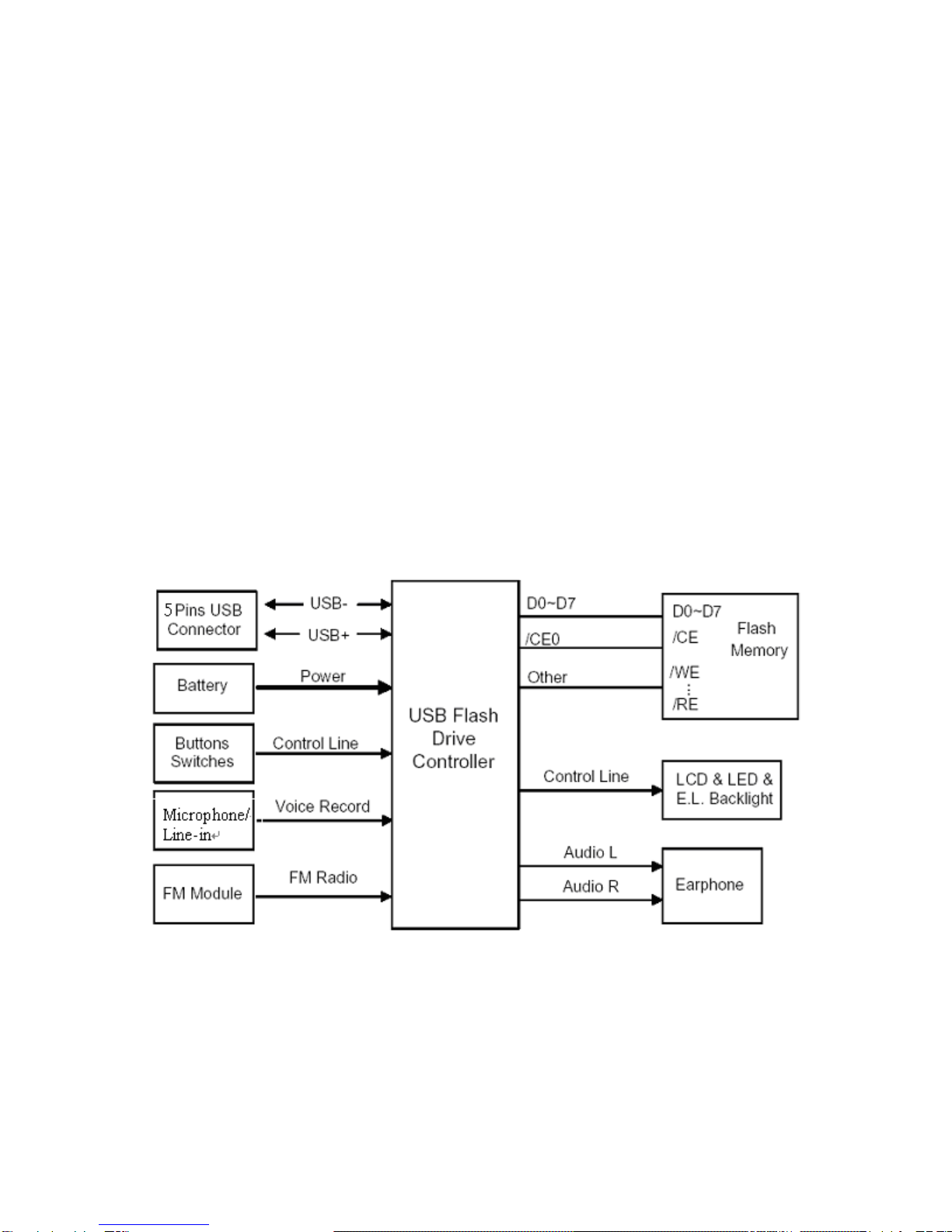

Block Diagram

With 1 pcs of 2Gx8 Flash Memory

1Gx8

2Gx8

4Gx8

Pinouts

Pin No. Pin Name

01 VCC

02 USB-

03 USB+

04 VSS

05 GND

Pin Identification

Symbol Function

USB+

USB- USB differential signal:

The pairs are used to transmit Data/Address/Command

VCC USB Power Input

VSS Ground

GND Ground

Specifications

• Host Interface USB2.0

• Storage 2GB/4GB

• Size: 82 mm × 40.5 mm × 12 mm

• Weight: 45g (with Li-ion battery)

• Data Retention: Up to 10 years

• Erase Cycles: ≧100,000 times

• Signal-to-Noise Ratio: ≧90dB

• Power Supply USB mass storage: DC5V ±10%

MP3 Player: 3.7V Li-ion battery

• Estimated Battery Life: 15 hours (Li-ion battery)

• Music Formats: MP3 and WMA (No DRM support)

• Recording Format: ADPCM (WAV)

• Compression Rates: 32Kbps–320Kbps

• Certificates: CE, FCC, BSMI

• Warranty: 2-years
