Transcend Portable Hard Disk Enclosure TS0MHDENC User manual

2.5” Portable Hard Disk

User’s Manual

Table of Contents

Introduction

Package Contents .............................................................................1

Features................................................................................................ 2

System Requirements ......................................................................2

Hardware Setup...............................................................................3

Driver Installation

Driver Installation for Windows 98/98SE....................................5

Remove 2.5” Portable Hard Disk in Windows

98/98SE ..........5

Uninstall Driver .................................................................................. 6

Using in Windows Me/2000/XP ......................................................6

Remove 2.5” Portable Hard Disk in Windows Me/2000/XP....7

Driver Installation for Mac

OS 8.6~9.0 ........................................8

Driver Installation for Mac

OS 9.0.4 or later .............................8

Using in Mac OS X 10.1.x ................................................................8

Driver Installation for Mac

OS X 10.2.1 or later .......................8

Using the 2.5” Portable Hard Disk in Mac OS ..........................8

Warning....................................................................................................9

Specifications.................................................................................... 9

Ordering Information...................................................................9

Warranty

Introduction

*Note: The 2.5” Portable Hard Disk can only be used with newer 2.5”

HDDs that are 9.5mm high with mounting screw holes located

78mm apart. Older HDDs thicker than 9.5mm or with mounting

screws located 38mm apart will not fit properly within the 2.5”

Portable Hard Disk.

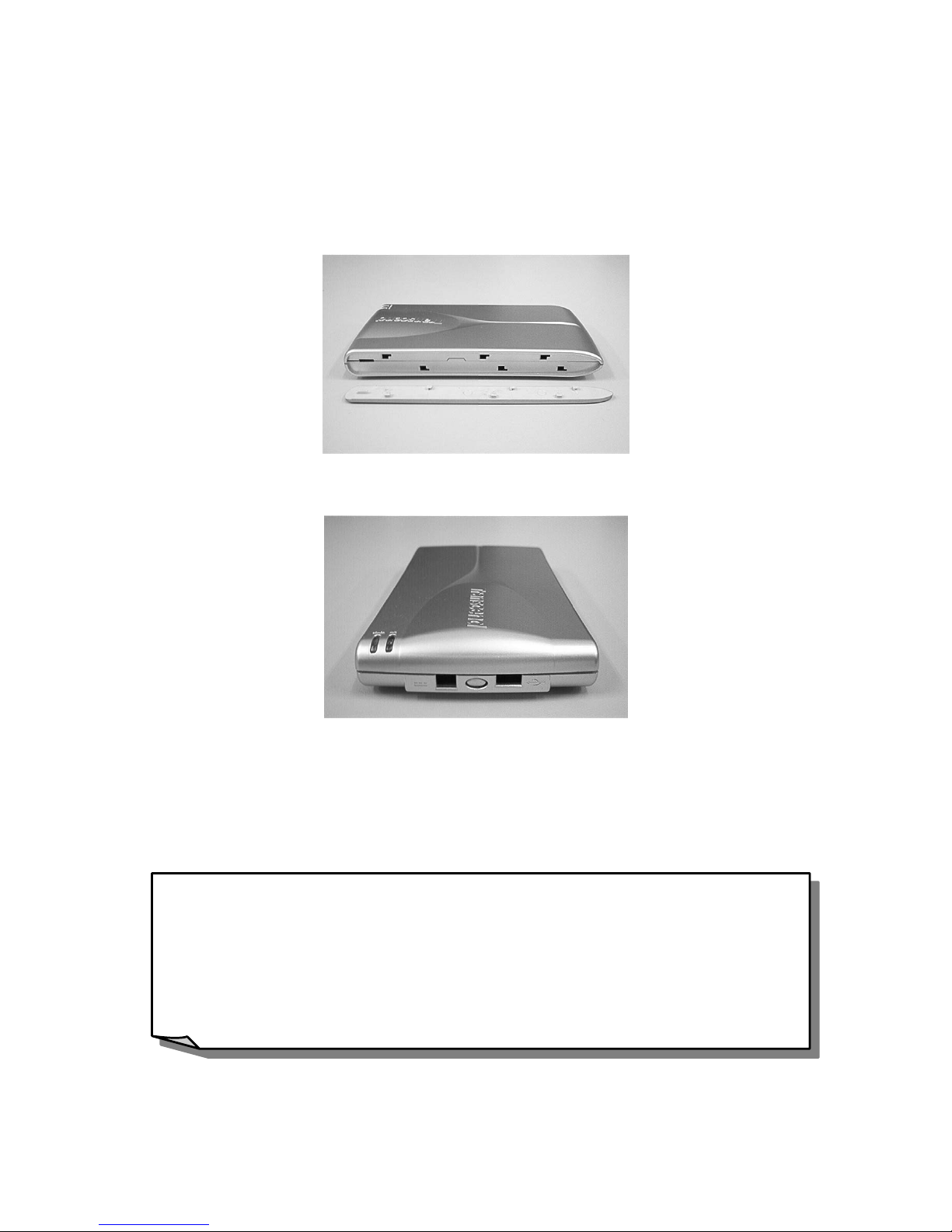

Thank you very much for purchasing the Transcend 2.5” Portable Hard Disk.

This device is designed to expedite exchanging huge amounts of data between

a 2.5” hard disk drive (HDD) installed in the 2.5” Portable Hard Disk and any

desktop or notebook computer. With the astonishing storage capacity and strong

data retention ability available on a 2.5” HDD, the ultra fast data transfer rate,

super high mobility, and impressive appearance of the Transcend 2.5” Portable

Hard Disk, you will enjoy an exciting new user experience.

Package Contents

The 2.5” Portable Hard Disk package should include the following items:

2.5” Portable Hard Disk (no HDD inside for TS0MHDENC)

•

Leather Case

USB Cable

USB Power Cable

Screws

Driver CD

Quick Installation Guide

Features

The 2.5” Portable Hard Disk has the following features:

Fully compatible with USB 2.0 specification

Fully backward compatible with USB 1.1 specification

•

Easy Plug and Play installation

LED indicates Power On and Data Access

High Storage Capacity: Supports up to 160GB HDD

High Transfer Rate: Up to 480Mbits (60MB) per second at high speed

*Note: If your desktop or notebook computer only supports the USB

1.1 specification rather than the USB 2.0 specification, the

data transfer rate of the 2.5” Portable Hard Disk will be

restricted to within 12M bits (1.5MB) per second.

System Requirements

Desktop or notebook computer with USB port and one of following operating

systems (OS) (Some computers may require additional power via a USB port.

Refer to the Note in Hardware Setup.):

Windows 98/98SE

Windows

2000 (No driver needed)

Windows

Me (No driver needed)

Windows XP (No driver needed)

Mac™ OS 8.6 ~ 9.x

Mac™ OS X 10.1.x (No driver needed)

Mac™ OS X 10.2.1 or later

Hardware Setup

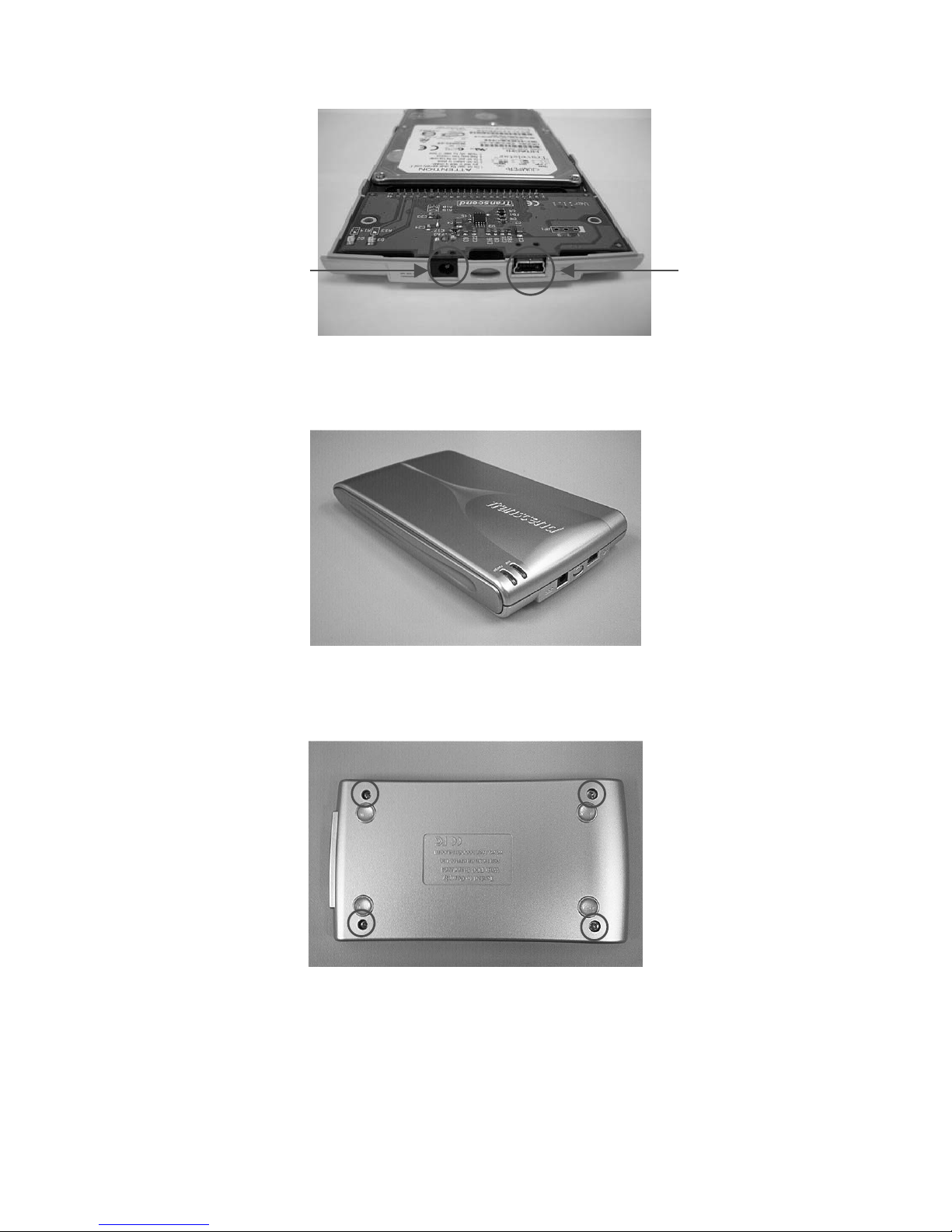

1. Remove the side panels from both sides of the 2.5” Portable Hard Disk by

gripping them and sliding them slightly towards the front until they release

from the case.

2. Push in the latch at the front of the 2.5” Portable Hard Disk and lift off the

cover.

3. Place your HDD into 2.5” Portable Hard Disk and carefully push it back to

securely plug the HDD into the IDE connector. Do not try to insert the HDD

at an angle or you may damage the IDE connectors. The 2.5” Portable

Hard Disk is designed so that the HDD can only be installed one way.

*Note:For some desktop or notebook computers, the 2.5” Portable Hard Disk

won’t work properly due to insufficient power availability from the USB

port. In this event, provide additional power by connecting the USB power

jack of the 2.5” Portable Hard Disk via the USB power cable to the USB

port of your desktop or notebook computer.

4. Reattach the cover and the side panels onto the 2.5” Portable Hard Disk,

firmly seating them in place on the case.

5. Insert screws into the bottom to stabilize the HDD and the other

components within the 2.5” Portable Hard Disk.

6. The 2.5” Portable Hard Disk is now ready for use. Continue with the

appropriate Driver Installation instructions for your OS.

USB Power Port USB Port

Driver Installation

Driver Installation for Windows 98/98SE

1. Power on the computer where you will connect the 2.5” Portable Hard

Disk and make sure the USB port is enabled and working properly.

*Note: If you are using Windows 98/98SE, please don’t connect your

2.5” Portable Hard Disk to the computer until the driver is

installed.

2. Insert the Driver CD into the CD-ROM drive. Run the Setup.exe program

located within folder D:\Driver\Win98 of the Driver CD (Where “D” is the

CD-ROM drive letter).

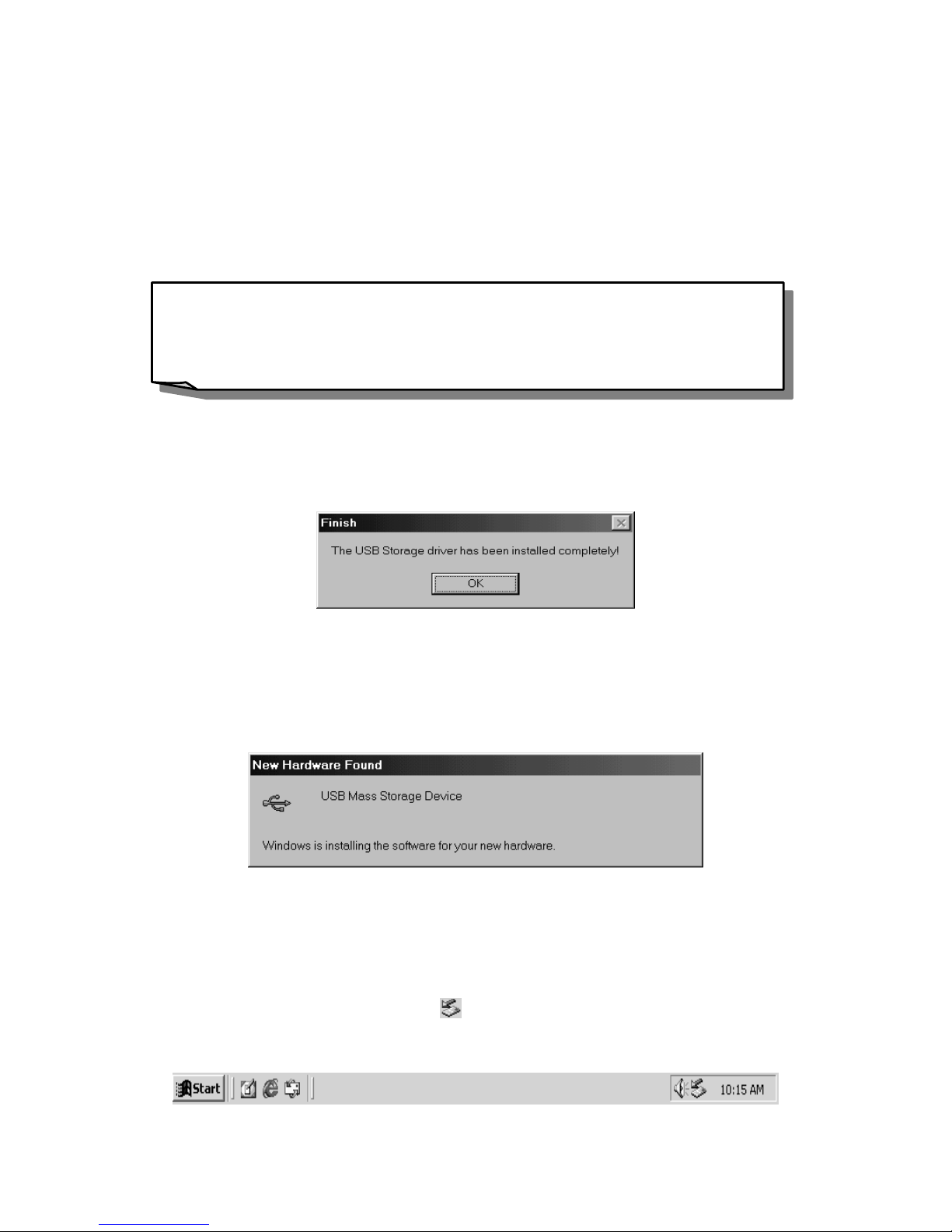

3. Click OK to complete driver installation.

4. Connect the 2.5” Portable Hard Disk to the USB port of your computer. (If

necessary for additional power, also connect the 2.5” Portable Hard Disk

to another USB port of your computer.) Your computer will automatically

detect the 2.5” Portable Hard Disk and install the files needed to use this

device.

5. The 2.5” Portable Hard Disk is now ready for use. You can find a new

drive with a newly assigned drive letter in the My Computer window.

Remove 2.5” Portable Hard Disk in Windows 98/98SE

1. Locate the green arrow icon on the system tray. Click right button of

the mouse on the icon.

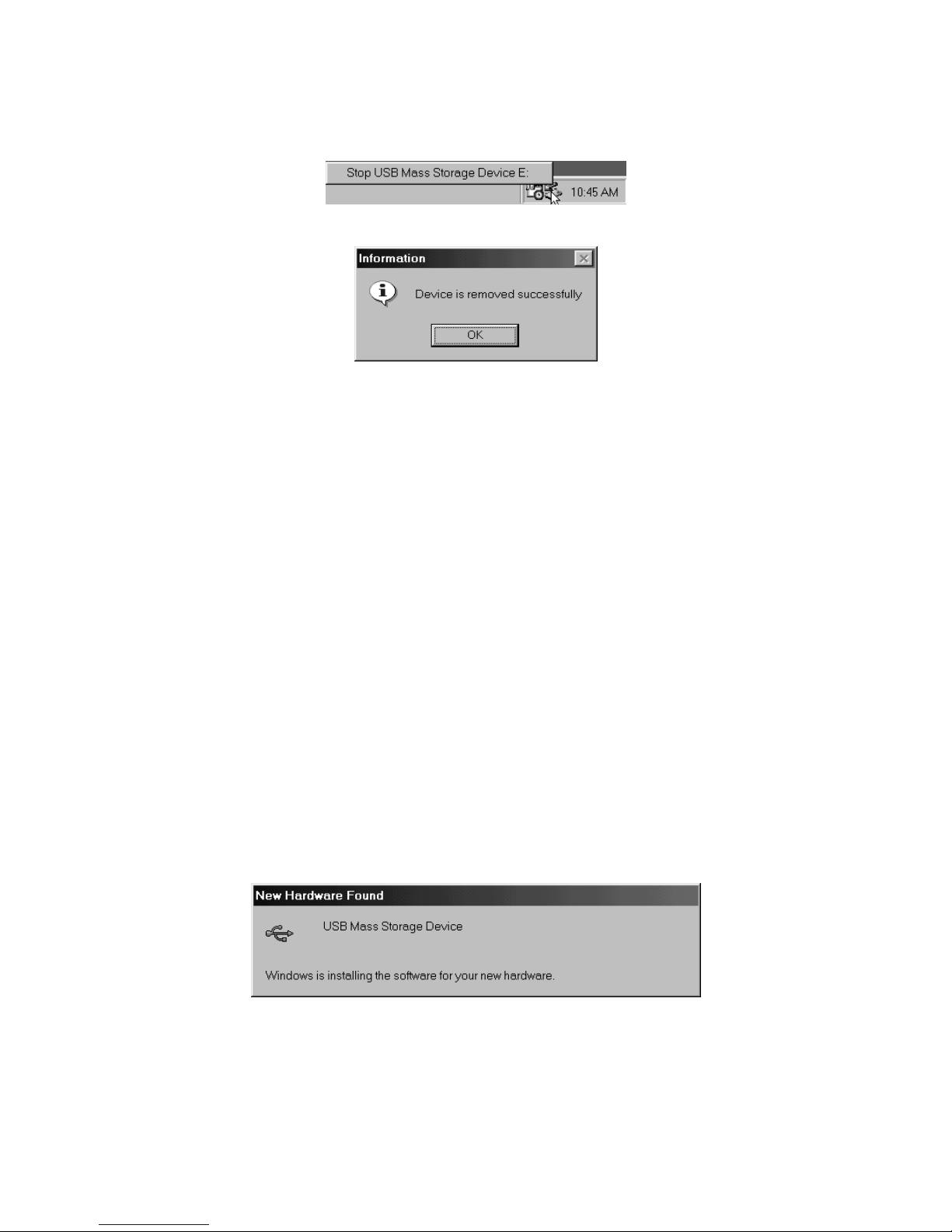

2. The Stop USB Mass Storage Device pop-up menu will appear. Click to

enter the window.

3. An Information window will appear. Click OK to continue.

4. Your 2.5” Portable Hard Disk is now ready to be disconnected from your

computer.

Uninstall Driver

The driver of the 2.5” Portable Hard Disk can be uninstalled by running

Add/Remove Programs in Settings/Control Panel. Please follow the

on-screen instructions to complete the process.

Using in Windows Me/2000/XP

1. Power on the computer where you will connect 2.5” Portable Hard Disk

and make sure the USB port is enabled and working properly.

2. Connect the 2.5” Portable Hard Disk to the USB port of your computer. (If

necessary for additional power, also connect the 2.5” Portable Hard Disk

to another USB port of your computer.) Your computer will automatically

detect the 2.5” Portable Hard Disk and install the files needed to use this

device.

3. The 2.5” Portable Hard Disk is now ready for use. You can find a new

drive with a newly assigned drive letter in the My Computer window.

Remove 2.5” Portable Hard Disk in Windows Me/2000/XP

1. Locate the green arrow icon on the system tray. Click left button of the

mouse on the icon.

2. The Stop USB Mass Storage Device pop-up menu will appear. Click to

remove the hardware.

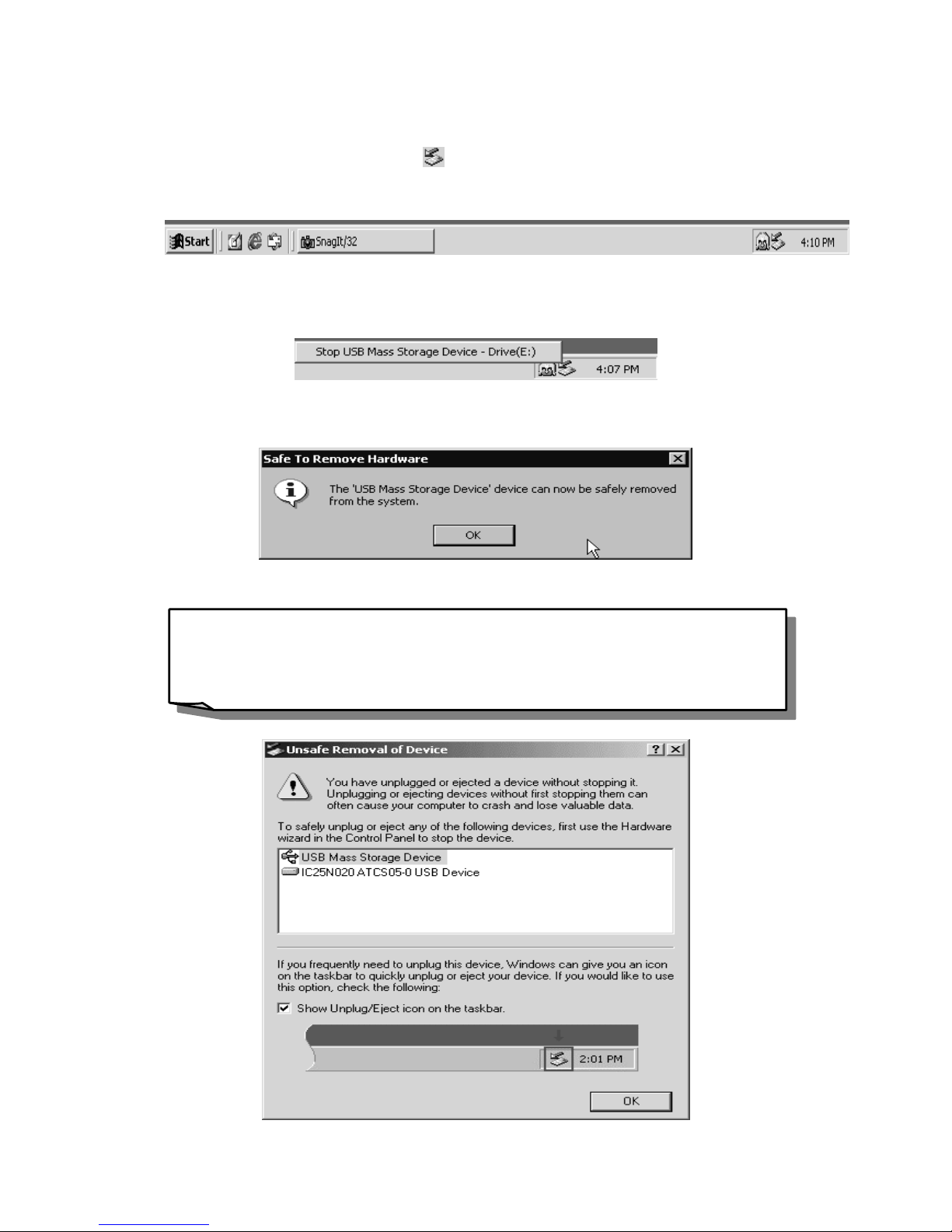

3. The Safe To Remove Hardware window will appear. Click OK.

4. Your 2.5” Portable Hard Disk is now ready to be removed.

*Note: If you don’t follow the above steps to remove the 2.5”

Portable Hard Disk in Windows 2000, the Unsafe Removal

of Device message will appear.

Driver Installation for Mac OS 8.6~9.0

1. Insert the Driver CD into the CD-ROM drive.

2. Run Installer program located within folder Driver\Mac\8.6-9.0 of the Driver

CD.

3. Restart your computer to complete the installation process

Driver Installation for Mac OS 9.0.4 or later

1. Insert the Driver CD into the CD-ROM drive.

2. Run Installer program located within folder Driver\Mac\9.0.4 later of the

Driver CD.

3. Restart your computer to complete the installation process.

Using in Mac OS X 10.1.x

1. Power on the computer where you will connect 2.5” Portable Hard Disk

and make sure the USB port is enabled and working properly.

2. Connect 2.5” Portable Hard Disk with your computer. Your computer will

automatically detect 2.5” Portable Hard Disk and install the files needed

to use this device.

Driver Installation for Mac OS X 10.2.1 or later

1. Insert the Driver CD into the CD-ROM drive.

2. Run Installer.gz located within folder Driver\Mac\10.2.1 later ofthe

Driver CD to unzip the setup file.

3. Run the setup file and follow the recommended step to install 2.5”

Portable Hard Disk

4. Restart your computer to complete the installation process.

Using the 2.5” Portable Hard Disk in Mac OS

1. Complete hardware setup and driver installation.

2. Connect the 2.5” Portable Hard Disk to your Mac. A disk icon will appear

on the desktop. You may use this device as if it were a Mac Hard Disk.

3. If you want to remove the 2.5” Portable Hard Disk, you must first drag and

drop the corresponding disk icon into the trashcan. After the disk icon

disappears, you can disconnect the 2.5” Portable Hard Disk.
