Trane 4TXFH024CZ3HHA Assembly instructions

A. GENERAL

These coils are designed for use as cooling only or in

combination with a Heat Pump outdoor section.

B. APPLICATION INFORMATION

1. FURNACE AND COIL

Coil MUST BE installed downstream (discharge air)

of the furnace.

2. INDOOR UNIT AIRFLOW

Indoor unit must provide the required airow for

Cooling only or Heat Pump System Combination.

INSPECTION

Check carefully for any shipping damage. This must be

reported to and claims made against the transportation

company immediately. Check to be sure all major

components are in the unit. Any missing parts should

be reported to your supplier at once, and replaced with

authorized parts only.

Horizontal, Flat “Cased” Coils

All Aluminum Coils: 4TXFH024CZ3HH*, 4TXFH033CC3HH*,

4TXFH036CZ3HH*, 4TXFH041CC3HH*, 4TXFH054CC3HH*,

4TXFH063CZ3HH*, 4TXFH064AZ3HHA ** May be "A" or "B"

Installer’s Guide

C. RECOMMENDATIONS

CAUTION

This coil is pressurized with 8-12 psig of dry air. Do

not stand directly in front of the coil connections when

removing sealing plugs. If no pressure is released,

check for leaks.

1. If this coil is a part of the total system installation, then

use the Installer’s Guide packaged with the furnaces,

Heat Pump outdoor sections, and Control Center for

physically installing those components.

2. It is recommended that the outline drawing

(page 2) be studied and dimensions properly noted

and checked against selected installation site. By

noting in advance proper clearance allowances for

installation and possible future service of the coil.

A341869P36

ALL phases of this installation must comply with NATIONAL, STATE AND LOCAL CODES

IMPORTANT — This Document is customer property and is to remain with this unit. Please return to service information pack

upon completion of work.

①

18-AD25D1-4C-EN

WARNING

This product can expose you to chemicals including lead, which

are known to the State of California to case cancer and birth defects

or other reproductive harm. For more information go to www.

P65Warnings.ca.gov

D. INSTALLING 4TXFH COIL/

ENCLOSURE

Coil/enclosure assembly can be used for all horizontal

furnaces (gas and electric) applications (Figure 1), and

for applications of vertical upow furnaces (Figure 2),

where the top clearance is insu󰀩cient for installing an

“A” coil and enclosure, and there is access to a run of

horizontal duct.

SUPPLY DUCT

2 FEET MINIMUM

RECOMMENDED

FURNACE

FLUE STACK

TRANSITION DUCT

COIL/ENCLOSURE ASSY

WARNING

WARNING (Medium/high pressure)

Contains Refrigerant!

System contains oil and refrigerant under high pressure. Recover

refrigerant to relieve pressure before opening the system. See

unit nameplate for refrigerant type. Do not use non-approved

refrigerants, refrigerant substitutes, or refrigerant additives.

Failure to follow proper procedures or the use of non-approved

refrigerants, substitutes, or refrigerant additives could result in

death, serious injury, or equipment damage.

2 18-AD25D1-4C-EN

Installer’s Guide

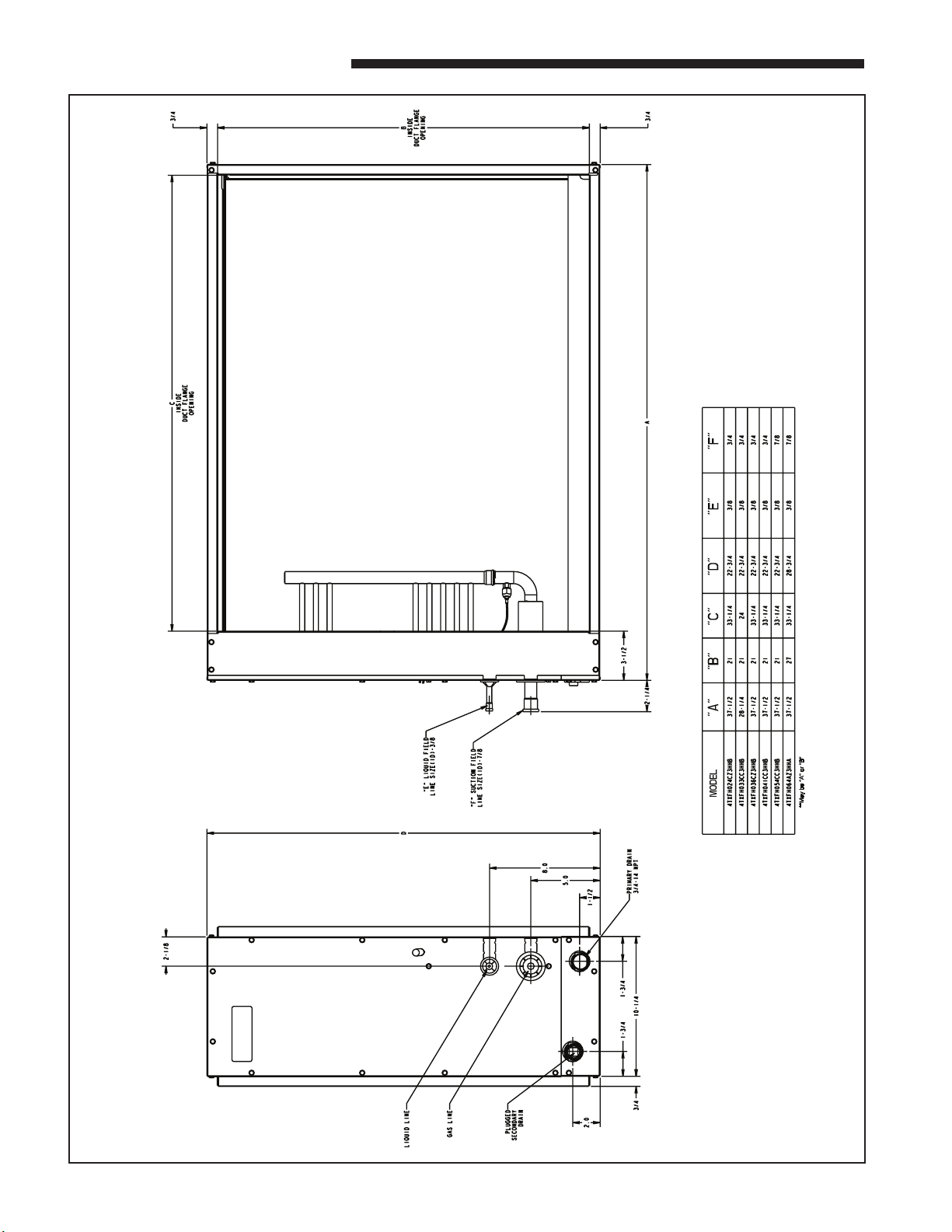

Outline Drawing - 4TXFH024CZ3HHB, 4TXFH033CC3HHB, 4TXFH036CZ3HHB, 4TXFH041CC3HHB, 4TXFH054CC3HHB, 4TXFH064AZ3HHA

All dimensions are in inches.

From Dwg. D345541 Rev. B

18-AD25D1-4C-EN 3

Installer’s Guide

Since coil/ enclosure assembly must be installed within

the horizontal run of duct, a transition duct must be

fabricated to mate with the furnace supply outlet duct

ange on one end and the duct ange connection on the

coil/ enclosure assembly on the other end.

For maximum performance, it is recommended that the

transition duct be at least 2 feet in length.

1. Secure the transition duct to the furnace with the

furnace in position.

2. The refrigerant lines and condensate connections of

cased coils may be on either side of the supply air

duct. The air may be directed through the coil from

either side of the coil.

3. Attach the coil/ enclosure assembly to the transition

from the furnace, providing proper support for coil/

enclosure assembly’s weight. Keep the coil level.

Extra pitch is not required for coil to drain properly.

4. Secure the downstream side of coil/ enclosure

assembly to the supply air duct.

NOTE:

Secure properly so there will be no air leakage.

5. The indoor coil must be evacuated through the

refrigerant lines at the outdoor unit before opening

the service valves. See evacuation procedure in Field

Fabricated Refrigerant Lines section of the Installer’s

Guide for the outdoor unit.

6. Complete the installation of the unit per installation

instructions.

E. INSTALLING/BRAZING REFRIGERANT

LINES

CAUTION

Do NOT open refrigerant valve at the outdoor unit

until the refrigerant lines and coil have been brazed,

evacuated, and leak checked. This would cause

contamination of the refrigerant or possible discharge

of refrigerant to the atmosphere.

FLUE

ACK

TRANSITION DUCT

COIL/ENCLOSURE ASSY

SUPPLY DUCT

VERTICAL UPFLOW

FURNACE

②

③

1. The following steps are to be considered when

installing the refrigerant lines:

a.Determine the most practical way to run the lines.

b.Consider types of bends to be made and space

limitations.

c. Route the tubing making all required bends and

properly secure the tubing before making nal

connections.

NOTE:

Refrigerant lines must be isolated from the structure and

the holes must be sealed weather tight after installation.

IMPORTANT:

Do not unseal refrigerant tubing until ready to t

refrigerant lines.

There is only a holding charge of dry air in the indoor coil,

therefore no loss of operating refrigerant charge occurs

when the sealing plugs are removed.

NOTE:

TXV bulb MUST be protected (wrapped with wet rag)

or removed, while brazing the tubing. Overheating

of the sensing bulb will affect the functional

characteristics and performance of the comfort coil.

4 18-AD25D1-4C-EN

Installer’s Guide

PAINTED AREAS OF THE UNIT MUST BE SHIELDED

DURING BRAZING.

4. Flow a small amount of nitrogen through the tubing

while brazing.

5. Use good brazing technique to make leakproof

joints.

6. Minimize the use of sharp 90 degree bends.

7. Insulate the suction line and its ttings.

8. Do NOT allow un-insulated lines to come into contact

with each other.

NOTE:

Torque specication for TXV equals 1/6 turn past nger

tight. Make sure to backwrench when tightening as

shown in Firgure 3.

F. LEAK CHECK

1. Using a manifold gauge, connect an external supply

of dry nitrogen to the gauge port on the liquid line.

2. Pressurize the connecting lines and indoor coil to

150 PSIG maximum.

3. Leak check brazed line connections using soap

bubbles. Repair leaks (if any) after relieving

pressure.

4. Evacuate and charge the system per the instructions

packaged with the outdoor unit.

G. CONDENSATE DRAIN PIPING

(SEE FIGURE 5)

NOTE:

When coils are installed above ceilings or in other

locations where damage from condensate overow

may occur. A eld fabricated auxiliary drain pan shall be

installed under the coil enclosure. Drain lines from this

pan must be installed, but should NOT be connected to

the primary drain.

Condensate drain connections are located in the drain pan

at the bottom of the coil/enclosure assembly. The female

threaded tting protrudes outside of the enclosure for

external connection. A eld fabricated trap is not required

for proper drainage due to the positive pressure of the

furnace; however, it is recommended to prevent e󰀩ciency

loss of conditioned air.

1. The drain hole in the drain pan must be cleared of all

insulation.

2. Insulate the primary drain line to prevent sweating

where dew point temperatures may be met.

(Optional depending on climate and application

needs).

FIELD FABRICATED TRAP

⑤

2" MIN.

CAP OR PLUG

Trap must be within 4'

of furnace / air handler

condensate drain connection.

Close as possible

When replacing the bulb and hose clamp, the clamp

should be "snug" but not "tight" - spec is to torque the

hose clamp to 20+/-5in-lb.

H. SECONDARY CONDENSATE DRAIN

A secondary condensate drain connection, now called for

by many building codes, has been provided, on 4TXFH

coils. Reducing ttings and copper tubing can be used in

most cases.

IMPORTANT:

Plug all drain line connection(s) not used. Do NOT use

heat or torch near drain ttings.

I. DUCT CONNECTIONS

The supply and return air duct should be connected to

the unit with a ame retardant duct connectors. Duct

ange connections are provided at both supply and

discharge openings of the coil.

④

1. Remove both sealing rubber plugs from the indoor

coil.

2. Field supplied tubing should be cut square, round

and free of burrs at the connecting end. Clean the

tubing to prevent contaminants from entering the

system.

3. Run the refrigerant tubing into the stub tube sockets

of the indoor unit coil.

18-AD25D1-4C-EN 5

Installer’s Guide

Is sub cooling at the

outdoor unit between

8 to 12F?

YES Is superheat

< 5F?YES

Correct air

flow

problem

Is air flow at least

350 CFM per ton?

YES

Remove sensing bulb from the

suction line. Measure superheat

at indoor coil while holding the

bulb in bare hand for one minute.

Does superheat decrease?

Measure superheat at indoor coil

while placing the bulb in an ice

and water bath for one minute.

Does superheat increase?

YES

Replace the

TXV

TXV is OK

Is superheat

< 20F?

YES

Is indoor

temperature more

than 85F?

Is sub cooling less

than 8F?

YES

Confirm that charge

is correct and look

for dirty or restricted

outdoor coil.

Confirm that

charge is

correct.

Before starting,insure the

blower wheel, indoor and outdoor

coils are clean.

Is the liquid line

temperature at indoor

coil within 8F of outdoor

liquid line temperature?

YES

Verify line set is

sized properly

for application

The system is running at max

capacity and this may be

causing the High superheat.

Wait until indoor temperature

is less than 80F and check

superheat again.

YES

Verify inlet screen

of inlet tube

assembly is clear

of debris

NO Has TXV screen

been checked and

cleaned?

YES

Inlet screen located in liquid line. Check, clean, &

replace if necessary.

About Trane and American Standard Heating and Air Conditioning

Trane and American Standard create comfortable, energy efficient indoor environments for residential applications.

For more information, please visit www.trane.com or www.americanstandardair.com

The manufacturer has a policy of continuous data improvement and it reserves the right to change design and specifications without notice. We are

committed to using environmentally conscious print practices.

18-AD25D1-4C-EN 18 May 2020

Supersedes 18-AD25D1-4B-EN (February 2020)

The sensing bulb should be located between the

8 o’clock & 4 o’clock positions; it should not be

located in the shaded area as shown in the

illustration. The gas line should be clean and the

sensing bulb clamped and insulated for proper

operation.

Wrap TXV with web cloth before

brazing. Direct torch away from

wrapped valve.

This manual suits for next models

Table of contents

Other Trane Air Conditioner manuals

Trane

Trane MXW Owner's manual

Trane

Trane Precedent YZJ150A Installation and operating instructions

Trane

Trane Horizon OAB Series Installation and operating instructions

Trane

Trane MCC 048 ZB User manual

Trane

Trane Precedent YHJ072 Installation and operating instructions

Trane

Trane ProSpace PTEF Installation and operating instructions

Trane

Trane AQUA NEW STYLUS CFEB Series User manual

Trane

Trane RAUC-IOM-15 Installation and operating instructions

Trane

Trane Precedent YSJ072 Installation and operating instructions

Trane

Trane Voyager TS 150-300 Series Installation and operating instructions

Trane

Trane TTA240F Series Owner's manual

Trane

Trane SCIH Owner's manual

Trane

Trane TVR Pro CO Series User manual

Trane

Trane ComfortLink II 4TWV8X24A1000A Assembly instructions

Trane

Trane SCIH Manual

Trane

Trane SPLIT AC User manual

Trane

Trane ACONT900AC43UA User manual

Trane

Trane IntelliPak Signature Series User manual

Trane

Trane Odyssey BAYFILT001 User manual

Trane

Trane Voyager Commercial Installation and operating instructions

Trane

Trane 4TTX5018A1000A Assembly instructions

Trane

Trane Voyager YH Series Installation and operating instructions

Trane

Trane Precedent WHJ150A Installation and operating instructions

Trane

Trane ODYSSEY TTA Series Owner's manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual
