TP-Link tapo TC60 User manual
User Guide
Home Security Wi-Fi Camera
TC60
©2020 TP-Link 1910012907 REV1.0.0
Contents
About This Guide ...........................................................................1
Introduction ......................................................................................2
Appearance ......................................................................................3
Setup using Tapo App.................................................................4
Setup using Amazon Frustration-Free Setup ................6
Main Camera Controls.............................................................10
Motion Detection........................................................................ 12
24-hour Recordings.................................................................. 16
Privacy Mode ................................................................................18
Authentication.............................................................................. 19
1
About This Guide
This guide provides a brief introduction to the Home Security Wi-Fi Camera and the Tapo app, as well as regulatory information.
Please note that features available of the Tapo smart camera may vary by model and software version. The availability may also vary by region or ISP. All
images, steps, and descriptions in this guide are only examples and may not reect your actual experience.
Conventions
In this guide, the following convention is used:
Convention Description
Blue Key information appears in teal, including management page text such as menus, items, buttons and so on.
Underline Hyperlinks are in teal and underlined. You can click to redirect to a website.
Note: Ignoring this type of note might result in a malfunction or damage to the device.
More Info
• Specications can be found on the product page at https://www.tapo.com.
• Our Technical Support and troubleshooting information can be found at https://www.tapo.com/support/.
• For setup and conguration video, please refer to https://www.tp-link.com/support/setup-video/#cloud-cameras.
2
Introduction
When you are away home, there are always something you care about. This is where the smart camera functions. No matter your child is climbing the
kitchen cabinet, or the pet is stealing snacks, TC60 helps you stay with them anytime, anywhere.
• 1080p High-Denition – Capture every detail in crystal-clear Full HD denition.
• Night Vision – Even at night, the camera can provide a visual distance of up to 30 ft.
• Live View – Always stay with what matters most to you anytime, anywhere.
• Two-Way Audio – Communicate with loved ones with the built-in microphone and speaker.
• Sound and Light Alarm – Trigger light and sound eects to frighten away unwanted visitors.
• Privacy Mode - Shut down the surveillance to protect your privacy.
• Sharing - Share the memorable moments with your family and friends.
• Easy Setup - Set up the camera with free app within minutes.
• Safe Storage – Store up to 128 GB on a microSD card†, equal to 384 hours (16 days) of footage△.
†The SD card is not provided. △The data comes from TP-Link laboratory.
3
Appearance
The Home Security Wi-Fi Camera has a system LED that changes color according to its status, a alert light, lens, microphone, DC power port, RESET
button and a microSD card slot. Refer below for details.
microSD Card Slot
Insert a microSD card and initialize it on the
app for local recording.
System LED
• Solid red:
Starting up
• Blinking red and green:
Ready for setup
• Blinking green slowly:
Connecting to Wi-Fi
• Solid green:
Connected to Wi-Fi
• Blinking red:
Camera resetting
• Blinking green quickly:
Camera updating
RESET Button
Press and hold for at least 5 seconds until
the LED blinks red to reset your camera.
Alert Light
Blinks to alert you the events when
motion detected.
DC Power Port
Connect the power cord provided.
Lens
Microphone
Built-in internal microphone.
Note: Do NOT insert objects into the hole.
4
Setup using Tapo App
Follow the steps below to get started with your new camera using Tapo app.
Step 1. Download App
Get the Tapo app from the Apple App Store
or Google Play, or by scanning the QR code
below.
OR
Step 2. Log In
Open the app, and log in with your TP-Link ID.
If you don't have an account, create one rst.
Step 3. Add Your Camera
Tap the button in the app and select your
model.
5
Step 4. Congure Camera
Follow app instructions to configure your
camera and add it to your home network.
Step 5. Place Camera
Place your camera on a at surface, or install it on a wall or ceiling with the provided
mounting screws.
1. Mark Position
Place the mounting template where you want
the camera.
For wall mounting, drill two holes through two
circles.
2. Mount Base
Ax two mounting screws with the help of
mounting template.
For wall mounting, insert two anchors into holes
and screw the screws into the anchors.
3. Secure Camera
Hang your camera on the screws.
6
Setup using Amazon Frustration-Free Setup
What is Amazon Frustration-Free Setup?
Amazon Frustration-Free Setup can help connect and set up Tapo smart devices in fewer steps, without having to remember and re-enter your Wi-Fi
password on each device.
To use this feature, conrm the following:
● The new Tapo device supports Amazon FFS.
● You have an Amazon FFS enabled Alexa device or router.
● You have saved your Wi-Fi information to Amazon by using Alexa echo.
● Your Tapo device and router are on the same network as your Alexa echo.
LED Indications during Amazon Frustration-Free Setup
LED Status
Blinking orange and green Ready for setup
Blinking orange FFS setup in progress
Solid green Working properly
If the LED does not turn solid green after a long time, you can try to add the Tapo device manually. (Press the Reset button on your Tapo device once.
Then open the Tapo app, tap the + button on the page, select your device model, and follow the app instructions. )
7

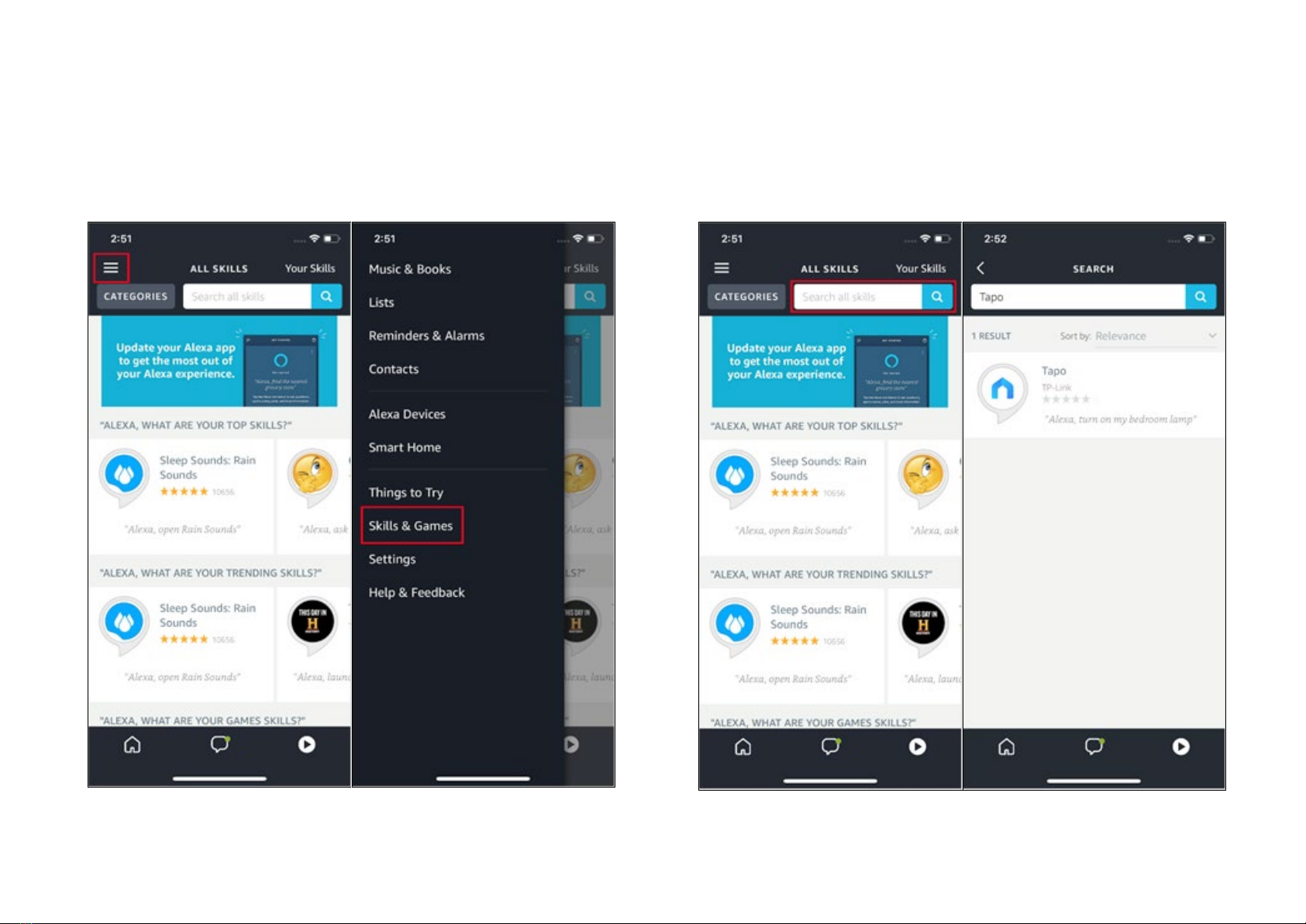

1. Open the Amazon Alexa app. Then tap on the hamburger icon in the
upper left corner and select Skills & Games.
How to use Amazon Frustration-Free Setup with Tapo devices
2. Enter Tapo in the search bar and choose Tapo.
8
3. Tap the ENABLE button. 4. Log in with your TP-Link ID that has bound to your Tapo device, and tap Authorize. After authorized
successfully, the message Tapo has been successfully linked will come up.
