TP-Link TL-POE10R User manual

User Guide

TL-POE10R

PoE Receiver Adapter

Rev:1.0.0

71035981

Specifications are subject to change without notice.

is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD.

Other brands and product names are trademarks or registered

trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any

means or used to make any derivative such as translation, transformation,

or adaptation without permission from TP-LINK TECHNOLOGIES CO.,

reserved.

http://www.tp-link.com

FCC STATEMENT

This equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

¾Reorient or relocate the receiving antenna.

¾Increase the separation between the equipment and

receiver.

¾Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

¾Consult the dealer or an experienced radio/ TV technician

for help.

This device complies with part 15 of the FCC Rules. Operation is

subject to the following two conditions:

1) This device may not cause harmful interference.

2) This device must accept any interference received, including

interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to operate

the equipment.

CE Mark Warning

This is a class B product. In a domestic environment, this product

may cause radio interference, in which case the user may be

required to take adequate measures.

SAFETY NOTICES

¾Do not use this product near water, for example, in a wet

basement or near a swimming pool.

¾Avoid using this product during an electrical storm. There may

be a remote risk of electric shock from lightning.

CONTENTS

Package Contents...........................................................................1

Chapter 1. Introduction .............................................................1

1.1 Overview of the production .......................................1

1.2 Features....................................................................2

Chapter 2. Identifying External Components..........................2

Chapter 3. Connecting the PoE Receiver Adapter...................3

Specifications .................................................................................5

Package Contents

The following items should be found in your package:

¾TL-POE10R PoE Receiver Adapter

¾One Ethernet (CAT5 UTP) Cable

¾One Power Cable

¾This User Guide

)Note:

Make sure that the package contains the above items. If any of the

listed items are damaged or missing, please contact with your

distributor.

Chapter 1. Introduction

1.1 Overview of the production

Thank you for choosing the TL-POE10R PoE Receiver Adapter.

The PoE Receiver Adapter fully complies with IEEE 802.3af

standard, and can work with all IEEE 802.3af PoE compliant PSE

(Power Source Equipment) or PoE Supplier Adapter, such as

TP-LINK’s TL-SF1008P or TL-POE150S, to deliver 12V or 5V Direct

Current to the device which do not support PoE.

PoE (Power over Ethernet) technology allows the existing Ethernet

infrastructure to transmit electrical power, along with data, to remote

IP endpoints over the Ethernet cables, which can greatly save the

cost of the external power cables. Your network can benefit from

PoE technology for it will ensure the normal working status of your

network while keep the existing Ethernet infrastructure secure.

)Note:

TL-POE10R is applicable to the device that has no external

connections other than the Ethernet cables.

1.2 Features

¾Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3af

standards

¾Data and Power carried over the same cable

¾Supports optional 5V DC or 12V DC power supply

¾Supports Plug-and-Play for the devices，without any configuration

¾Elegant appearance with space-saving mini size

Chapter 2. Identifying External Components

POWER+DATA IN: Connect to the PSE or PoE Supplier

Adapter with a CAT5 UTP cable.

Chapter 3. Connecting the PoE Receiver Adapter

You can use TL-POE10R PoE Receiver Adapter with PSE or PoE

Supplier Adapter to expand your network to where there are no

power lines or outlets, where you wish to fix devices such as APs, IP

Cameras or IP Phones, etc. The following steps will tell you how to

connect the PoE Receiver Adapter correctly.

LAN OUT: Connect to

the Ethernet device with

CAT5 UTP cable to

transmit data.

DC OUT: Connect to the

power port of the Ethernet

device with the provided

power cable to supply the

ower of 5V or 12V DC.

PWR: Power LED, a

steady green light

indicates that the

connected PSE or

PoE Supplier Adapter

can supply power.

Power-mode switch:

You can choose the

DC output as 12V or

5V by turning the

switch left or right.

1. Use a CAT5 UTP cable to connect a PoE port of the PSE( ex.

PoE Switch) to the POWER+DATA IN port.

2. Choose the appropriate DC output by the Power-mode Switch,

default output is 12V.

)Note:

Please make sure that the output is correct, different voltage may

destroy the device.

3. Connect the LAN OUT port to the Ethernet device with CAT5

UTP cable for data transmitting.

4. Connect the DC OUT port to the power port of the same

Ethernet device with the provided power cable.

)Note:

The power of Ethernet device is suggested to be under 10W.

Now, the Ethernet device can work normally with data and power.

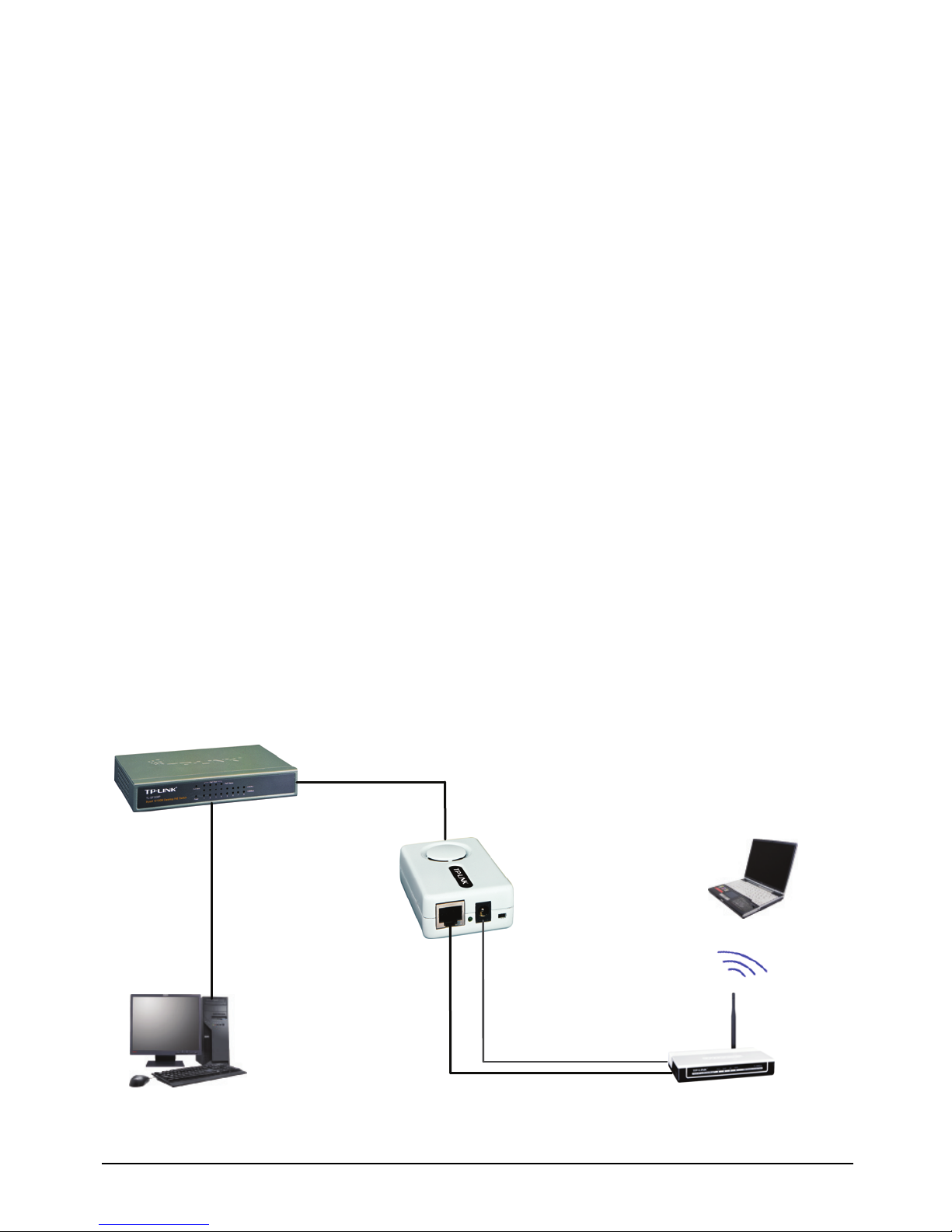

The topology of this network is as follows:

PoE Switch

TL-SF1008P

CAT5 UTP Cable

(Power & Data)

PoE Receiver Adapter

TL-POE10R

Wireless AP

TL-WA601G

CAT5 UTP Cable

(Data)

Power Cable

Notebook

With Wireless Adapter

Specifications

Normal

Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3af

Voltage Output DC 5V or 12V

Power Output 11.5W(5V) 12W(12V)

Ports

Two 10/100M RJ45 ports

One DC Power port

Cabling Type RJ45 CAT 5 UTP cable

LED PWR

Safety &

Emissions FCC, CE

Environmental and Physical

Operating Temp. 0℃~40℃(32℉~104℉)

Storage Temp. -40℃~70℃(-40℉~158℉)

Operating Humidity 10%~90% RH, Non-condensing

Storage Humidity 5%~90% RH, Non-condensing
