Congratulations on purchasing your Totally Wicked
V-Pipe Electronic Cigarette Kit.
The Totally Wicked V-Pipe is an e-cigarette which combines exceptional functionality, ergonomics and
style. Paired with the V-Pipe is the V-Pipe Tank, providing top filling capability, adjustable airflow and
the use of the popular BF atomizer heads. Adjustable modes allow for incremental settings in terms of
watts or temperature. The intelligent temperature control system allows the user to optimise their vaping
experience when using optionally available nickel, titanium and stainless steel atomizer heads. The
V-Pipe Kit combines all of its functionality and 18650 battery in a compact and simple to use package,
sure to be popular with a wide range of e-cigarette users.
TW_V-Pipe_Manual.indd 2 30/11/2016 15:10
3
OLED screen
Mouthpiece
Mouthpiece base
Atomizer base
Atomizer head
Atomizer tube
Airflow ring
Adjustment buttons
Power button
510 Thread and
spring connector
Battery cover
TW_V-Pipe_Manual.indd 3 30/11/2016 15:10
4

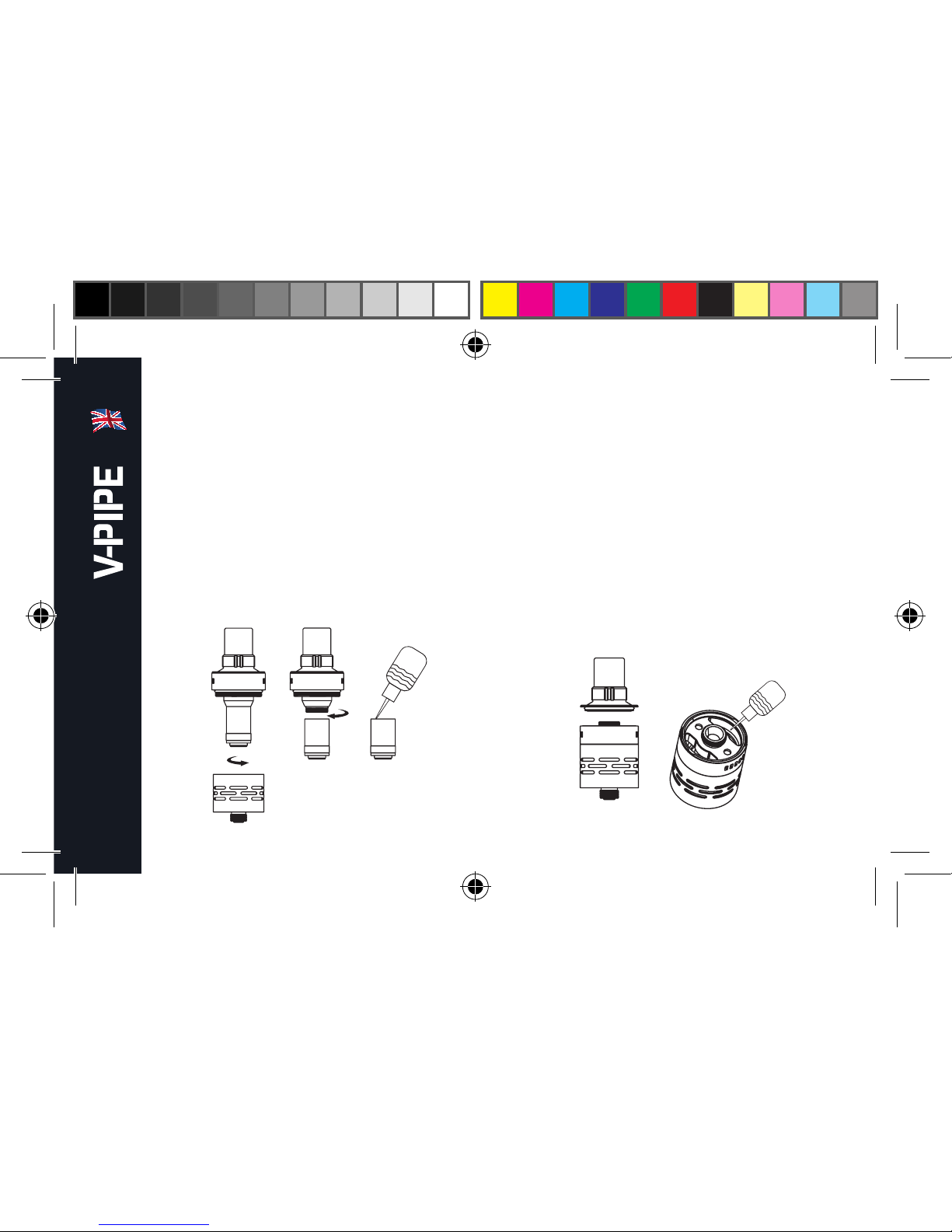

Using your Tank for the First Time:
Remove the atomizer base from the atomizer
tube by unscrewing in the anticlockwise direction,
unscrew the atomizer head, and drip in a few
drops of e-liquid. This will prime the atomizer
to ensure optimum operation and longevity.
Ensure the atomizer head is firmly tightened on
reassembly.
Filling the V-Pipe Tank:
To fill the tank, remove the mouthpiece base
from the atomizer base by turning anticlockwise
while firmly holding the airflow ring. Fill the tank
with e-liquid by inserting the nozzle into one of
the slots to the side of the central tube. Replace
the mouthpiece base onto the atomizer base by
turning clockwise until firmly seated. Maximum
refill nozzle diameter is 3.5mm.
Using your V-Pipe Kit
TW_V-Pipe_Manual.indd 4 30/11/2016 15:10
5
Replacing the Atomizer Head:
Replace the atomizer head as shown in section
“Using your tank for the first time”. Remember
that any new atomizer head will need priming as
shown in that section. All of the wide range of
BF atomizer heads can be used with your V-Pipe
Tank – see the Totally Wicked website or contact
your local Totally Wicked stockist for details.
Power On and Off:
The V-Pipe uses a 5-click on/off function. To
switch the device on, press the power button 5
times in quick succession. The OLED screen will
illuminate, signifying that the device is powered
on. If the V-Pipe is powered on the user can press
the button 5 times to switch the device off.
Vaping:
Simply press the power button as you inhale.
Adjusting the Airflow:
To adjust the airflow, simply twist the airflow ring
in the clockwise direction to loosen the draw and
in the anticlockwise direction to tighten the draw.
Charging the Battery:
Charge the V-Pipe via the USB cable when
connected to a powered USB port or suitable wall
adapter. The indicator on the display will indicate
the battery status. Alternatively, the 18650 battery
can be removed and charged using a suitable
charger.
Using your V-Pipe Kit
TW_V-Pipe_Manual.indd 5 30/11/2016 15:10
6
Shift between VW/Bypass/TC/TCR Modes:
When using the atomizer heads supplied with
the V-Pipe kit, only VW or Bypass modes can
be used. To switch between modes, ensure the
V-Pipe is powered on, press the power button 3
times consecutively; the mode symbol will flash,
use the right adjustment button to cycle through
the VW/Bypass/TC/TCR modes. Press the power
button to select the desired mode.
VW Mode:
When in VW mode, use the up or down
adjustment buttons to increase or decrease the
level of wattage respectively.
Bypass Mode:
When in bypass mode there is a direct output of
the voltage of the internal battery cell. The cell’s
operating voltage will be displayed when the
power button is pressed, and will be dependent
on the resistance of the atomizer used.
Using your V-Pipe Kit
TW_V-Pipe_Manual.indd 6 30/11/2016 15:10
7
Atomizer heads and temperature control
The Totally Wicked V-Pipe is supplied as standard
with 1.5ohm Clapton MTL atomizer heads.
We believe these atomizers offer outstanding
performance, particularly to those new to vaping.
They work best using power in the range 8-12
watts, and higher power should be avoided,
especially if you experience a burnt taste from
your e-liquid. You may want to explore the
possibilities of the higher power capability of
alternative atomizer heads, and temperature
control using nickel, titanium and stainless steel
coil materials. A wide range of BF atomizer
heads is available from Totally Wicked and their
stockists.
Six modes of vaping operation are provided;
Variable Power (W); Bypass; Variable
Temperature with Nickel Coils (Ni); Variable
Temperature with Titanium Coils (Ti); Variable
Temperature with Stainless Steel Coils (SS316)
and Temperature Coefficient of Resistance (TCR).
These modes allow the V-Pipe’s full functionality
to be used with the wide range of atomizer heads
available.
Using your V-Pipe Kit
TW_V-Pipe_Manual.indd 7 30/11/2016 15:10
8
Shift between TC-Ni/TC-Ti/TC-SS Modes:
To shift between the TC modes TC-Ni/TC-Ti/
TC-SS, press the power button 3 times
consecutively, and ensure TC mode is selected,
pressing the right button if necessary. Press the
left adjustment button, and the TC coil material
symbol will flash. Use the right adjustment button
to cycle through the TC-Ni/TC-Ti/TC-SS modes.
Press the power button to confirm your selection.
TC Mode (Ni/Ti/SS316):
When in TC mode, use the up or down
adjustment buttons to increase or decrease
the temperature respectively. The available
temperature range is 100-315C or 200-600F and
can be adjusted in increments of 5C and 10F.
To adjust the wattage level whilst in TC mode,
press the power button 3 times consecutively
to activate the menu, press the left adjustment
button twice, the wattage symbol will flash. Use
the right adjustment button to adjust the wattage
level.
To lock the atomizer resistance whilst in TC mode,
press the power button 3 times consecutively
to activate the menu, press the left adjustment
button 3 times, the atomizer value will flash. Press
the right adjustment button to lock the resistance.
When the resistance is locked, a lock symbol will
appear next to the resistance value. To unlock the
resistance, repeat the process.
Note: Only lock the atomizer when the coil is at
room temperature.
Note: If a coil with a resistance exceeding
1.5ohms is applied in VT mode, the device will
automatically switch to VW mode. Also, if a
standard kanthal or nichrome coil is used under
VT mode, the device will automatically switch to
VW mode.
Using your V-Pipe Kit
TW_V-Pipe_Manual.indd 8 30/11/2016 15:10
9
TCR Mode (M1/M2/M3):
When in TCR mode, use the up or down
adjustment buttons to increase or decrease
the temperature respectively. The available
temperature range is 100-315C or 200-600F and
can be adjusted in increments of 5C and 10F.
To adjust the wattage level whilst in TCR mode,
press the power button 3 times consecutively
to activate the menu, press the left adjustment
button twice, the wattage symbol will flash. Use
the right adjustment button to adjust the wattage
level.
Configuring TCR Mode:
To set the temperature coefficient of resistance
to match a particular coil, when the device is
powered off simultaneously hold the power
button and the right adjustment button to enter
the TCR configuration menu.
Use the power button to select which to configure
from M1, M2 and M3 – this feature allows the
TCR values for 3 materials to be stored to the
device. Use the right and left adjustment buttons
to increase or decrease the value to your
preference, leave the device for 5 seconds to
confirm the selection.
Using your V-Pipe Kit
TW_V-Pipe_Manual.indd 9 30/11/2016 15:10
10
TCR Value Range
Note: The TCR value displayed is 105(100,000)
times greater than the actual TCR value and is for
V-Pipe usage only.
Puff Counter/ Puff Timer/ Battery Current
Display:
Either one of the puff counter, puff timer or battery
current display can be displayed at one time at
the lower right side of the screen. To shift between
these options in any vaping mode, press the
power button 3 times consecutively to activate
the menu, single press the left adjustment button
until the Puff Counter/Puff Timer/Battery Current
Display symbol flashes. Use the right adjustment
button to shift between the Puff Counter/Puff
Timer/Battery Current Display modes.
Using your V-Pipe Kit
Material TCR Value Range
Nickel 600-700
NiFe 300-400
Titanium 300-400
SS (303, 304, 316, 317) 80-200
