Toslon XBOAT 730 Operator's manual
1
Preface
As Yachting Electronic Co., Ltd is continuously improving this product, we retain the
right to make changes to the product at any time which may not be reected in this
version of the manual. Please contact your dealer if you require any further assistance.
It is the owner’s sole responsibility to install and use the instrument and transducers in a
manner that will not cause accidents, personal injury or property damage. The user of
this product is solely responsible for observing safe boating practices.
Warnning: disassembly and repair of this electronic unit should only be performed
by authorized service personnel. Any modication of the serial number or attempt to
repair the original equipment or accessories by authorized individuals will void the
warranty.
We may nd it necessary to change or end our policies, regulations and special
oers at any time. We reserve the right to do so without notice. All features and
specications subject to change without notice.
2
Copyright © 2012
Yachting Electronic Co., ltd All Rights Reserved
Warranty
1) Warranty Period
Yachting electronic warrants that its products, when properly installed and used will
be free from defects in material and workmanship for the period of 24 months from
the date of rst purchase. For Distributors only, the Warranty Period shall run for an
additional three (3) months to that stated for rst retail customers.
For the purpose of this Warranty, ‘date of rst purchase’means
(i) for a rst retail customer only, the date the product was purchased by the rst retail
customer.
(ii) for a distributor only, the date that the product was purchased from Yachting
electronic by the Distributor.
2) Warranty Repairs
Product(s) qualifying for warranty repair will either be repaired, or replaced with new or
refurbished parts or product, or an equivalent product, at the sole discretion of
Yachting electronic. Warranty repairs are covered by the warranty terms and condi-
tions for the remainder of the original product’s warranty period, six months or in
accordance with local jurisdictions, whichever is the greater. The ownership of all parts
removed from the product for the purposes of eecting warranty repairs transfers
from the Owner, back to Yachting electronic.
3) Non-Warranty Repairs
Product(s) accepted for non-warranty repair will either be repaired, or replaced with
new or refurbished parts or product, or an equivalent product, at the sole discretion of
Yachting electronic. Repairs by Yachting electronic Service on equipment that is no
longer covered by any warranties are automatically covered by a six months warranty
or where applicable, in accordance with local jurisdictions, whichever is the greater,
provided that any subsequent failure is for the same reason as which the product had
been originally returned. The ownership of all parts removed from the product for the
purposes of eecting repairs transfers from the Owner, back to Yachting Electronic Co.
3
Contents
Check the Content
Boat instruction
What’s the Speciality
High reliability
- DSS technology
- Heavy load hooper system
Easy to Maintain
CCU box
ESC box
Intelligent
Smart front light
Smart tail light
Smart power switch
Water switch
Battery
Fix the battery
Connection
Battery charging
Low battery alarm
Operation
Remote
Running Instruction
Load and dump the bait
Load and release the hook
Turn on /o the light
Trim the motor
Specication
4
5
6
6
6
6
7
7
7
8
8
8
8
8
9
9
9
10
10
11
11
12
13
14
15
16
17
4
Check the content
Bait boat
Remote
1) Charge cable
2) Boat antenna (long)
3) Boat antenna (short)
4) Cable for Pb battery
Note: the boat antenna (short) is only
for backup using. With which the RC
distance may only reach 100-150m
Accessories
Li-ion Battery and charger(optional)
1) Nylon bag for boat
2) Nylon bag for all other parts
Nylon bag
3
3
2
1
Remote
1
1
2
n
ba
g
f
or boat
Nyl
on
2
4
5
1) Right light
2) Right hopper
3) Handle
4) Clapboard
5) Left light
6) Antenna for boat
7) Right battery lid
8) Power switch
9) Battery charging port
10) Screw for additional device
11) Antenna (for shnder)
12) Left hopper
13) Left battery lid
14) Transducer (optional)
15) Left hopper plate
16) GPS lid
17) Right hopper plate
18) Left weeds protection plate
19) Water switch
20) Right weeds protection plate
21) Tail light
22) Left fairwater sleeve
23) Hook release system
24) Right fairwater sleeve
Boat Instruction
9) Batte
ry
cha
rg
in
g
po
r
t
1
7) Ri
g
ht hopp
e
4
1
5
3
2
16
17
15
14
11
13
12
10
23
24
19
20
18
22
21
6
7
8
9
6
What’s the speciality?
TOSLON Xboat730 was well designed with
innovative technology, including intelligent llight
system, water switch, DSS waterproof, etc. These
technology are all used to make the boat high
reliability, easy to maintain and intelligent.

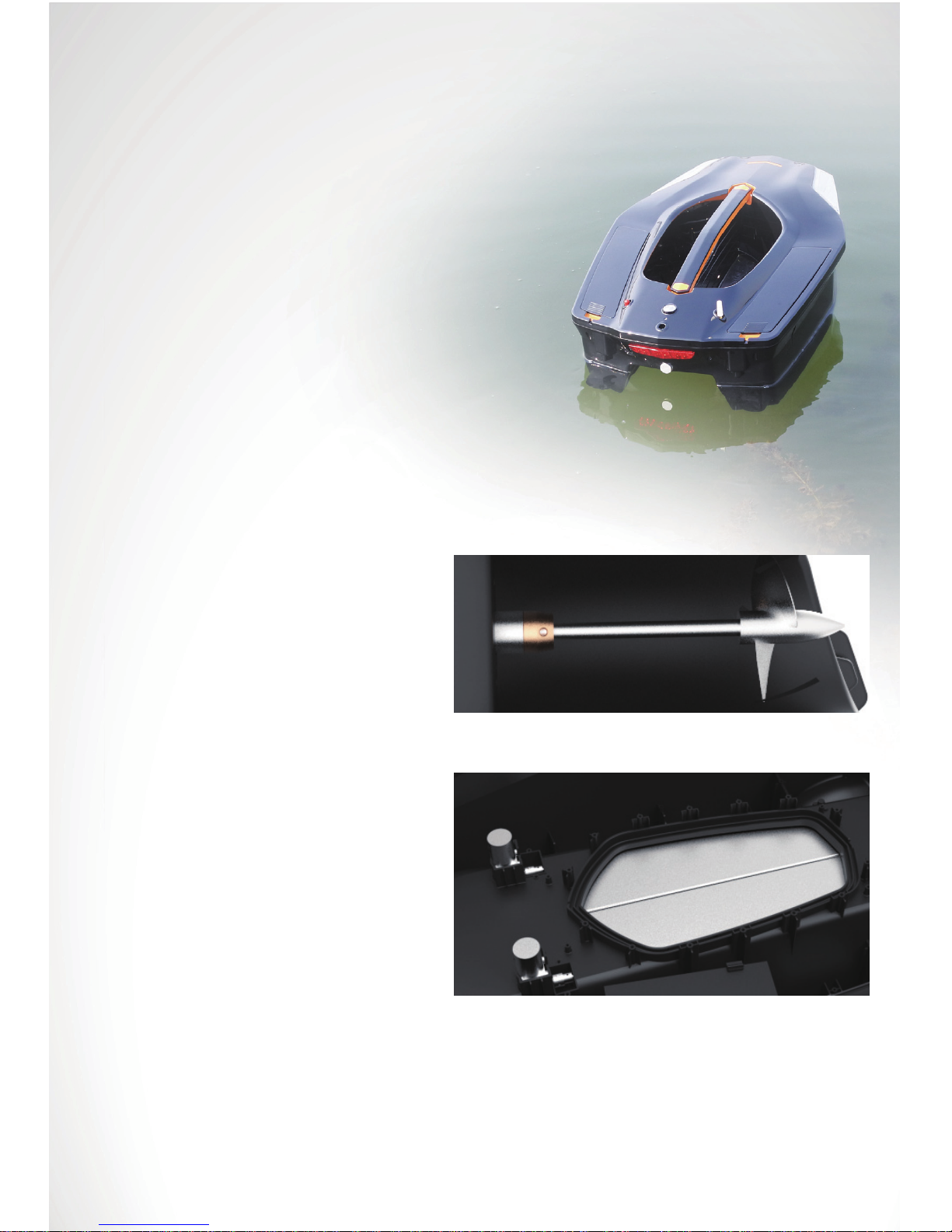

High Reliability
1) DSS technology
The innovative DSS (double seal
system) technology, instead of single
oil sealing, provides the most safe
shaft sealing.
2) Heavy load hopper system
Heavy load hopper system use
unique Sensor-less position control
technique, always open close to
correction position during all
lifetime of the boat.
The two specially designed hopper
were made with 0.8mm stainless
plate, provide a 32kg*cm torque.
7
Easy to Maintain
All control system were designed into 2 boxes. No complex and disorganized wiring
with PCB.
1) CCU box
The CCU (Central Control Unit) box control Hoppers / Hook Release / Battery Monitor /
Front light / Tail light / additional two channel OC output.
ESC Box CCU Box
2) ESC box
The ESC (Electronic Speed Control) box control two motor propellers / smart power
switch / water switch.
Hopper control
Hook control
Smart tail light
Battery monitor
Power front light
Additional two channel OC output
p
l
l
t
r
t
t
Two motors propellers
Smar power switch
Water switch
s
h
h
Intelligent
1) Smart Front light (Unique !)
Running-light composed by 2x30pcs
hight brightness LED (Could be switch
o by remote)
Brightness of Spot light (2*1.5W) is
controllable by the remote
2) Smart tail light (Unique !)
The tail light was composed by 18pcs
led wihch give out striking light at day
or night.
3) Smart Power Switch
The power switch was designed with a
breathing LED. Push On / Push O.
8
4) Water Switch (Unique!)
Xboat730 will power on automatically in 10s after
putting it on water. And power o automatically after it
was taken out from water.
Note: If the boat was powered on manually before it
was put on water, the water switch will NOT power o
automatically after it was take out from the water.
Note: The tail light will twinkle in 2 conditions:
a) one hopper box was released.
b) low battery ( default setting: for li-ion batter, lower than 10.3V, means 30% power).
for Pb battery, change the switch on CCU.
9
Battery

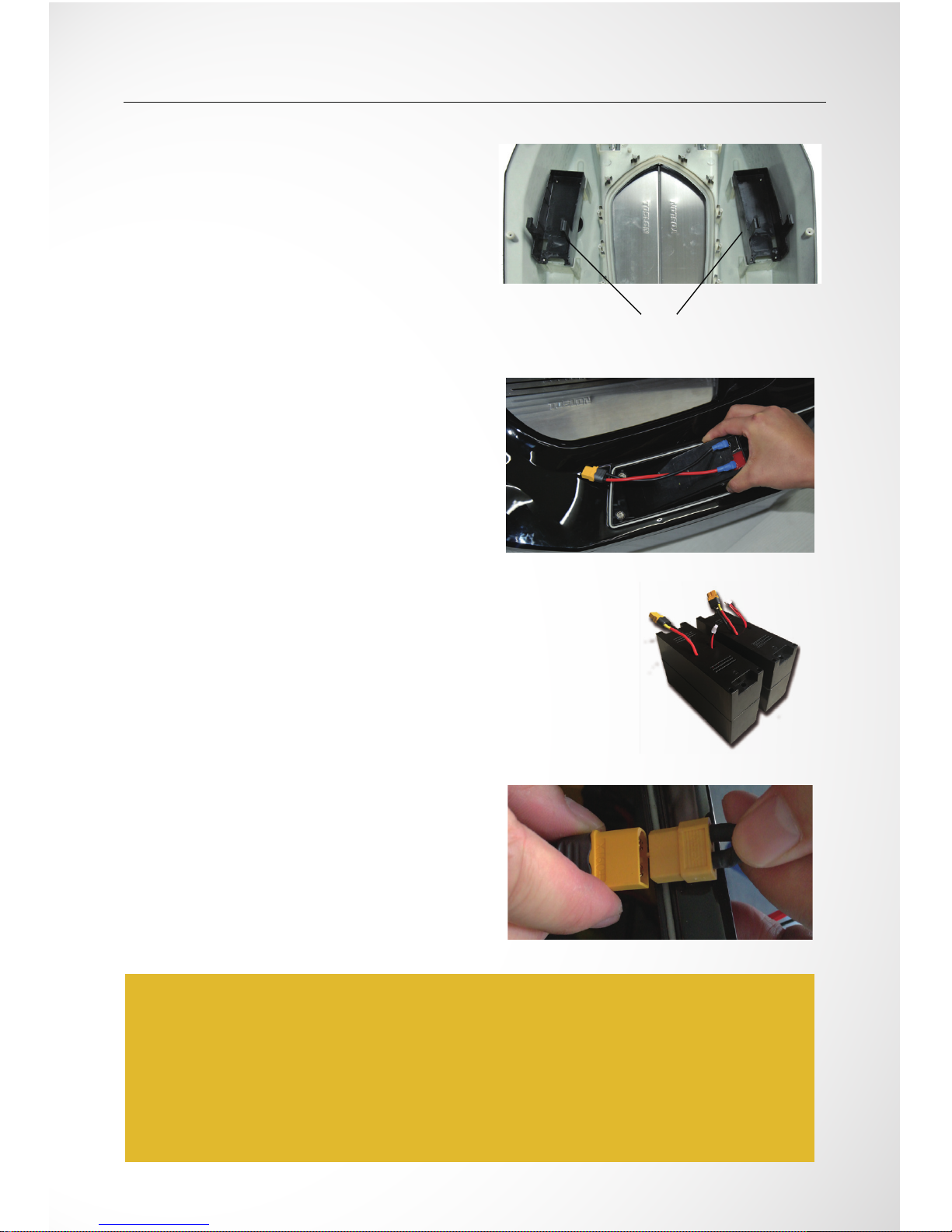

Fix the Battery
As shown in right gure, there are 2 battery
support being xed in the housing, which
are used to hold the battery.
Connection
After batteries were xed into the support,
please connect them to the boat. Then the
boat is ready for using.
2) for Li-ion battery
The Li-ion battery were packed into two seperate plastic box.
Just putting the boxes into the battery support will be ok.
1) for lead-acid battery
Directly put the lead-acid battery into the
battery support.
Battery Support
1. Power voltage: 12V, Pb battery or Li-ion battery are recommended.
2. The two batteries are paralleled inside the boat. Please use batteries with the
same specication only! And before connect the batteries to boat, please fully
charge both batteries separately to ensure voltage of two batteries are the same.
3. Do not crush puncture, incinerate or short circuit external contacts.
Warning:
