Toshiba 6F3A4508 User manual

©TOSHIBA Corporation

Maintenance Tool For Drive

WiTool

Instruction manual

6F3A4508

Jun, 2002

2002

TOSHIBA 6F3A4508

-1 -

WiTool Operation Description Table of Contents

[1] Introduction 2

Before you begin

Notes on rewriting drive equipment data

Maintenance

[2] WiTool connection 3

[3] Starting WiTool 6

[4] WiTool main window 8

[5] WiTool functions 10

[6]WiTool function detail description

[6-1] Word detail description 11

[6-2] String detail description 14

[6-3] Bit detail description 17

[6-4] Set point control detail description 21

[6-5] Traceback detail description 29

[6-6] Snapshot detail description 36

[6-7] Trend view detail description 38

[6-8] Step response detail description 40

[6-9] Password control detail description 42

[6-10] Property detail description 44

[6-11] Preparation detail description 48

[6-12] Ending detail description 49

[7] WiTool 1:N connection, 1:N RIO connection 50

TOSHIBA 6F3A4508

-2 -

[1] Introduction

This document describes the WiTool which is a tool for the Toshiba Wi Series drive equipment.

For information on how to install WiTool on your PC, refer to the "Installation manual"

(6F3A4507). Note that the drive equipment cannot be connected unless the correct connection

method and PC settings are used. Be sure to understand the concept of these settings

thoroughly.

The following topics are described:

Chapter 2: Connection Method

Chapter 3: Startup Method

Chapter 4: Main Window Description

Chapter 5: Function Summary

Chapter 6: Function Details

Chapter 7: Connection Other than 1:1 Connection

Microsoft and Toshiba have the Copyrights to this software. Copying this software to

unauthorized PC is prohibited.

Do not install programs other than the above on your PC. The settings of your PC may be

altered causing the WiTool to slow down or become inoperable.

Observe the following when rewriting the drive equipment data.

1) Rewriting the data may disturb the drive equipment. (For example, if the speed setting is

rewritten, the motor speed will change. If the control gain is rewritten, the control system will

change causing it to trip or become unstable. ) Be very careful when rewriting. When the motor

is running, the message "OK to rewrite while running?" appears on the screen.

2) When rewriting the data, there is a password function on the drive equipment side. If the

correct password is not provided, a password error occurs and the data remains unchanged.

3) The setting in the drive equipment is normally written in RAM. WiTool normally modifies this

data in RAM. However, this data in RAM is erased once the power is turned off. Therefore, the

drive equipment also holds the settings in EEPROM which is not erased when the power is

turned off and the settings are copied to RAM from EEPROM when the power is turned on.

When data is changed with the WiTool, only the data in RAM is changed. Therefore, the

settings must be copied from RAM to EEPORM before turning the power off.

This software is supplied on CD-ROM. Keep it as backup.

TOSHIBA 6F3A4508

-3 -

[2] WiTool connection

The following three types of network connections are available for WiTool:

1) 1:1 connection

PC and drive are connected 1 to 1.

Therefore, only one PC and drive equipment are connected to the network.

Figure 2 1:1 connection

2) 1:N connection

Multiple drive equipments are connected to a single PC.

Normally, the network is connected through a device called the HUB.

In this case, an IP address is required for the PC and each drive unit.

Figure 2 1:N connection

250Wi

Ethernet

Hub

T-

250Wi

T-

250Wi

T-

250Wi

TOSHIBA 6F3A4508

-4 -

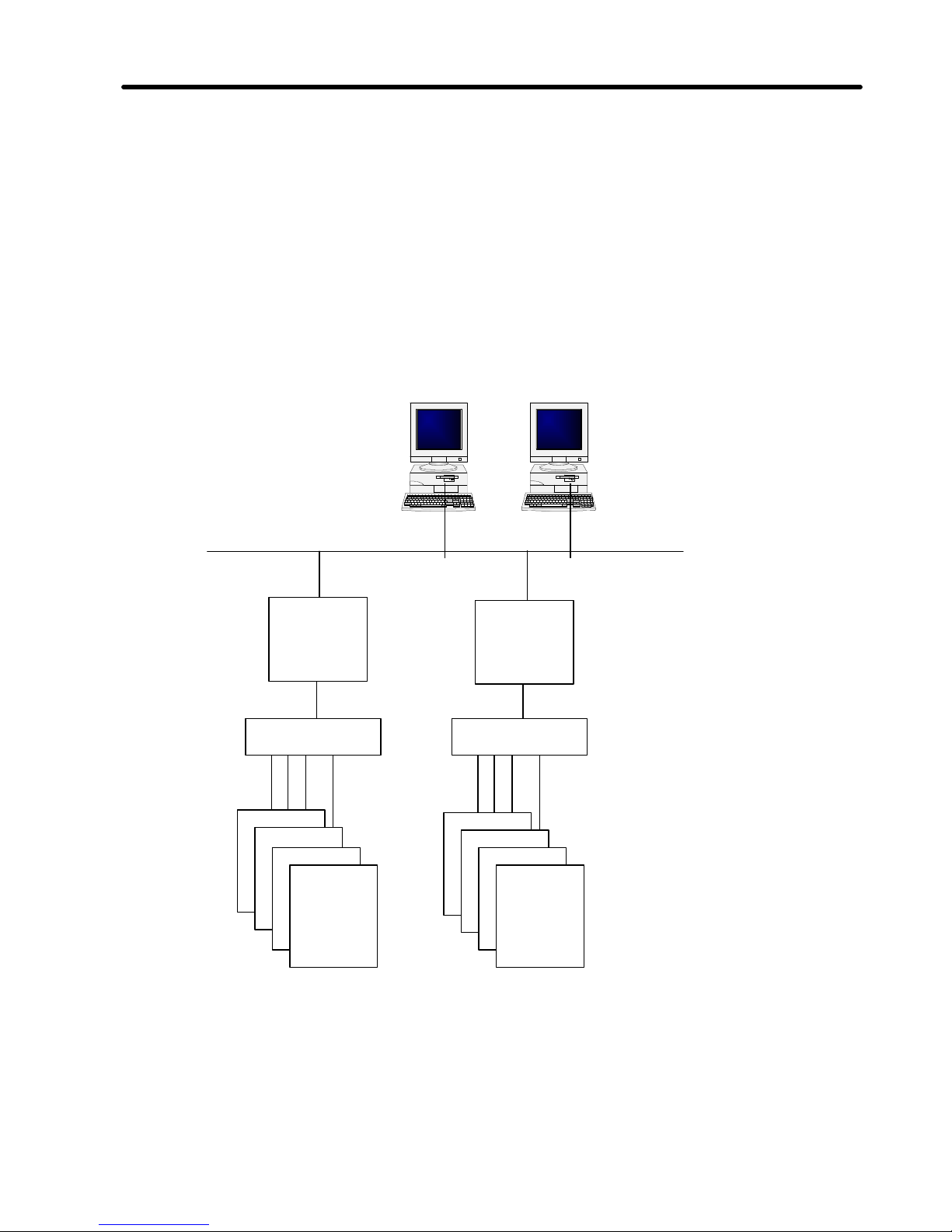

3) 1:N RIO connection

This is a connection made via Integrated Controller V Series.

The PC is connected to the Integrated Controller network and exchanges messages with the

Integrated Controller RIO (Remote I/O Controller).

RIO and drive equipment exchange messages using the message transmission function of

the Transmission Unit TL-S20. Consequently, the PC exchanges messages with the drive

equipment.

In this case, an IP address is required for the PC and each RIO.

The drive equipment does not need an IP address because message is exchanged using the

TL-S20.

Ethernet

250Wi

TL-S20

250Wi

TL-S20

RIO RIO

ASC

T-250Wi

Figure 2.3 RIO connection

TOSHIBA 6F3A4508

-5 -

The necessary information, the creation of setup file based on this information, PC setup, and

the window display depend on the selected connection method ((1) 1:1, (2) 1:N, or (3) 1:N

RIO).

Refer to the "Installation manual" (6E3A4507) for details.

4) Connection between PC and drive equipment

The actual connection between the PC and drive equipment is made by an Ethernet cable.

(1) In the case of 1:1 connection, connect the TOOL connector on the drive equipment board

and the Ethernet connector of the PC with an Ethernet cross cable.The Ethernet cross cable

is provided with

WiTool.

(2) In the case of 1:N, it is not possible to connect to the drive equipment board. Connect the

Ethernet connector of the PC and the hub with an Ethernet straight cable because the signal

from the drive equipment is connected to the Ethernet hub.

(3) In the case of 1:N RIO connection, connect the Ethernet connector of the PC and the hub

with an Ethernet straight cable as with (2) 1:N connection.

Cross cable and straight cable are available as Ethernet cable. Note that the correct cable

must be used. A single cross cable is included with WiTool. Straight cables must be

purchased separately.

TOSHIBA 6F3A4508

-6 -

[3] Starting WiTool

If installation is finished, WiTool can be started according to the following procedure:

1) Click the START button at the bottom left corner of the screen.

2) Select Program/TOSHIBA Drive Tools.

3) When WiTool appears, click it.

4) If TOSHIBA Drive Tools or WiTool is not displayed:

WiTool may not be installed.

Install it.

Refer to the "Installation manual" (6F3A4507) for details.

Figure 3.1 Starting WiTool

TOSHIBA 6F3A4508

-7 -

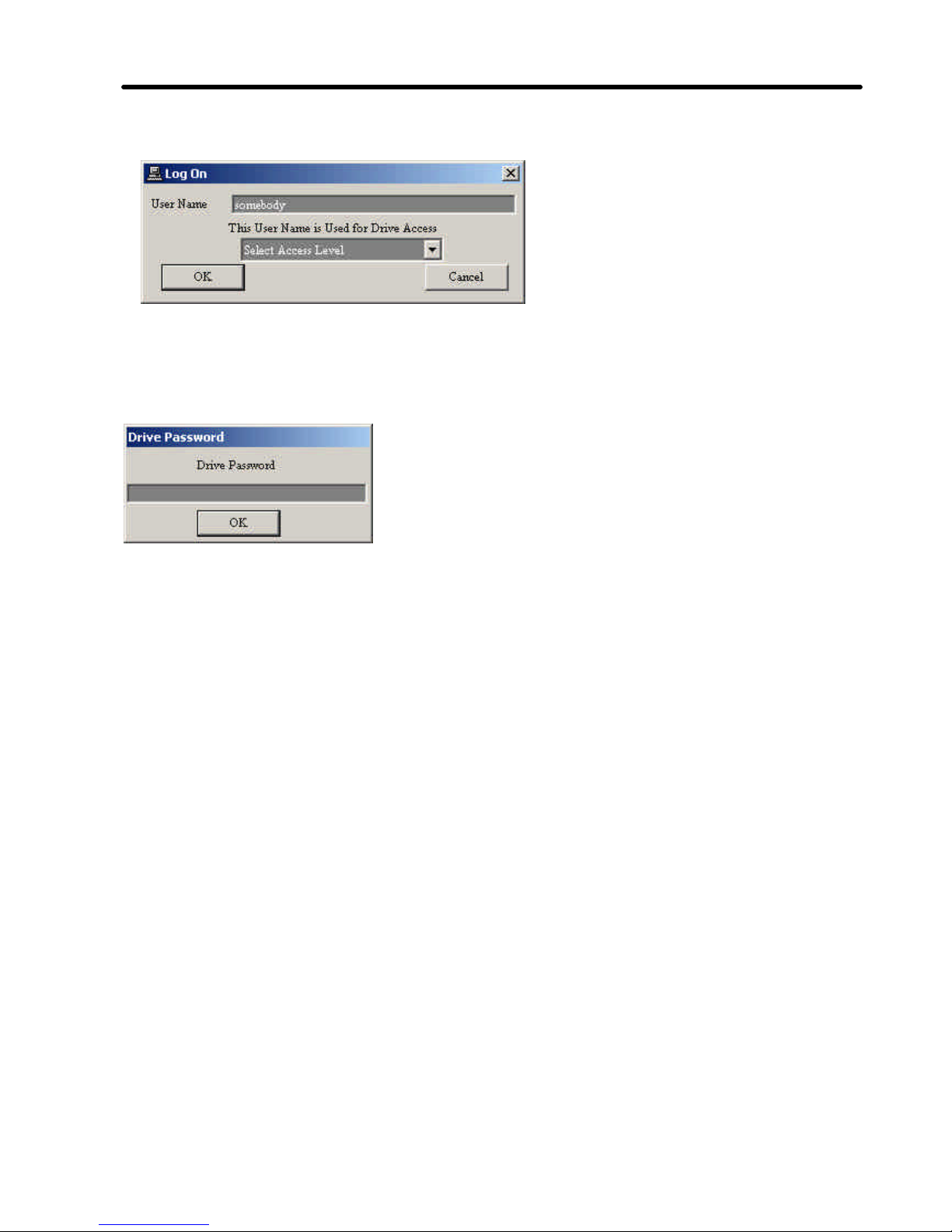

The following window appears when WiTool is started.

Figure 3.2 Logon window

Enter the User Name and Access Level and then click OK.

A password input window appears when connecting to the drive equipment.

Figure 3.3 Password prompt

Enter the password and click OK.

<<User Name, Access Level, Password>>

The name of the operator allowed to connect to the drive equipment, access level of the

operator, and the password for that operator are registered in each drive equipment.

This operator name is referred to as the User Name.

The access level is divided into ten levels from 0 (Read Only) to 9 (Full Access).

If the User Name and Access Level do not match those registered in the drive equipment, the

drive equipment returns access level 0.

The User Name and Password are set to "TOSHIBA" at factory shipment.

Access level 9 is allowed with this user name.

This User Name and Access Level are entered when starting WiTool and are used to

connect to the drive equipment.

TOSHIBA 6F3A4508

-8 -

[4] WiTool main window

The main window opens when the password is entered.

The standard 1:1 connection windows are described.

The main window consists of five main components:

1) Title

2) Menu bar

3) Command buttons

4) Main

5) Status bar

Figure 4.1 Main window

Main

Status bar

Title Menu bar Command

buttons

TOSHIBA 6F3A4508

-9 -

1) Title

Figure 4.2 Title

The Title shows the WiTool program version etc.

Click the x at the right end to quit WiTool.

2) Menu bar

Figure 4.2 Menu bar

The Menu bar is used to select the function to be performed with WiTool. The following

command buttons are also available for frequently used functions.

3) Command buttons

Figure 4.4 Command buttons

Command buttons are used to select the function to be performed with WiTool.

4) Main

Main shows the function selected from the Menu bar or with a Command button.

5) Status bar

Figure 4.5 Status bar

The Status bar shows the status of the connected driver unit.

The following items appear from left to right

(1) Panel name of the connected drive equipment

(2) Drive Type name of the connected drive equipment

(3) Whether the status motor of the connected drive equipment is running/stopped

Click to see the preparation view.

(4) Fault status fault/alarm

(5) Test mode, simulation mode

(6) Allowed access level

(7) PC keyboard status

(8) PC date

(9) PC time

(10) Online (communicating with drive unit)

Click when online to change to offline.

Click when offline to change to online.
