TimoLabs CORBETT I User manual
Quick Start Guide
TimoLabs CORBETT I,
Model# TM-BT003-2015A
Rugged Waterproof
Bluetooth Speaker
2

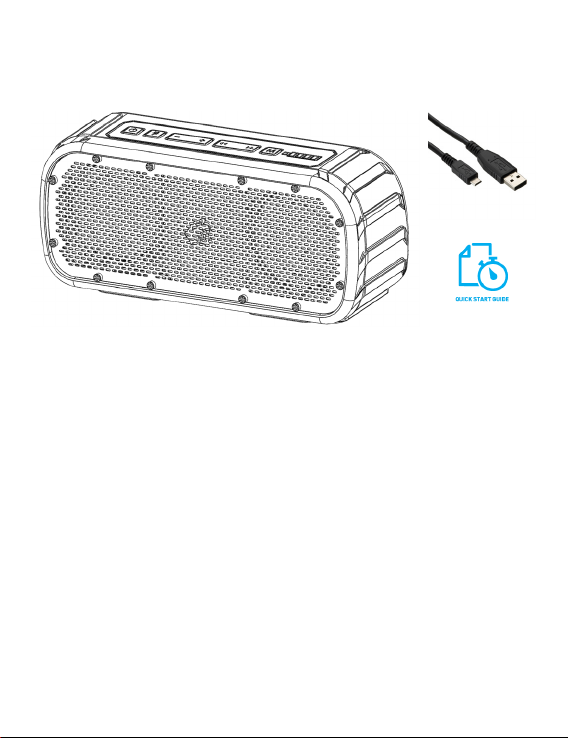

WHAT’S IN THE BOX ?
Product Dimension: Length x Width x Height
7.25” x 2.5” x 3.11”
184 x 63 x 79 mm
Continuous Power Output: 10W
Battery: 3.7V, 2000mAh
Lithium-ion Battery
8 hours at 75% volume level
ChargingTime: ~ 3 hours
Audio Source: Bluetooth
NFC
Aux Input
SD Card
Bluetooth: 4.0 Version
OperatingTemperature: 0 ~ 40°C
Dust/Waterproof IP Code: IPX7
SPECIFICATION
3
CONTROLS
Power
Standby
Answer
Play
Pause
Volume
Control

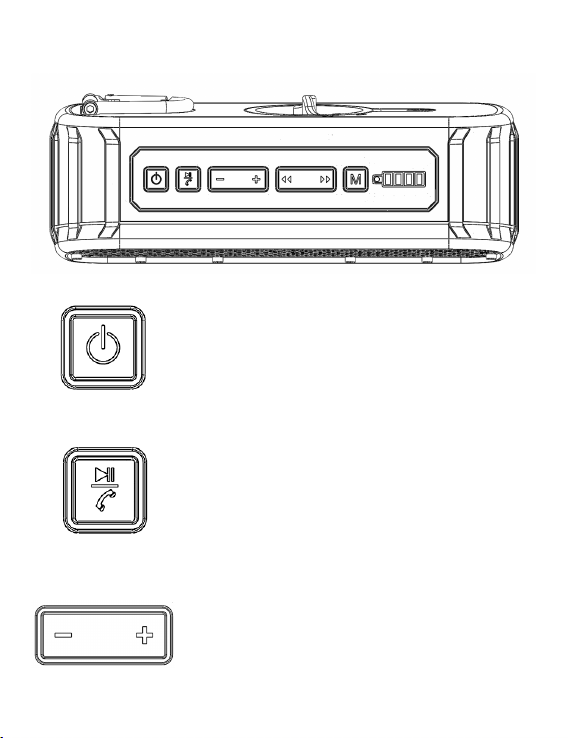

Press Power/Standby button to turn
Corbett ON or OFF. When turned
off, Corbett remains in standby
mode. Please note that MAIN Pow-
er Switch on the back panel needs
to be set on for Power/Standby but-
ton to operate.
Press Answer/Play/Pause button
once to pause and play song tracks,
or to answer mobile phone calls.
Press “—“ button to decrease vol-
ume and press “+“ button to in-
crease volume.
4
SongTrack
Selection
Mode
Selection
Power and
function
Indicator

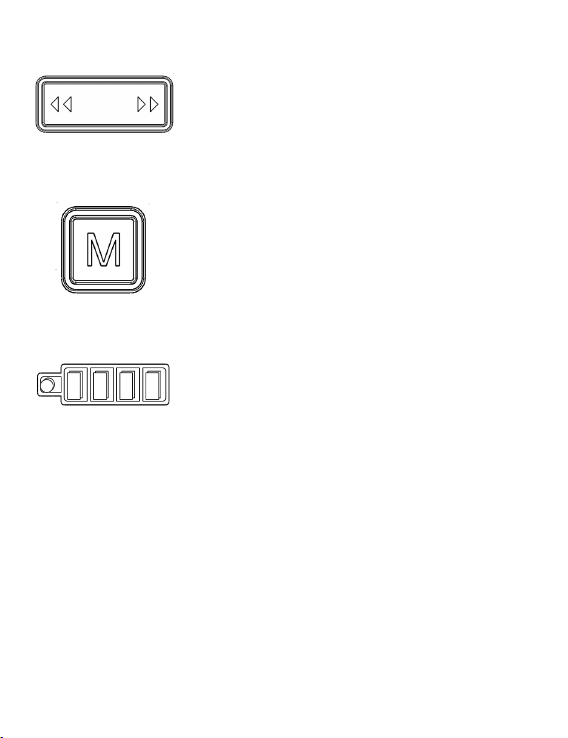

Select previous or next song track
accordingly.
Toggle among Corbett operating
modes, Bluetooth, AUX input or
SD card.
Indicator provides the status of the
mode, such as Bluetooth pairing
mode. It also provides the pow-
er status of your Corbett. Please
charge your Corbett, when only
one bar present.
5
MAIN POWER SWITCH
AND CONNECTION
Unlock the protective cover by
turning the cap counter clockwise
to reveal the switch and connec-
tions.
After using these functions, ensure
that the cap is locked properly. Cor-
bett is not waterproof without back
cap locked.
6
Micro USB
Charging
5V@1A
To charge your Corbett, connect the
USB cable provides to Micro USB
Input 5V@1A.
Main
Power
Switch
Corbett has a Main Power Switch
and must be ON to power it. Only
when Main Power Switch is ON,
the Power/Standby button is func-
tional.
MicroSD
Card
Slot
MicroSD (Secure Digital) Card Slot
enables Corbett to read SD media
inserted in the slot.
7
OPENING BACK CAP

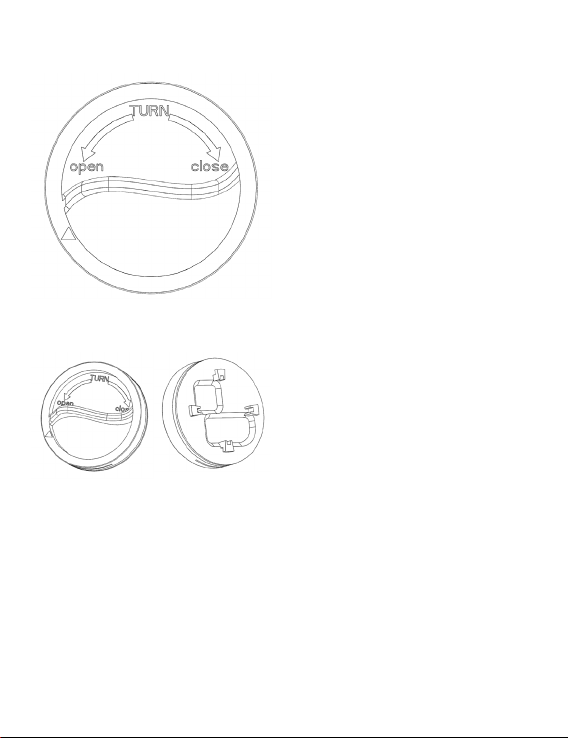

Step 1: Unlocking the Cap
Turn the cap counter clock-
wise as shown. The triangle
tip on the Cap must indicate
the open triangle on the
back panel.
Step 2: Opening the Cap
Lift the Cap as shown.
8
LOCKING BACK CAP
Step 1: Closing the Cap
Cover the Back Panel Main
Power Switch & Connec-
tions with the Cap as shown.
The Cap must t snugly into
the Back panel.
Step 2: Closing the Cap
Turn the cap clockwise as
shown. The triangle tip on
the Cap must indicate the
close triangle on the back
panel.
9
OPERATING
Step 1: Charging your Corbett to the max.
- Switch off the Main Power Switch. Connect the USB cable and a
power source to Corbett I Micro USB Input 5V/1A function.
- 4 blue bars on Battery Power Indicator show a fully charged Cor-
bett I.
* Power source options include USB connection to any smartphone
AC power adapter, or computer/notebook USB connection.
** It might take about 3 hours of charging from empty to reach max
battery power capacity.
Step 2: Bluetooth Pairing
- Switch on the Main Power Switch after Corbett is fully charged.
Press Power/Standby button once. Corbett will produce a bell tone
sound and LED Flash Indicator will have red & blue ashing lights
indicating Corbett is ready for pairing.
- Turn on Bluetooth on your smart device. “TimoLabs Corbett I“will
appear in device list. Select to pair.
- Once paired, Corbett will produce a bell tone sound indicating a
successful pairing.
- Enjoy your music
* If you are not familiar with Bluetooth pairing for you smart device,
refer to the user guide for your smart device to guide you how to
add and pair a new device using Bluetooth.
* If LED Indicator is not ashing red & blue, press Mode button
once.
* Corbett will always store the last device paired and if the device
is within Bluetooth range, Corbett will automatically search & pair
with the device.
10
CARE AND SAFETY
Important Safety Instructions
Please read following safety warnings carefully. TimoLabs is not
liable for any cause of death, severe human injurey or property
damage, if you did not read, comprehend and comply with safety
warnings and instructions:
1. Check related regulations and restrictions for bluetooth devices
in your area before using this product.
2. Do NOT replace Corbett internal battery. It is internal and irre-
placeable.
3. Do NOT try to repair, modify or disassemble Corbett speaker
drivers.There are no user maintainable parts inside.
4. Keep the device in dry, dust free, regular constant temperature
environment if planning not to use for a long time.
5. Wireless signal interferes with automotive electronics devices,
please use with caution.
6. Do NOT install near any heat sources such as radiators, heat
registers, stoves or other apparatus (including ampliers) that
produce heat
7. Do NOT use this device close to any medical apparatus.
8. Do NOT use this device on aircraft.
9. Do NOT use this device in any ammable or combustible places.
10. Do NOT allow children use this device.
11. Do NOT expose battery in extremely hot environment to avoid
explosion, or freezing environment to avoid short battery life.
ATTENTION: Do NOT use this device for emergency communi-
cation. Wireless bluetooth signal is not the most reliable method
under all circumstances.
