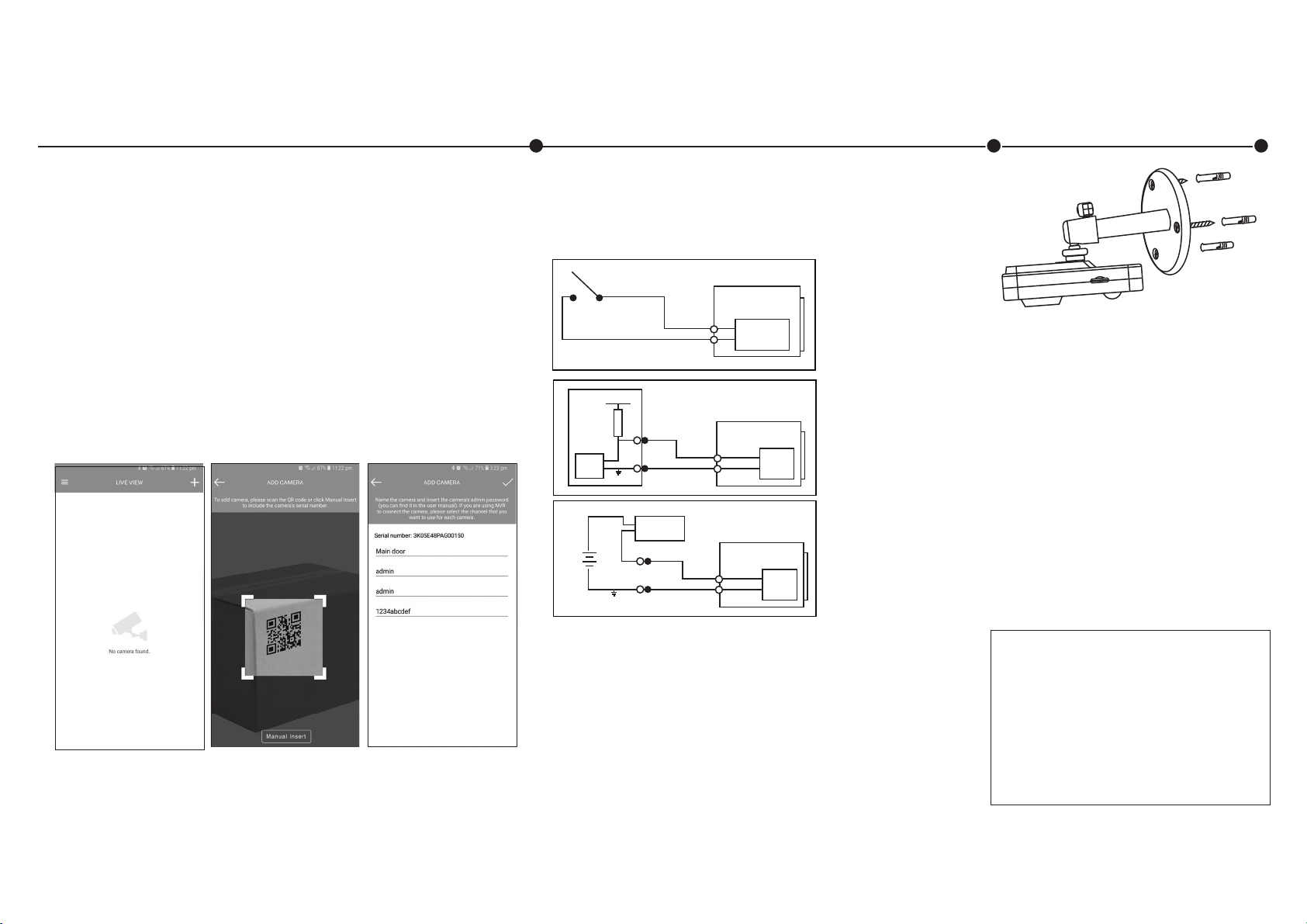

CONNECTING TO TIMETEC SECURITY MOBILE APP
1. Download and install TimeTec Security Mobile App from Apple App Store or
Google Play.
2. Register an account with TimeTec Security and activate it.
3. Sign in to TimeTec Security Mobile App.
4. Connect your smartphone to a WiFi.
5. Power on your camera with a power adapter. Red LED will lit up to indicate that
the camera is booting. Wait until the LED turns green. Next, connect the IP
Camera to the same WiFi access point used at your smartphone. Make sure you
only use one WiFi Access Point during conguration.
6. Open TimeTec Security App, go to Epicamera > Live View > Tap the ADD button.
7. Scan the QR code at the IP Camera (or you can nd it at the packaging box) to get
the serial number, or tap MANUAL INSERT to ll in the serial number.
8. Name the IP Camera, insert username (default: admin), password (default:
admin) and WiFi password.
9. Done. You will be able to view the IP Camera added in the Camera Listing. You
can continue to set the recording rules in the mobile app.
NOTE: • If you have more IP Camera, please follow Step 5-8 to add them one by one. • If you want to
change the WiFi signal, please reset the camera to factory default and repeat Step 4-9 to add the
device.
IP Camera supports external alarm device, where it can be connected to
alarm input/output device via “Digital input/output”.
ALARM INPUT DEVICE (detector, sensor and etc)
Please refer to the following diagram for alarm input information.
When the input signal is
idle or grounded, the
device can collect the
dierent statuses of the
alarm input port. When
the input signal is
connected to the 5V or
is idle, the device
collects the logic “1”.
When the input signal is
grounded, the device
collects the logic “0”.
ALARM OUTPUT
DEVICE (alarm device,
beeper and etc)
Please refer to the
following diagram for
alarm output informa-
tion.
Important：Please make sure the installation surface can support at least 3
times the weight of the camera and the bracket.
Mode A: Level application. Alarm output high and low level, alarm output is OC; it
needs to increase pull-up resistance externally to work normally. Max external pull-up
level is 5V, max port current is 5mA. After external pull-up resistance is increased, the
default of output signal is high level (external pull-up voltage), and it switches to low
level when there is alarm output (when the working current is 5mA, output voltage is
less than 0.8V).
Mode B: Switch application. Alarm output is used to drive external circuit, max current
is 50mA, max voltage is 12V (it can be applied together with alarm siren, acousto-optic
alarm siren HC103) it is advised to add a relay if it is beyond the value.e.
EXTERNAL ALARM INPUT/OUTPUT DEVICE DEVICE INSTALLATION
STEP 1: Paste the installation map on the
installation surface, e.g: wall, ceiling or wood.
STEP 2: Drill holes on the installation surface
according to the installation map.
STEP 3: Insert the expansion bolts from the
accessories bag to the holes. If it is the wood
surface you can skip to the next step.
STEP 4: Fix the device with screw in the
accessories bag.
STEP 5: Connect the cable and then boot up
the device.
STEP 6: Loosen the adjust knob for a little bit,
adjust the camera to proper surveillance
position according to your practical require-
ments.
STEP 7: Secure the knob of the bracket to x
the camera.
DISCLAIMER
• This quick start guide is for reference only. Minor
dierence might be found in user interface.
• All the designs and software here are subject to change
without prior written notice.
• All trademarks and registered trademarks mentioned
are the properties of their respective owners.
• Please visit our website or contact your local service
engineer for more information.
• If there is any uncertainty or controversy, please refer
to our nal explanation.
GND
Alarm Input
IPC
Collectig
Ground Wire
Alarm
Output
Network Camera
Output
Input
10K
+3.3V
External
Device
Max 5V, 5mA
Network Camera
Output
Max 5V, 5mA
Ground Wire
Alarm
Output
Alarm
+12V
