Thermal Zone MS29A13115A User manual
INSTALLATION
INSTRUCTIONS
MINI-SPLIT
AIR CONDITIONING SYSTEMS
FOR MODELS:
MS29A13115A
MS212A13115A
MS212A13240A
MS218A13240A
950-0015-REV-J 12-14-06
- -
1
Table of contents
Model Numbers…………………………………………………………………………………………………2
Unit Parts and Features………………………………………………………………………………………3
Installation Dimension Diagram………………………………………………………………………………5
Safety Warnings…………………………………………………………………………………………………7
Selection of Installation Location………………………………………………………………………………8
Indoor Unit Installation…………………………………………………………………………………………9
Outdoor Unit Installation………………………………………………………………………………………12
Testing…………………………………………………………………………………………………………14
Warranty………………………………………………………………………………………………………17
Specifications…………………………………………………………………………………………………18
Troubleshooting Chart………………………………………………………………………………………19
- -
2
- -
3
Model Numbers
Air Conditioning
Indoor Unit MS29A13115EASYSTEM MODEL
MS29A13115A Outdoor Unit MS29A13115CA
9,000 BTU 115 VAC
13 SEER
Indoor Unit MS212A13115EA
SYSTEM MODEL
MS212A13115A Outdoor Unit MS212A13115CA
12,000 BTU 115 VAC
13 SEER
Indoor Unit MS212A13240EA
SYSTEM MODEL
MS212A13240A Outdoor Unit MS212A13240CA
12,000 BTU 208-230 VAC
13 SEER
Indoor Unit MS218A13240EASYSTEM MODEL
MS218A13240A Outdoor Unit MS218A13240CA
18,000 BTU 208-230 VAC
13 SEER
- -
4
________________________________________________________________

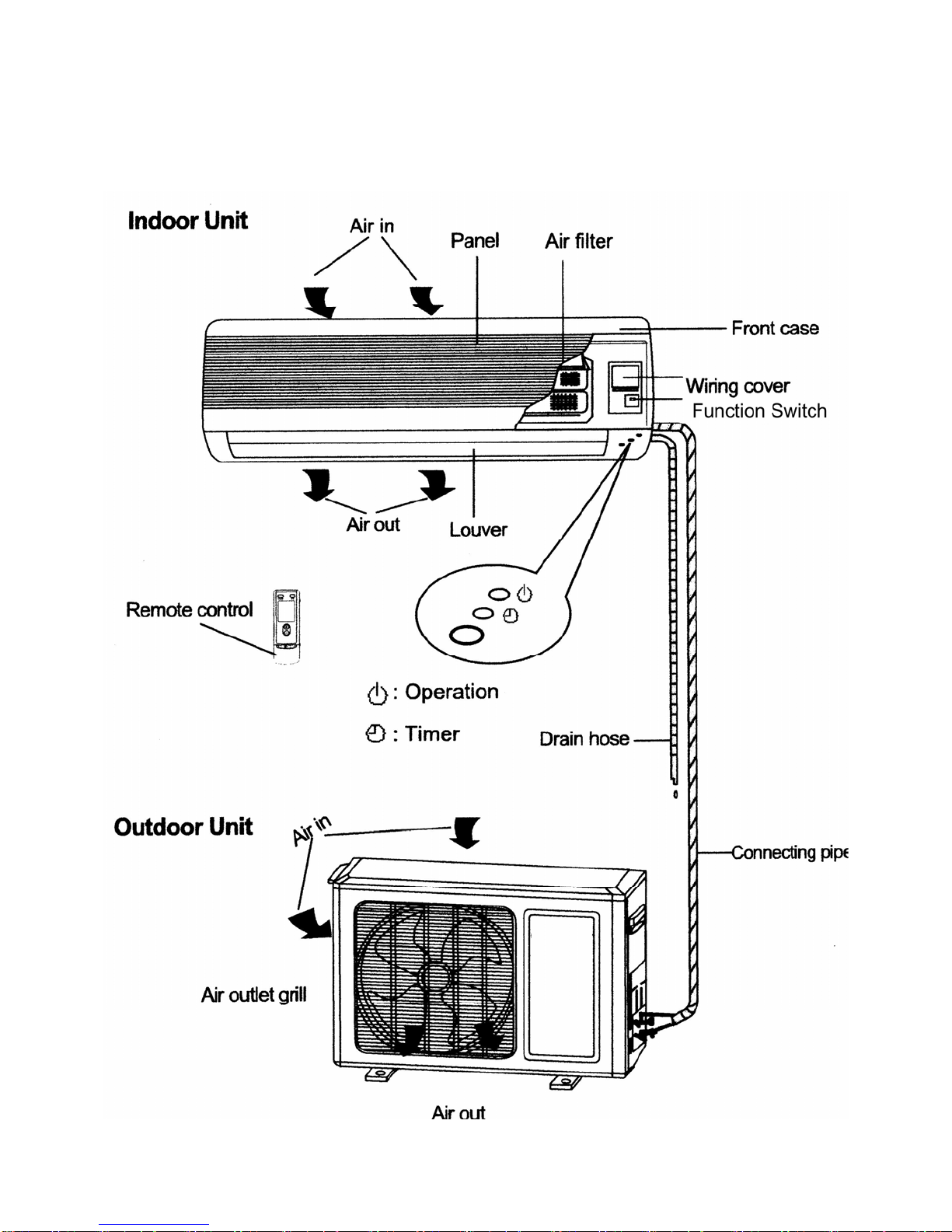

Name and Function of each Part
(Models MS29A13115A, MS212A13115A, MS212A13240A)
- -
5
________________________________________________________________
Name and Function of each Part
(Model MS218A13240A)
- -
6
________________________________________________________________

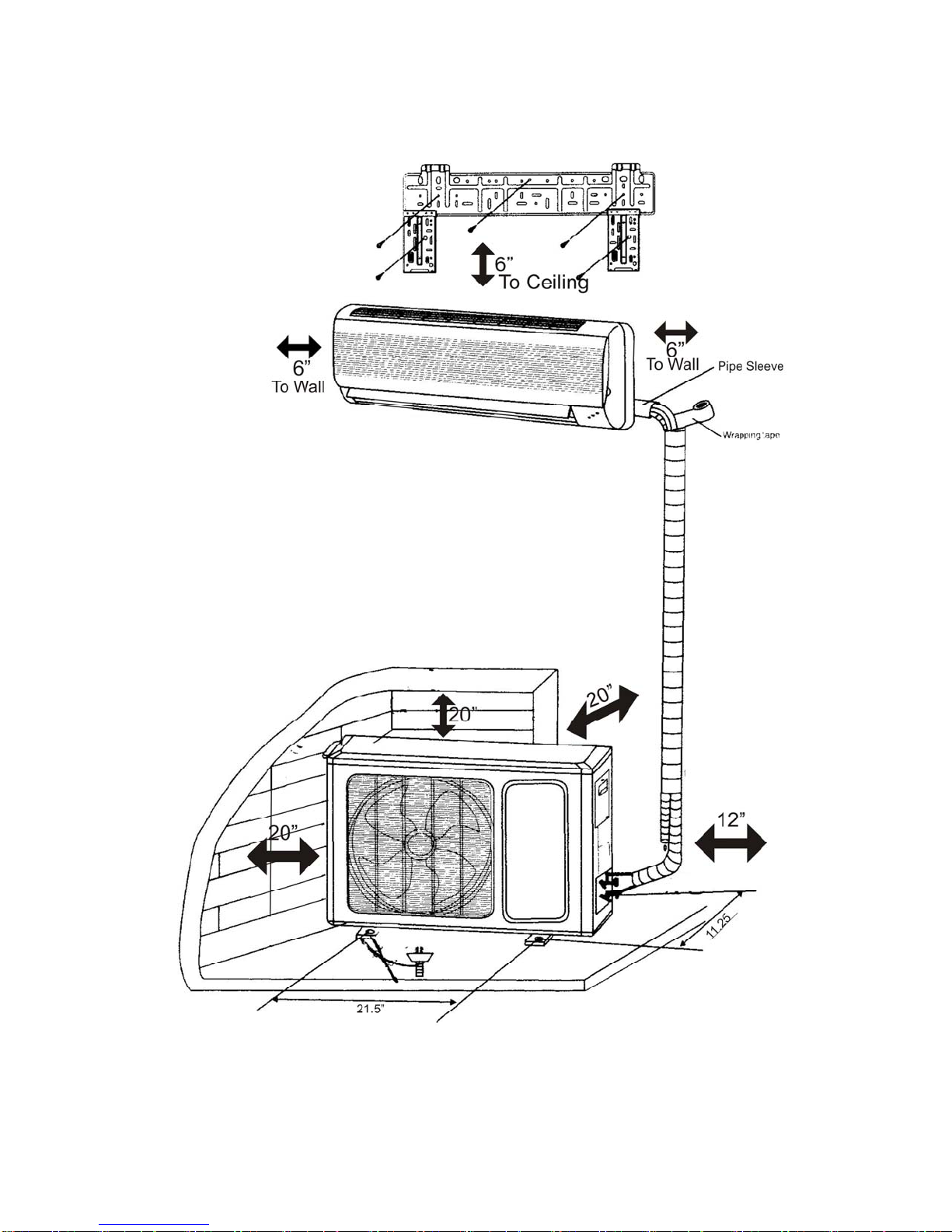

Installation Dimension Diagram
(Models MS29A13115A, MS212A13115A, MS212A13240A)
- -
7
________________________________________________________________
Installation Dimension Diagram
(Model MS218A13240A)
- -
8
Safety Warnings
•Use Copper Wires only for Power Supply
•Risk of electric shock can cause injury or death. Disconnect all electric power supplies before servicing or
installation
•Do not use excessive torque on flare nuts during connection of the refrigeration tubes, or service valve on
discharge line may be damaged.
•Do not install indoor unit in damp or wet locations.
•Electrical installation must be done by a qualified technician according to the instruction manual and in
accordance with local electrical standards.
•Certified Power supply conductors must be used.
- -
9
Select Installation Location
Indoor Unit:
•Intake and outlet should not be obstructed.
•The wall the unit is to be mounted on should allow for a clear hole for the condensation drain and the refrigeration
lines.
•The wall the unit is mounted on should be strong enough to bear the weight and vibration of the unit.
•Allow for proper clearances around the unit - see installation dimension diagram (page 5 and page 6).
•Location should allow easy access for maintenance and removal of air filter.
•Position unit and remote control at least 3 feet from electric appliances such as televisions, radios, etc.
•Keep unit and remote out of direct sunlight and/or florescent lighting and away from any excessive heat source,
steam, or flammable materials.
Outdoor Unit
•Allow sufficient ventilation around the unit - see installation dimension diagram (page 5 and page 6).
•The air intake and outlet should not be obstructed.
•Position unit so that noise and outlet airflow will not inconvenience neighbors.
•Position unit on a solid foundation. Location should be able to withstand the full weight and vibration of the unit.
•Installation should not be performed in the following locations exposed to: machine oil, flammable or corrosive
gases, high - frequency waves (i.e. from radio equipment, medical equipment, etc.)
Both Indoor and Outdoor Units:
Installation of Either unit in the following locations may cause malfunction. Locations exposed to:
•machine oil
•flammable or corrosive gasses
•high frequency waves (i.e. from radio equipment, medical equipment, etc.)
