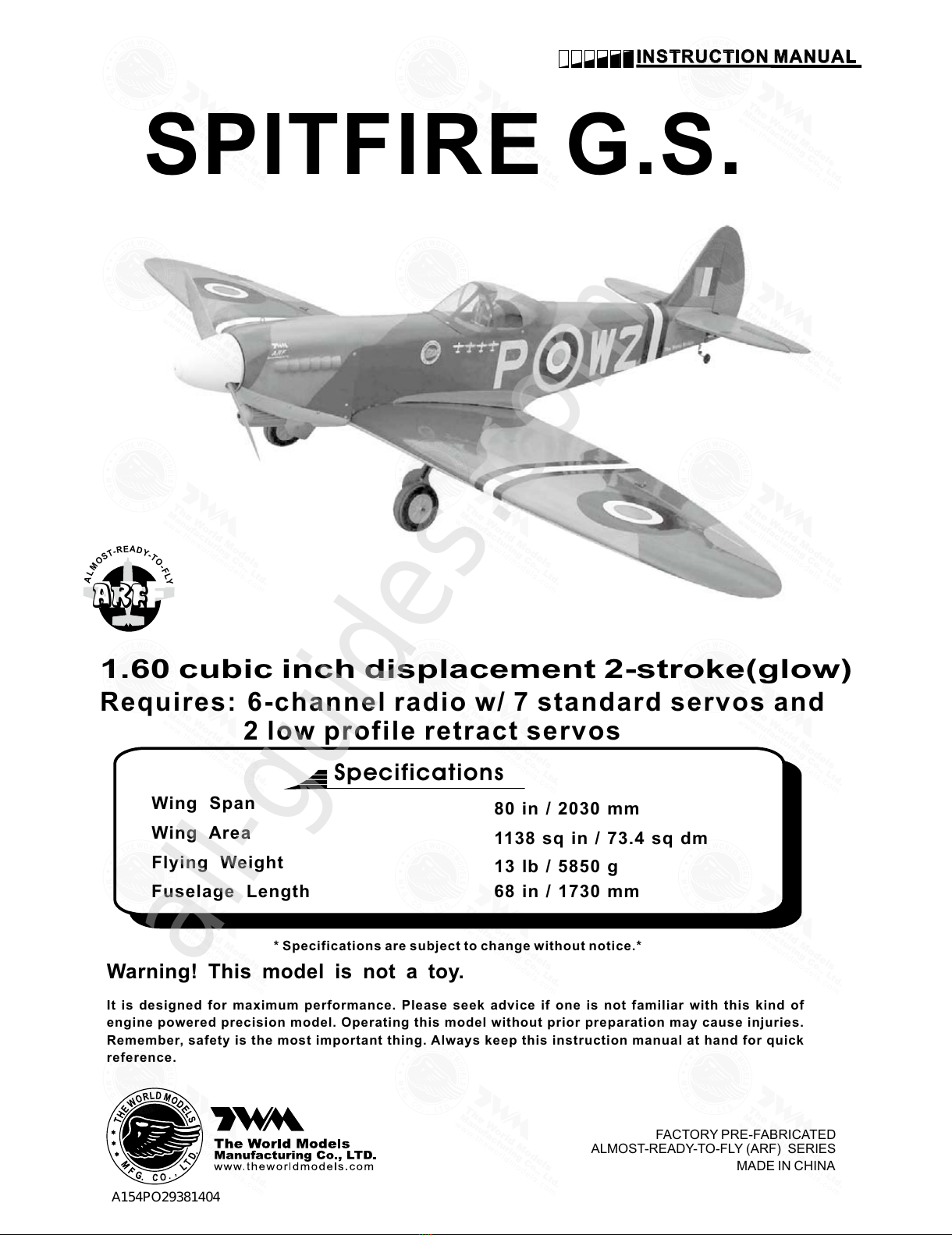

The World Models Manufacturing SPITFIRE G.S. User manual

1.60 cubic inch displacement 2-stroke(glow)

Requires: 6 channel

2 low profile retract servos

- radio w/ 7 standard servos and

Specifications

Wing Span

Wing Area

Flying Weight

Fuselage Length

80 in / 2030 mm

1138 sq in / 73.4 sq dm

13 lb / 5850 g

68 in / 1730 mm

It is designed for maximum performance. Please seek advice if one is not familiar with this kind of

engine powered precision model. Operating this model without prior preparation may cause injuries.

Remember, safety is the most important thing. Always keep this instruction manual at hand for quick

reference.

Warning! This model is not a toy.

INSTRUCTION MANUAL

SPITFIRE G.S.

ARF

* Specifications are subject to change without notice.*

FACTORY PRE-FABRICATED

ALMOST-READY-TO-FLY (ARF) SERIES

MADE IN CHINA

A154PO29381404

All manuals and user guides at all-guides.com

all-guides.com

SPITFIRE G.S.

P. 1

P. 3 - 12

Check all parts. If you find any defective or missing parts contact your local dealer. Please DRY FIT

and check for defects for all parts that will require CA or Epoxy for final assembly. Any parts you

find to be defective after the gluing process may be difficult to remove for warranty replacement. The

manufacturer will replace any defective parts. but will not extend to the parts that are good before

gluing to defective parts during assembly.

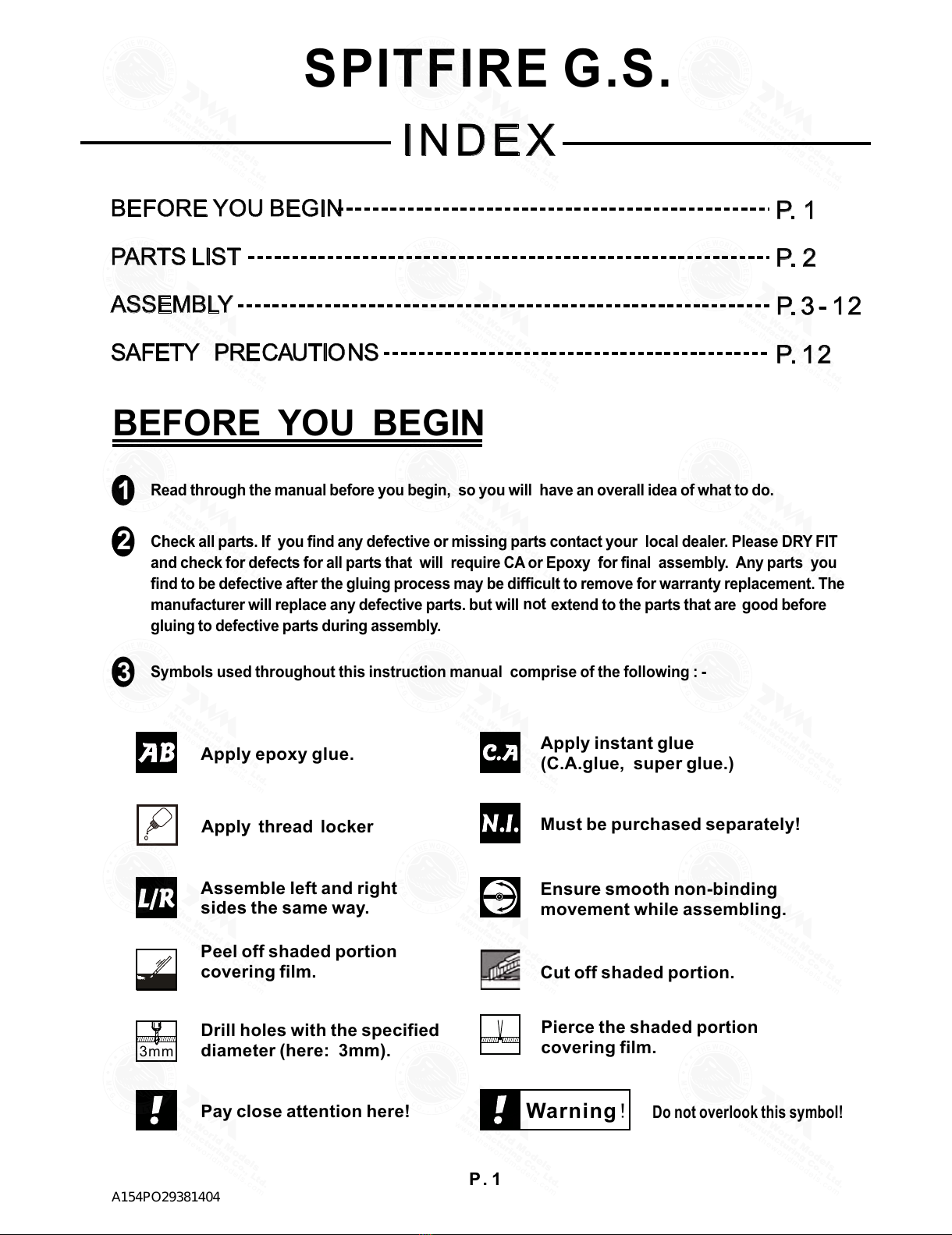

INDEX

BEFORE YOU BEGIN

PARTS LIST

ASSEMBLY

SAFETY PRECAUTIONS

P. 1

P. 2

P. 12

BEFORE YOU BEGIN

Read through the manual before you begin, so you will have an overall idea of what to do.

Symbols used throughout this instruction manual comprise of the following : -

3mm

Do not overlook this symbol!

Cut off shaded portion.

Peel off shaded portion

covering film.

Pay close attention here!

Pierce the shaded portion

covering film.

Must be purchased separately!

Drill holes with the specified

diameter (here: 3mm).

Ensure smooth non-binding

movement while assembling.

Apply instant glue

(C.A.glue, super glue.)

Assemble left and right

sides the same way.

Apply epoxy glue.

Apply thread locker

Warning!

A154PO29381404

All manuals and user guides at all-guides.com

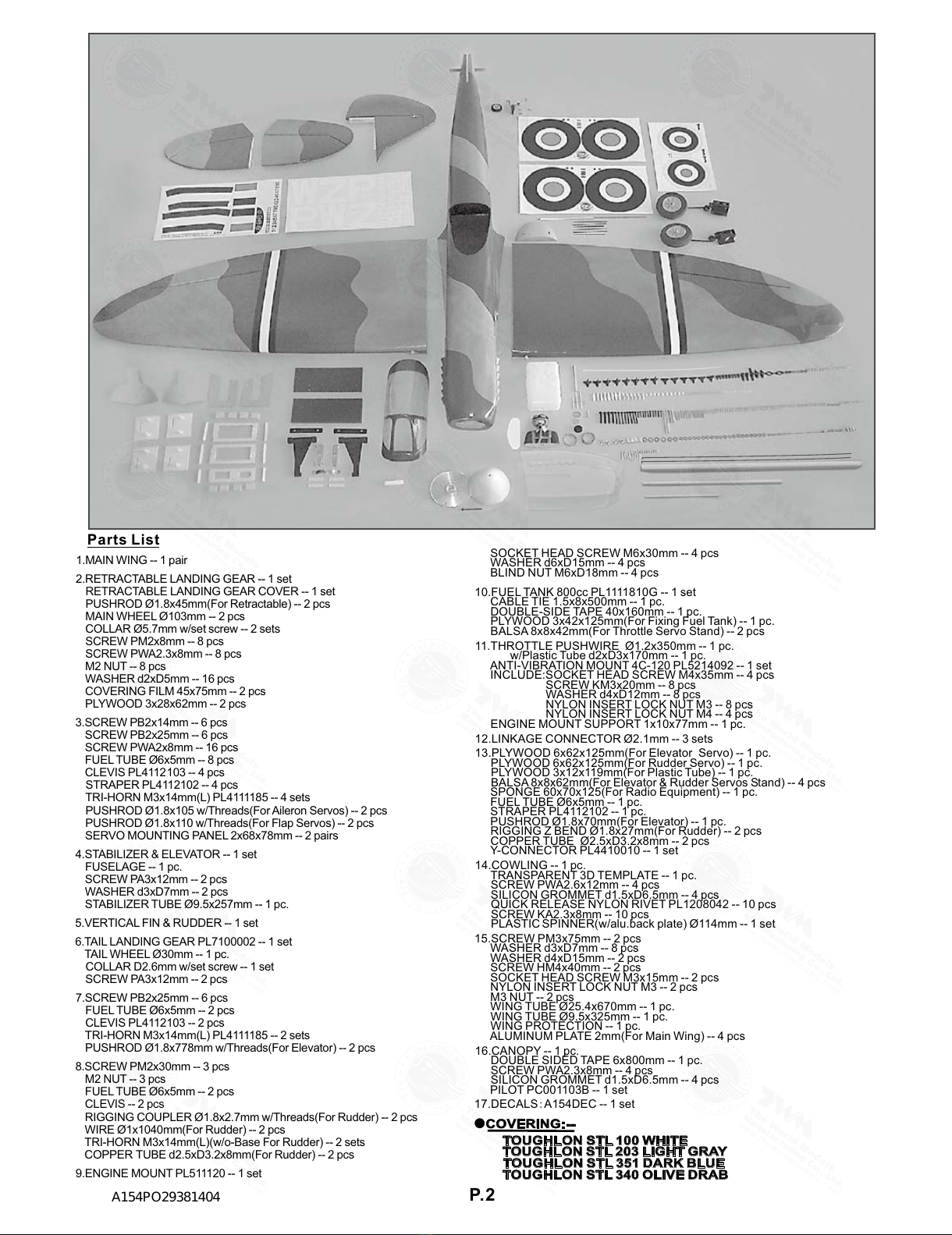

Parts List

P.2

1.MAIN WING -- 1 pair

2.RETRACTABLE LANDING GEAR -- 1 set

RETRACTABLE LANDING GEAR COVER -- 1 set

PUSHROD Ø1.8x45mm(For Retractable) -- 2 pcs

MAIN WHEEL Ø103mm -- 2 pcs

COLLAR Ø5.7mm w/set screw -- 2 sets

SCREW PM2x8mm -- 8 pcs

SCREW PWA2.3x8mm -- 8 pcs

M2 NUT -- 8 pcs

WASHER d2xD5mm -- 16 pcs

COVERING FILM 45x75mm -- 2 pcs

PLYWOOD 3x28x62mm -- 2 pcs

3.SCREW PB2x14mm -- 6 pcs

SCREW PB2x25mm -- 6 pcs

SCREW PWA2x8mm -- 16 pcs

FUEL TUBE Ø6x5mm -- 8 pcs

CLEVIS PL4112103 -- 4 pcs

STRAPER PL4112102 -- 4 pcs

TRI-HORN M3x14mm(L) PL4111185 -- 4 sets

PUSHROD Ø1.8x105 w/Threads(For Aileron Servos) -- 2 pcs

PUSHROD Ø1.8x110 w/Threads(For Flap Servos) -- 2 pcs

SERVO MOUNTING PANEL 2x68x78mm -- 2 pairs

4.STABILIZER & ELEVATOR -- 1 set

FUSELAGE -- 1 pc.

SCREW PA3x12mm -- 2 pcs

WASHER d3xD7mm -- 2 pcs

STABILIZER TUBE Ø9.5x257mm -- 1 pc.

5.VERTICAL FIN & RUDDER -- 1 set

6.TAIL LANDING GEAR PL7100002 -- 1 set

TAIL WHEEL Ø30mm -- 1 pc.

COLLAR D2.6mm w/set screw -- 1 set

SCREW PA3x12mm -- 2 pcs

7.SCREW PB2x25mm -- 6 pcs

FUEL TUBE Ø6x5mm -- 2 pcs

CLEVIS PL4112103 -- 2 pcs

TRI-HORN M3x14mm(L) PL4111185 -- 2 sets

PUSHROD Ø1.8x778mm w/Threads(For Elevator) -- 2 pcs

8.SCREW PM2x30mm -- 3 pcs

M2 NUT -- 3 pcs

FUEL TUBE Ø6x5mm -- 2 pcs

CLEVIS -- 2 pcs

RIGGING COUPLER Ø1.8x2.7mm w/Threads(For Rudder) -- 2 pcs

WIRE Ø1x1040mm(For Rudder) -- 2 pcs

TRI-HORN M3x14mm(L)(w/o-Base For Rudder) -- 2 sets

COPPER TUBE d2.5xD3.2x8mm(For Rudder) -- 2 pcs

9.ENGINE MOUNT PL511120 -- 1 set

SOCKET HEAD SCREW M6x30mm -- 4 pcs

WASHER d6xD15mm -- 4 pcs

BLIND NUT M6xD18mm -- 4 pcs

10.FUEL TANK 800cc PL1111810G -- 1 set

CABLE TIE 1.5x8x500mm -- 1 pc.

DOUBLE-SIDE TAPE 40x160mm -- 1 pc.

PLYWOOD 3x42x125mm(For Fixing Fuel Tank) -- 1 pc.

BALSA 8x8x42mm(For Throttle Servo Stand) -- 2 pcs

11.THROTTLE PUSHWIRE Ø1.2x350mm -- 1 pc.

w/Plastic Tube d2xD3x170mm -- 1 pc.

ANTI-VIBRATION MOUNT 4C-120 PL5214092 -- 1 set

INCLUDE:SOCKET HEAD SCREW M4x35mm -- 4 pcs

SCREW KM3x20mm -- 8 pcs

WASHER d4xD12mm -- 8 pcs

NYLON INSERT LOCK NUT M3 -- 8 pcs

NYLON INSERT LOCK NUT M4 -- 4 pcs

ENGINE MOUNT SUPPORT 1x10x77mm -- 1 pc.

12.LINKAGE CONNECTOR Ø2.1mm -- 3 sets

13.PLYWOOD 6x62x125mm(For Elevator Servo) -- 1 pc.

PLYWOOD 6x62x125mm(For Rudder Servo) -- 1 pc.

PLYWOOD 3x12x119mm(For Plastic Tube) -- 1 pc.

BALSA 8x8x62mm(For Elevator & Rudder Servos Stand) -- 4 pcs

SPONGE 60x70x125(For Radio Equipment) -- 1 pc.

FUEL TUBE Ø6x5mm -- 1 pc.

STRAPER PL4112102 -- 1 pc.

PUSHROD Ø1.8x70mm(For Elevator) -- 1 pc.

RIGGING Z BEND Ø1.8x27mm(For Rudder) -- 2 pcs

COPPER TUBE Ø2.5xD3.2x8mm -- 2 pcs

Y-CONNECTOR PL4410010 -- 1 set

14.COWLING -- 1 pc.

TRANSPARENT 3D TEMPLATE -- 1 pc.

SCREW PWA2.6x12mm -- 4 pcs

SILICON GROMMET d1.5xD6.5mm -- 4 pcs

QUICK RELEASE NYLON RIVET PL1208042 -- 10 pcs

SCREW KA2.3x8mm -- 10 pcs

PLASTIC SPINNER(w/alu.back plate) Ø114mm -- 1 set

15.SCREW PM3x75mm -- 2 pcs

WASHER d3xD7mm -- 8 pcs

WASHER d4xD15mm -- 2 pcs

SCREW HM4x40mm -- 2 pcs

SOCKET HEAD SCREW M3x15mm -- 2 pcs

NYLON INSERT LOCK NUT M3 -- 2 pcs

M3 NUT -- 2 pcs

WING TUBE Ø25.4x670mm -- 1 pc.

WING TUBE Ø9.5x325mm -- 1 pc.

WING PROTECTION -- 1 pc.

ALUMINUM PLATE 2mm(For Main Wing) -- 4 pcs

16.CANOPY -- 1 pc.

DOUBLE SIDED TAPE 6x800mm -- 1 pc.

SCREW PWA2.3x8mm -- 4 pcs

SILICON GROMMET d1.5xD6.5mm -- 4 pcs

PILOT PC001103B -- 1 set

17.DECALS:A154DEC -- 1 set

COVERING:--

TOUGHLON STL 100 WHITE

TOUGHLON STL 203 LIGHT GRAY

TOUGHLON STL 351 DARK BLUE

TOUGHLON STL 340 OLIVE DRAB

A154PO29381404

All manuals and user guides at all-guides.com

P.3

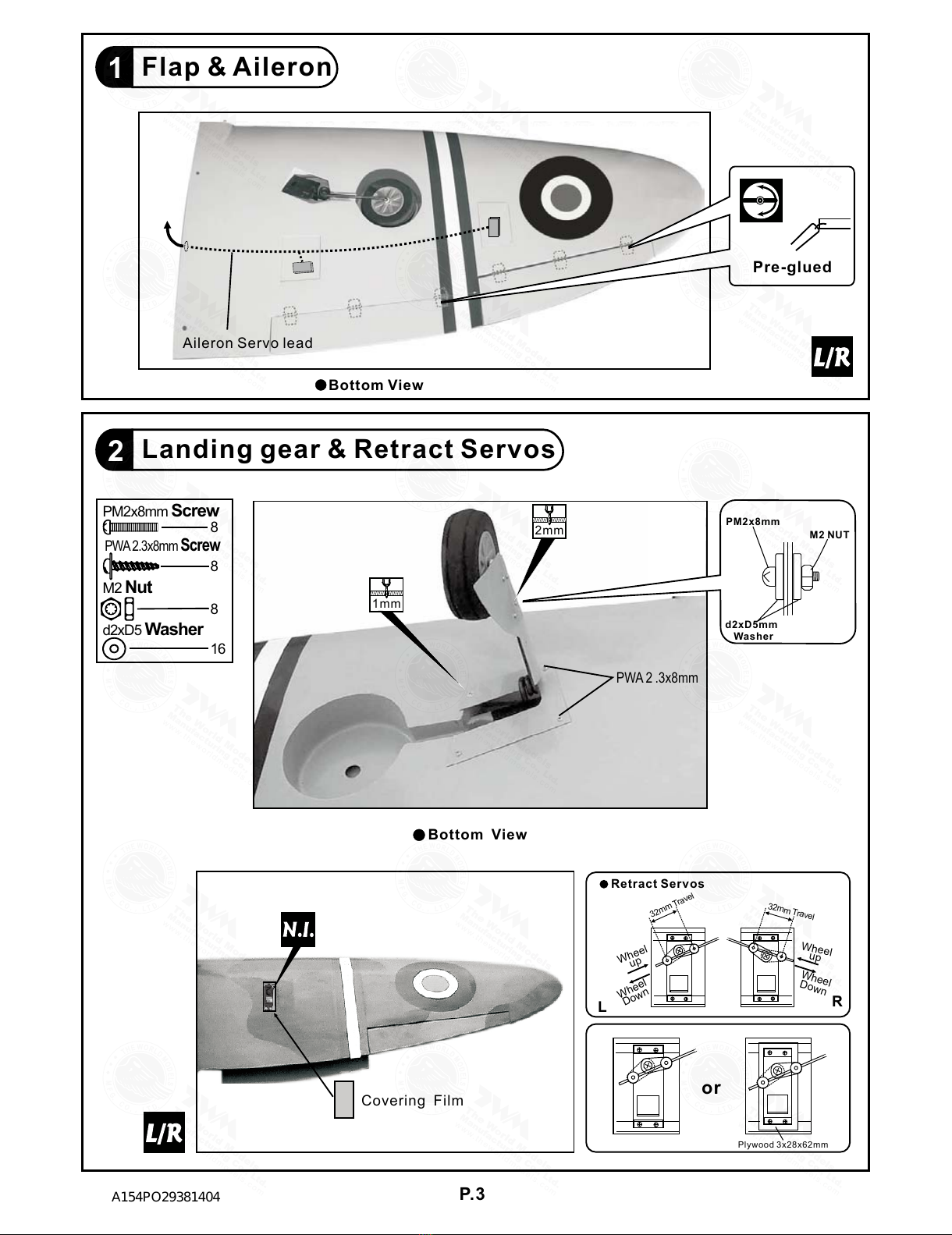

Flap & Aileron

Landing gear & Retract Servos

Bottom View

PM2x8mm Screw

M2 Nut

d2xD5 Washer

Covering Film

PWA 2.3 8mm Screwx

PWA 2 .3x8mm

d2xD5mm

Washer

PM2x8mm

M2 NUT

Bottom View

Aileron Servo lead

2mm

1mm

Pre-glued

Retract Servos

Wheel

Down

Wheel

Down

Wheel

32mm Travel

Plywood 3x28x62mm

A154PO29381404

All manuals and user guides at all-guides.com

Flap & Aileron Servos

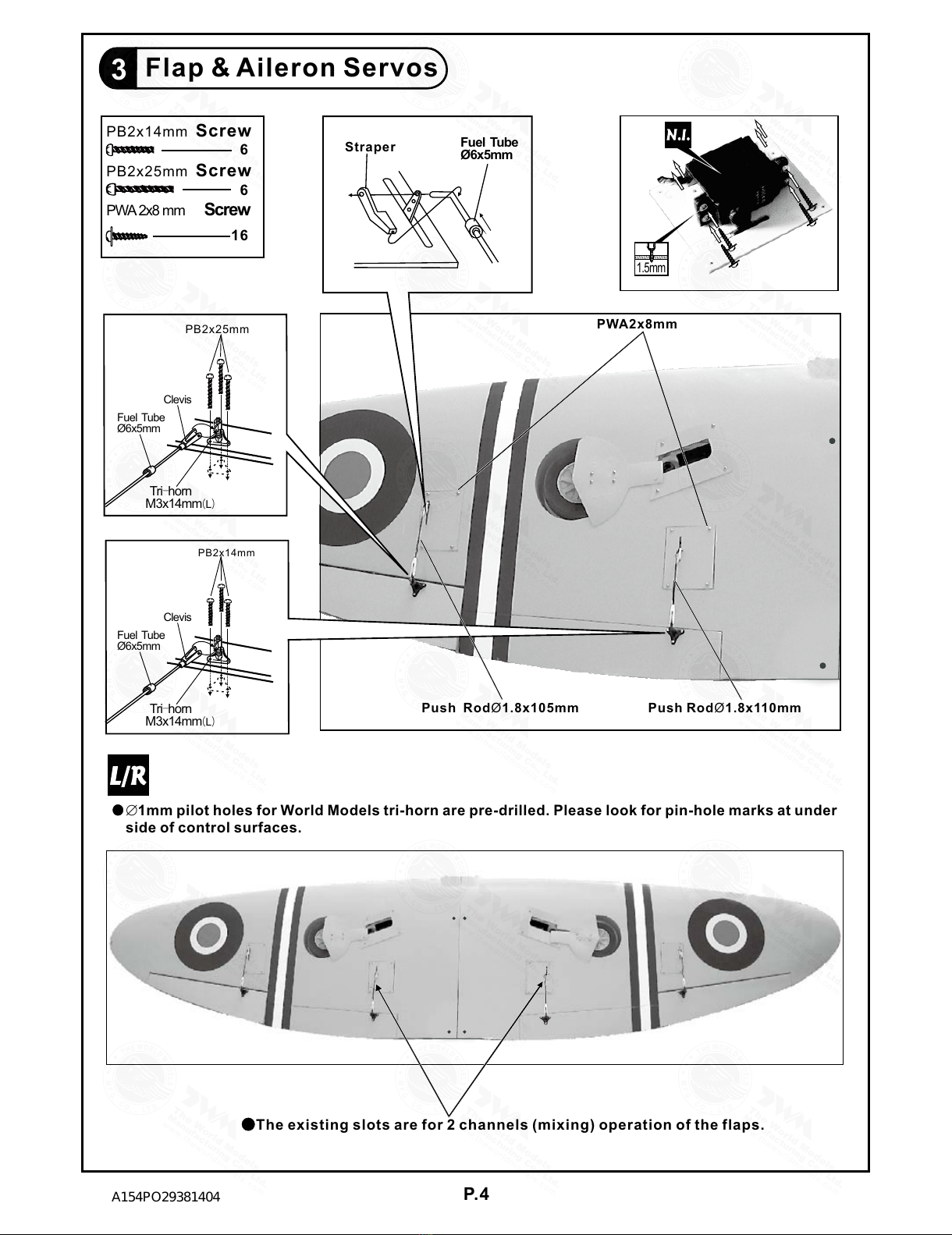

Æ1mm pilot holes for World Models tri-horn are pre-drilled. Please look for pin-hole marks at under

side of control surfaces.

Push Rod 1.8x110mmØ

PB2x14mm Screw

PWA 2x8 mm Screw

PB2x25mm Screw

The existing slots are for 2 channels (mixing) operation of the flaps.

Straper

Push Rod 1.8x105mmØ

P.4

PWA2x8mm

PB2x14mm

1.5mm

Fuel Tube

Ø6x5mm

Tri-horn

M3x14mm(L)

Clevis

PB2x25mm

Fuel Tube

Ø6x5mm

Tri-horn

M3x14mm(L)

Clevis

Fuel Tube

Ø6x5mm

A154PO29381404

All manuals and user guides at all-guides.com

P.5

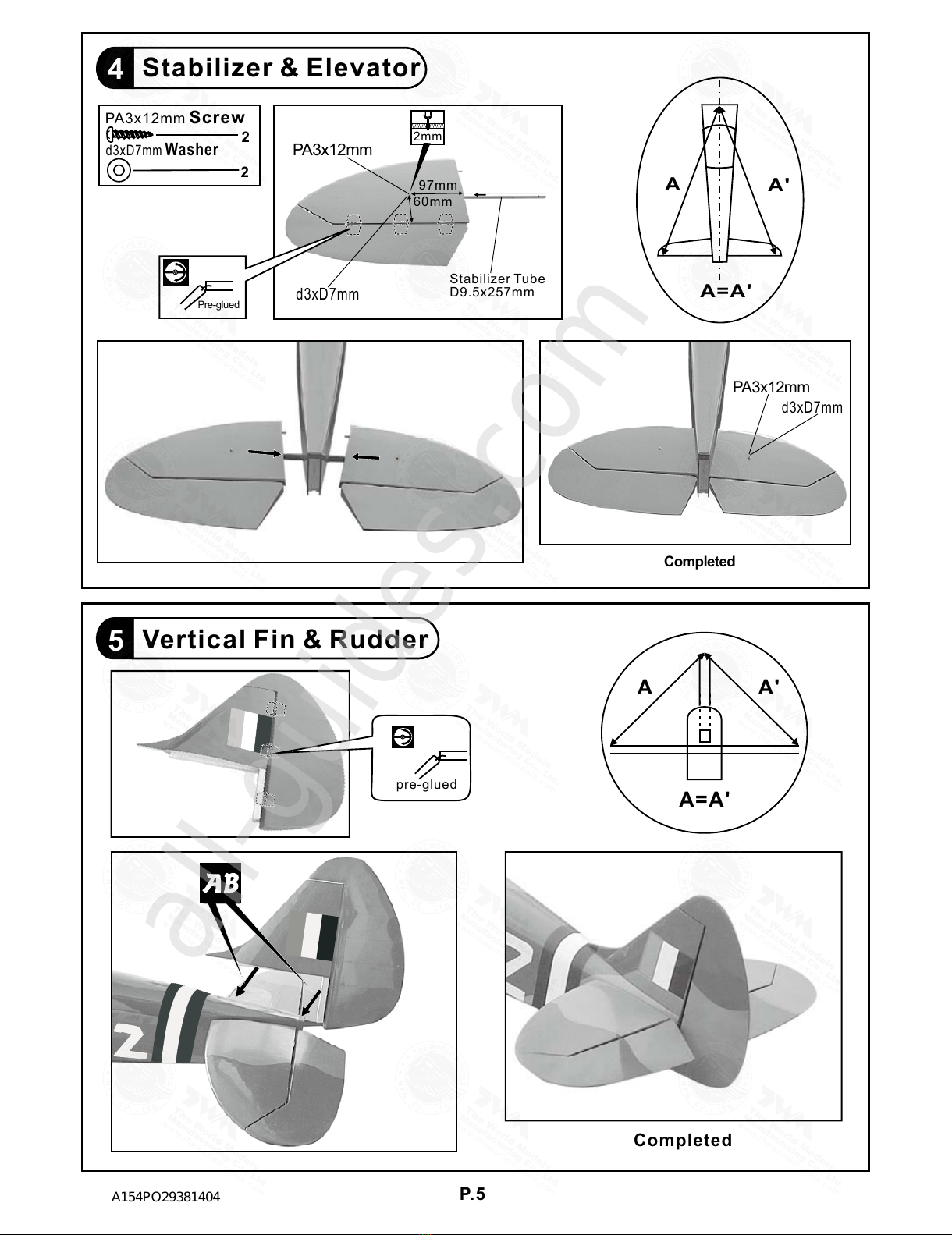

Stabilizer & Elevator

AA'

A=A'

PA3x12mm Screw

d3xD7mm Washer

PA3x12mm

Stabilizer Tube

D9.5x257mm

d3xD7mm

97mm

60mm

Completed

Pre-glued

d3xD7mm

PA3x12mm

A A'

A=A'

Completed

pre-glued

Vertical Fin & Rudder

2mm

A154PO29381404

All manuals and user guides at all-guides.com

all-guides.com

P.6

Elevator Pushrod

PB 2x25 mm Screw

3x3mm

Set Screw

Pushrod

Ø1.8x778mm

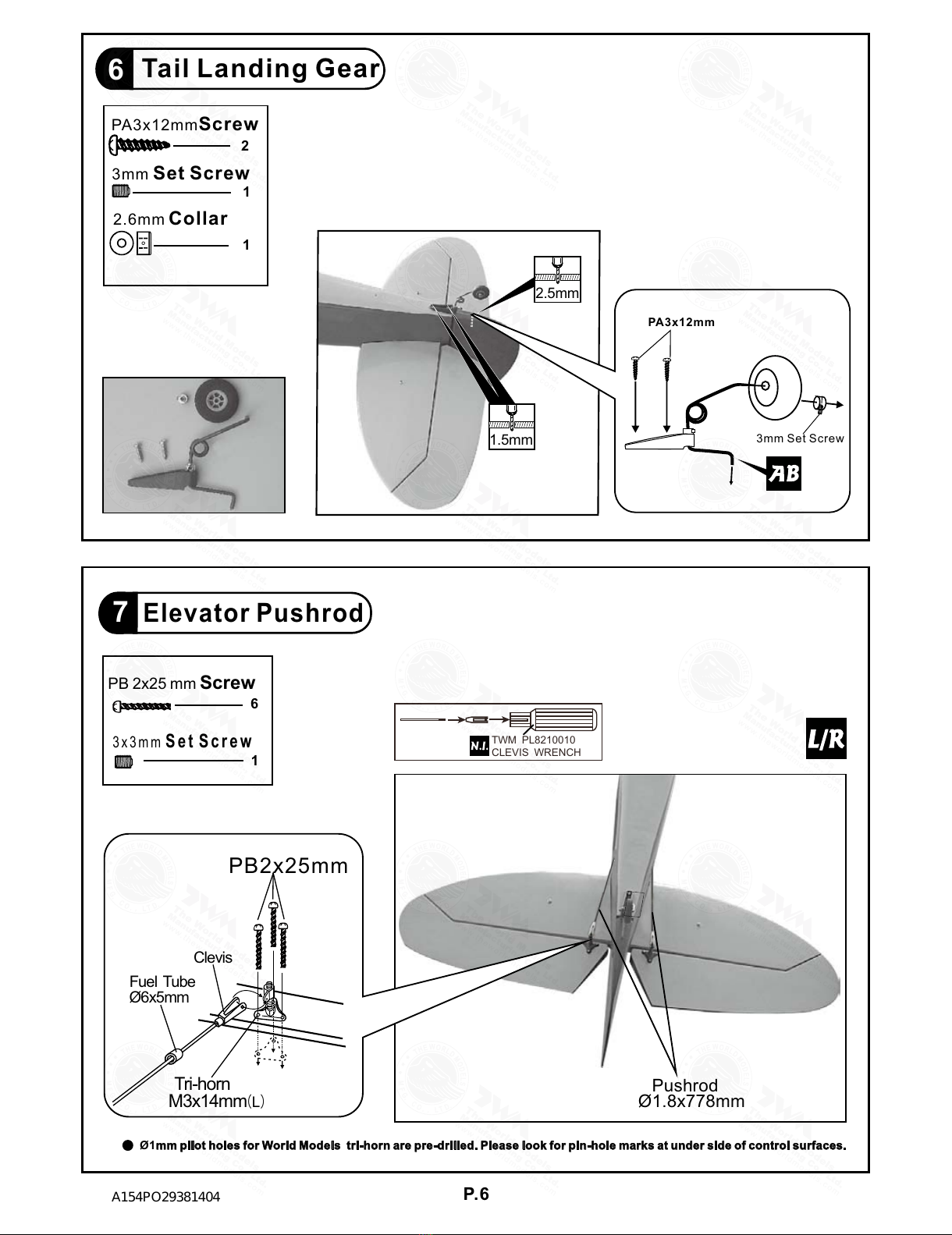

Tail Landing Gear

1.5mm

PA3x12mmScrew

3mm Set Screw

2.6mm Collar

PB2x25mm

Ø1mm pilot holes for World Models tri-horn are pre-drilled. Please look for pin-hole marks at under side of control surfaces.

2.5mm

Fuel Tube

Ø6x5mm

Tri-horn

M3x14mm(L)

Clevis

TWM PL8210010

CLEVIS WRENCH

3mm Set Screw

PA3x12mm

A154PO29381404

All manuals and user guides at all-guides.com

P.7

Blind nuts are off-centered to keep

the spinner at the fuselage axis.

Engine Mount

A: Inverted mount

M6x30mm Screw

d6xD15mm Washer

M6xD18mm Blind Nut

Engine Mount

PL511120

B:Inclined mount

Ø1mm pilot holes for World Models tri-horn are pre-drilled. Please look for pin-hole marks at

side of control surfaces.

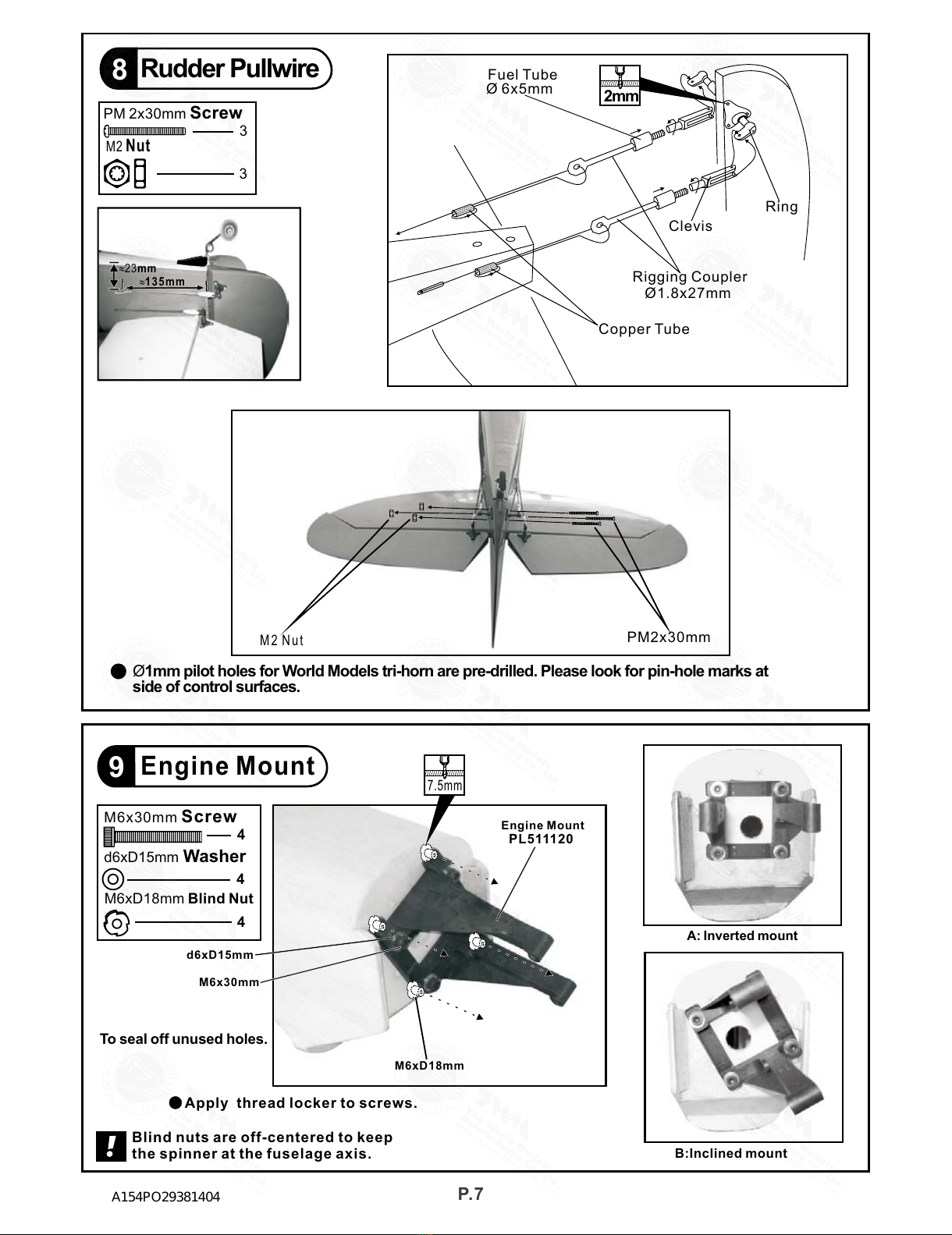

Rudder Pullwire

PM 2x30mm Screw

M2 Nut

PM2x30mm

M 2 N u t

Clevis

Rigging Coupler

Ø1.8x27mm

Fuel Tube

Ø 6x5mm 2mm

Ring

»135mm

»23mm

Copper Tube

d6xD15mm

M6x30mm

M6xD18mm

Apply thread locker to screws.

To seal off unused holes.

7.5mm

A154PO29381404

All manuals and user guides at all-guides.com

P.8

Engine

Illustration is for inverted mounting. You can

mount the engine upright or sideways simply

by rotation the engine mount. Thrust angles

will not be affected.

Throttle Pushwire

Ø1.2x350mm

d2xD3x170mm

Plastic Tube

M4 Nylon Insert Lock Nut

152mm

6.0in

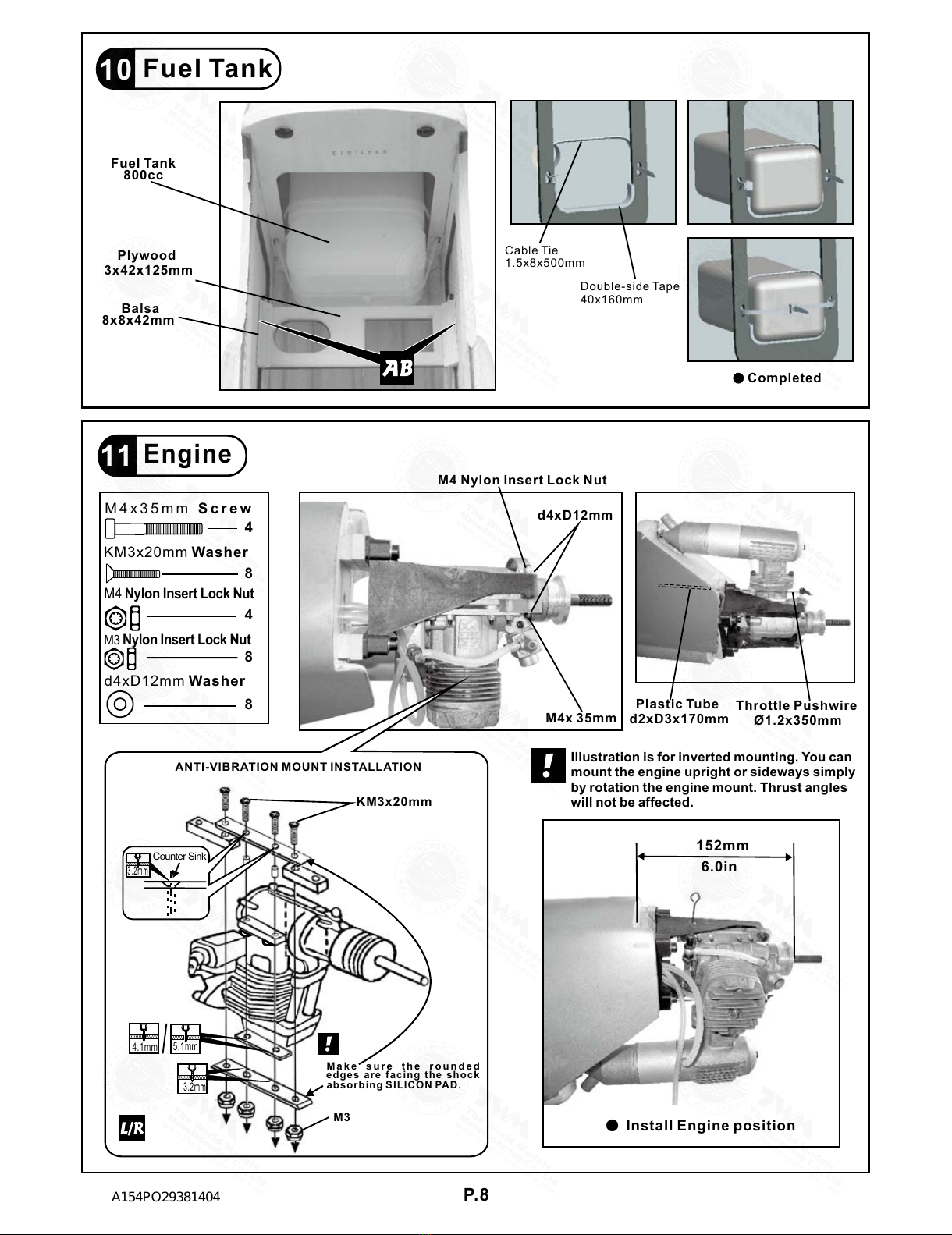

Install Engine position

M 4 x 3 5 m m S c r e w

M4 Nylon Insert Lock Nut

d4xD12mm Washer

KM3x20mm Washer

M3 Nylon Insert Lock Nut

ANTI-VIBRATION MOUNT INSTALLATION

KM3x20mm

Counter Sink

4.1mm

5.1mm

3.2mm

M a k e s u r e t h e r o u n d e d

edges are facing the shock

absorbing SILICON PAD.

d4xD12mm

M4x 35mm

3 . 2 m m

Fuel Tank

Plywood

3x42x125mm

Completed

Fuel Tank

800cc

Balsa

8x8x42mm

Cable Tie

1.5x8x500mm

Double-side Tape

40x160mm

A154PO29381404

All manuals and user guides at all-guides.com

P.9

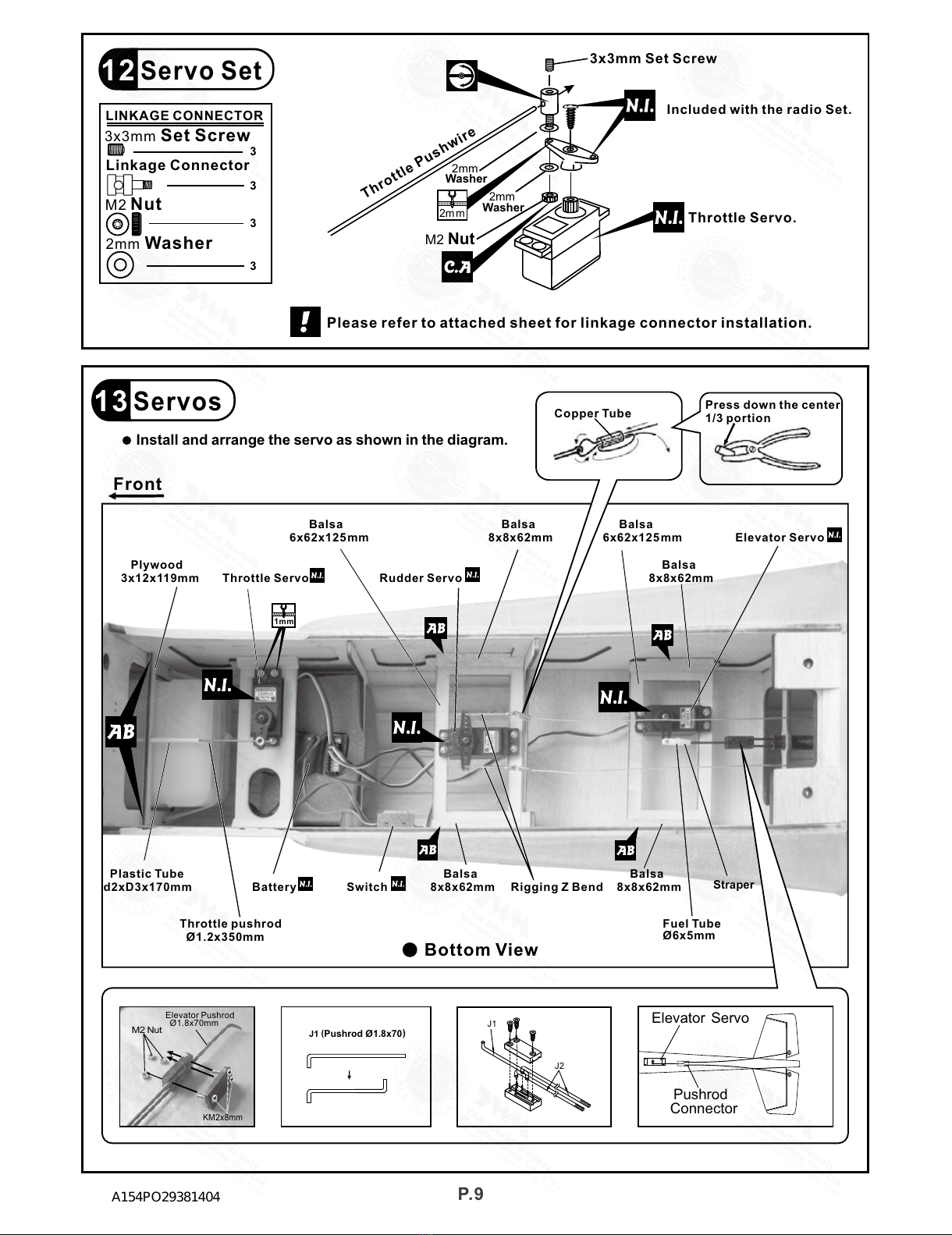

Servo Set

3x3mm Set Screw

Linkage Connector

M2 Nut

2mm Washer

LINKAGE CONNECTOR

Please refer to attached sheet for linkage connector installation.

Included with the radio Set.

Throttle Pushwire

3x3mm Set Screw

Throttle Servo.

2mm

Washer

M2 Nut

2mm

Washer

Servos

Install and arrange the servo as shown in the diagram.

Front

Throttle pushrod

Ø1.2x350mm Bottom View

Throttle Servo

Plywood

3x12x119mm

Elevator Servo

Pushrod

Connector

(

J1 )

Pushrod Ø1.8x70

KM2x8mm

M2 Nut

Elevator Pushrod

Ø1.8x70mm

Plastic Tube

d2xD3x170mm Battery

Copper Tube Press down the center

1/3 portion

1mm

Balsa

8x8x62mm

Switch

Elevator Servo

Balsa

6x62x125mm

Rigging Z Bend Straper

Balsa

8x8x62mm

Rudder Servo

Balsa

8x8x62mm

Balsa

8x8x62mm

Fuel Tube

Ø6x5mm

Balsa

6x62x125mm

A154PO29381404

All manuals and user guides at all-guides.com
