TAT100 is a device for asset tracking and additional protection against thefts of valuable goods, as well as it could be used in wide range of

applications from tools tracking to container tracking.

Contents

1 Know your device

2 Set up your device

2.1 How to insert Micro SIM card and start the device

2.2 PC Connection (Windows)

2.3 How to install USB drivers (Windows)

2.4 Conguration (Windows)

2.5 Important conguration notes

2.6 Tracking scenarios

2.7 Mounting recommendations

Saltoniškių g. 9B-1,

LT-08105 Vilnius

Tel. +370 5 212 7472

Faks. +370 5 276 1380

www.teltonika-iot-group.com

[email protected]

2.8 Quick SMS conguration

3 Safety information

3.1 Precautions

Know your device

Set up your device

How to insert Micro SIM card and start the device

1. Remove the cover.

Saltoniškių g. 9B-1,

LT-08105 Vilnius

Tel. +370 5 212 7472

Faks. +370 5 276 1380

www.teltonika-iot-group.com

[email protected]

2. Insert Micro-SIM card as shown with PIN request disabled or read Security info how to enter it later in Congurator. Make sure that Micro-

SIM card cut-o corner is pointing forward to slot and chip is facing USB port.

3. Flip the switch to ON.

4. Congure the device. When it is done, reattach the cover and push it in place.

Micro-SIM card insertion/removal must be performed when device is turned o. Otherwise Micro-SIM card might be damaged or

device will not detect it.

PC Connection (Windows)

1. Remove the cover.

Saltoniškių g. 9B-1,

LT-08105 Vilnius

Tel. +370 5 212 7472

Faks. +370 5 276 1380

www.teltonika-iot-group.com

[email protected]

2. Turn on your device by ipping the switch to ON.

3. Connect device to computer using Micro-USB cable. You will need to install USB drivers, see “How to install USB drivers (Windows)” shown

below.

4. You are now ready to use the device on your computer.

How to install USB drivers (Windows)

1. Please download COM port drivers from here (https://teltonika-gps.com/downloads/en/fmb120/TeltonikaCOMDriver.zip).

2. Extract and run TeltonikaCOMDriver.exe.

3. Click Next in driver installation window.

4. In the following window click Install button. Setup will continue installing the driver and eventually the conrmation window will appear. Click

Finish to complete the setup.

Conguration (Windows)

At rst the device will have default factory settings unless you order pre-congured device. These settings should be changed according to the

user's needs.

Main conguration can be performed via Teltonika Congurator software. Congurator operates on Microsoft Windows OS and uses

prerequisite MS .NET Framework. Make sure you have the correct version installed.

Saltoniškių g. 9B-1,

LT-08105 Vilnius

Tel. +370 5 212 7472

Faks. +370 5 276 1380

www.teltonika-iot-group.com

[email protected]

MS .NET requirements

Operating system MS .NET Framework

version Version Link

Windows

Vista

Windows 7

Windows

8.1

Windows 10

MS .NET Framework 4.6.2 32 and 64

bit

www.microsoft.com

(https://dotnet.micro

soft.com/en-us/down

load/dotnet-framewo

rk)

Downloaded Congurator will be in compressed archive. Extract it and launch Congurator.exe. After launch software language can be changed

by clicking in the right bottom corner:

Conguration process begins by pressing on connected device:

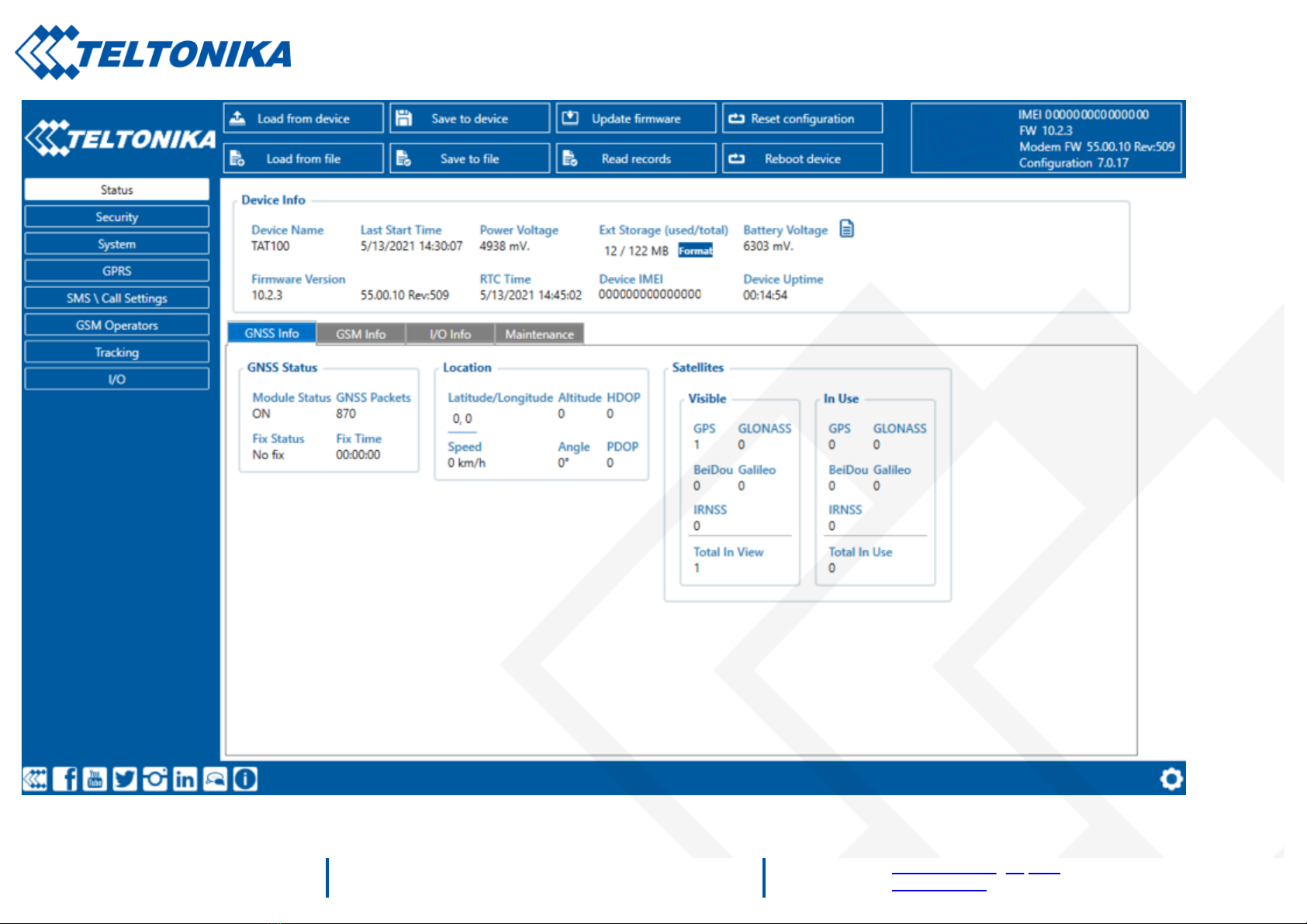

After connection to Congurator Status window will be displayed:

Saltoniškių g. 9B-1,

LT-08105 Vilnius

Tel. +370 5 212 7472

Faks. +370 5 276 1380

www.teltonika-iot-group.com

[email protected]

Saltoniškių g. 9B-1,

LT-08105 Vilnius

Tel. +370 5 212 7472

Faks. +370 5 276 1380

www.teltonika-iot-group.com

[email protected]

Various Status info tabs display information about GNSS, GSM, I/O, Maintenance and etc. TAT100 has one user editable prole, which can be

loaded and saved to the device. After any modication of conguration the changes need to be saved to device using Save to device button.

Main buttons oer following functionality:

1. Load from device – loads conguration from device.

2. Save to device – saves conguration to device.

3. Load from le – loads conguration from le.

4. Save to le – saves conguration to le.

5. Update rmware – updates rmware on device.

6. Read records – read records from device.

7. Reboot device – restarts device.

8. Reset conguration – sets device conguration to default.

Most important congurator sections are GPRS – where all your server and GPRS settings can be congured and Tracking – where data

acquiring parameters can be congured. More details about TAT100 conguration using Congurator can be found here.

Important conguration notes

We strongly recommend testing the network connection from device to the server before adjusting

TAT100 conguration to your needs.

Use the following steps to perform this test:

Congure these parameters: APN, server Domain and server Port

Save conguration to the device by clicking on a Save to device button;

Initiate connection by pressing the Test Connection button

At this point, TAT100 device will create one high-priority record and initiates connection to the server immediately. If connection was not

initiated, it can mean any of the following:

Improperly inserted SIM Card

Saltoniškių g. 9B-1,

LT-08105 Vilnius

Tel. +370 5 212 7472

Faks. +370 5 276 1380

www.teltonika-iot-group.com

[email protected]

Incorrect values are set to these elds: APN, Domain or Port

GPRS functionality disabled by GSM provider

No GSM coverage

Server cannot be reached

Try solving this problem before proceeding with further device conguration.

Please note:

Why TAT100 is not sending data: Instructions

Common conguration issues: Instructions

CAUTION! Device usage with USB cable.

In order to prevent device battery from running out of power, make sure USB cable is not

connected, while testing the device.

Continuous use of device, while connected to the USB cable will result in faster battery drain.

Tracking scenarios

Periodic: This mode is used to get positioning data at xed intervals. Conguration range is from 360 to 259200 (in seconds).

Saltoniškių g. 9B-1,

LT-08105 Vilnius

Tel. +370 5 212 7472

Faks. +370 5 276 1380

www.teltonika-iot-group.com

[email protected]

Please note:

Default tracking period (On Move/On stop) is set to 28800 seconds (8 hours)

Frequent tracking period will reduce battery lifetime!

For more information refer to: Tracking settings

Scheduler: This mode is used to get positioning data at xed schedule. Device can send positioning data up to 6 times on set days.

Time Zone: Set tracking scenario time zone. Time zone can be set in range of -12h to +14h.

Main rules of Schedule setting:

Saltoniškių g. 9B-1,

LT-08105 Vilnius

Tel. +370 5 212 7472

Faks. +370 5 276 1380

www.teltonika-iot-group.com

[email protected]

Intervals between time must be at least 6 minutes.

Days of the week must be selected and highlighted for the device to send records according to set schedule.

Please note:

Device has up to 3 min. hardcoded time to get xed position while it's awake from a Sleep

Mode.

If GNSS signal is poor - device will need more time to get xed position. Battery usage is higher

while device is looking for GNSS positions than it stays in Sleep Mode.

Mounting recommendations
