Teltonika FMB110 Installation guide

Quick Manual

v1.0

Advanced tracker

FMB110

FMB110 | Wiki

Table of Contents

Know your device .......................................................................... 3

Pinout................................................................................................. 4

Wiring scheme................................................................................... 5

Set up your device......................................................................... 6

How to insert Micro-SIM card.......................................................... 6

PC Connection (Windows)................................................................ 7

How to install USB drivers (Windows)............................................. 7

Configuration (Windows) ................................................................. 7

Mounting recommendations ....................................................... 9

LED indications ............................................................................ 10

Characteristics............................................................................. 10

Basic characteristics ....................................................................... 10

Electrical characteristics ................................................................. 12

Safety information ...................................................................... 13

Certification and Approvals ....................................................... 14

FMB110 | Wiki

Know your device

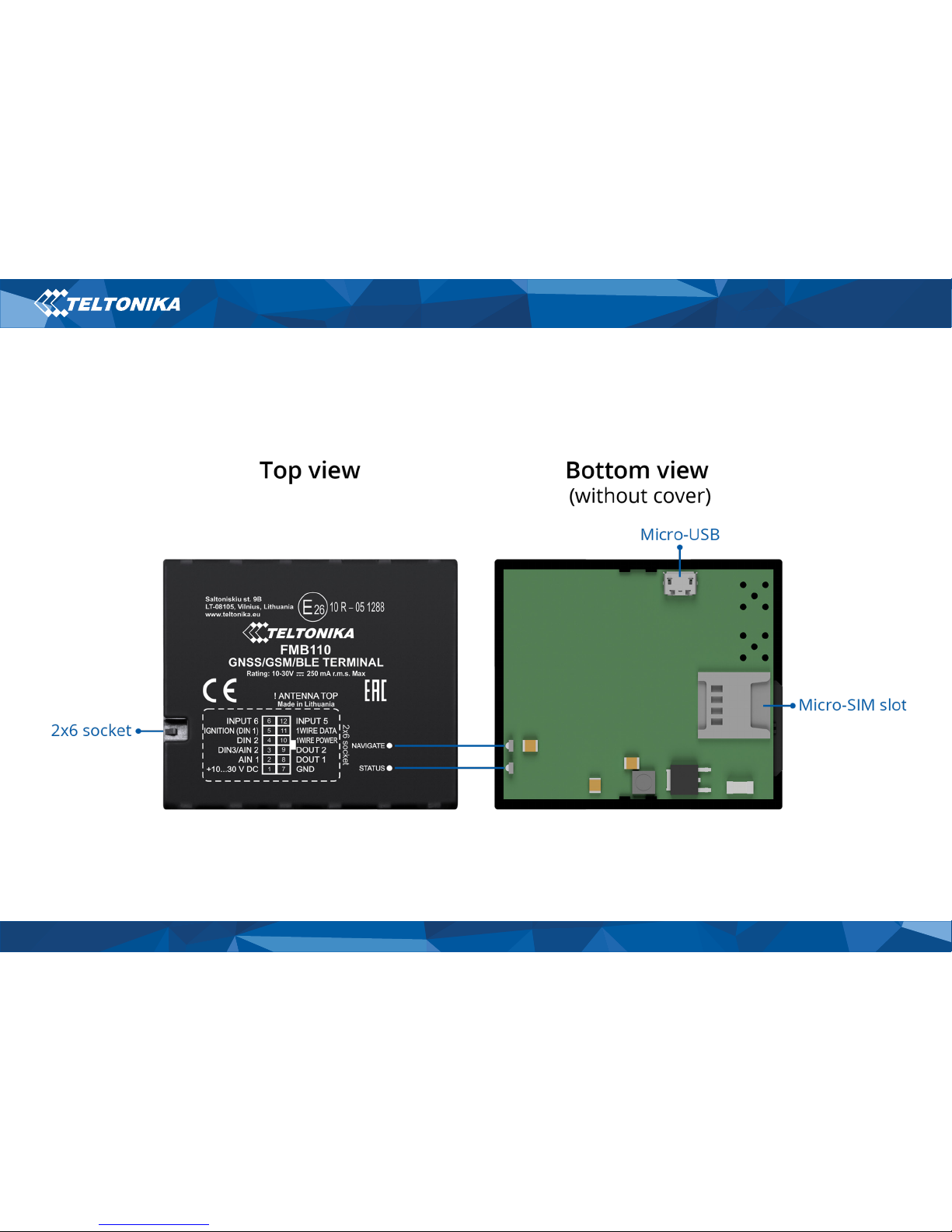

Figure 1 FMB110 device view

FMB110 | Wiki

Pinout

Table 1 FMB110 2x6 socket pinout

Pinnumber Pinname Description

1 VCC (10-30)V DC (+) Power supply (+10-30 V DC).

2 AIN 1 Analog input, channel 1. Input range: 0-

30 V DC.

3 AIN 2 / DIN 3 Analog input, channel 2. Input range: 0-

30 V DC / Digital input, channel 3.

4 DIN 2 Digital input, channel 2.

5 DIN 1 Digital input, channel 1.

6 INPUT 6 TX EXT (LVCAN – TX).

7 GND (-) Digital output, channel 1. Open

collector output. Max. 3,3 A DC.

8 DOUT 1 Digital output, channel 1. Open

collector output. Max. 3,3 A DC..

9 DOUT 2 Digital output, channel 2. Open

collector output. Max. 3,3 A DC.

10 1WIRE POWER +3,8 V output for 1–Wire devices.

11 1WIRE DATA Data for 1–Wire devices.

12 INPUT 5 RX EXT (LVCAN - RX).

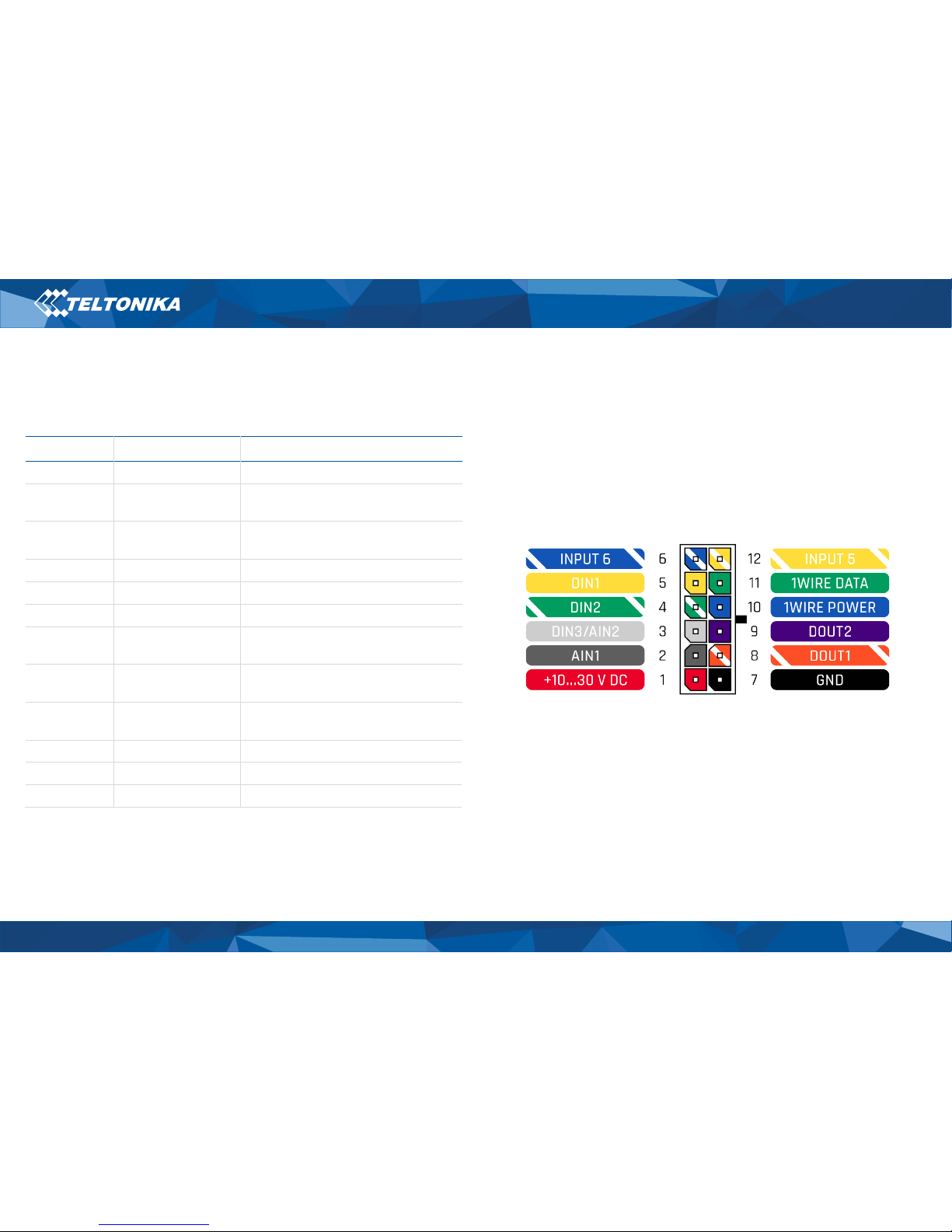

Figure 2 FMB110 2x6 socket pinout

FMB110 | Wiki

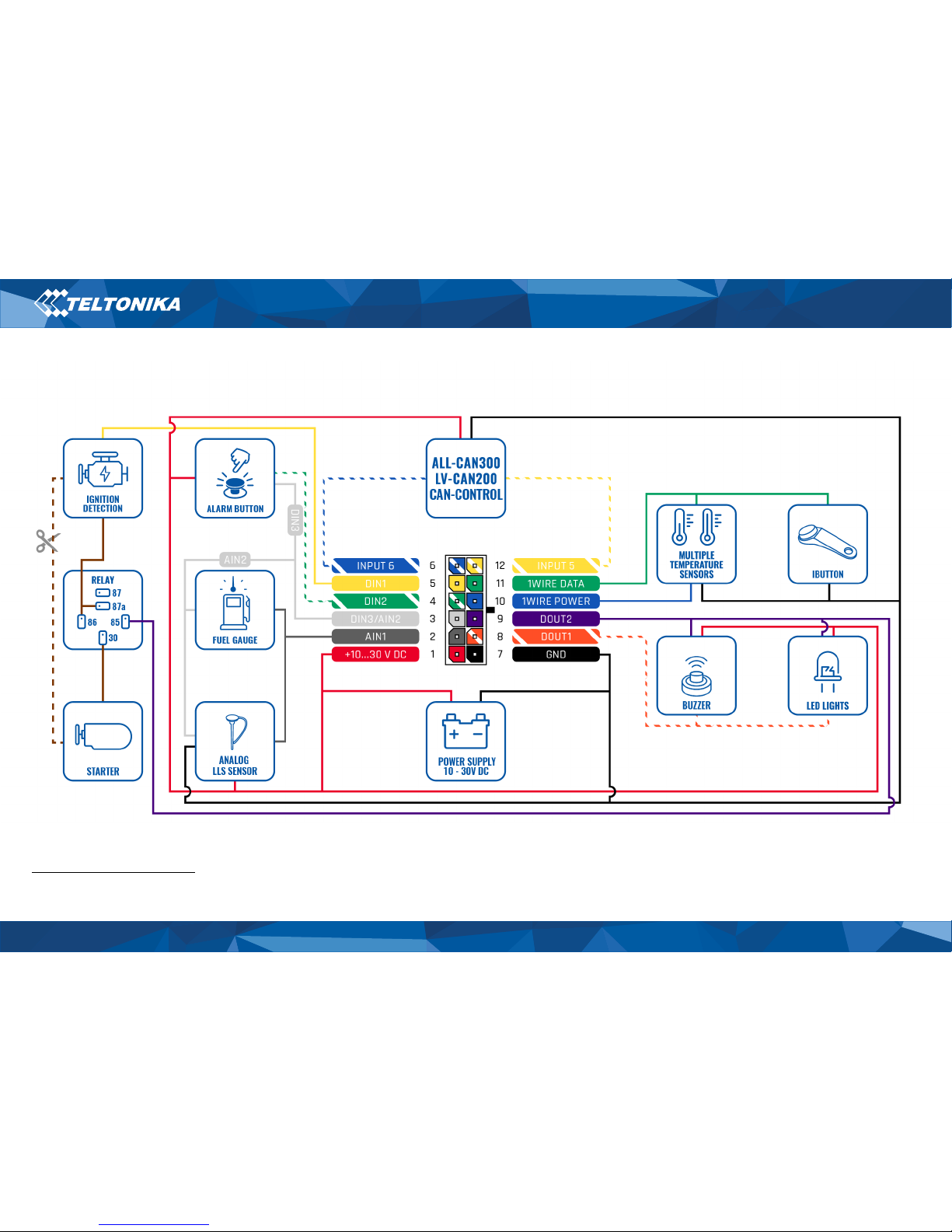

Figure 3 FMB110 Wiring scheme

Wiring scheme

1Automotive relay

FMB110 | Wiki

Set up your device

How to insert Micro-SIM card

1. Gently remove FMB110 cover using plastic pry tool from both

sides.

2. Insert Micro-SIM card as shown with PIN request disabled or

read our Wiki how to enter it later in Configurator. Make sure

that Micro-SIM card cut-off corner is pointing forward to slot.

3. Attach device cover back.

4. Device is ready to be connected.

Figure 4 Cover removal Figure 5 Micro-SIM card insert Figure 6 Attaching cover back Figure 7 Device is ready

FMB110 | Wiki

PC Connection (Windows)

1. Power-up FMB110 with DC voltage (10 – 30 V) power supply

using supplied power cable. LED’s should start blinking, see

“LED indications”.

2. Connect device to computer using Micro-USB cable or Blue-

tooth connection:

•Using Micro-USB cable

▬You will need to install USB drivers, see “How to install

USB drivers (Windows)”

•Using Blue-tooth

▬FMB110 Blue-tooth is enabled by default. Turn on Blue-

tooth on your PC, then select Add Blue-tooth or other

device > Blue-tooth. Choose your device named –

“FMBxxx_last_7_imei_digits”, without LE in the end.

Enter default password 5555, press Connect and then

select Done.

3. You are now ready to use the device on your computer.

How to install USB drivers

(Windows)

1. Please download COM port drivers from here.

2. Extract and run TeltonikaCOMDriver.exe.

3. Click Next in driver installation window.

4. In the following window click Install button.

Setup will continue installing the driver and eventually the

confirmation window will appear. Click Finish to complete the

setup.

Configuration (Windows)

At first FMB110 device will have default factory settings set. These

settings should be changed according to the user's needs. Main

configuration can be performed via Teltonika Configurator

software. Contact sales manager to get the latest Configurator

version or download it from here.Configurator operates on

Microsoft Windows OS and uses prerequisite MS .NET

Framework. Make sure you have the correct version installed.

Table 2 MS .NET requirements

MS.NETrequirements

Operating

system

MS .NET Framework

version Version Links

Windows Vista

Windows 7

Windows 8.1

Windows 10

MS .NET Framework

4.6.2 32 and 64 bit www.microsoft.com

Downloaded Configurator will be in compressed archive. Extract it

and launch Configurator.exe. After launch software language can

be changed by clicking in the right bottom corner (Figure 8

Language selection).

FMB110 | Wiki

Configuration process begins by pressing on connected device

(Figure 9 Device connected via USB).

After connection to Configurator Status window will be displayed

(Figure 10 Configurator Status window).

Various Status window tabs display information about GNSS,

GSM, I/O, Maintenance and etc. FMB110 has one user editable

profile, which can be loaded and saved to the device. After any

modification of configuration the changes need to be saved to

device using Save to device button. Main buttons offer following

functionality:

1. Load from device – loads configuration from device.

2. Save to device – saves configuration to device.

3. Load from file – loads configuration from file.

4. Save to file – saves configuration to file.

5. Update firmware – updates firmware on device.

6. Read records – reads records from the device.

7. Reboot device – restarts device.

8. Reset configuration – sets device configuration to

default.

Most important configurator section is GPRS – where all your

server and GPRS settings can be configured and Data Acquisition

–where data acquiring parameters can be configured.

More details about FMB110 configuration using Configurator can

be found in our Wiki.

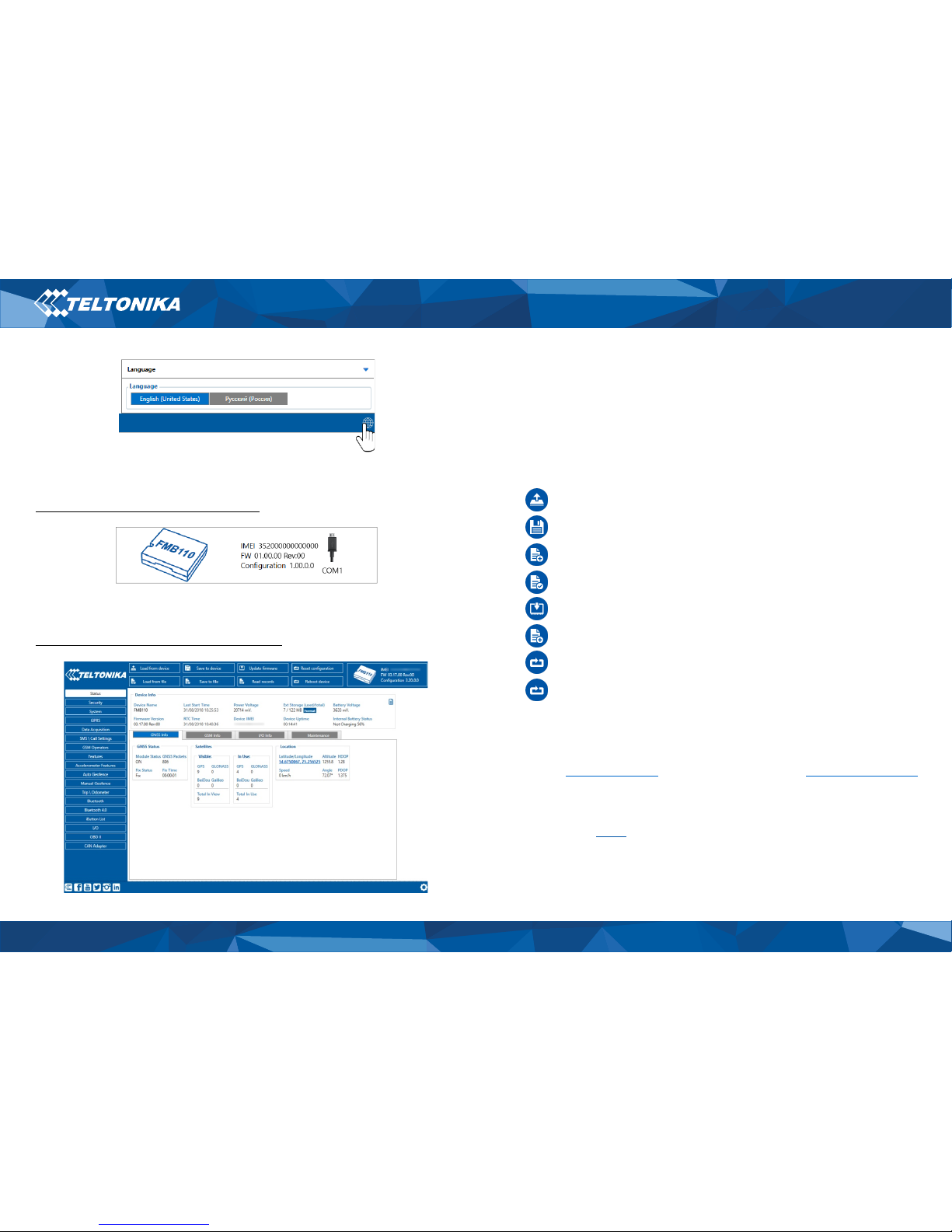

Figure 9 Device connected via USB

Figure 8 Language selection

Figure 10 Configurator Status window

FMB110 | Wiki

Mounting recommendations

•Connecting wires

▬Wires should be connected while the module is not plugged

in.

▬Wires should be fastened to stable wires or other non-

moving parts. Any heat emitting and/or moving objects

should be kept away from the wires.

▬There should be no exposed wires. If factory isolation was

removed while connecting the wires, the isolation material

should be applied.

▬If the wires are placed in the exterior or in places where they

can be damaged or exposed to heat, humidity, dirt, etc.,

additional isolation should be applied and the wires should

not be loose.

▬Wires cannot be connected to the board computers or

control units.

•Connecting power source

▬Be sure that after the car computer goes to sleep mode,

power might be still available on the power wires.

Depending on the car model, this may happen in 5 to 30

minutes period.

▬When the module is connected, measure the voltage again

to make sure it did not decrease.

▬It is recommended to connect to the main power cable in

the fuse box.

▬3 A, 125 V external fuse shall be used.

•Connecting ignition wire

▬Be sure to check if it is a real ignition wire i. e. power does

not disappear after starting the engine.

▬Check if this is not an ACC wire (when key is in the first

position, most of the vehicle electronics are available).

▬Check if power is still available when you turn off any of

vehicles devices.

▬Ignition is connected to the ignition relay output. As

alternative, any other relay, which has power output when

ignition is on, may be chosen.

•Connecting ground wire

▬Ground wire is connected to the vehicle frame or metal

parts that are fixed to the frame.

▬If the wire is fixed with the bolt, the loop must be connected

to the end of the wire.

▬For better contact scrub paint from the spot where loop is

going to be connected.

FMB110 | Wiki

LED indications

Table 3 Navigation LED indications

Behaviour Meaning

Permanently switched on GNSS signal is not received

Blinking every second Normal mode, GNSS is working

Off

GNSS is turned off because:

Device is not working or Device is in

sleep mode

Blinking fast constantly Device firmware is being flashed

Table 4 Status LED indications

Behaviour Meaning

Blinking every second Normal mode

Blinking every two seconds Sleep mode

Blinking fast for a short time Modem activity

Off Device is not working or Device is in

boot mode

Characteristics

Basic characteristics

Table 5 Basic characteristics

Module

Name TM2500

Technology GSM, GPRS, GNSS, BLUE-TOOTH

GNSS

GNSS GPS, GLONASS, GALILEO, BEIDOU,

SBAS, QZSS, DGPS, AGPS

Receiver 33 channel

Tracking sensitivity -165 dBM

Accuracy < 3 m

Hot start < 1 s

Warm start < 25 s

Cold start < 35 s

Cellular

Technology GSM

2G bands Quad-band 850 / 900 / 1800 / 1900

MHz

Data transfer GPRS Multi-Slot Class 12 (up to 240

kbps), GPRS Mobile Station Class B

Data support SMS (text/data)
