Teltonika FMB010 Installation guide

Quick Manual

v1.3

Easy OBDII tracker

FMB010

FMB010 |

Wiki

Table of Contents

Know your device .......................................................................... 3

Pinout................................................................................................. 4

Set up your device......................................................................... 5

How to insert Micro-SIM card and connect the battery................ 5

PC Connection (Windows)................................................................ 6

How to install USB drivers (Windows)............................................. 6

Configuration (Windows) ................................................................. 6

Quick SMS configuration.................................................................. 8

LED indications.............................................................................. 9

Basic characteristics ..................................................................... 9

Safety information ...................................................................... 11

Certification and Approvals ....................................................... 12

Warranty ...................................................................................... 13

Warranty Disclaimer....................................................................... 13

FMB010 |

Wiki

Know your device

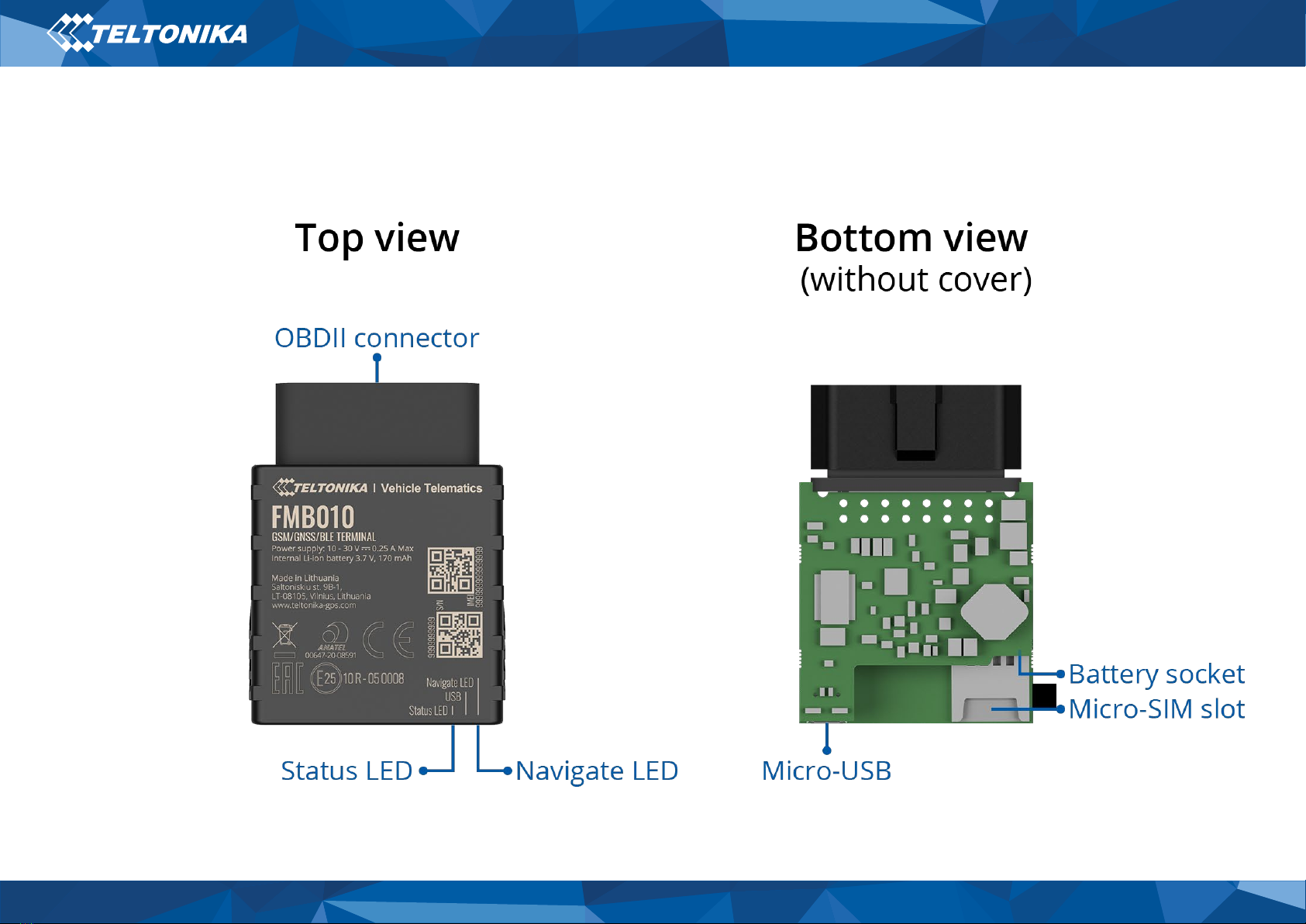

Figure 1 FMB010 device view

FMB010 |

Wiki

Pinout

Table 1 OBDII pinout

PIN NUMBER PIN NAME DESCRIPTION

1 DIN1 Ignition input

2 PWM_BUS+/VPW

4 GND (-) Ground

5 GND (-) Ground

10 PWM_BUS-

16 VCC (10 - 30)V DC(+) Power supply (+10-30 V DC)

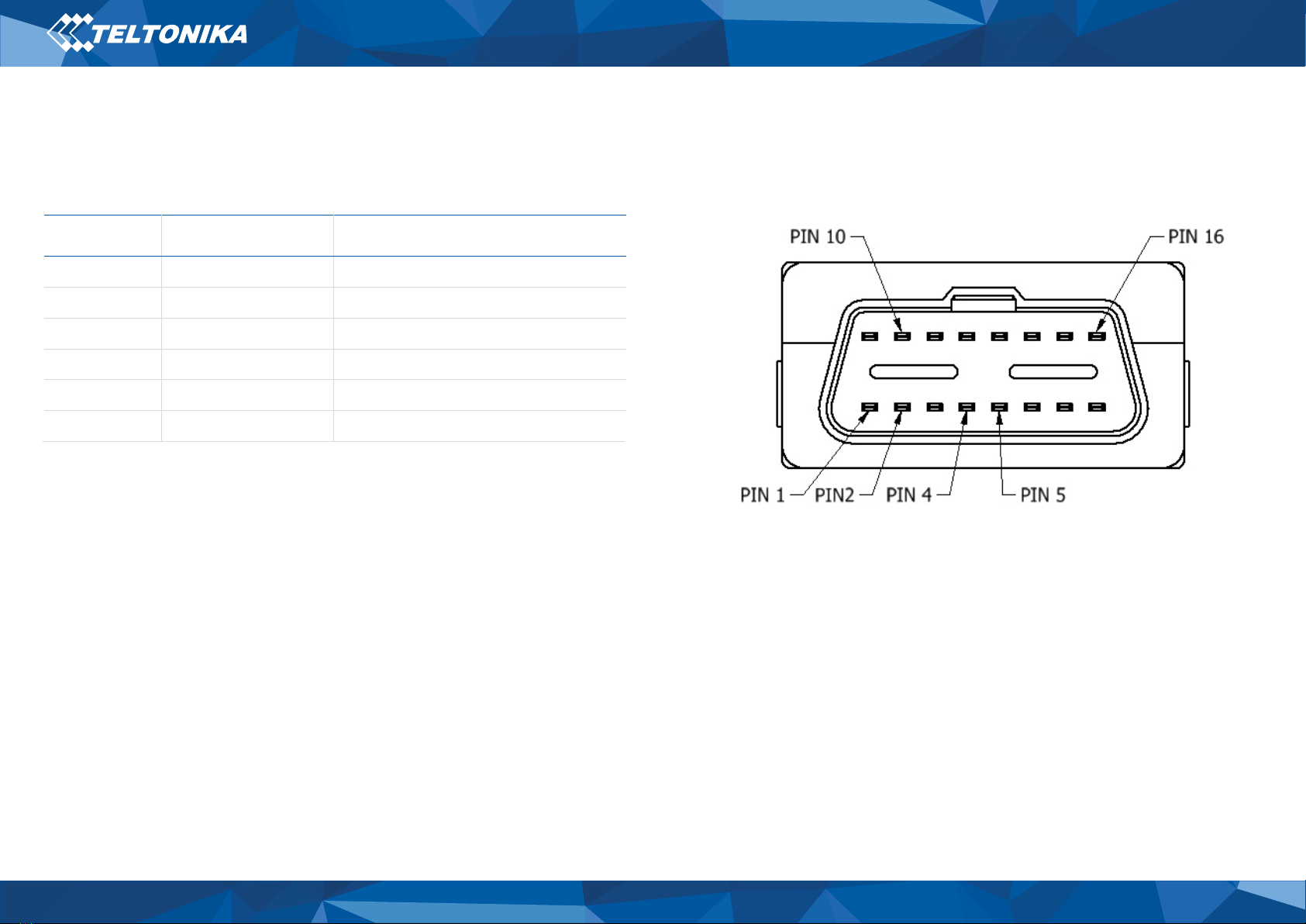

Figure 2 FMB010 OBDII socket pinout

FMB010 |

Wiki

Set up your device

How to insert Micro-SIM card and

connect the battery

1. Gently remove FMB010 cover using plastic pry tool from both

sides.

2. Insert Micro-SIM card as shown with PIN request disabled or

read our Wiki how to enter it later in Teltonika Configurator.

Make sure that Micro-SIM card cut-off corner is pointing

forward to slot.

3. Connect battery as shown to device. Position the battery in

place where it does not obstruct other components.

4. Attach device cover back.

Device is ready to be connected.

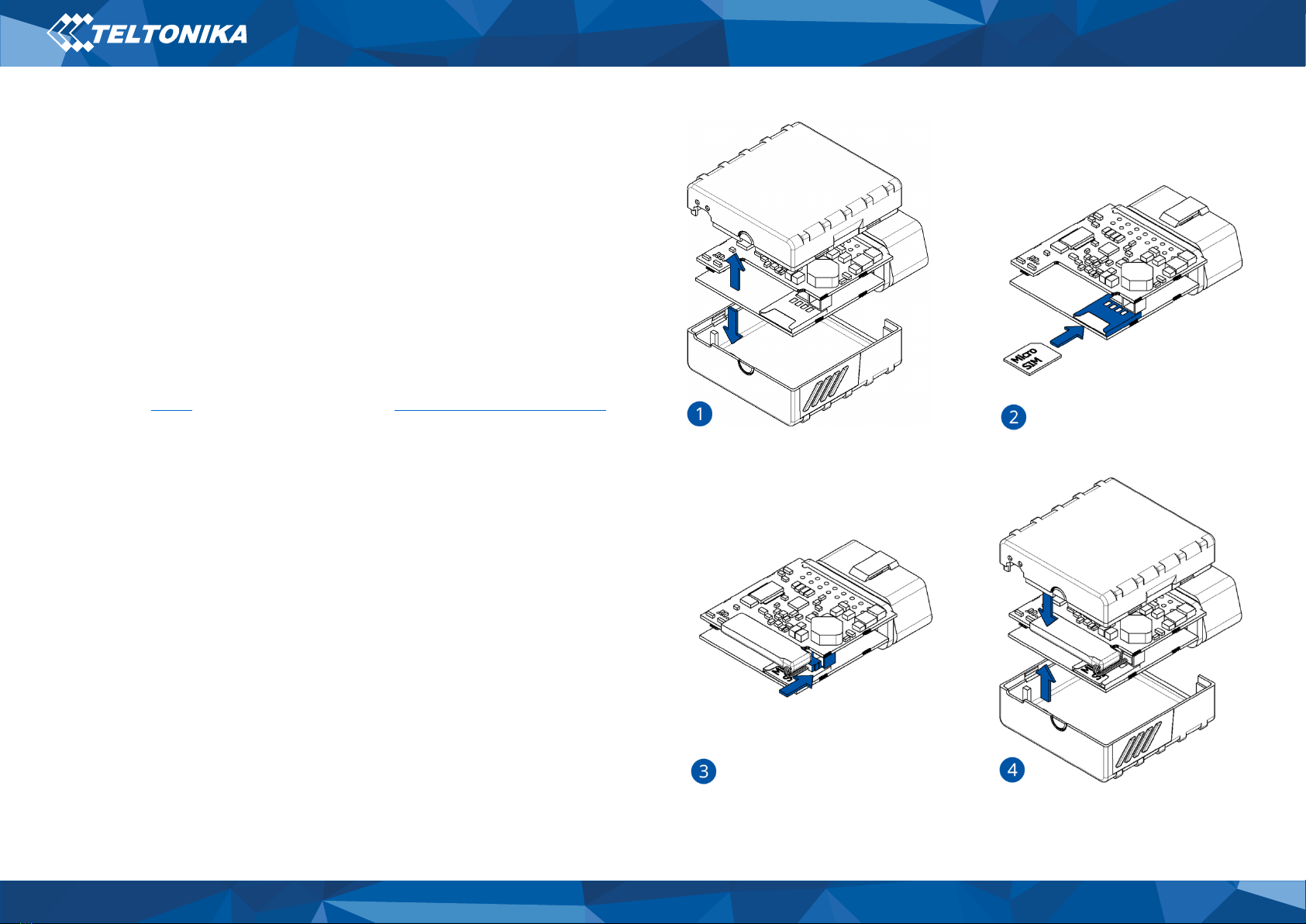

Figure 3 Cover removal Figure 4 Micro-SIM card insert

Figure 5 Battery connection Figure 6 Attaching cover back

FMB010 |

Wiki

PC Connection (Windows)

1. Power-up FMB010 with DC voltage (10 – 30 V) power supply

using supplied power cable. LED’s should start blinking, see

“LED indications”

2. Connect device to computer using Micro-USB cable or

Bluetooth connection:

•Using Micro-USB cable

▬You will need to install USB drivers, see “How to install

USB drivers (Windows)”

•Using Bluetooth

▬FMB010 Bluetooth is enabled by default. Turn on

Bluetooth on your PC, then select Add Bluetooth or

other device > Bluetooth. Choose your device named –

“FMBxxx_last_7_imei_digits”, without LE in the end.

Enter default password 5555, press Connect and then

select Done.

3. You are now ready to use the device on your computer.

How to install USB drivers

(Windows)

1. Please download COM port drivers from here.

2. Extract and run TeltonikaCOMDriver.exe.

3. Click Next in driver installation window.

4. In the following window click Install button.

Setup will continue installing the driver and eventually the

confirmation window will appear. Click Finish to complete the

setup.

Configuration (Windows)

At first FMB010 device will have default factory settings set. These

settings should be changed according to the user's needs. Main

configuration can be performed via Teltonika Configurator

software. Get the latest Configurator version from here.

Configurator operates on Microsoft Windows OS and uses

prerequisite MS .NET Framework. Make sure you have the correct

version installed.

Table 2 MS .NET requirements

MS .NET REQUIREMENTS

Operating

system

MS .NET Framework

version Version Links

Windows Vista

Windows 7

Windows 8.1

Windows 10

MS .NET Framework

4.6.2 32 and 64 bit www.microsoft.com

Downloaded Configurator will be in compressed archive. Extract it

and launch Configurator.exe. After launch software language can

be changed by clicking in the right bottom corner (Figure 7

Language selection).

FMB010 |

Wiki

Configuration process begins by pressing on connected device

(Figure 8 Device connected via USB).

After connection to Configurator Status window will be displayed

(Figure 9 Configurator Status window).

Various Status window tabs display information about GNSS,

GSM,I/O, Maintenance and etc. FMB010 has one user editable

profile, which can be loaded and saved to the device. After any

modification of configuration the changes need to be saved to

device using Save to device button. Main buttons offer following

functionality:

1. Load from device – loads configuration from device.

2. Save to device – saves configuration to device.

3. Load from file – loads configuration from file.

4. Save to file – saves configuration to file.

5. Update firmware – updates firmware on device.

6. Read records – reads records from the device.

7. Reboot device – restarts device.

8. Reset configuration – sets device configuration to

default.

Most important configurator section is GPRS – where all your

server and GPRS settings can be configured and Data Acquisition

–where data acquiring parameters can be configured.

More details about FMB010 configuration using Configurator can

be found in our Wiki.

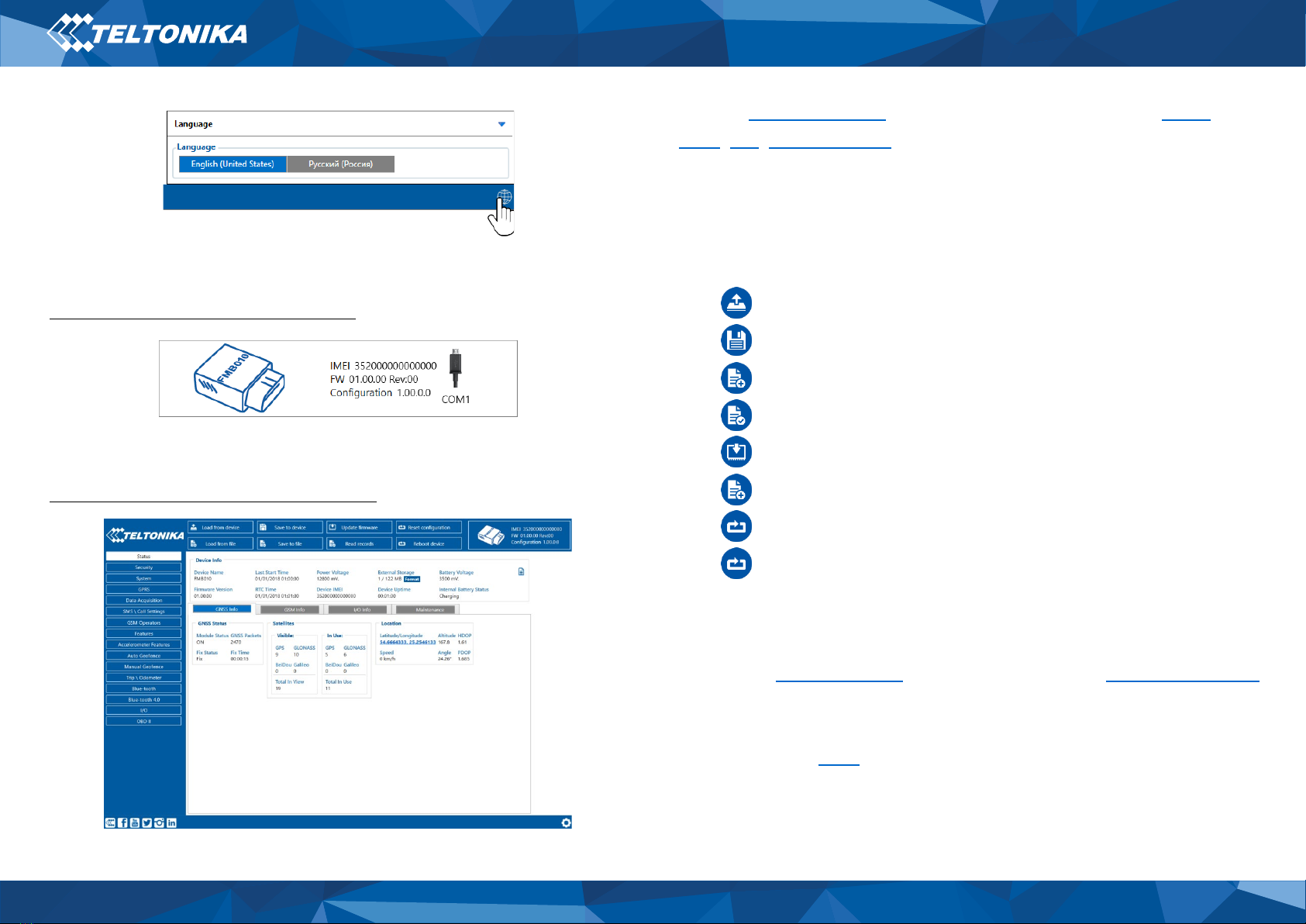

Figure 8 Device connected via USB

Figure 7 Language selection

Figure 9 Configurator Status window

FMB010 |

Wiki

Quick SMS configuration

Default configuration has optimal parameters present to ensure

best performance of track quality and data usage.

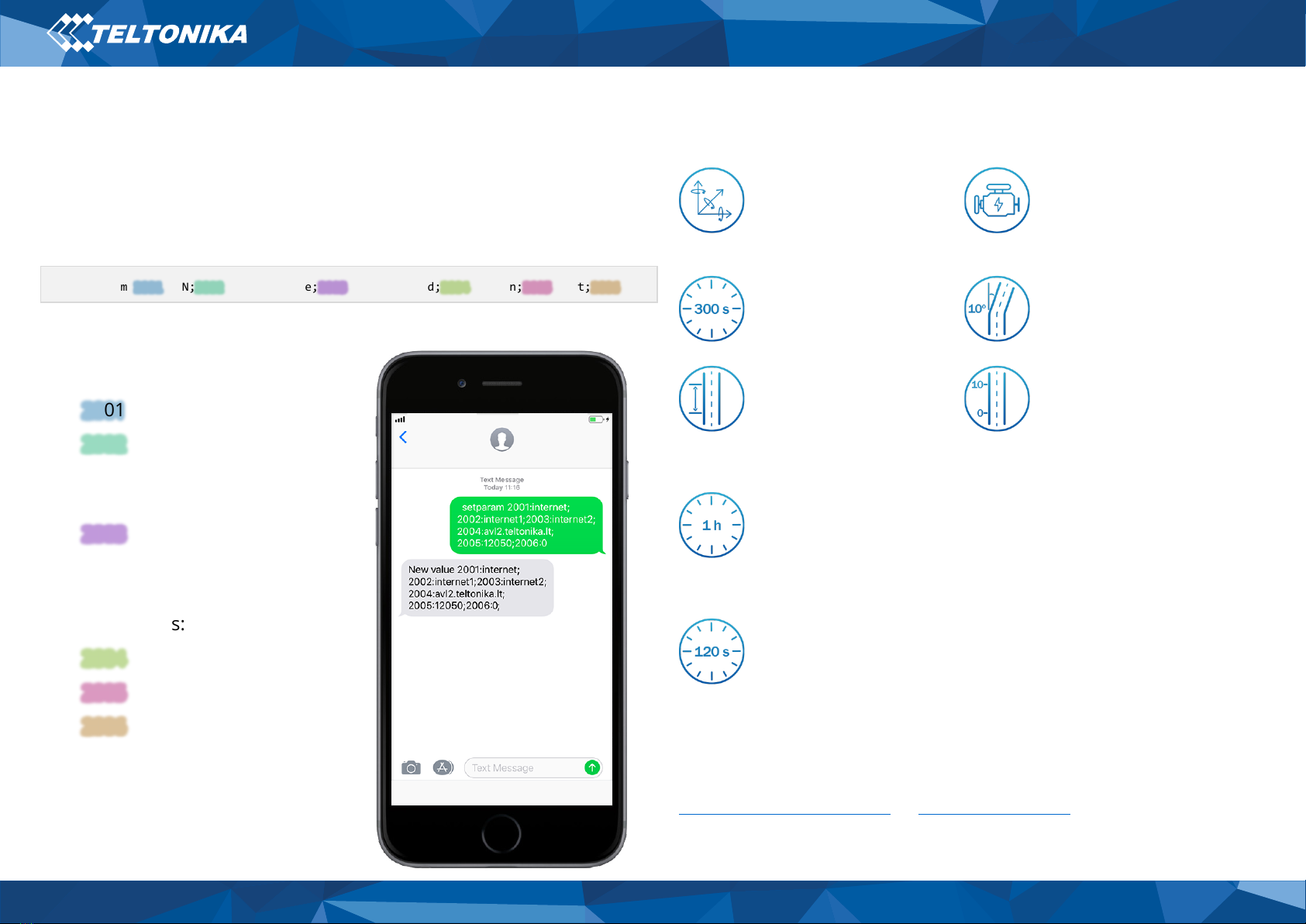

Quickly set up your device by sending this SMS command to it:

Note: Before SMS text, two space symbols should be inserted.

GPRS settings:

•2001 – APN

•2002 – APN username (if there

are no APN username, empty

field should be left)

•2003 – APN password (if there

are no APN password, empty

field should be left)

Server settings:

•2004 – Domain

•2005 – Port

•2006 – Data sending protocol

(0 – TCP, 1 – UDP)

Default configuration settings

Movement and ignition detection:

Vehicle movement will

be detected by

accelerometer

Ignition will be detected

by vehicle power voltage

between 13,2

– 30 V

Device makes a record

On Moving if one of these events happen:

300 seconds passes

Vehicle turns 10 degrees

Vehicle drives 100

meters

Speed difference

between last coordinate

and current position is

greater than 10 km/h

Device makes a record

On Stop if:

1 hour passes while

vehicle is stationary

and ignition is off

Records sending to server:

If device has made a

record it is sent to the

server every 120

seconds

After successful SMS configuration, FMB010 device will

synchronize time and update records to configured server.

Time intervals and default I/O elements can be changed by using

Teltonika Configurator or SMS parameters.

" setparam 2001:APN;2002:APN_username;2003:APN_password;2004:Domain;2005:Port;2006:0"

FMB010 |

Wiki

LED indications

Table 3 Navigation LED indications

BEHAVIOUR MEANING

Permanently switched on GNSS signal is not received

Blinking every second Normal mode, GNSS is working

Off

GNSS is turned off because:

Device is not working or Device is in

sleep mode

Blinking fast constantly Device firmware is being flashed

Table 4 Status LED indications

BEHAVIOUR MEANING

Blinking every second Normal mode

Blinking every two seconds Sleep mode

Blinking fast for a short time Modem activity

Off Device is not working or Device is in

boot mode

Basic characteristics

Table 5 Basic characteristics

MODULE

Name Teltonika TM2500

Technology GSM, GPRS, GNSS, BLUETOOTH

GNSS

GNSS GPS, GLONASS, GALILEO, BEIDOU,

SBAS, QZSS, DGPS, AGPS

Receiver 33 channel

Tracking sensitivity -165 dBM

Accuracy < 3 m

Hot start < 1 s

Warm start < 25 s

Cold start < 35 s

CELLULAR

Technology GSM

2G bands Quad-band 850 / 900 / 1800 / 1900

MHz

Data transfer

GPRS Multi-Slot Class 12 (up to 240

kbps)

Data support

SMS (text/data)

FMB010 |

Wiki

POWER

Input voltage range 10 - 30 V DC with overvoltage

protection

Back-up battery 170 mAh Li-Ion battery 3.7 V (0.63

Wh)

Power consumption

At 12V < 5 mA (Ultra Deep Sleep)

At 12V < 7 mA (Deep Sleep)

At 12V < 7 mA (Online Deep Sleep)

At 12V < 8 mA (GPS Sleep)

At 12V < 28 mA (nominal)

BLUETOOTH

Specification 4.0 + LE

Supported peripherals Temperature and Humidity sensor,

Headset, Inateck Barcode Scanner

INTERFACE

Digital Inputs 1

Connection OBDII socket

GNSS antenna Internal High Gain

GSM antenna Internal High Gain

USB 2.0 Micro-USB

LED indication 2 status LED lights

SIM Micro-SIM

Memory 128MB internal flash memory

PHYSICAL SPECIFICATION

Dimensions

50,7 x 49,6 x 25 mm (L x W x H)

Weight

63 g

OPERATING ENVIRONMENT

Operating temperature (without

battery) -25 °C to +55 °C

Storage temperature (without

battery) -40 °C to +70 °C

Operating humidity 5% to 95% non-condensing

Ingress Protection Rating IP41

Battery charge temperature 0 °C to +45 °C

Battery discharge temperature -20 °C to +60 °C

Battery storage temperature -20 °C to +45 °C for 1 month

-20 °C to +35 °C for 6 months

FEATURES

Sensors

Accelerometer

Scenarios

Green Driving, Over Speeding

detection, Jamming detection, GNSS

Fuel Counter, Excessive Idling

detection, Unplug detection, Towing

detection, Crash detection, Auto

Geofence, Manual Geofence, Trip

Sleep modes

GPS Sleep, Online Deep Sleep, Deep

Sleep, Ultra Deep Sleep

Configuration and firmware update

FOTA Web, FOTA, Teltonika

Configurator (USB, Bluetooth), FMBT

mobile application (Configuration)

SMS Configuration, Events, Debug

GPRS commands Configuration, Debug

Time Synchronization GPS, NITZ, NTP

Ignition detection Digital Input 1, Accelerometer,

External Power Voltage

Other manuals for FMB010

Table of contents

Other Teltonika GPS manuals

Teltonika

Teltonika FMC00A User manual

Teltonika

Teltonika FMB010 User manual

Teltonika

Teltonika FMM003 Installation guide

Teltonika

Teltonika FMB900 User manual

Teltonika

Teltonika FMB225 Installation guide

Teltonika

Teltonika FM1010 User manual

Teltonika

Teltonika FMM920 Installation guide

Teltonika

Teltonika FM3101 User manual

Teltonika

Teltonika Telematics FMM150 User manual

Teltonika

Teltonika FMC230 Guide

Teltonika

Teltonika Telematics FTC921 Installation guide

Teltonika

Teltonika FMB1YX User manual

Teltonika

Teltonika FMA120 User manual

Teltonika

Teltonika Telematics FMC150 Installation guide

Teltonika

Teltonika FMB110 Installation guide

Teltonika

Teltonika MH2000 Manual

Teltonika

Teltonika TMT250 Installation guide

Teltonika

Teltonika Telematics FMM650 Installation guide

Teltonika

Teltonika FMB204 Installation guide

Teltonika

Teltonika FM1100 User manual

Teltonika

Teltonika FMC00A Installation guide

Teltonika

Teltonika FMP100 Installation guide

Teltonika

Teltonika FMP100 User manual

Teltonika

Teltonika FMU125 Installation guide

Popular GPS manuals by other brands

Raven

Raven Cruizer II Manual

Hama

Hama 53118 Operating instruction

Garmin

Garmin SOUNDER 125 Owner's manual & reference

Garmin

Garmin DEZL 580 owner's manual

Jigabot

Jigabot EX quick start guide

Pointer

Pointer Cellocator CelloTrack XT LTE overview

Queclink

Queclink GV55LITE user manual

Voxson

Voxson Voxtrack GPS500 Quick user guide

Garmin

Garmin ECHOMAP PLUS owner's manual

Starcom Systems

Starcom Systems Kylos Compact user guide

Garmin

Garmin 15 H Series Technical specifications

Cobra

Cobra Marine MC 600Ci owner's manual

Cellocator

Cellocator CelloTrack T installation guide

Enfora

Enfora Mini-MT GSM2228UG001 user guide

Magellan

Magellan eXplorist 100 Reference manual

LTE

LTE G50B user manual

Garmin

Garmin DEZL OTR500 owner's manual

SkyGolf

SkyGolf SkyCaddie SG1 user guide
