Astra-612

Acoustic Surface Glass Break

Detector

User Guide

Manufacturer:

TEKO-TD

M.Gafuri. 71

420108 Kazan, Russia

+7(843) 528-03-69

[email protected]

Made in Russia

Rev. 612-v1_1_instr_EN

1 FUNCTION

The detector is designed to detect destruction of

glasses, glazed structures of enclosed area and

generate an alarm notification by opening of

signaling relay contacts.

2 DETECTION ZONE

3 SPECIFICATION

Maximal detection range, m............................ 6

Operating frequencies:

first, Hz .............................................6000±100

second, Hz.............................................150±10

Power supply voltage, V..................from 8 to 15

Current consumption, mA, max..................... 18

Overall dimensions, mm.....................70×33×16

Operating Conditions

Temperature range, °С............ from -10 to +50

Relative air humidity, % ............from 95 at + 35 °С

without moisture condensation

4 DELIVERY SET

Delivery set includes: dowel –2 pcs., screw –2

pcs.

5 MODES OF OPERATION

Plug

name

Jumper

position

Indication OFF

Indication ON

Ind

"Alarm

memory" OFF

"Alarm

memory" ON

Mem

Normal

sensitivity

High

sensitivity

Sens

6 INSTALLATION PLACE

1) Recommended installation height is at least

2m and at a distance not more than 6m from the

most distant spot of protected glass.

2) The detector cannot be used in premises

with high level of acoustic interference.

3) Alarm loop and power supply wires should

be located far from power cables.

To eliminate false alarm hazards

1) It is recommended to close doors and vents,

switch off fans, loud-speakers and other possi-

ble sources of acoustic interference in the room

during protection period.

2) The detector's location should provide direct

visibility of all secured glass parts; masking the

detector with decorative curtains is not allowed,

as sensitivity may be lost.

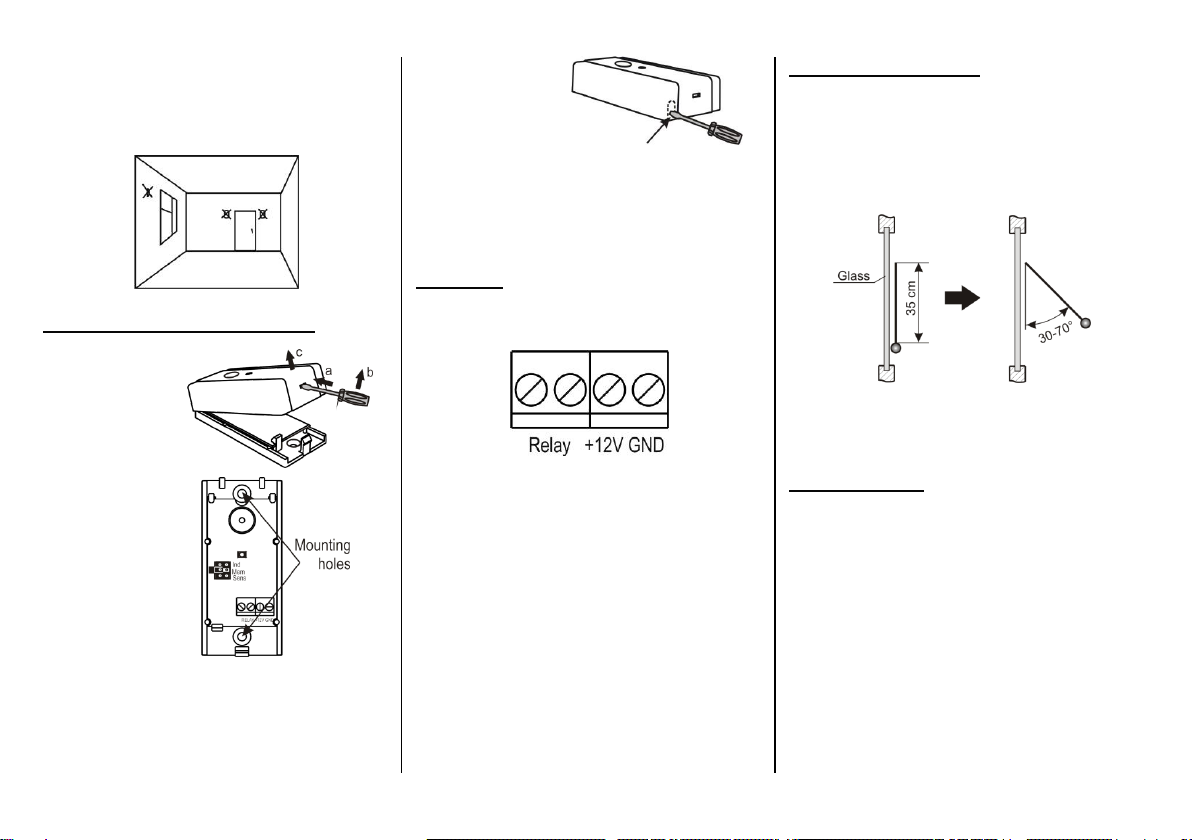

Not recommended installation places

7 INSTALLATION PROCEDURE

1) Remove the

cover

2) Fix the base

3) Squeeze out

the cap of the wire

insertion hole.

Wire insertion hole

4) Perform wiring (see p. 8)

5) Perform AC-channel test (see p.9)

8 WIRING

Perform wiring to detector`s terminals in

accordance with control panel operating manual.

RELAY –terminals for detector connection to

alarm loop;

+12V, GND –power supply terminals.

9 AC-CHANNEL TEST

1) Remove jumper from Mem plug, install

jumpers on Ind and Sens plugs.

2) Assemble the detector.

3) Power detector ON.

4) Apply non-destructive strike to the most

distant part of the protected glass.

5) At the detection moment the LED should

light up for 4s and relay shouldopen (check with

control panel).

10 WARRANTY

The operation warranty period is 5 years from

the date of operation start-up but no longer than

5 years 6 months from the date of manufactur-

ing subject to the requirements of Operating

Manual.
