Teknion Leverage User manual

Three-Way Bracket for 30" High Panel 120 Deg (KP603) Part and Product Identification

A - Glass Windown Top Splicer Plate

Three Way 120 Deg

(A15-8573) x1

Section:

Description: Page No:

Date:

Rev. No: 1

THREE-WAY BRACKET FOR 30" HIGH PANEL 120 DEG INSTALLATION

PANEL CONNECTIONS AND TRIMS

May 2020 1 of 6

TLE_215b

leverage

Installation Guides

B - #8-18 x 3/4" Quad, Pan Head,

Self-drilling Screws

(E01-0072) x3

NOTE: Use KPJ3 with Glass Panel

Add-On: KPOGBS/KPOGBD. For

other Glass Panel Add-On, use standard

corner brackets.

D - Corner Bracket Spacer Plate

(A15-8538) x2

C - Three-Way 60 Deg Corner Bracket

(A15-8571) x1

E - Top Connection Hardware Kit

(X01-2025) x3

STEP 2a: Install Glass Panel Add-OnSTEP 1a: Connect Panels together. Ensure Panels are leveled before locking Posi-Locks at any

stage.

Section:

Description: Page No:

Date:

CONNECT PANELS TOGETHER INSTALL GLASS PANELS ADD- ON

TLE_215b

2 of 6

May 2020

THREE-WAY BRACKET FOR 30" HIGH PANEL 120 DEG INSTALLATION

PANEL CONNECTIONS AND TRIMS

leverage

Installation Guides

Situation 1: Connection between Panels and

a Panel Add-On (KPOGPS/ KPOGBD)

NOTE: Orient all reveal

linestowards the

INSIDE of the cubicle

space or to face same

direction

NOTE: Install Bracket

at proper height for

connecting to Panel

Add-On next

NOTE: Reverse

positions of spring

washer and Posi Lock

when connecting to

Glass Panel Add-On

STEP 2b: Install Glass Panel Add-OnSTEP 1b: Connect Panels together. Ensure Panels are leveled before locking Posi-Locks at any

stage.

Section:

Description: Page No:

Date:

CONNECT PANEL AND GLASS PANEL TOGETHER INSTALL GLASS PANELS ADD- ON

TLE_215b

3 of 6

May 2020

THREE-WAY BRACKET FOR 30" HIGH PANEL 120 DEG INSTALLATION

PANEL CONNECTIONS AND TRIMS

leverage

Installation Guides

Situation 2: Connection between a Panel

and Panels Add-On (KPOGBS/KPOGBD)

NOTE: Reverse

positions of spring

washer and Posi Lock

when connecting to

Glass Panel Add-On

NOTE: Orient all reveal

linestowards the INSIDE of

the cubicle space or to face

same direction

Section:

Description: Page No:

Date:

INSTALL TOP SPLICER PLATE

May 2020 4 of 6

TLE_215b

TWO-WAY BRACKET FOR 30" HIGH PANEL 120 DEG INSTALLATION

PANEL CONNECTIONS AND TRIMS

leverage

Installation Guides

STEP 3b: Install Top Splicer Plate as shown.

Top View

STEP 2c: Install Glass Panel Add-OnSTEP 1c: Connect Panels together. Ensure Panels are leveled before locking Posi-Locks at any

stage.

Section:

Description: Page No:

Date:

CONNECT GLASS PANELS TOGETHER INSTALL GLASS PANELS ADD- ON

TLE_215b

5 of 6

May 2020

THREE-WAY BRACKET FOR 30" HIGH PANEL 120 DEG INSTALLATION

PANEL CONNECTIONS AND TRIMS

leverage

Installation Guides

Situation 3: Connection of three Panels

Add-On (KPOGBS/KPOGBD)

NOTE: Orient all reveal

linestowards the INSIDE of

the cubicle space or to face

same direction

Section:

Description: Page No:

Date:

INSTALL TOP SPLICER PLATE

May 2020 6 of 6

TLE_215b

THREE-WAY BRACKET FOR 30" HIGH PANEL 120 DEG INSTALLATION

PANEL CONNECTIONS AND TRIMS

leverage

Installation Guides

STEP 3c: Install Top Splicer Plate using screws provided.

Top View

Other manuals for Leverage

Table of contents

Other Teknion Indoor Furnishing manuals

Teknion

Teknion interpret CHICAGO POWER MODULE DOUBLE SIDED... User manual

Teknion

Teknion hiSpace User manual

Teknion

Teknion Custom wood CWCT Series Operating and maintenance instructions

Teknion

Teknion Projek Owner's manual

Teknion

Teknion interpret WWSPK Operating and maintenance instructions

Teknion

Teknion Complements Operating and maintenance instructions

Teknion

Teknion Dossier ZJRP Operating and maintenance instructions

Teknion

Teknion Interpret Operating and maintenance instructions

Teknion

Teknion Leverage Operating and maintenance instructions

Teknion

Teknion hiSpace User manual

Teknion

Teknion expansion cityline hiSpace Quick Connect 120 HA Mechanism... User manual

Teknion

Teknion BGATHB User manual

Teknion

Teknion HNBCCEMS Operating and maintenance instructions

Teknion

Teknion Navigate 120 HA Frame HNBFNT Operating and maintenance instructions

Teknion

Teknion HWBCTF User manual

Teknion

Teknion Amicus Owner's manual

Teknion

Teknion north 56 User manual

Teknion

Teknion PUNT Stockholm Storage Operating and maintenance instructions

Teknion

Teknion Marini Owner's manual

Teknion

Teknion nuova contessa Owner's manual

Teknion

Teknion Interpret User manual

Teknion

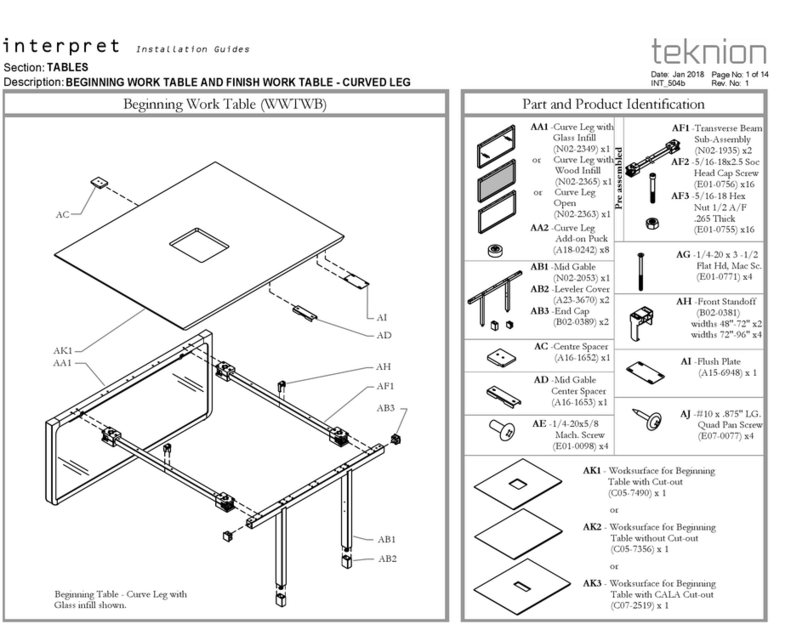

Teknion INTERPRET WORK TABLE Operating and maintenance instructions
