Technogym Selection Glute User manual
S E L E C T I O N
T H E S T R E N G T H E V O L U T I O N
1
Glute
User manual
All equipment
Glute 2
Contents
Identification of the manufacturer and equipment ............................ 3
Description of the equipment............................................................ 4
Technical data ................................................................................... 5
Safety devices and warnings ............................................................ 6
Place of installation ........................................................................... 8
Fitting the cam covers....................................................................... 9
Fitting the number holder ................................................................ 10
Lifting and moving the equipment................................................... 11
Adjusting the equipment ................................................................. 14
Routine maintenance ...................................................................... 15
Replacing the padded parts............................................................ 16
Replacing the cable......................................................................... 17
Adjusting cable tension ................................................................... 19
Removing the front weight stack panel........................................... 20
Technical Service............................................................................. 21
Storage............................................................................................ 22
Disposal........................................................................................... 23
Using the equipment ....................................................................... 24
User manual ...................................................................................... 1
Contents............................................................................................ 2
Glute 3
D
E
A
B C F
Identification of the manufacturer and equipment
The identification plate of the equipment and manufacturer, placed under the padding, gives the following details:
AManufacturer's name and address
BCE Mark
CSerial number
DMaximum user weight
EEquipment classification
FConsultation of user manual required
Glute 4
G
IA
B
E
F
C
D
H
Description of the equipment
A Padding: the user rests his abdomen against it when exercising.
B Lever: operated by the user by means of rollers (C); before starting to exercise, or between one set and the next, the ROM device
may be used to adjust the starting position thus modifying the range of motion.
D ROM device: system for adjusting the Range of Motion and the starting position. Adjustments are made by means of ROM lever (E)
after releasing it by pressing the button provided on it.
F Weight stack: lever (B), operated by the user, moves the weights along two guides by means of a cable. Pin (G) is used to select
the load and adjust the level of intensity of the exercise. Cursor (H) is used to vary the selected workload by 2.5 kg.
I Front handgrip: the user must hold it to ensure a correct position during exercises.
Glute 5
1240 mm
(48")
1307mm
(52")
1800 mm
(71")
1316 mm
(52")
262 kg (578 lb) 70 kg (140 lb)

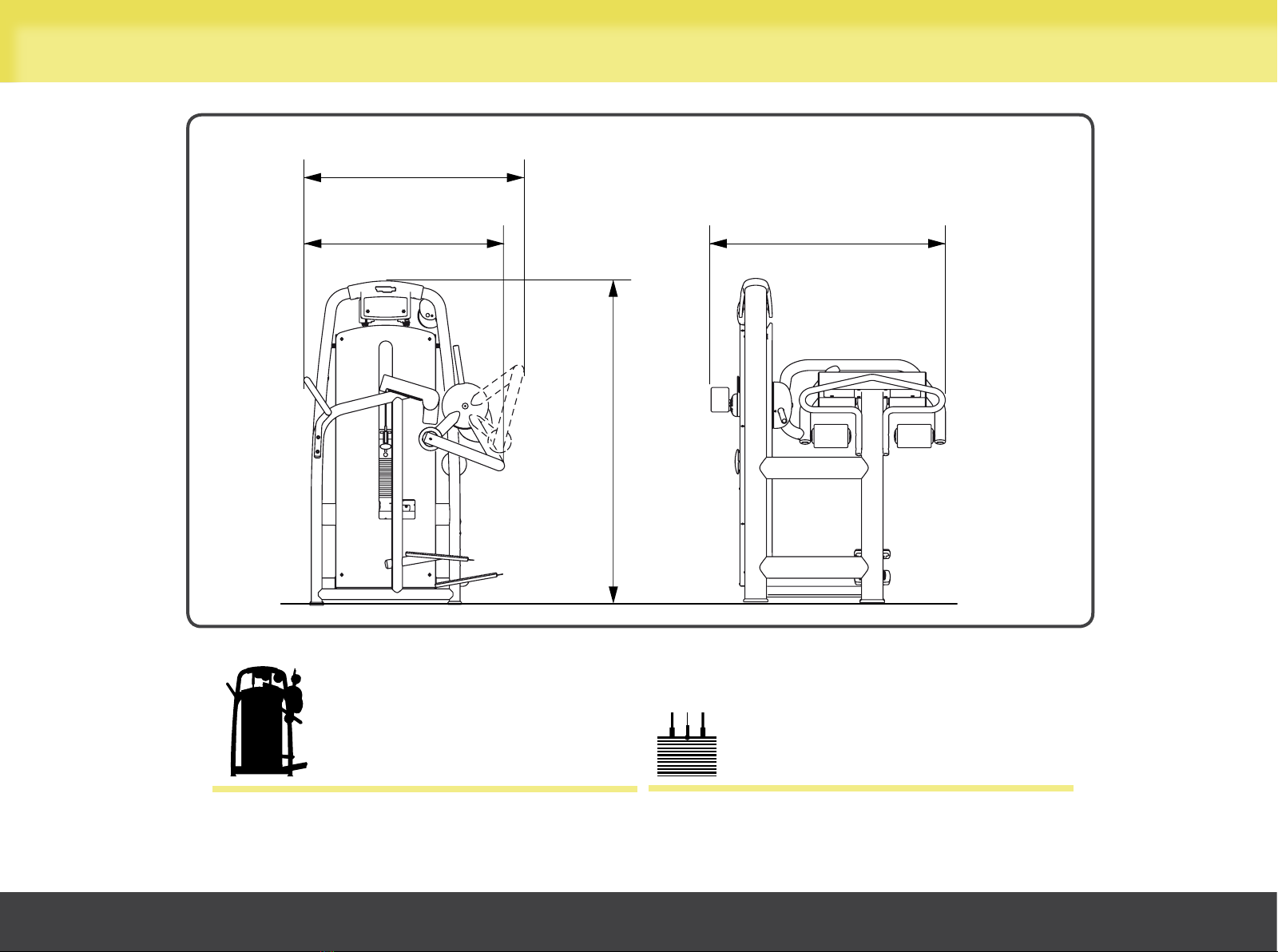

Technical data
Glute 6
Safety devices and warnings
The maximum user weight is 180 kg (397 lb).
The outside of the weight stack is covered by a protective panel.
The equipment has no sharp corners.
All parts which come into contact with the user's body are suitably protected with rubber coverings or padding.
Pay particular attention to the parts of the equipment with labels indicating “BEWARE OF
CRUSHING”.
This symbol accompanies safety warnings. It is used to draw attention to potential risks of personal injury. Pay attention
to all safety warnings accompanied by this symbol to avoid possible injury.
WARNING
During all operations involving transport, maintenance and cleaning, pay attention to any part of the equipment where
body parts may become trapped.
cont.
Glute 7
Safety devices and warnings
WARNINGS
Attention must be paid to the labels attached to the equipment, as they provide
information about possible risks and hazards.
We recommend immediately replacing the labels when they become damaged or difficult
to read.
Glute 8
Place of installation
To ensure safe, comfortable and effective use of the equipment, the place of installation must comply with certain specific requirements;
in particular, before choosing where to install the equipment we recommend that you check that the following conditions are available:
- a temperature between +10°C and +25°C;
- sufficient ventilation to maintain a humidity level between 20% and 90%, when the equipment is in use;
- sufficient lighting to make the area a safe and relaxing place to exercise;
- sufficient clearance on all sides of the equipment, taking into account its maximum dimensions when in use, to ensure safety;
- a flat, stable and vibration-free floor surface, with sufficient load bearing capacity for the equipment’s weight.
If the equipment is to be installed in a public recreation area, the place of installation must comply with all the requirements of the
regulations currently in force.
WARNINGS
The equipment must be installed and used in a place where access and supervision are specifically controlled by the
owner.
When installing the equipment, use suitable personal protective equipment.
Glute 9
B
A
Fitting the number holder
The number holder must be installed immediately under the top: standing facing
the equipment, attach the number holder on the left, on the cover of guide rail (A).
Find the place where the two screws (B) are to be inserted.
Attach the number holder using the two screws; the pressure used to tighten the
screws is enough to open the holes provided in the cover.
The number holder is optional.
Glute 10
01083016
A
Lifting and moving the equipment
Use the castors (optional) to move the equipment.
WARNING
Move the equipment very carefully, because it may become unstable
and tip over.
The wheels for moving the equipment snap on underneath the feet of the
equipment, after it has been raised, and are held in place by the special straps.
Raise the equipment using a pallet truck or fork-lift truck from the weight stack
side; and for greater safety place a wedge under the frame to keep the equipment
raised.
Insert the two fixed wheels first on one side and then on the other side of the
weight stack: fit wheel stems (A) into the holes provided under the equipment
feet, then push hard until they snap in.
WARNINGS
We recommend placing padded material between the frame and the
wedge and between the frame and the machinery used to lift it.
The fixed wheels must always be placed underneath the weight stack.
