teching Steam Automobile User manual
•
•
34
R
Ｉ－Ｍａｋｅ·ＲｅａｌＭｏｄｅｌ·ＲｅａｌＷｏｒｌｄ

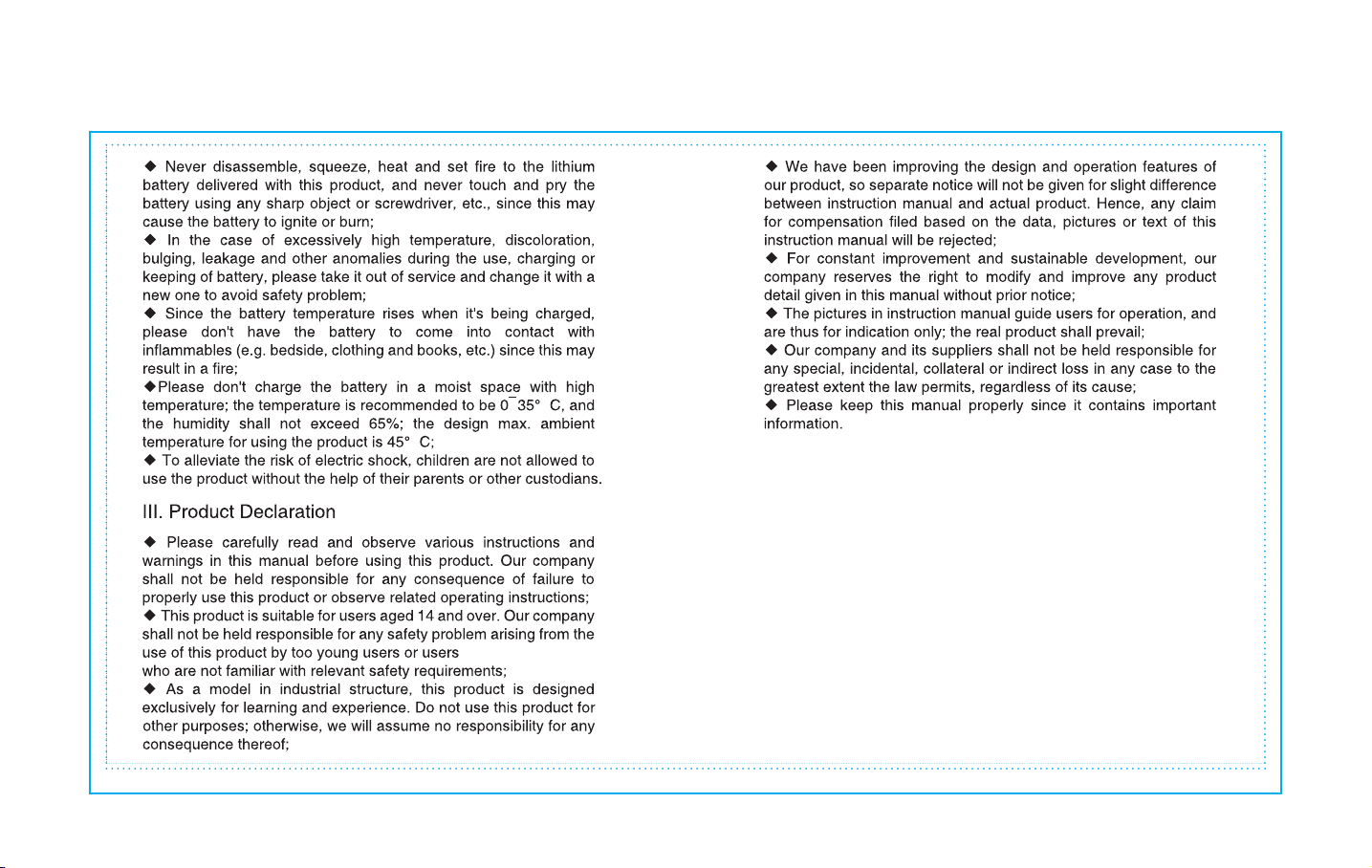

Precautions
目录
1
2

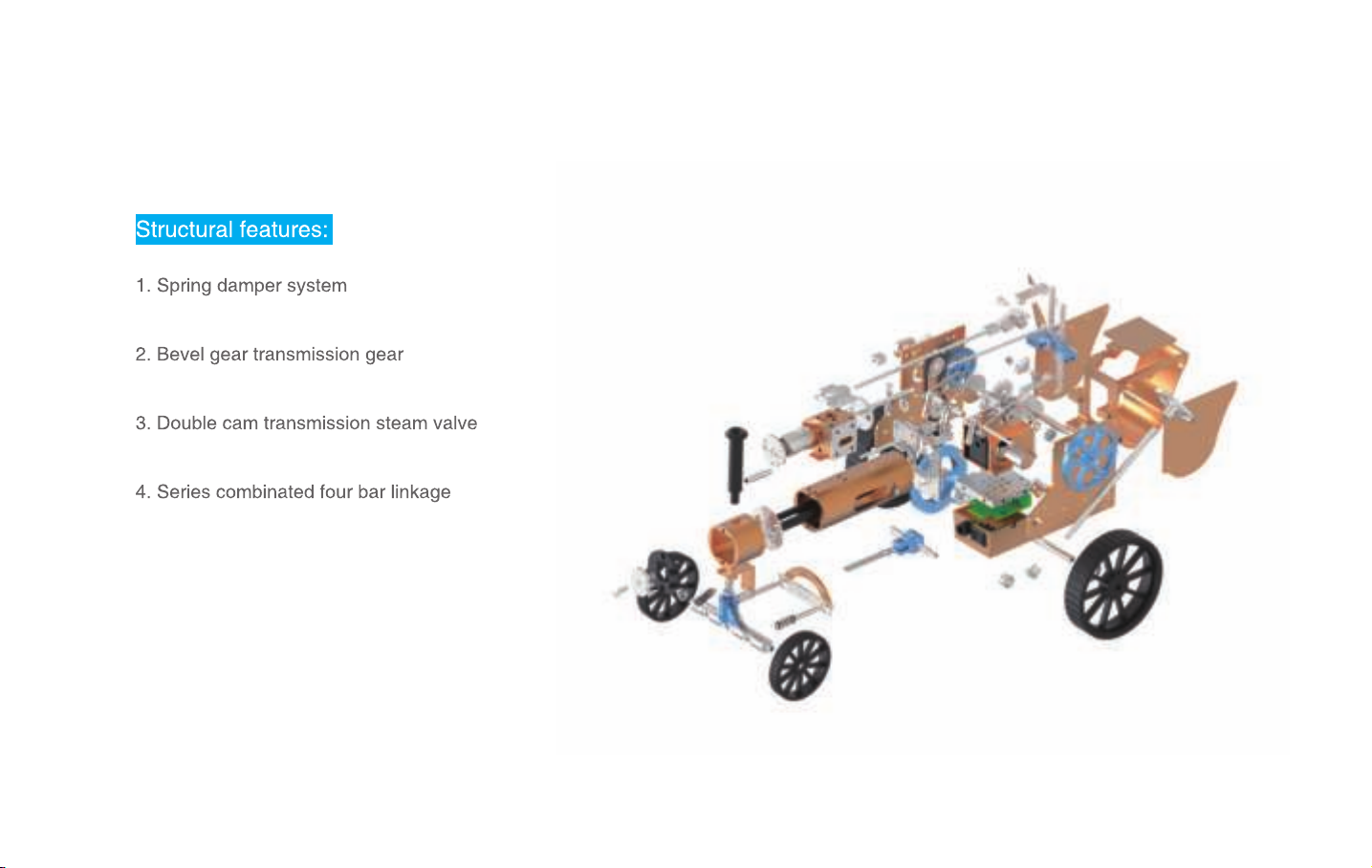

Expiation of the steam Automobile components
P3
Steam Automobile parts list
P52
P03. Boiler components
P08. Cargo bed components
P09. Transmission system
P22. Circuit system
P23. Smoke box components
P35. Front axle components
P40. Steering system
P44. Rear axle components and brake system
P46. Charging status
P47. Function introduction
P48. Mechanical failure analysis and troubleshooting
1
Basic knowledge on standard
parts assembly
(1) Installation of screws
(2)Degree of screw tightening 2.Installation of snap ring
1.Installation of screws
(3)Screw installation order
Correct
orientation
Mount the screws diagonally
in order of number
Push in the
snap ring
in parallel.
Correct
orientation
Skew pushing
of circlip
Wrong
orientation
Wrong
orientation
１ ５ ３
４ ６ ２
Correct position Wrong position
TECHING
R
This manual suits for next models
1
