TE Connectivity RD-316 User manual

1 of 3

*Trademark

TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product, and/or company names may be trademarks of their respective owners.

TOOLING ASSISTANCE CENTER

1-800-722-1111

PRODUCT INFORMATION

1-800-522-6752

This controlled document is subject to change.

For latest revision and Regional Customer Service,

visit our website at www.te.com.

Instruction Sheet

408-32166

22 JAN 15 Rev A

RG/U CABLE

CONTACT ASSEMBLY

CENTER CONTACT TOOL

FERRULE TOOL

TYPE

STRIP

DIM.

SIZE

TYPE

PART NO.

TOOL NO.

POSITIONER

NO.

SELECTOR/

LOCATOR SETTING

TOOL NO.

CRIMP

SECT

FERRULE

NO.

RD-316

(Double

Shielded)

See

Fig. 2A

2286269-1

M22520/2-01▪

K1933

608650-1

w/Die Set

Y141

448642-3

Skt

2286268-1

See

Fig. 2B

2286271-1

K1934

354940-1

w/Die Set

58425-2

1-1403102-4

Skt

2286270-1

▪TE Connectivity (TE) tool 601966-1 is equivalent for tool M22520/2-01 and positioners supplied by Daniels Mfg. Corp. See TE Instruction Sheet 408-7516.

Figure 1

1. INTRODUCTION

This instruction sheet covers the use of TE High Frequency Coaxial Contacts (Size 5 and Size 12) for Arinc

connectors. Read these instructions thoroughly to ensure the selected contacts are compatible with the cable

and with the center contact and ferrule tooling.

NOTE

Dimensions on this sheet are in metric units [with U.S. customary units in brackets]. Figures and illustrations are for reference

only and are not drawn to scale.

2. DESCRIPTION (Figure 1)

The pin and socket connector assemblies shown in Figure 1 consist of a center contact and a pin or socket

body and a ferrule for shield braid is also included.

3. CONTACT SETUP PROCEDURE

Determine the cable size to be terminated and refer to the table in Figure 1 to select the pin and socket

connector assembly, center contact crimping tool, ferrule crimping tool, and stripping dimensions of the cable

(see Figure 2).

Arinc is a trademark.

High Frequency Coaxial Contacts

(Size 5 and Size 12)

for Arinc Connectors

Pin Assembly (Size 5)

Socket Assembly (Size 5)

Pin Assembly (Size 12)

Socket Assembly (Size 12)

Pin Ferrule

Pin Contact

Pin Body

Socket Body

Socket Contact

Socket Ferrule

Pin Body

Pin Contact

Pin Ferrule

Socket Body

Socket Contact

Socket Ferrule

408-32166

Rev A

2 of 3

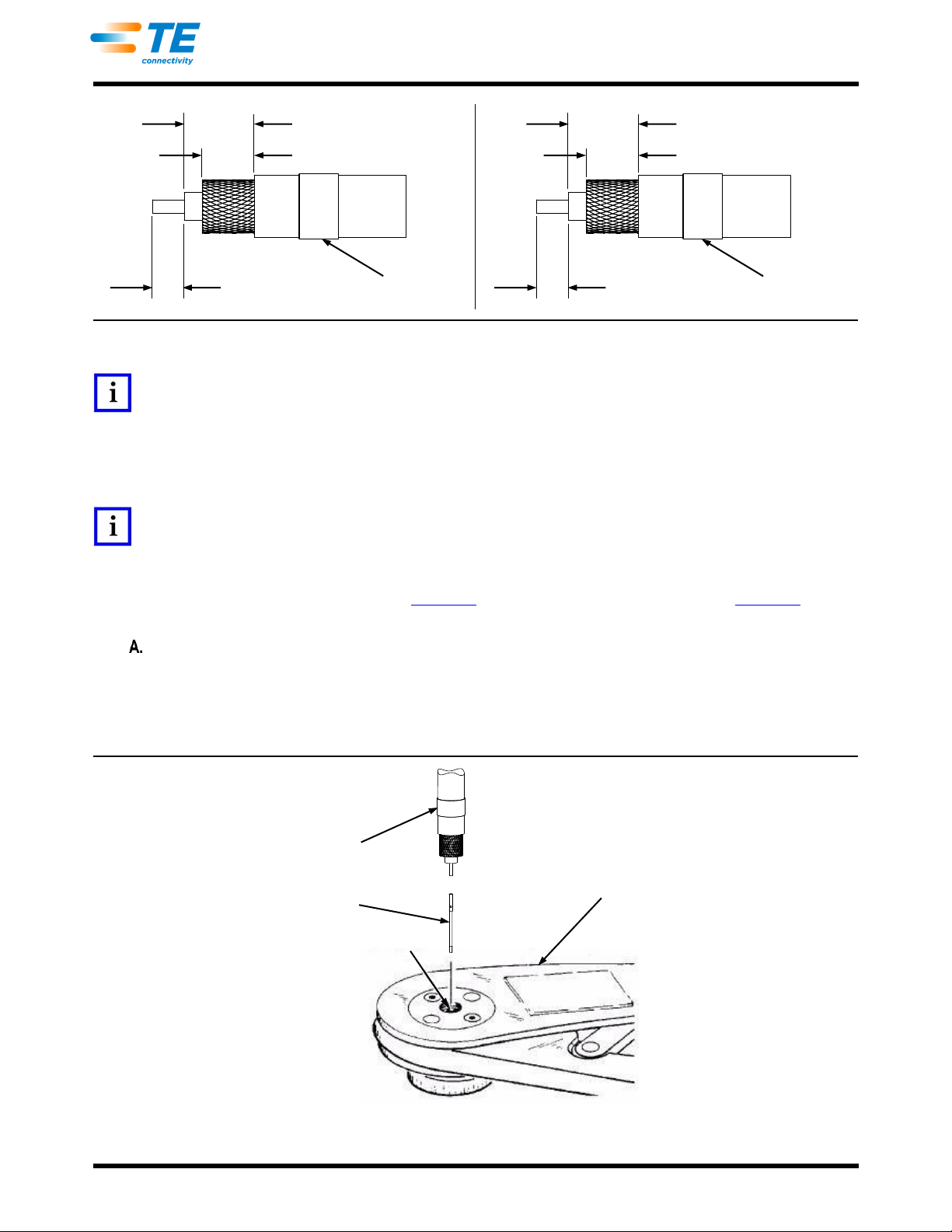

Figure 2

NOTE

The 8-indent (M22520/2-01) crimping tool is manufactured by Daniels Manufacturing Corporation. For information on tools and

components for TE products, contact TE through the Tooling Assistance Center number listed at the bottom of page 1. See

the table in Figure 1 for Daniels and TE part numbers.

1. Slide ferrule of the connector assembly onto the cable BEFORE stripping the cable.

2. Strip the cable to the dimensions referenced in Figure 1 and shown in Figure 2.

NOTE

If using braided cable, flare the braid so it will slide easily onto the back of the pin or socket body.

4. CRIMPING PROCEDURE

Using either TE hand crimping tool 601966-1 (408-7516) or TE hand crimping tool 220066-2 (408-6692),

proceed as follows:

Center Contact (Figure 3)

1. Set positioner (or locator) on tool to proper setting (Figure 1). Note that pin contacts and socket

contacts require different locator settings on tool 220066-2.

2. Place center contact over cable conductor and insert center contact into opening of hand crimping tool

Contact will rest on positioner (or locator).

Figure 3

3.55 ±0.25

[.140 ±.010]

7.87 ±0.25 [.310 ±.010]

5.97 ±0.25 [.235 ±.010]

Ferrule

3.30 ±0.25

[.130 ±.010]

Ferrule

5.84 ±0.25 [.230 ±.010]

4.57 ±0.25 [.180 ±.010]

Ferrule

Center Contact

Indenter Opening

Tool 601966-1 or 220066-2

(601966-1 shown)

408-32166

Rev A

3 of 3

3. Close handles on crimping tool until ratchet releases allowing handles to open.

4. Remove crimped contact.

Ferrule (Figure 4)

Refer to the table in Figure 1 and select the appropriate hand crimping tool for crimping the ferrule. The

instruction sheet numbers are listed with the tools.

1. Insert the crimped center contact and cable into the appropriate pin or socket body.

NOTE

The cable dielectric should bottom against contact body dielectric, and braid on cable should fit over braid support section of

contact body.

2. Position ferrule over braid and against shoulder on contact body.

3. Place the cable assembly into the crimp section indicated on the table. Shoulder of contact body

should be against tool jaw.

4. Crimp the ferrule until the ratchet releases, allowing handles to open.

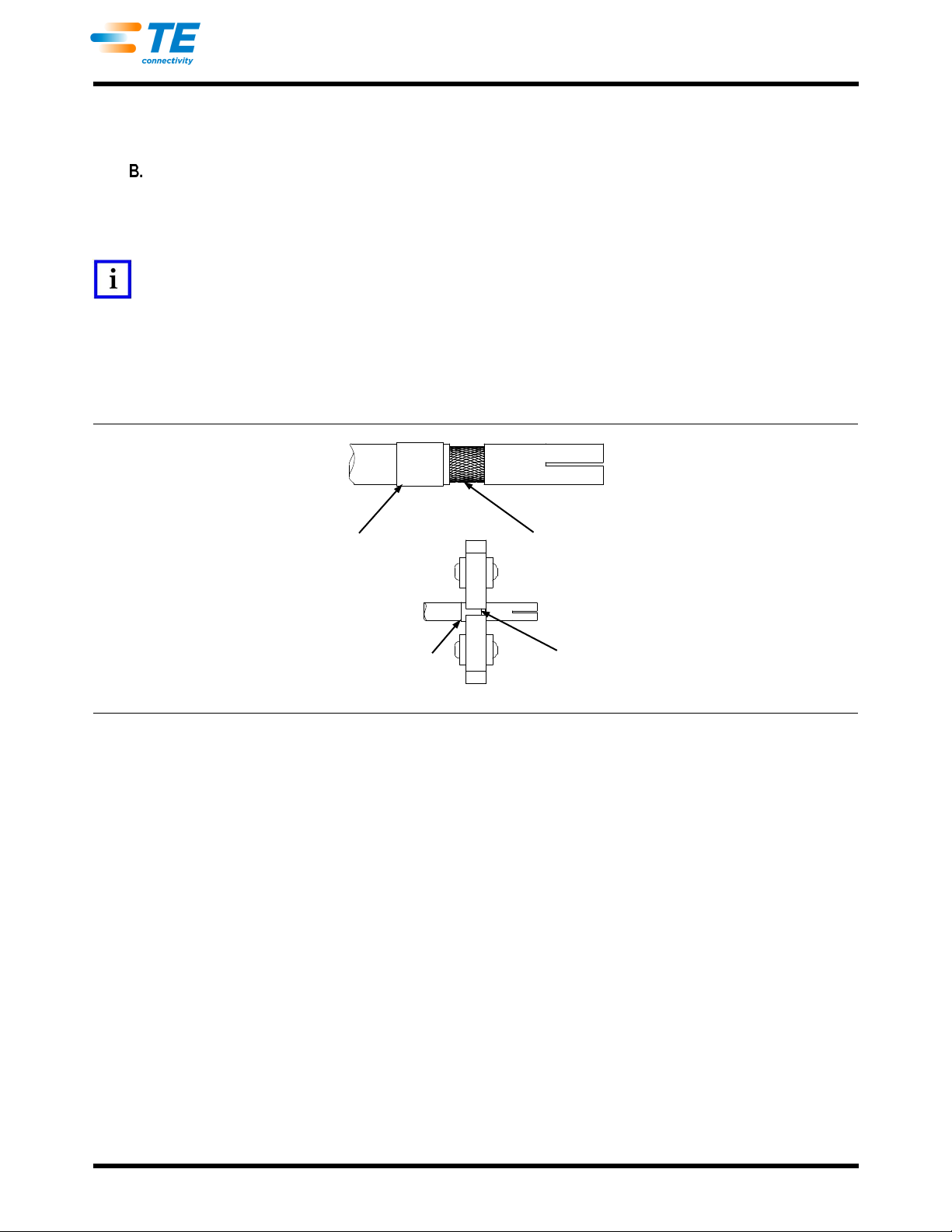

Figure 4

5. REVISION SUMMARY

Initial release of document

Ferrule

Braid Over Braid

Support Section

Place Ferrule on

Crimping Die

Shoulder on Pin

or Socket Body

Butts Against Die
