Systembuild Evolution 4621015COM User manual

4621015COM

24" Wall Cabinet

- Unit can tip over causing severe injury or death.

- Anchor unit to stud in wall (if instructed to).

- Do Not allow children to climb on unit.

- Put heavy items on lower shelves or drawers.

B344621015COM0

THIS INSTRUCTION BOOKLET CONTAINS

IMPORTANT

SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

WARNING

For the latest information on SystemBuild products

Tube

You

Date of Purchase ___ / ___ / ___

Lot Number:

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-866-452-4081 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.systembuild.com

Assembly Difficulty Meter

Easy Tough

Helpful Hints

systembuild.com

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-866-452-4081

Monday-Friday

9am - 5pm CST

Visit systembuild.com to view the

limited warranty valid in the U.S. and Canada.

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a

(right) and

(left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

Tube

You

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 1-2

systembuild.com

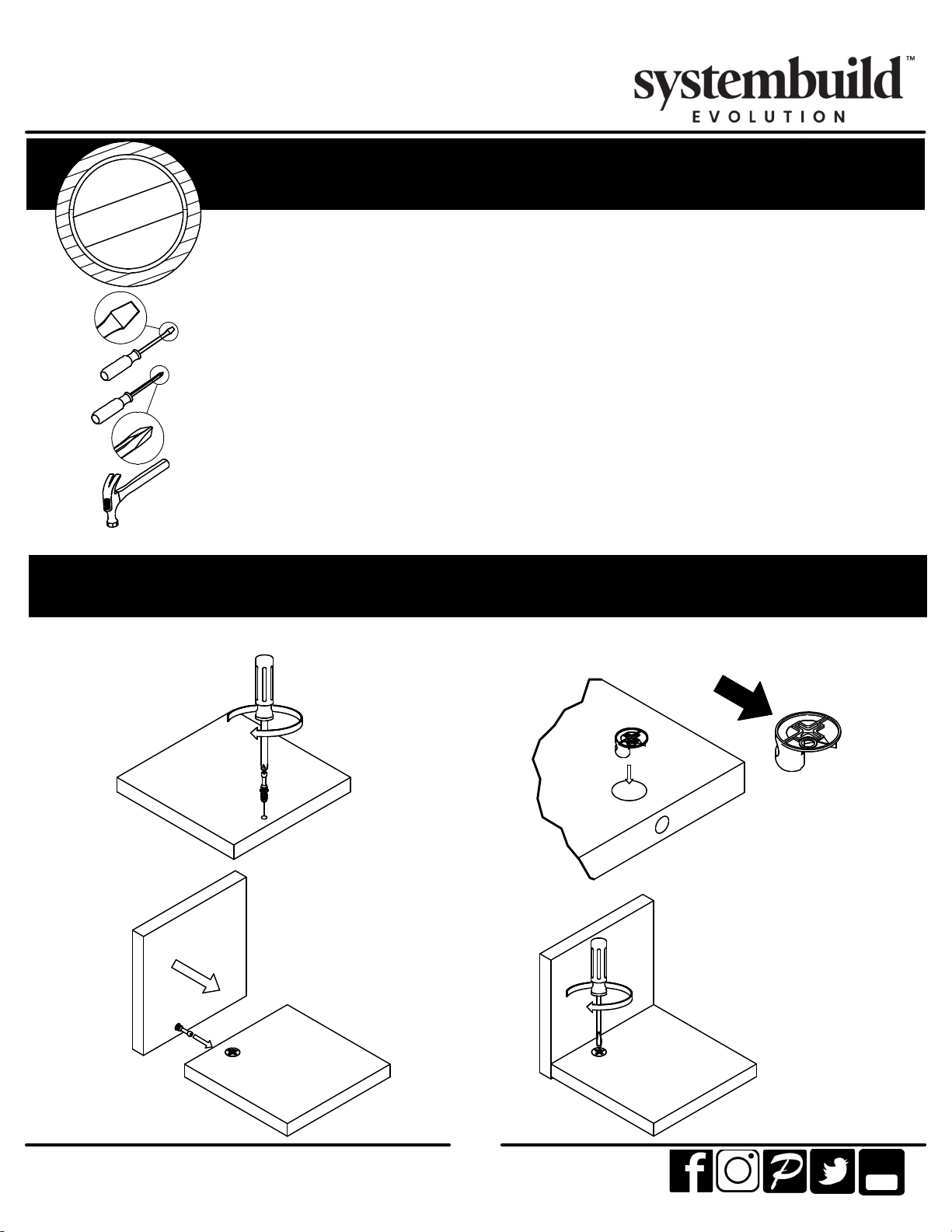

Before You Start

Quick

Tip

Assembly

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Tube

You

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

systembuild.com

Tube

You

systembuild.com

Board Identification

Not actual size

Tube

You

Left Panel

37366015012

Right Panel

37366015022

Top

37366015031 Bottom

37366015041

Adjustable Shelf

37366015050

Door (x2)

34621015060 Back Rail

37366000070

Wall Support

37366000080

Back Panel

K736601500

This piece is paperboard construction.

It is not made from wood, but is

required for the assembly of your unit.

systembuild.com

Board Identification

Not actual size

Tube

You

systembuild.com

Part List

Actual Size

Tube

You

Not Actual Size

(x10)

#A22620

cam lock

(x10)

#A22610

cam bolt

(x3)

#A13430

1-3/4" screw

(x4)

#A17400

bolt

(x4)

#A80250

shelf support

(x4)

#A89370

door bumper

(x2)

#A21500

steel dowel

(x2)

#A13800

2-1/4" screw

(x2)

#A52395

handle

(x4)

#A65615

hinge

910

systembuild.com

STEP1

Tube

You

(x5)

systembuild.com

STEP2

Tube

You

(x5)

systembuild.com

STEP3

Tube

You

Proper orientation of CAM LOCK

Tip

Assembly

Quick

(x10)

(x2)
