System Build 7546846COM User manual
B347546846COM03GO
- Unit can tip over causing severe injury or death.
- Anchor unit to stud in wall (if instructed to).
- Do Not allow children to climb on unit.
- Put heavy items on lower shelves or drawers.
WARNING
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Do Not Return This Product!
Contact our customer service team for help first.
Call: 1-800-489-3351 (toll free)
Monday-Friday 9am - 5pm CST
Visit: www.ameriwoodhome.com
Follow Ameriwood Home
Date of Purchase ___ / ___ / ___
Lot Number:
7546846COM
Entryway Storage
Tube
You
Assembly Difficulty Meter
Easy Tough
Do NOT return this product!
Contact our friendly customer service team first for help.
Call us!
1-800-489-3351
Monday-Friday
9am - 5pm CST
Visit ameriwoodhome.com
Assembly Tips
- Open your item in the area you plan to keep it to avoid excessive heavy lifting.
- Identify, sort and count the parts before attempting assembly.
- Compression dowels are lightly tapped in with a hammer.
- Slides are labeled with a R (right) and L (left) for proper placement.
- Make sure to always face the point on the top of the Cam Lock towards the
outer edge.
- Use all the nails provided for the back panel and spread them out equally.
- Back panel must be used to make sure your unit is sturdy.
- Do NOT use harsh chemicals or abrasive cleaners on this item.
- Never push, pull, or drag your furniture.
Tube
You
PEOPLE NEEDED FOR ASSEMBLY: 2
ESTIMATED ASSEMBLY TIME: 1 HOUR
Helpful Hints
2
Tube
You
systembuild.com
P
Quick
Tip
Assembly
P
P
P
Read through each step carefully and follow the proper order
Separate and count all your parts and hardware
Give yourself enough room for the assembly process
Have the following tools: Flat Head Screwdriver, #2 Phillips Head
Screwdriver and Hammer
Caution: If using a power drill or power screwdriver for screwing,
please be aware to slow down and stop when screw is tight.
Failure to do so may result in stripping the screw.
P
Before You Start
Cam Lock Fastening System
This Cam Lock Fastening System will be used throughout the assembly process.
1
3
2
4
3
Tube
You
systembuild.com
Board Identification
Not actual size
TOP
T7546846010GO
QTY: 1 PC
A
4
Tube
You
systembuild.com
FIXED SHELF
T7546846020GO
QTY: 1 PC
B
SEAT PANEL
T7546846030GO
QTY: 1 PC
C
BOTTOM
T7546846040GO
QTY: 1 PC
D
UPPER LEFT SIDE PANEL
T7546846050GO
QTY: 1 PC
E
UPPER RIGHT SIDE PANEL
T7546846060GO
QTY: 1 PC
F
LOWER LEFT SIDE PANEL
T7546846071GO
QTY: 1 PC
G
LOWER RIGHT SIDE PANEL
T7546846081GO
QTY: 1 PC
H
DOOR
T7546846090GO
QTY: 1 PC
I
BACK RAIL
T7546846100GO
QTY: 1 PC
J
FRONT APRON
T7546846110GO
QTY: 1 PC
K
UPPER BACK PANEL
T7546846120GO
QTY: 1 PC
L
Board Identification
Not actual size
5
Tube
You
systembuild.com
MIDDLE BACK PANEL
T7546846130GO
QTY: 1 PC
M
LOWER BACK PANEL
T7546846140GO
QTY: 1 PC
N
DRAWER FRONT
T7546846151GO
QTY: 1 PC
O
LEFT DRAWER SIDE
T7546846161GO
QTY: 1 PC
P
RIGHT DRAWER SIDE
T7546846171GO
QTY: 1 PC
Q
DRAWER BACK
T7546846180GO
QTY: 1 PC
R
DRAWER BOTTOM
T7546846190GO
QTY: 1 PC
S
Board Identification
Not actual size
6
Tube
You
systembuild.com
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S

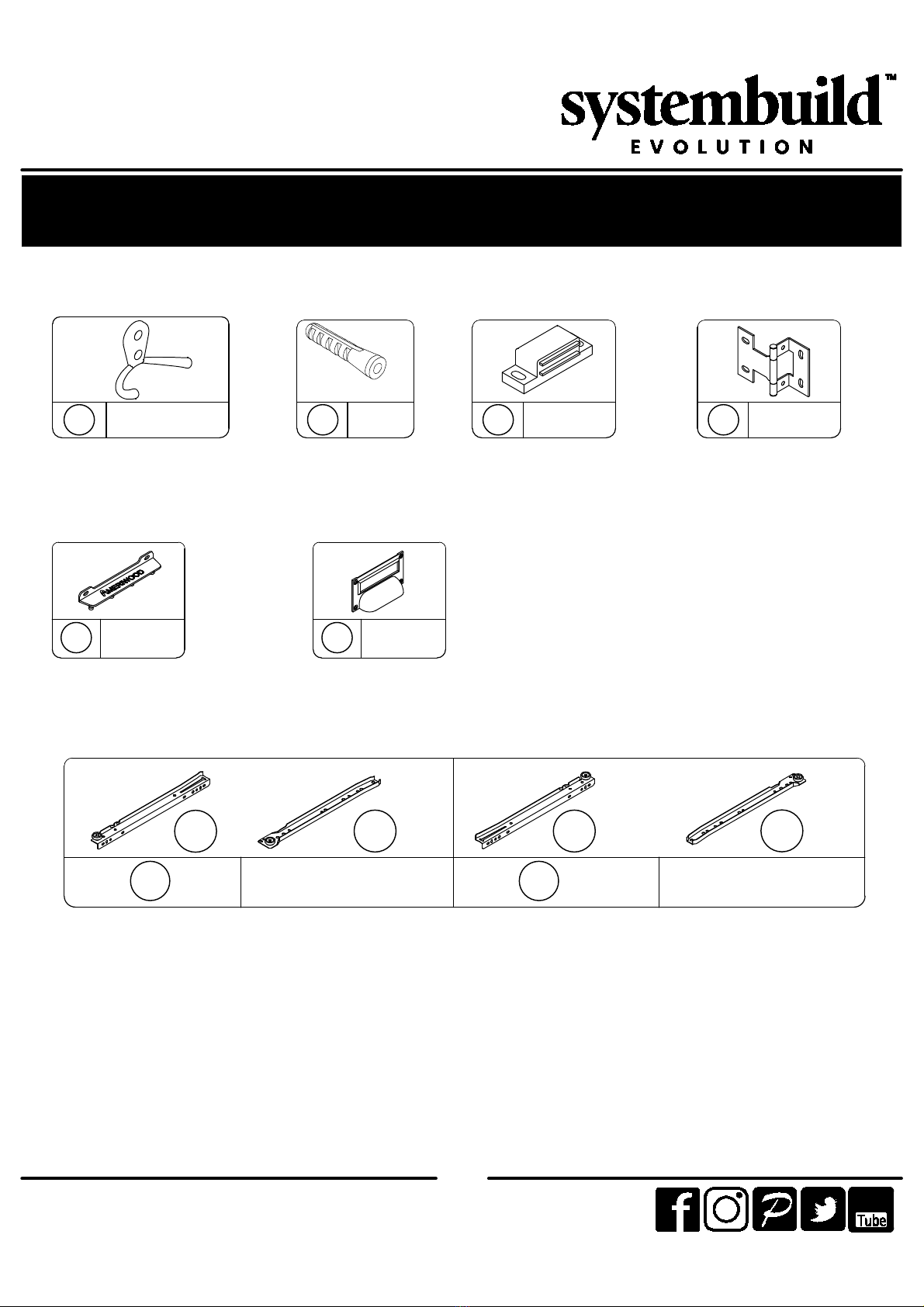

Part List
Hardware Bag Reference number:
27546846COM2GO
Actual Size
×30
Ø15 x 10mm
CAM LOCK
TGO2100
2
×30
CAM BOLT
TGO2000
Ø8 x 20mm
7
Tube
You
1
systembuild.com
×16
SCREW
TGO1301
Ø3 x 12mm
7
×4
M4 x 12mm
×6
Ø4.2 x 45mm
SCREW
TGO1008
BOLT
TGO1620
12 ×1
45 x 12 x 1mm
STRIKE PLATE
TGO3525
9
6
x12
Ø4.2 x 13mm
SCREW
TGO1304
14
×8
COVER
TGO2230
Ø20mm
11
×8
WOOD DOWEL
TGO2903
Ø6 x 30mm
3 ×27
WOOD DOWEL
TGO2900
Ø8 x 30mm
4
×10
SCREW
TGO1012
Ø3 x 12mm
5 ×1
SCREW
TGO1300
Ø4.2 x 40mm
8
×18
SCREW
TGO1007
Ø3.5 x 12mm
10 ×2
Ø3 x 15mm
SCREW
TGO1315
13
×4
Ø4.2 x 32mm
SCREW
TGO1022
15
Part List
Hardware Bag Reference number:
27546846COM2GO
No Actual Size
8
Tube
You
systembuild.com
×1 set
12"
left cabinet
member
left drawer
member
×1 set
right cabinet
member
right drawer
member
METAL SLIDE
TGO4512
23
22
22-1 22-2 23-1 23-2 12"
×2
DRAWER BRACKET
TGO6513
20
×4
METAL HOOK
TGO3537
16 x1
Ø6 x 30mm
WALL ANCHOR
TGO6501
17 x1
MAGNETIC CATCH
TGO6512
18 x2
HINGE
TGO4310
19
×2
HANDLE
TGO5513
21
STEP 1
1.1 Screw (1) into (E) & (F) as illustrated.
1.2 Insert (3) into (E) & (F) as illustrated.
1.3 Insert (4) into (L) as illustrated.
1.4 Attach (16) to (E), (F) & (L) with (5) as illustrated.
×14
9
Tube
You
1
systembuild.com
×4
3 ×4
4
×8
5 ×4
16
3
3
3
4
4
4
4
3
1
16
5
E
F
L
STEP 2
10
Tube
You
×16
13
2.1 Screw (1) into (C), (G) & (H) as illustrated.
2.2 Insert (3) into (G) & (H) as illustrated.
2.3 Attach (22-2) to (G) with (10) as illustrated.
2.3 Attach (23-2) to (H) with (10) as illustrated.
systembuild.com
×4 10 ×8
×1
22-2 ×1
23-2
3
22-2
23-2
101010
10 10 10
22-2
23-2
1
C
H
G
10
