System air SAVE VTR 500 User manual

Document translated from English | 211564 · A002

SAVE VTR 500

GB User Manual................................................2

SV Användarhandbok .....................................24

DE Bedienungsanleitung .................................46

FI Käyttöohje................................................72

211478 | A002

User Manual GB

E&OE

Systemair UAB reserves the rights to change their products without notice.

This also applies to products already ordered, as long as it does not affect the previously agreed specifications.

211478 | A002

Contents

1 Disposal and recycling ......................................5

2 Warnings.......................................................5

3 Type label......................................................6

4 Product description..........................................6

4.1 Left and Right models .............................6

5 Configuration .................................................6

5.1 General................................................6

5.2 Startup wizard .......................................7

5.3 Common symbols...................................7

5.4 Menu overview .....................................7

5.5 Home screen.........................................8

5.5.1 User modes ..............................8

5.5.2 Temperature settings ................ 10

5.5.3 Airflow settings ....................... 10

5.5.4 Indoor Air Quality ..................... 11

5.5.5 Status line .............................. 11

5.6 Description of User function icons ............ 11

5.7 Week Schedule..................................12

5.7.1 Schedule airflow

settings.................................. 12

5.7.2 Edit schedule .......................... 12

6 Maintenance of the unit.................................. 13

6.1 Warnings............................................ 13

6.2 Open the front hatch............................. 13

6.3 Changing filters.................................... 14

6.4 Resetting the filter time ......................... 15

6.5 Checking and cleaning the heat

exchanger .......................................... 15

6.6 Cleaning the fans ................................. 16

6.7 Replacing rotor drive belt ....................... 17

6.8 Overheat protection reset button............. 17

7 Duct system maintenance ............................... 18

7.1 Cleaning extract louvres and supply air

diffusers............................................. 18

7.2 Checking the outdoor air intake ............... 18

7.3 Checking the roof cowl (if fitted).............. 18

7.4 Checking and cleaning the duct

system ..............................................18

8 Troubleshooting............................................ 18

9 Alarms........................................................20

9.1 Alarm list............................................ 20

GB Disposal and recycling | 5

1 Disposal and recycling

This product is compliant to the WEEE directive. When disposing the unit, follow your local rules

and regulations.

This product packing materials are recyclable and can be reused. Do not dispose in household

waste.

2 Warnings

Danger

• Make sure that the mains supply to the unit is disconnected before performing any maintenance or

electrical work!

• All electrical connections and maintenance work must be carried out by an authorized installer and in

accordance with local rules and regulations.

Warning

• This product must only be operated by a person who has suitable knowledge or training within this field

or carried out with the supervision of a suitably qualified person.

• Beware of sharp edges during mounting and maintenance. Use protective gloves.

Warning

• All though the mains supply to the unit has been disconnected there is still risk for injury due to rotating

parts that have not come to a complete standstill.

Important

• The installation of the unit and complete ventilation system must be performed by an authorized installer

and in accordance with local rules and regulations.

• The system should operate continuously, and only be stopped for maintenance/service.

• Do not connect tumble dryers to the ventilation system.

• Duct connections/duct ends must be covered during storage and installation.

• Make sure that filters are mounted before starting the unit.

211478 | A002

6| Type label GB

3 Type label

Before calling your service representative, make a note of the specification and production number from the type label,

which can be found on the side of the units, next to the external connections.

Fig. 1 Type label

Position Description

1Product code (product specification)

2Product item number

3Production order number

4Serial number

5Production date (YY.MM.DD)

6QR code for manufacturing order (MO) number and software version

7QR code for the spare parts list and documentation

4 Product description

The SAVE VTR 500 is a heat recovery ventilation unit with a built in rotating heat exchanger. The SAVE VTR 500 is suit-

able for houses with up to 400 m2heated living area. It supplies filtered outdoor air to residential areas and extract air

from bathroom, kitchen and wet rooms.

SAVE VTR 500 is equipped with a 1670 W electrical re-heater battery.

4.1 Left and Right models

There are two model options, right (R) and left (L) model. The different models are recognized by the placing of the in-

ternal components and the supply air outlet, which is situated on left side of the unit on an (L) unit and on the right hand

side on an (R) unit..

Note:

This document describes a left (L) model. The inside of a right (R) model is mirrored.

5 Configuration

5.1 General

SAVE VTR 500 has a modern touchscreen LCD control panel, simply known as HMI — Human Machine Interface. The

touchscreen display provides information about current state of the unit and allows you to control all system functions.

Settings are done by touching the icons or options. The touch screen is sensitive and it is not necessary to press too

hard.

211478 | A002

GB Configuration | 7

5.2 Startup wizard

During the first power up of the unit, you will be asked to set:

• menu language

• time and date

• airflow control type (Manual/RPM) and airflow level values

• heater type (None/Electrical/Water/Change-over)

If the start-up wizard is cancelled it will start again during next power up of the unit, this will continue until start-up wiz-

ard is successfully finished.

5.3 Common symbols

The following selection symbols are common and are present in most menu pages:

Back button to return to a previous

menu, located at the upper left corner

On and Off slider to activate or

deactivate a function. White bubble —

function is inactive, green bubble —

function is active.

Up arrow to increase a value CANCEL Button to cancel changes

Down arrow to decrease a value SET/OK Buttons to confirm changes

Some menus have more than one page. Touch page indicator in the top right corner to go to the next page. The first

number indicates current page number and the second number indicates a total number of pages available.

Many options show up in a form of the pop-up window. Select the option from the displayed list in the pop-up window

and press OK to confirm selection.

5.4 Menu overview

A.Return to home screen

B. Basic read-only information about the unit

C. Currently active alarms and alarm history

D. Configure and check week schedule

E. Check and change remaining time till filter

change

F. General system preferences

G.Configuration of all system parameters

H.Help and troubleshooting menu

211478 | A002

8| Configuration GB

5.5 Home screen

Touching home icon (pos. A) in drop-

down menu list (pos. 1) will always returns you

to home screen after commissioning.

1. Drop-down menu list

2. Active user mode

3. Airflow settings

4. Temperature settings

5. List of active alarms

6. Icon list of active user functions

5.5.1 User modes

The first icon at the top of home screen shows currently active user mode. To change the user mode, touch the active

user mode icon (pos. 2) and select a new user mode from the list. The unit has 2 permanent and 5 temporary user

modes available for selection. Only one mode can be active at a time.

Settings of all modes can be modified in Service menu.

5.5.1.1 Permanent modes

Permanent modes are always active unless interrupted by temporary modes, activated user functions or alarms:

Icon Text Description

AUTO

Automatic airflow control. AUTO mode is available for selection when Demand

Control,Week Schedule and/or external fan control functions are configured,

otherwise AUTO mode icon won’t be visible in active user modes menu. AUTO

mode activates Demand Control,Week Schedule and/or external fan control

functions. Demand is available to choose as airflow setting in Week Schedule.

MANUAL

Manual selection of airflow levels. The unit can be set run at one out of four

available airflow speeds: Off/Low/Normal/High.

Note:

The fan can be set to OFF by activating Manual Fan Stop function in

Service menu.

5.5.1.2 Temporary modes

Temporary modes are active only for a set period of time unless interrupted by active user modes, activated user func-

tions or alarms:

211478 | A002

GB Configuration | 9

Icon Text Description

HOLIDAY

Sets speed of both supply and extract air fans to Low levels when user is away

from home for a long period of time.

ECO mode is active.

Set duration in days.

CROWDED

Sets speed of both supply and extract air fans to maximum High levels and

temperature setpoint offset to –3 K when apartment is more crowded than usual.

Default temperature setpoint offset is –3 K.

Set duration in hours.

AWAY

Sets speed of both supply and extract air fans to Low levels when user is away

from home for a short period of time.

ECO mode is active.

Set duration in hours.

REFRESH

Sets speed of both supply and extract air fans to maximum High levels to

replace indoor air with a fresh air in a short period of time.

Set duration in minutes.

FIREPLACE

Sets speed of supply air fan to High level and extract air fan to Low level to

increase air pressure within the apartment for better smoke extraction through

the chimney.

Set duration in minutes.

Settings of all modes can be modified in Service menu.

Temporary modes and user functions are active only for a set period of time after which they are terminated and the

unit changes back to a former AUTO or MANUAL mode, depending on which one was active before temporary mode or

user function was activated.

5.5.1.3 Digital input functions

Digital input functions always active while digital input is activated.

Icon Text Description

Central

Vacuum

Cleaner

Function sets speed of supply air fan to High level and extract air fan to Low

level to increase air pressure within the apartment for better dust collection

through central vacuum cleaner.

Function can be activated via digital input — Central Vacuum Cleaner

Function.

Cooker Hood

Sets speed of supply air fan to High level and extract air fan to Low level to

increase air pressure within the apartment for better airborne grease and steam

collection in the kitchen.

Function can be activated via digital input — Cooker Hood Function.

5.5.1.4 Digital input and Mode hierarchy

User modes and functions have a different hierarchy. User functions activated via HMI or mobile APP, such as AWAY,

CROWDED,FIREPLACE,HOLIDAY and REFRESH, are interrupted by manual selection of AUTO and MANUAL fan modes.

AFIREPLACE function has the highest priority between user functions. Other functions activated via HMI/APP can in-

terrupt each other.

If FIREPLACE function is hard-wired on the connection board and configured as digital input (DI) then it has a higher

priority than AUTO and MANUAL mode. Digital input for a FIREPLACE function has also a higher priority than other

hard-wired digital inputs (DI) for: AWAY,CENTRAL VACUUM CLEANER,COOKER HOOD,CROWDED,HOLIDAY or REFRESH.

Digital input and Mode hierarchy:

1. EXTERNAL STOP

2. FIREPLACE function

3. COOKER HOOD,CENTRAL VACUUM CLEANER,CROWDED,REFRESH functions

4. AWAY,CROWDED functions

211478 | A002

10 | Configuration GB

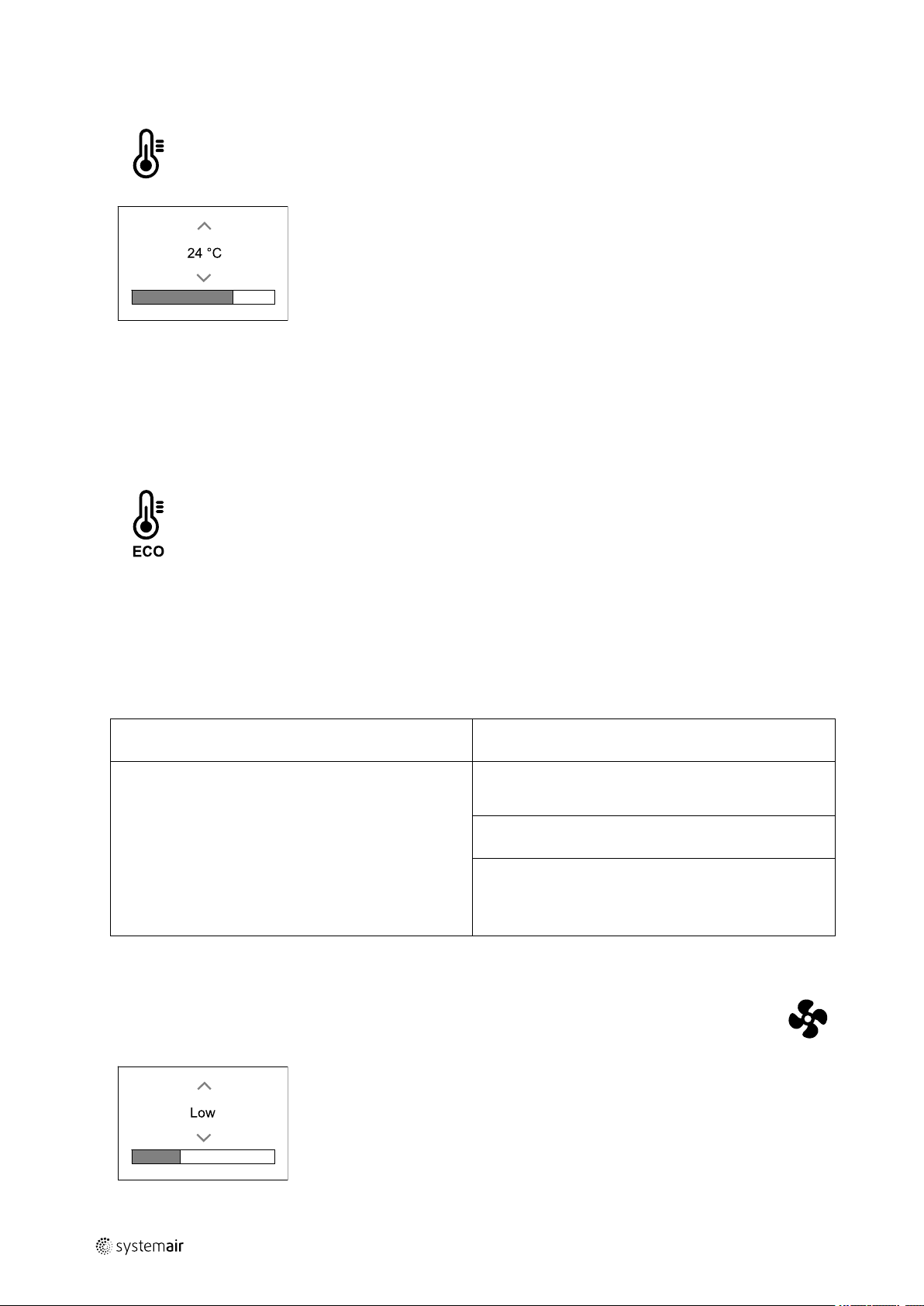

5.5.2 Temperature settings

Temperature can be set at SET TEMPERATURE menu accessible from the home screen by touching

TEMPERATURE icon with thermometer. Default temperature value is 18°C (range 12–30°C).

Use up and down arrows or a slider to change the value.

Then touch the OK button to confirm changes.

Temperature set point is for room air temperature, supply air temperature or for extract air temperature depending on

which control mode is active. Default setting is Supply air temperature control.

Control mode of the temperature can be changed in Service menu.

5.5.2.1 ECO mode

ECO mode is a power saving function that can be activated in SET TEMPERATURE menu.

ECO mode function is available only when an internal heater is installed and configured.

While ECO mode is active, a temperature setpoint at which heater is activated is lowered to avoid activation of the heat-

er during cold nighttime.

If the temperature is very low and the heater is activated during the nighttime (even with lowered temperature set-

point), then during the upcoming daytime indoor temperature will be increased using the heat exchanger so that accu-

mulated heat could be used during the next cold nighttime, the lowered setpoint for the heater remains.

ECO mode will have impact for the following user

functions/modes if selected: ECO mode is always activated by the following modes:

•AUTO mode

•MANUAL mode

•AWAY mode

•HOLIDAY mode

•CENTRAL VACUUM CLEANER function

•COOKER HOOD function

•FIREPLACE mode

•AWAY mode

•HOLIDAY mode

ECO mode is always deactivated by the following user

functions/modes:

•CROWDED mode

•REFRESH mode

•FREE COOLING function

5.5.3 Airflow settings

Airflow settings are available only in MANUAL mode. Click on fan icon on the main screen to enter SET

AIRFLOW menu.

Use up and down arrows or a slider to change the airflow value.

211478 | A002

Other manuals for SAVE VTR 500

Table of contents

Languages:

Other System air Air Conditioner manuals

System air

System air VRF series User manual

System air

System air Topvex SoftCooler TR Series User manual

System air

System air WKW LN Series Manual

System air

System air VRF series User manual

System air

System air Rooft@ir 40 Manual

System air

System air Topvex FR03 Troubleshooting guide

System air

System air SYSVRF WALL 15 Q User manual

System air

System air SAVE VTR 250/B User manual

System air

System air Villavent 392-16 Operating instructions

System air

System air VRF User manual

System air

System air X-SYSVRF2 User manual

System air

System air SAVE VTR 250/B User manual

System air

System air SYSVRF2 FLOOR EB 22 Q User manual

System air

System air SYSCOIL MINI 21 User manual

System air

System air SAVE VTR 100/B User manual

System air

System air SAVE VTR 300/B User manual

System air

System air Topvex TR 09 Series User manual

System air

System air SysAer SR55 Reference guide

System air

System air SYSAER R32 Series Manual

System air

System air Mini C Series User manual

System air

System air SYSWALL User manual

System air

System air SYSVRF Mini User manual

System air

System air Topvex SoftCooler SR09 Installation guide

System air

System air SAVE VSR 150/B User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual
