Symmons H323-V User manual

Model Numbers Feature Highlights

Warranty

Limited Lifetime - to the original end purchaser in

consumer installations.

5 Years - for commercial installations.

Refer to www.symmons.com/warranty for complete

warranty information.

3 Mode Hand Shower Unit

Installation Guide

H323-V

Options/Modiﬁcations

Compliance

☐H323-V 3 Mode Hand Shower Unit • 3 mode hand shower

• 3-3/4" diameter hand shower head

• Dual checks for backow protection

• 30" slide bar with cradle for hand shower mounting

• 60" exible metal hose

• Standard 2.5 gpm (9.5 L/min) ow restrictor

• Shall be metal and nonmetallic construction, plated in

standard polished chrome nish

Note: Append appropriate -sufx to model number.

☐-1.5 1.5 gpm (5.7 L/min) ﬂow restrictor

☐-2.0 2.0 gpm (7.6 L/min) ﬂow restrictor

☐-STN Satin Nickel ﬁnish

- ASME A112.18.1/CSA B125.1

Dimensions

Measurements

A Ø 1-1/2", 38 mm

B 2-1/8", 54 mm

C 28-9/16", 725 mm

D(2x) Hole Size:

Ø 1/4", 6 mm

E 3", 76 mm

Male 1/2-14 NPT tting must

be recessed 1/4" (6 mm)

from nished wall

Note: Dimensions subject to change without notice.

FLOORFLOOR

Symmons Industries, Inc. ■31 Brooks Drive ■Braintree, MA 02184 ■Phone: (800) 796-6667 ■ Fax: (800) 961-9621

Replacement Parts

Item Description Part Number

(2x) Cap

(2x) Screw

(2x) Bar End

(2x) Tile Anchor

RA-003

E30" Bar

48" Bar

RA-005

RA-006

F Hand Shower EF-101

G 60" Hose EF-02976

H Wall Elbow EF-105

I Slide Assembly RA-004

Notes:

1) Apply a bead of silicone around the perimeter of all shower trim

installed ush to the nished wall.

2) Apply plumber tape to all threaded connections.

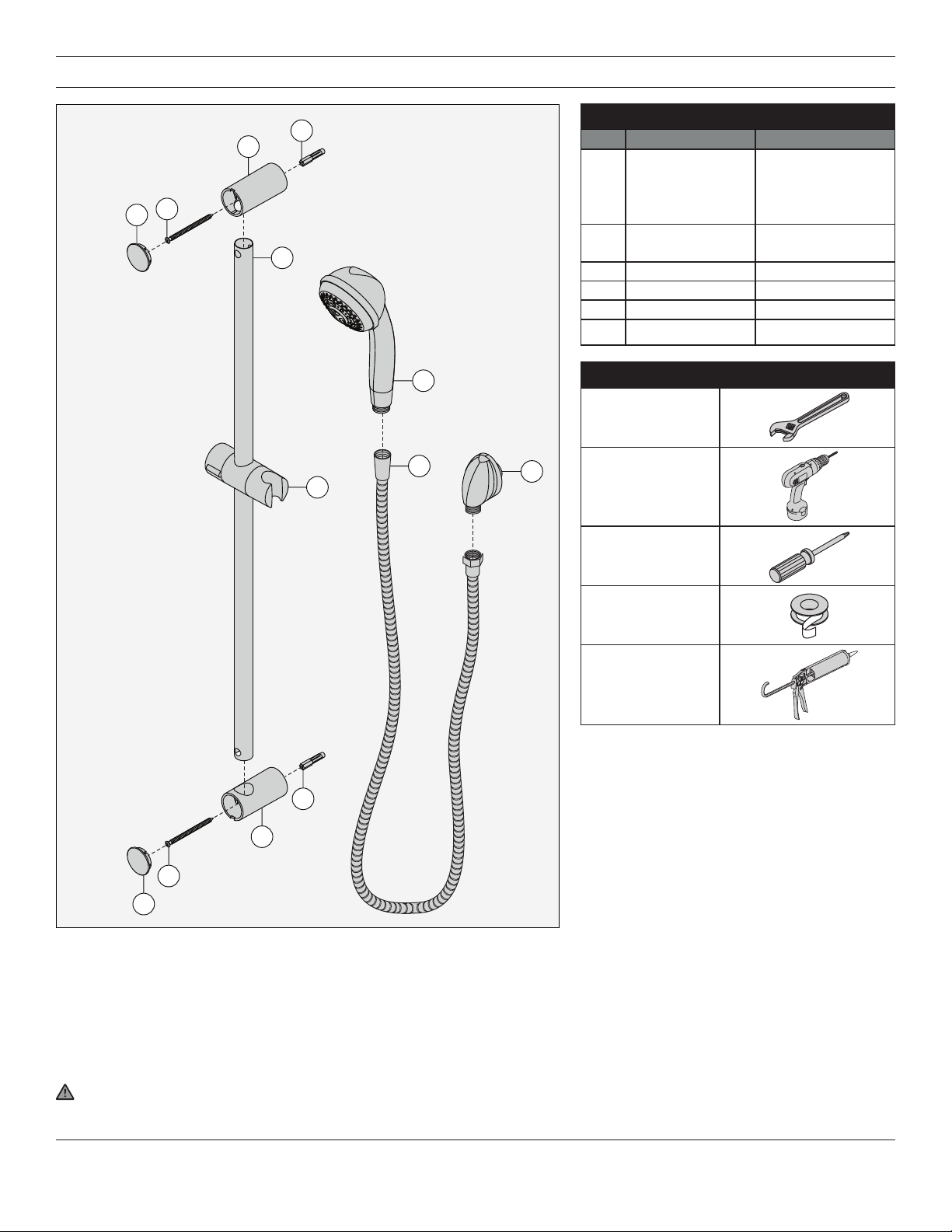

Parts Breakdown

Tools Required for Installation

Adjustable Wrench

Drill

Phillips Head

Screwdriver

Plumber Tape

Silicone

WARNING: This product can expose you to chemicals including lead, which is known to the state of California to

cause cancer, birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
