Swann SWIFI-ISIREN User manual
1
EN
Indoor Siren
Sirena de interior
Sirène intérieure
Sirena interna
Innensirene
EN Quick Start Guide ES Guía de inicio rápido FR Guide de démarrage rapide
IT Guida rapida DE Schnellstartanleitung
2
EN
OVERVIEW
Red and Blue
Multi LED Light Ring
(Side) QR Code
for Device Pairing
Status LED
Touch Button
To initiate pairing mode,
touch and hold for 6 seconds Power Connector
Detachable
Mounting Bracket
3
EN
POWER THE SIREN
1Make sure the siren is within range of the Wi-Fi network to which you want to connect.
2Connect the siren to the universal power adapter using the power extension cable, then plug the
universal power adapter into a power outlet, as shown below.
3The siren’s status LED glows blue when power is connected.
Power extension cable
To power outlet
Universal power adapter
Plug adapter will vary
depending on your country.
Plug adapter easily slides into
place and can be changed by
sliding the button above the plug.
4
EN
DOWNLOAD THE SWANN SECURITY APP
1Download the latest version of the Swann Security app from the Apple App Store® or Google
Play™ Store on your iOS or Android device. Simply search for "Swann Security".
2Open the app and create your Swann Security account by tapping “Not yet registered? Sign
Up” at the bottom of the screen. Then, activate your Swann Security account by conrming the
verication email that is sent to the registered email address.
5
EN
Open the Swann Security app and tap the Pair Device button on the screen. If you have already paired
a device, you can add a new device via the app menu > Pair Device.The app will now guide you
through the pairing process and set up the siren. Before you begin, have the siren with you, be close to
your router, and have your Wi-Fi network information (including password) handy. Please note that the
siren can connect to a 2.4GHz Wi-Fi network only.
SET UP THE SIREN
6
EN
SIREN PLACEMENT
The siren can be conveniently placed on a table or shelf, or mounted on the wall using the pair of
supplied mounting brackets. Choose a location with strong, reliable Wi-Fi reception to ensure you get
timely alerts from the siren. As a general rule, the nearer the siren is to your Wi-Fi router, the better the
wireless connection quality. You can expand the Wi-Fi coverage of your current network by installing a
Wi-Fi range extender.
1. Insert the pair of supplied mounting brackets into the slots
on the right and left sides of the siren.
2. Place the siren on the wall and secure it to the surface
through the mounting bracket holes using the supplied
screws.
Note: If mounting on drywall or concrete, install supplied
wall anchors rst.
The siren is always armed, no matter the system state. Via the Modes tab
in the Swann Security app, you can choose which of your connected Swann
Security devices (for example, contact sensors, motion sensors, cameras, etc)
will trigger the siren when events are detected for each mode (Home/Night/
Away). Simply tick the “Trigger all sirens” option for the device that you want
to trigger the siren, as shown on the right. When the siren is triggered, it will
sound the alarm with the light ring ashing red and blue.
Mounting the siren on the wall
Note: The siren is designed for indoor use only. Do not install it outdoors.
Triggering the siren
7
EN
HELP AND RESOURCES
Status LED Guide
Manual ON
You can manually activate the siren in the app, if necessary.
Simply tap the Siren tile displayed in the Live View tab, then
slide the Siren toggle to ON and tap the SET button. The
siren will stop automatically based on the duration that was
set in the Siren Settings (see below), or slide the toggle back
to OFF and tap the SET button to manually stop it.
Siren Settings
The siren is not limited to the default behavior and can be fully
customized to accommodate your household security needs. You can
customize settings such as the siren volume, duration and alarm tone.
To customize these settings, tap the icon in the Siren tile which will
display the Siren’s device information page, then tap Siren Settings.
Swann Security App Manual
Access the Swann Security app manual (Menu > User Manual) at any time to learn more about
navigating through the various screens and functions available in the app.
Screens may vary slightly depending on the
Swann Security app version
Slow Blinking Blue Device is in pairing mode
Solid Blue Device is in normal operation
Fast Blinking Blue Device rmware update is in progress
8
ES
GENERALIDADES
Rojo y azul
Anillo de luz LED múltiple
(Costado) Código QR para
vincular el dispositivo
LED de estado
Botón táctil
Para activar el modo de
vinculación, manténgalo
presionado durante
6segundos
Conector de corriente
Soporte de montaje
desmontable
9
ES
ENCIENDA LA SIRENA
1 Verique que la cámara se encuentre dentro del rango de la red Wi-Fi a la que desea conectarse.
2Conecte la cámara al adaptador de corriente universal con el cable extensor de corriente.
Luego, enchufe el adaptador de corriente a una toma de corriente, como se muestra a
continuación.
3La luz LED de estado de la sirena se enciende en azul cuando al conectarla a la corriente.
Cable de extensión de corriente
A toma de corriente
Adaptador de corriente universal
El adaptador de corriente
variará según su país.
El adaptador de corriente se encastra
con facilidad y puede modicarse al
deslizar el botón que se encuentra
arriba del enchufe.
10
ES
DESCARGUE LA APLICACIÓN SWANN SECURITY
1Descargue la última versión de la aplicación Swann Security de las tiendas App Store® de
Apple o Google Play™ en su dispositivo iOS o Android. Simplemente busque “Swann Security”.

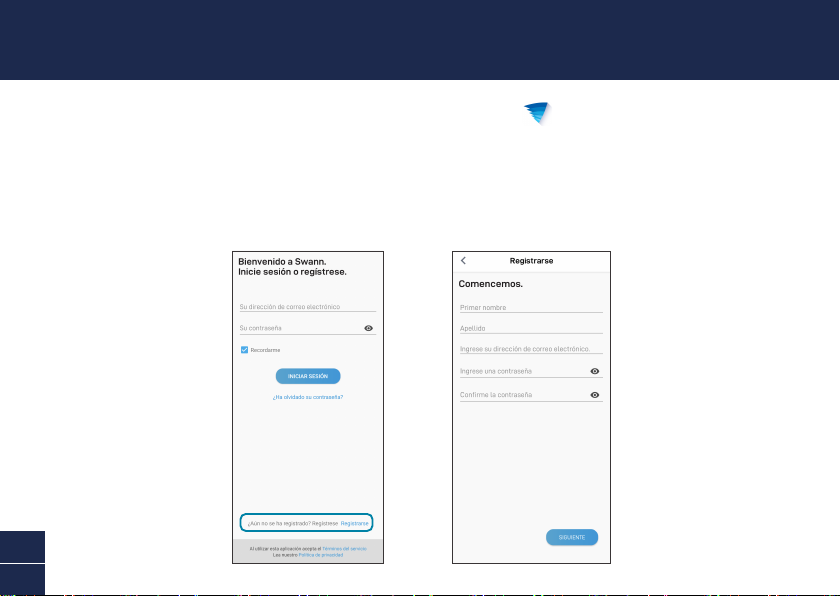

2Abra la aplicación y cree una cuenta de Swann Security; para ello, haga clic en el botón “¿Aún no
se ha registrado? Regístrese” en la parte inferior de la pantalla. A continuación, conrme el correo
electrónico de vericación que se envía a la dirección de correo electrónico registrada para activar
su cuenta de Swann Security.
