Supermicro SUPERSERVER 6023L-8R User manual

6023L-8R Serverboard Components

1 X5DLR-8G2 Serverboard

2 JA5:Ultra III LVD/SE ChB

3 JA1:Ultra III LVD/SE ChB

4 JP56:VGA enable/disable

5 JPA1: SCSI channel A termination

6 AIC-7902 SCSI chip

7 JA4: SCSI enable/disable

8 JPA2: SCSI channel B termination

9 South bridge

10 JBT1: CMOS clear

11 JP3:Watch dog

12 COM2

13 JP57: Chassis Intrusion Header

14 Chassis fan

15 BIOS

16 JA2:Ultra III LVD/SE ChA

17 J12: Floppy conn.

18 JP2: Speaker

19 J19: IDE#2, IDE#1

20 USB 2/3

21 J21: SMB header

22 CPU2 fan

23 JP58: Fan detection select

24 CPU2/Chassis fan

25 CPU2 socket

26 CPU1 socket

27 CPU1 fan

28 JF1: Front control panel connector

29 CPU1/Chassis fan

30 JP48: Chassis/overheat fan select

31 OH/chassis Fan

32 J56: Processor power connector

33 JP46: Third power supply fail header

34 ATX power conn.

35 Bank 2B/2A

36 Bank 1B/1A

37 Bank 0B/0A

38 JP12: System bus speed

39 North bridge

40 J35: Spread spectrum

41 CIOB-E chip

42 J11: Keyboard/mouse

43 USB 0/1 port

44 J66: COM1 port

45 Printer port

46 VGA port

47 Gigabit LAN1/2

48 D1-D8: Debug LEDs

49 P2: PCI-X speed settings

50 PCI-X slot

51 SCSI RAID socket

52 ATI Rage XL SVGA chip

53 Battery

9. External SCSI port

Slim CD-ROM drive

IDE channel drive activity

J35 Spread Spectrum Open (Disabled)

JA4 SCSI Enable/Disable Pins 1-2 (Enabled)

JBT1 CMOS Clear Pad

JP2 Speaker Enable/Disable Close (Enabled)

JP3 Watch Dog Pins 2-3 (NMI)

JP12 System Bus Speed Pins 1-2 (Auto)

JP48 Chassis/Overheat Fan Select Open (Overheat)

JP56 VGA Enable/Disable Pins 1-2 (Enabled)

JP58 Fan Detection Select Open (CPU Fan)

JPA1/A2 SCSI Channel A/B Termination Open (Terminated)

X5DLR-8G2 Quick Reference

Note: Please note that special, new silver heatsin retention clips must be used with all Xeon 533MHz FSB (front side bus) 604-pin

processors.These new retention clips have "604P" clearly marked on them.Using the old clips will not keep the proper amount of pressure

applied and may cause the processor to overheat.You should not use these new retention clips with 400MHz FSB processors (even if the

CPU socket is 604-pin) as they will too tight and damage the CPU socket.

Warning!

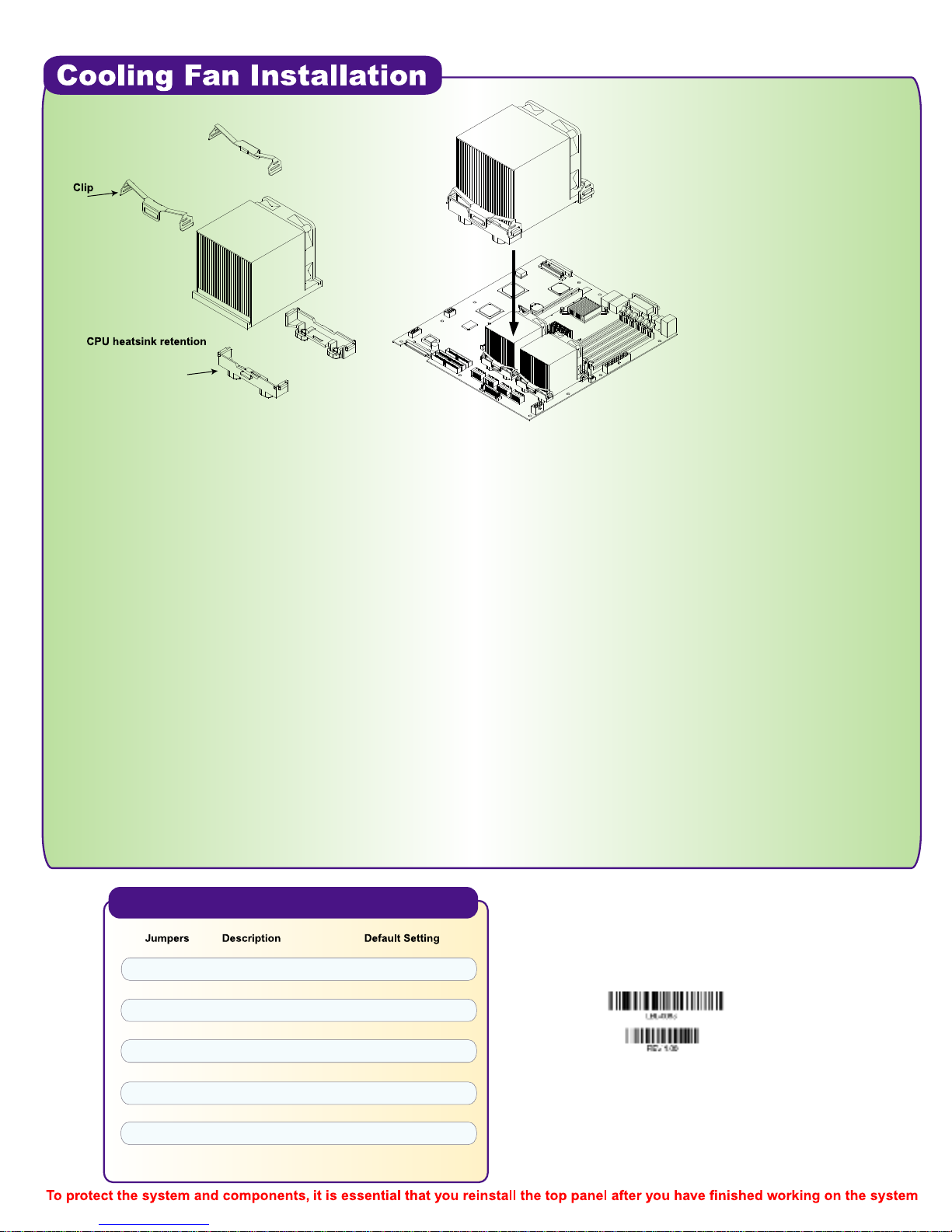

CPU Heatsink Installation Procedures (For Supermicro SuperServer 2U Systems)

Due to the fact that adequate air flow and proper thermal control are very critical in maintaining 2U system's stability and performance,

it is imperative that the proper installation procedures listed below be followed in order to maximize system performance.This is

especially critical for 2U dual Xeon processor server solutions.

1) Only those CPU heatsinks that are provided by Supermicro should be used.

2) Apply a small amount of silicon compound on the CPU's die.

3) Place the CPU heatsink on top of the CPU.

4) Attach the heatsink clips to the heatsink retention pieces, one on each side of the heatsink as shown in the diagram at right.

5) The three tabs on each heatsink retention pieces should complete protrude though the corresponding holes on the heatsink clips
