Suntec Wellness Klimatronic Progress 7.0 plus User manual

Dynamic

☆

☆☆

☆Read and retain these instructions for future reference

Dynamic 7.0 plus

Dynamic 9.0 plus

SPECIFICATION

Model no. Dynamic 7.0 plus Dynamic 9.0 plus

Cooling capacity 7000 BTU/h 8500 BTU/h

Power/Ampere consumption for

cooling* 780 W / 3,5 A 930 W / 4,3 A

Air volume (max. speed) 260m

300m

Humidity removal capacity 20 l / day 24 l / day

Power supply 230V/50Hz/1phase

Recommended room size 10~18m

14~24m

Compressor rotary

Power supply 230V/50Hz/1phase

Refrigerant R 410 A

Refrigerant load* 350 g 390 g

Fan speed 2

Timer 1 ~ 12 hours

Working temperature, thermostat 18 ~ 32

Net Weight 20,5 kg 21,5 kg

Dimension 310 x 348 x 710 mm (WxDxH)

REMARK:

The data marked with '*' may vary for technical reasons: for greater

precision, please refer to the rating label placed at the back of the unit.

BEFORE USE

CAUTION !

This appliance is not intended for use by persons

(including children) with reduced physical,

sensory or mental capabilities, or lack of

experience and knowledge, unless they have

been given supervision or instruction concerning

use of the appliance by a person responsible for

their safety. Children should be supervised to

ensure that they do not play with the appliance.

Make sure the unit is connected to an earthed,

power supply of the correct rating. (Please refer

to the rating label locating at the back side of the

unit.)

Do not use this product for functions other than

those described in this instruction manual.

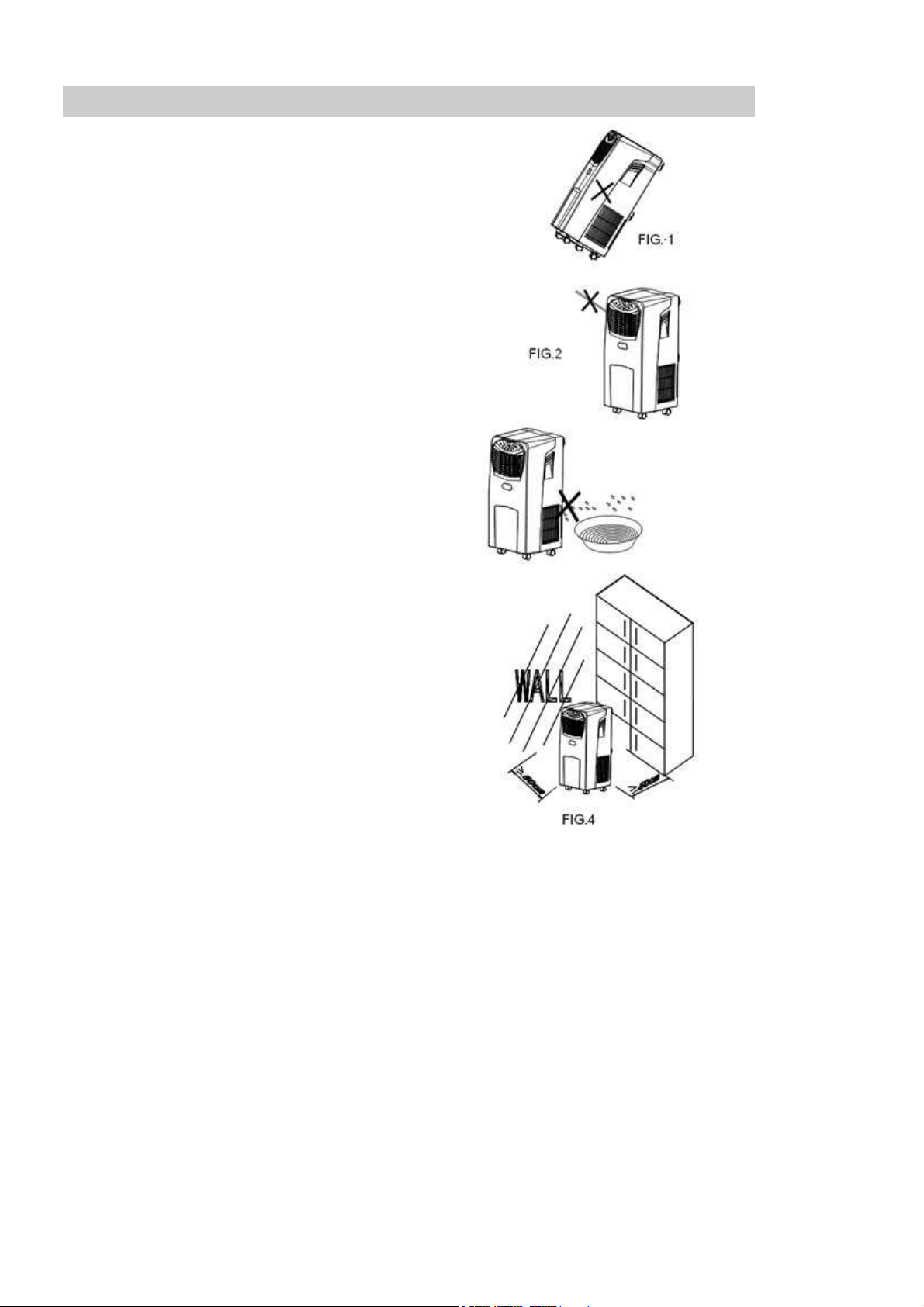

Always place the unit on a stable ground base.

(FIG.1)

The unit must always stand or be transported in a

vertical position.

Do not cover or obstruct the appliance’s inlet and

outlet Grilles. (FIG.2)

Do not use the product in a wet room, such as

bathroom or laundry room. (FIG.3)

Keep an air path of at least 36 cm from walls,

furniture and curtains. (FIG.4)

Do not sit or place objects on the unit.

Do not touch the unit with wet or damp hands or

when barefoot.

Do not l

et chemical substances come into contact

with the unit.

Do not use the product in the presence of

inflammable substance or vapour such as

alcohol, insecticides, petrol etc.

Never use the plug to start and stop the unit.

Always use the switch on the control panel.

Turn off the product when not in use.

Always remove the mains plug before carrying

out maintenance.

BEFORE USE

If the electrical socket is different from the plug, have a professionally qualified electrician replace the

socket with a suitable one. Avoid the use of adapter plugs, multiple sockets and / or extension leads. If

their use is necessary, ensure they conform to current safety regulation.

Do not pull the supply cable or place it near a source of heat: always unroll it completely to avoid

dangerous overheating.

If the supply cord is damaged, it must be replaced by the service agent or a similarly qualified person, in

order to avoid a hazard.

Never use the unit without the filter.

Especially, younger, elder, and disabled people are often not aware of the danger that might occur from

the usage of electrical appliances. Therefore, the product should never be used without supervision.

THE MANUFACTURER DISCLAIMS ANY RESPONSIBILITY, IF THE ABOVE INSTRUCTIONS ARE

NOT FOLLOWED.

Energy Save

•Please use the unit in the recommended room size.

•Do not locate air conditioner where furniture or other objects can obstruct the air flow.

•Keep blinds / curtains closed during the sunniest part of the day.

•Close the fireplace damper, floor and / or wall registers, so cool air does not escape through the

chimney or duct work.

•Keep the filters clean.

•Set the unit to maximum cooling and high speed ventilation for the initial start up, then adjust the

unit to a comfortable setting.

Parts

Front Back

1. Display window

2. Control panel

3. Buttons

4. Air outlet

5. Carrying handle

6. Caster

Accessories

13. Outward adaptor - for insertion over hose

and into foam strip (or into hole in the

wall/window).

14. Exhaust hose

15. Foam strip - for filling the open window

space and with hole for connection to

exhaust hose.

16. Foam strip - for filling the open window

space

17. Round cap for filling the hole in

wall/window.

18. Drain tube for continuous

drainage

19. Active carbon filter

20. Remote control

7. Cord storage

8. Air filter

9. Air inlet

10. Exhaust air outlet

11. Air inlet

12. Water stopper/drainage point

INSTALLATION

Installation of the exhaust pipe

This unit is a PORTABLE AIR CONDITIONER. It can be moved from room to room, so the cooling can

follow you anywhere. The mounting is easy, beneath a window or wall. Please refer to either of the

following steps:

Using the foam strips

•Connect the supplied foam strips with the exhaust pipe to let hot air flow to the outside. If

necessary cut off the extra part to fit the window.

•Feed exhaust hose through the foam strip and insert strip into window gaps as shown and

slide window across so that foam is held securely. This technique may also be used for sash

windows. Note: Take care to maintain protection against intruders.

2. Using the adaptor

•Cut a 130mm diameter hole in the wall or window.

•Feed exhaust hose through the window or wall and attach the threaded adaptor from the

outside as shown.

•When not in use, plug the hole with the cover provided.

INSTALLATION

Mounting of the exhaust pipe

1. Use only the hose provided and clip

exhaust hose to the back of the air

conditioner. It is recommended that

you use the hose in the shortest

possible length.

2. Avoid kinks and bends in the exhaust

hose as this will cause expelled moist

air to build up causing the unit to

overheat and shut down.

WARNING!

The length of the exhaust pipe is specially

designed according to the specification of

this product. Do not replace or prolong it

with your own private hose as this could

cause the unit to mal-function.

FIG. 8

FIG.9

FIG.10

Handling of electronic type

Control panel

Fig. 12

1. ON/OFF (power) button

2. Timer

3. ‘Temperature up' button

4. Indicator for compressor

5. “Water Full” indicator

6. ‘Temperature down' button

7. Speed (ventilation)button

8. Mode (function) option button

9. Fan mode indicator

10. Cooling mode indicator

11. Automatic mode indicator

12. High ventilation indicator

13. Low ventilation indicator

14. Display window

15. Receiver for remote control

16. Timer operation indicator

Turning ON/OFF

1. Press ON/OFF button, the unit will start automatically. If the ambient temperature is

- higher than 23oC, the unit will work in cooling model.

- higher than 20oC but below or equal to 23oC, the unit will work in ventilation model.

- below 20oC, the unit will work in heating function (This is for cooling & heating models only.)

2. Indicators of the functions in progress come on at the same time. *NOTE! The display window

shows the ambient room temperature from 0oC to 50oC

3. To turn the unit off, press ON/OFF button again.

Setting mode/function

Press MODE button to select required working mode: automatic, cooling or fan. The indicator of

your selected mode comes on.

Setting temperature

1. Press 'Temperature up' or 'Temperature down' button to regulate the temperature you desired.

2. The display window will show the temperature you set as you press 'Temperature up' or

'Temperature down' button. Otherwise, it will always show the ambient temperature.

3. The pre-setting temperature of this machine is: 24oC for cooling

Setting ventilation speed

1. Press SPEED button to choose the ventilation speed you need, high or low. The indicator of high

or low ventilation will light on at the same time.

2. If the unit is in AUTO mode, it will choose the ventilation speed automatically according to the

ambient temperature (the related indicators will light on), at this time, the speed switch is invalid.

Setting timer

1. Press TIMER button to set the operating hours you desired (1 to 12 hours, the timer indicator will

light on). When the set time has been reached, the machine will turn

off automatically. The display window will show the hour(s) you set as you press

TIMER button. If the timer button is not pressed, the unit will work continuously.

2. By the machine to work. For example, if you press the timer to '2', the unit will work automatically

after 2 hours.

All the above functions can also be performed with the supplied remote

control.

This remote control requires 2 pcs AAA batteries

to operate.

Regulating air flow direction

Turn the roller on the air vent in

horizontal way to control the air flow

direction.

NOTICE !

1. To prolong the compressor's life, after switch-off of the unit, please wait for 3

minutes (at least) before re-switch.

2. The cooling system will switch off if the ambient temperature is lower than the set one. The

ventilation, however, keeps working on the set level. If the ambient temperature rises above the

selected level, the cooling will return to work.

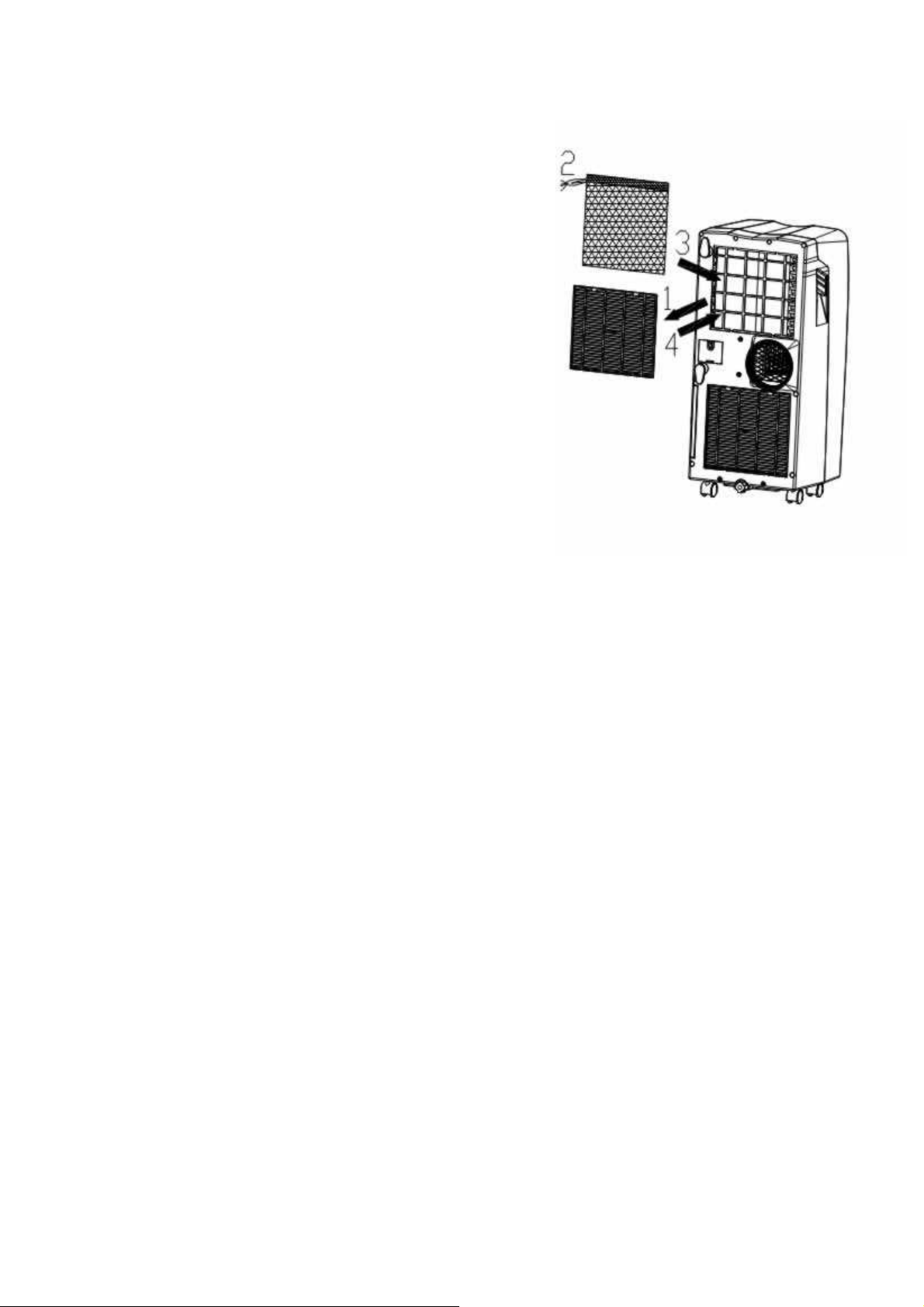

Installation of the carbon filter

1. Remove the filter frame from the unit.

2. Remove the active carbon filter from its plastic bag.

3. Insert the active carbon filter into the back of the unit.

4. Re-fit the filter frame inside the unit.
