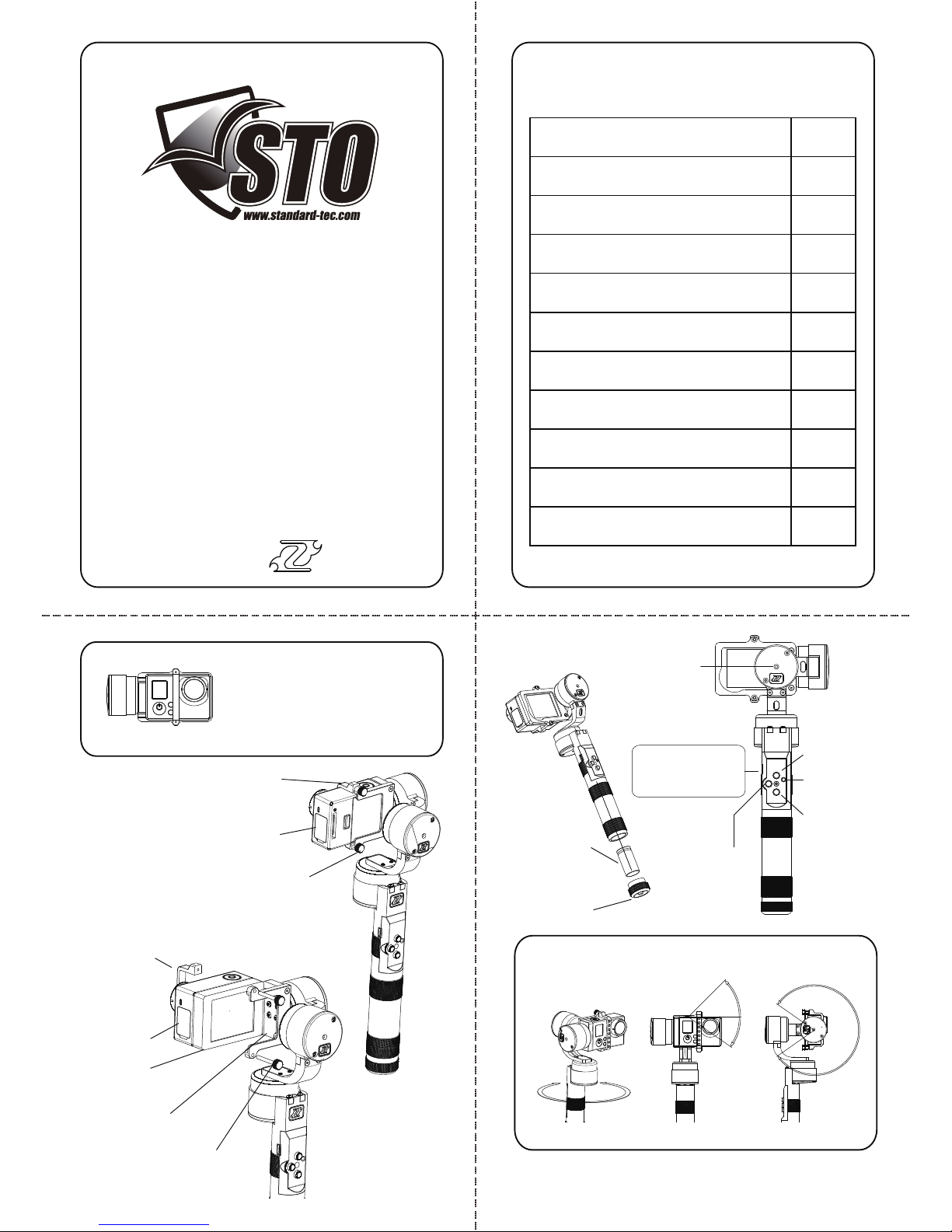

STO Z1-Proud User manual
Instruction Manual
Z1-Proud
3-axis handheld stabilizing
gimbal for GOPRO
Package Content
Note:
Install the GOPRO
before connecting power.
Camera Holder
Camera Charging port
Gopro LCD BacPac
To use the M2.5x19mm
Thumb Screw for GOPRO
with LCD BacPac.
To use the M2.5x9mm Thumb
Screw for GOPRO only.
18650
Lithium-ion
battery x2
Power Button
①②
V1.00
Battery
indicator
DOWN
UP
Micro USB port – for
setting and firmware
upgrade
MODE
1
1
2
2
1
2
1
1
1
1
1
Camera Holder
Different Rotation Angle
Mode Status Indicator
3-axis handheld camera stabilizer
Camera Holder
M2.5x 9mm Thumb Screw
M2.5x19mm Thumb Screw
Gopro Charging Wire
18650
Lithium-ion Battery Charger
18650 Lithium-ion Battery
Micro USB Charger Cable
Warranty Card
Certificate
User's Manual
Gopro3
Gopro3
270°
45°
270°
Authorized Exclusive Distributor
Manufactured by Zhiyun Tech
③④
⑤⑥
Charger indicator
(The signal will show green
once finish charging)
Micro USB 5V
power input port
Rechargeable Battery
Battery type: 18650 Lithium-ion battery
Capacity: 2000mAh
Charge Time: 3 hours
Note:
For connecting power to 18650 battery
charger, please prepare portable
charger, or connect to a USB port of PC.
Specification:
minimum
standard
maximum
Note
Working Voltage
Working Current
Follow Accuracy(Motionless)
Follow Accuracy(Motion)
Tilt Working Angle
Roll Working Angle
Tilt Speed
Battery Operation Time(25°C) 2000mAh×2
Weight
without battery
and camera
Operation Temperature
Heading Speed
78mm(without LCD BACPAC)
88mm(with LCD BACPAC)
Buttons and Modes Instruction
Working Mode Mode Indicator Down/Up Button
Heading Following Mode
Heading and Pitch Following Mode
Locking Mode
Blink slowly
Blink quickly
Light up
Pitch adjustment
Roll adjustment
Pitch adjustment
Heading Following Mode (Default): Pitch and roll are locked.
Heading rotates smoothly follow the direction of the handheld.
Locking Mode: Heading, pitch and roll are locked.
Heading and Pitch Following Mode: Roll is locked. Heading
and pitch rotate smoothly follow the direction of the handheld.
Different Modes Instruction
●
●
●
Battery Indicator Instruction
Battery Indicator Status
Description
Vertical
handheld
Heading Working Angle Vertical
handheld
Heading Working Angle Leveled
handheld
Note:
Please don’t operate the handheld gimbal over working
range; the handheld gimbal would be in self-protection mode,
and the operation would be effected.
Note: If the battery indicator blinks continuingly, the battery is out of
power. Please charge the battery as soon as possible.
Blink 4 times
Blink 3 times
Blink 2 times
Blink 1 times
100% Power
75% Power
50% Power
25% Power
Manufactured by Zhiyun Tech
Authorized Exclusive Distributor
295mm
67mm
Extended handle
6.8V 8.4V 12.6V
50mA 120mA 2A
±0.01° ±0.04°
±0.1° ±0.2° ±0.5°
-90° 0° +180°
-45° 0° +45°
7h 10h 12h
335g
-20℃25℃45℃
-135° 0° +135°
-45° 0° +45°
1°/S
1°/S
50°/S
80°/S
Operation:
●
●
●
●
●
Install the battery and press the power button, the stabilizer will in standby mode after five seconds.
Press the power button again to cut off power.
After connecting to power, long press “MODE” for 1 second to switch standby mode/ working mode.
In working mode, press “MODE” to switch Heading Following Mode/ Locking Mode. Press “MODE”
2 times to turn on Heading and Pitch Following Mode; press “MODE” again to turn on previous
mode.
User can adjust the pitch/roll angle through UP / DOWN buttons.
calibrate the gyro and accelerator if: 1. Horizontal angle offset; 2. Operate
again after a long time; 3. Transit the device under different temperature.
Power Switch
On/Off
Mode Switch
Angle Adjusting
Calibration
:
:
:
:
:
This device has been calibrated by the
manufacturer. Warranty void if
disassemble any components.
We reserve the right of final
explanation and revision of the
instruction manual. For the latest
version, please refer to official website.
For user instruction, firmware upgrade,
and more information:
www.zhiyun-tech.com
