StarTech.com ST122VGA System manual

2-Port VGA Auto Switch Box with Priority Switching and EDID Copy

StarTech ID: ST122VGA

The ST122VGA 2-Port VGA Auto Switcher lets you share a display between two computers and automatically

switch to the active source device using configurable priority switching. When the port you have selected as the

primary input is turned off, the device automatically switches to the secondary input.

For maximum control and versatility, the ST122VGA also offers manual switch control with an easy-to-use button that

allows you to toggle between video sources.

For a convenient setup the switcher can be powered using the included power adapter or the USB power cable, and

features built-in EDID emulation ensuring maximum compatibility with your display or projector and support for

resolutions up to 1920x1200/1080p.

The ST122VGA includes mounting hardware for a tidy and professional installation, and is backed by a 2-year

StarTech.com warranty, and free lifetime technical support.

Applications

Share a laptop computer with a projector in boardrooms or trade shows, with automatic switching that

ensures there's an active signal displayed on the screen even if the laptop is disconnected

Connect and switch between multiple sources in test bench facilities, data centers, help desks and video

broadcasting facilities

Connect two media players or PCs to your digital signage display, for more versatile messaging options

Features

Priority Switching

Automatic or Manual Port Selection

EDID Emulation

Mounting Hardware Included

USB Power Cable

Support for Resolutions up to 1920x1200/1080p

Technical Specifications

Warranty 2 Years

Audio No

Industry

Standards

EDID

Ports 2

Connector A 1 - VGA (15 pin; High Density D-Sub) Female

Connector B 2 - VGA (15 pin; High Density D-Sub) Female

Maximum Analog

Resolutions

WUXGA (1920 x 1200) QWXGA (2048 x 1152)

Supported

Resolutions

1024 x 768, 1280 x 720, 1280 x 1024, 1366 x 768, 1440 x 900, 1600 x 900, 1600 x 1200, 1680

x 1050, 1920 x 1080, 1920 x 1200, 1920 x 1440, 2048 x 1152

Wide Screen

Supported

Yes

Color Black

Enclosure Type Aluminum

Product Height 0.8 in [21 mm]

Product Length 2.9 in [74 mm]

Product Weight 6.2 oz [175 g]

Product Width 2.3 in [59 mm]

LED Indicators 1 - P1 (Port 1 selected)

LED Indicators 1 - P2 (Port 2 selected)

Shipping

(Package)

Weight

0 lb [0 kg]

Included in

Package

1 - VGA Auto Switch

Included in

Package

1 - USB Power Cable

Included in

Package

1 - Universal Power Adapter (NA/EU/UK)

Included in

Package

1 - Instruction Manual

Certifications, Reports and Compatibility

Other manuals for ST122VGA

Table of contents

Other StarTech.com Switch manuals

StarTech.com

StarTech.com P2DD46A2-KVM-SWITCH User manual

StarTech.com

StarTech.com C2-H46-UC2-PD-KVM User manual

StarTech.com

StarTech.com SV831DUSBA User manual

StarTech.com

StarTech.com STARVIEW SV231DDUSB User manual

StarTech.com

StarTech.com HB30A3A1CST User manual

StarTech.com

StarTech.com 5G16AINDS-USB-A-HUB User manual

StarTech.com

StarTech.com SV431USBAEGB User manual

StarTech.com

StarTech.com SV431DPUA2 User manual

StarTech.com

StarTech.com 8STIES5102 User manual

StarTech.com

StarTech.com SV211HDUC User manual

StarTech.com

StarTech.com MSTCDP123HD User manual

StarTech.com

StarTech.com ST4300USBMS User manual

StarTech.com

StarTech.com SV5CONS User manual

StarTech.com

StarTech.com StarView SV231USB User manual

StarTech.com

StarTech.com SVID410IR User manual

StarTech.com

StarTech.com USB2HDCAPS User manual

StarTech.com

StarTech.com ICUSB23216FD User manual

StarTech.com

StarTech.com MSTMDP123DP User manual

StarTech.com

StarTech.com ST4200MINI User manual

StarTech.com

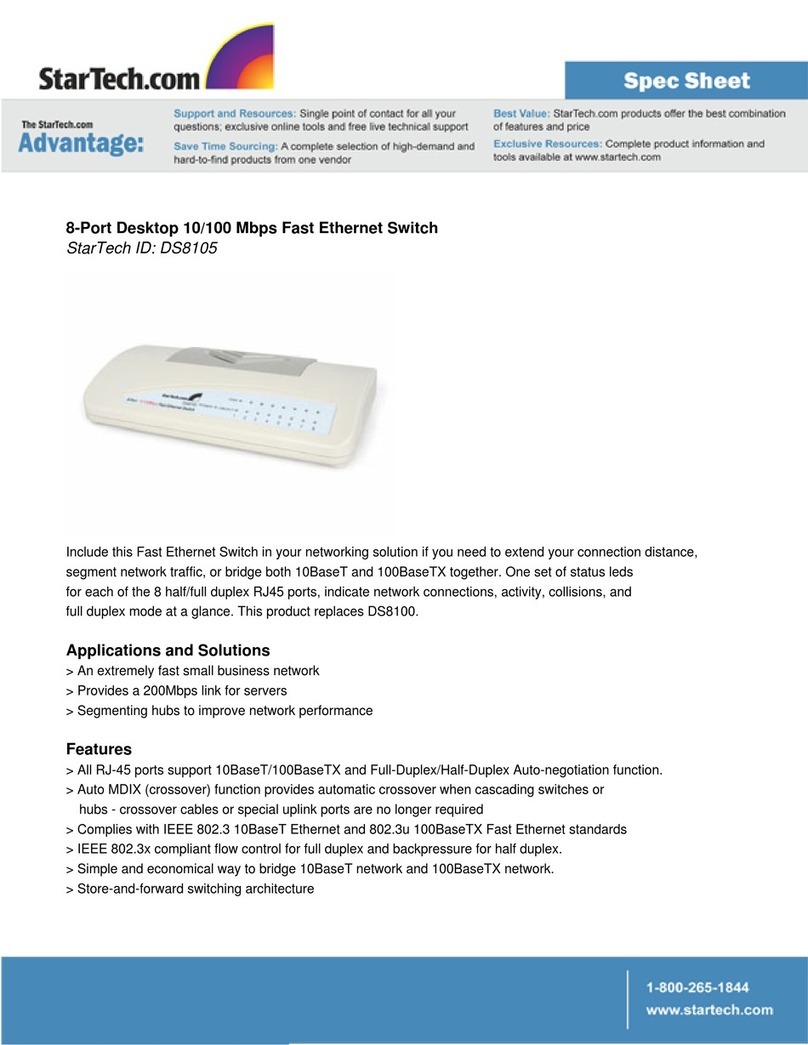

StarTech.com DS8105 System manual
