StarTech.com DS5107 User manual

Fast Ethernet Switch

Multiport 10/100 Desktop Ethernet Switch

DS5107

DS8107 Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installa-

tion. This equipment generates, uses and can radiate radio frequency energy and,

if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that interfer-

ence will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference

by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and

Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or

an endorsement of the product(s) to which this manual applies by the third-party

company in question. Regardless of any direct acknowledgement elsewhere in the

body of this document, StarTech.com hereby acknowledges that all trademarks,

registered trademarks, service marks, and other protected names and/or symbols

contained in this manual and related documents are the property of their respec-

tive holders.

Table

Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Installation and usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Accessory Products from StarTech.com . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Instruction Manual

Thank you for purchasing a StarTech.com Multi-port 10/100 Desktop Ethernet

Switch. Providing 10/100Mbps auto-negotiation, all ports support auto MDI/MDIX

functions, eliminating the need for crossover cables or uplink ports. Featuring plug

and play functionality, the hub offers a practical and cost-effective way to upgrade

existing networks to 100Mbps standard or bridge 10BaseT and 100BaseTX net-

works.

• All RJ-45 ports support 10BaseT/100BaseTX and Full-Duplex/Half-Duplex Auto-

negotiation function

• Auto MDIX (crossover) function provides automatic crossover when cascading

switches or hubs - crossover cables or special uplink ports are no longer

required

• Complies with IEEE 802.3 10BaseT Ethernet and 802.3u 100BaseTX Fast

Ethernetstandards

• IEEE 802.3x compliant flow control for full duplex and backpressure for half-

duplex

This Fast Ethernet switch can be connected to PC computers with Ethernet net-

working cards, or other compatible switches, hubs, or servers.

Note: For each device you want to attach to the switch, you will need a Category 5

Ethernet UTP patch cable. StarTech.com offers a wide range of these cables in

various lengths and colors to suit your network needs. StarTech.com also carries a

wide range of Ethernet cards for both PC and notebook computers. For more

information on available cables and accessories, please see Accessory Products

from StarTech.com on page 5.

This package should contain:

• 1 x Ethernet Switch

• 1 x Power Adapter

• 1 x Instruction Manual

Features

Introduction

Instruction Manual

System Requirements

Contents

Installation

and

usage

This section will guide you through the installation of your Fast Ethernet switch.

Please read through the instructions carefully and complete each step in the order

listed.

Rear Panel

Available ports

Please note: all RJ45 ports

can be used as the Uplink port.

Please note that the following instructions describe how to mount your new

Ethernet Switch on a wall. If you do not wish to perform this step, please skip to

step 5.

1. Place the Switch on a flat table or, if you wish to mount the Switch, the

StarTech.com Fast Ethernet switch has two wallmount sockets that allow it to be

hung from most walls. To mount the switch, you will need a drill, a screwdriver,

two #6 wood screws and their corresponding wall plugs.

2. Carefully measure the distance between the centers of the two screw-holes on

the back of the switch. Mark the location of the screw-holes on your wall,

making sure your marks are straight and even.

3. Drill the holes in the wall and insert the plastic wall plugs.

4. Insert the screws into the wall plugs so that there is a gap of about 2 mm (about

1/10 of an inch) between the head of the screw and the wall.

5. Place the Fast Ethernet switch so that the wide end of the mounting sockets are

Instruction Manual

over the screwheads. Slide the case downward so that the screwheads slide into

the narrow slots.

6. Connect one end of your network cable to an open port on the rear panel of the

switch.

7. Plug the other end of the cable into the RJ-45 port on your network device.

8. Repeat steps 5 and 6 for any other devices you want to connect.

9. Plug one end of the the power adapter into an open outlet and plug the other

end into the DC connector on the side panel of the device. The Power LED on

the front of the switch should now be lit.

10. Once the Switch is powered on, it will be automatically initialized, and all

Link/Act LEDs will flash momentarily, indicating that the system has been reset.

Power LED

Front Panel

Port Link/Activity LEDs

The LED indicators are used for monitoring and troubleshooting of the Switch:

Power LED: This indicator will light up when the Switch powers up. If the LED is

not lit, please check the power adapter and connection.

LINK/ACT LEDs: These LEDs indicate Link/Active status. One LED indicator will

light green when a device is connected to the corresponding port. It flashes when

data is being transmitted or received on the connection.

Instruction Manual

Standards IEEE802.3 10Base-T, IEEE802.3u, 100Base-TX

Topology Star

Protocol CSMA/CD

Data Transfer

Rate

Ethernet: 10Mbps (Half Duplex), 20Mbps (Full Duplex);

Fast Ethernet: 100Mbps (Half Duplex), 200Mbps (Full Duplex)

Network Media

(cable)

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ù STP (maximum 100m)

100BASE-Tx: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ù STP (maximum 100m)

Number of Ports DS5107: 5 x 10/100Mbps Auto-Negotiation ports

DS8107: 8 x 10/100Mbps Auto-Negotiation ports

LED indicators Power, Link/Act

Transfer Method Store-and-Forward

MAC Address

Learning Automatically learning, automatically update

Frame Filter Rate 10Base-T: 14880pps/Port;

100Base-Tx: 148800pps/Port

Frame Forward

Rate

10Base-T: 14880pps/Port;

Rate 100Base-Tx: 148800pps/Port

Regulatory certi-

fications FCC, ROHS, CE

Specifications

General Specifications

Environmental and Physical Specifications

Dimensions (W x D x H) 5.5” x 3.3” x 1.2” (140 x 85 x 30mm)

Power Supply Output DS5107: AC12V~ 0.35A

DS8107: AC9V~ 0.8A

Operating Temperature 0 ~40 (32 ~104 )

Storage Temperature -40~70 (-40 ~158 )

Operating Humidity 10%~90% non-condensing

Storage humidity 5%~95% non-condensing

Instruction Manual

Accessory

Products

from

StarTech.com

Contact your local StarTech.com dealer or visit www.startech.com for cables or other

accessories that will help you get the best performance out of your new product.

ET90110SC

10/100 Mbps RJ45 to Multimode SC Fiber Media Converter

ET90110ST

10/100 Mbps RJ45 to Multimode ST Fiber Media Converter

M45PATCH10BL

10 ft Blue Molded Category 5e (350 MHz) UTP Patch Cable

M45PATCH15BL

15 ft Blue Molded Category 5e (350 MHz) UTP Patch Cable

M45PATCH100B

100 ft Blue Molded Category 5e (350 MHz) UTP Patch Cable

Instruction Manual

Technical

Support

StarTech.com’s lifetime technical support is an integral part of our commitment to

provide industry-leading solutions. If you ever need help with your product, visit

www.startech.com/support and access our comprehensive selection of online

tools, documentation, and downloads.

Warranty

Information

This product is backed by a one year warranty. In addition, StarTech.com warrants

its products against defects in materials and workmanship for the periods noted, fol-

lowing the initial date of purchase. During this period, the products may be returned

for repair, or replacement with equivalent products at our discretion. The warranty

covers parts and labor costs only. StarTech.com does not warrant its products from

defects or damages arising from misuse, abuse, alteration, or normal wear and

tear.

Limitation

Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or

their officers, directors, employees or agents) for any damages (whether direct or

indirect, special, punitive, incidental, consequential, or otherwise), loss of profits,

loss of business, or any pecuniary loss, arising out of or related to the use of the

product exceed the actual price paid for the product. Some states do not allow the

exclusion or limitation of incidental or consequential damages. If such laws apply,

the limitations or exclusions contained in this statement may not apply to you.

About

StarTech.com

StarTech.com is “The Professionals’ Source for Hard-to-Find Computer

Parts”. Since 1985, we have been providing IT professionals with the quality

products they need to complete their solutions. We offer an unmatched

selection of computer parts, cables, server management solutions and A/V

products and serve a worldwide market through our locations in the United

States, Canada, the United Kingdom and Taiwan.

Visit www.startech.com for complete information about all our products

and to access exclusive interactive tools such as the Parts Finder and the

KVM Reference Guide. StarTech.com makes it easy to complete almost

any IT solution. Find out for yourself why our products lead the industry in

performance, support, and value.

Other manuals for DS5107

This manual suits for next models

Table of contents

Other StarTech.com Switch manuals

StarTech.com

StarTech.com SV441DUSBI User manual

StarTech.com

StarTech.com SV231U3A User manual

StarTech.com

StarTech.com DS51072 User manual

StarTech.com

StarTech.com 8STST7300USBME User manual

StarTech.com

StarTech.com DS52000 User manual

StarTech.com

StarTech.com WIFI2HDVGAGE User manual

StarTech.com

StarTech.com SV431DD2DU3A User manual

StarTech.com

StarTech.com ST1030USBM User manual

StarTech.com

StarTech.com IES101G2SFPW User manual

StarTech.com

StarTech.com 5G4AIBS-USB-HUB-EU User manual

StarTech.com

StarTech.com 8STSV211USB User manual

StarTech.com

StarTech.com MSTDP124DP User manual

StarTech.com

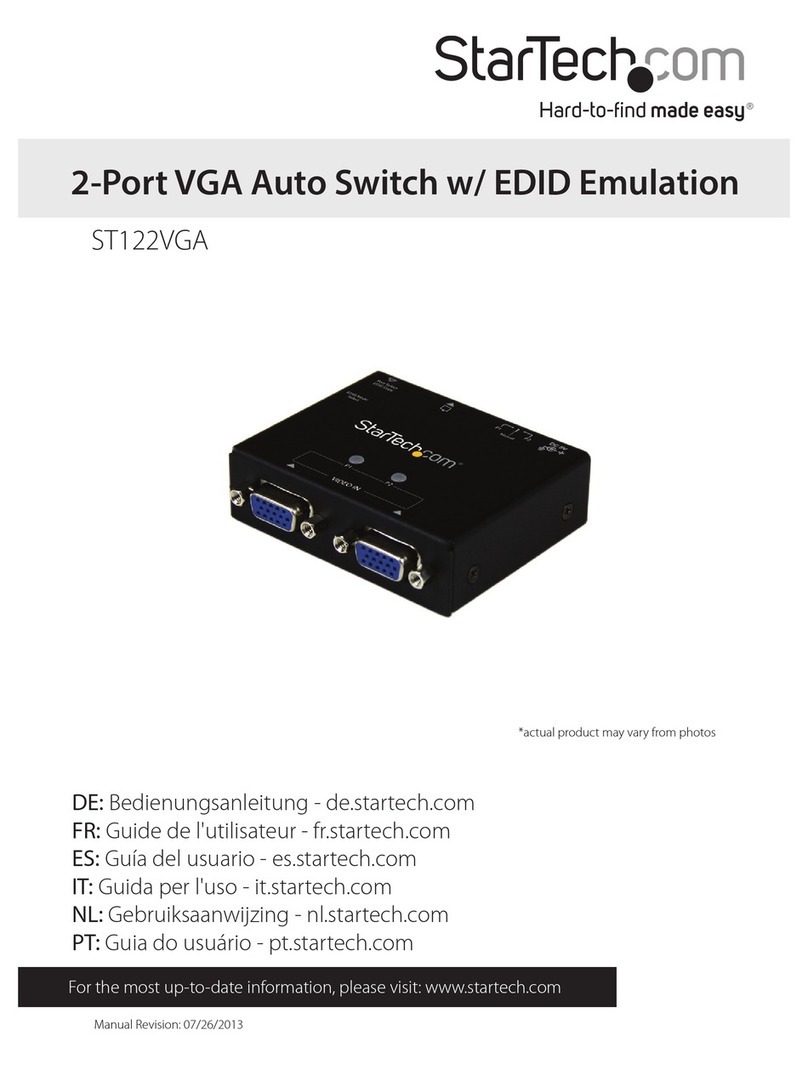

StarTech.com ST122VGA User manual

StarTech.com

StarTech.com ST222MX User manual

StarTech.com

StarTech.com IES51000POE System manual

StarTech.com

StarTech.com StarView SV221DVIDD Manual

StarTech.com

StarTech.com MSTDP123HD User manual

StarTech.com

StarTech.com SV431DPUA2 User manual

StarTech.com

StarTech.com 5G7AINDRM-USB-A-HUB User manual

StarTech.com

StarTech.com VS221VGA2HD User manual

StarTech.com

StarTech.com StarView SV821 User manual

StarTech.com

StarTech.com HB30C4AIB User manual

StarTech.com

StarTech.com STARVIEW SV231DDUSB User manual

StarTech.com

StarTech.com MSTCDP122HD User manual

Popular Switch manuals by other brands

URC

URC Total Control MFS-8 installation manual

Azbil

Azbil HPQ-D11 user manual

Sony

Sony DFS-900M operating instructions

SICK

SICK i17S operating instructions

F&F

F&F SZR-277 quick start guide

Shure

Shure UAMS/BK user guide

Dräger

Dräger X-zone Switch Off Instructions for use

Asco

Asco Joucomatic 349 Series manual

BT Mini Hub user guide

D-Link

D-Link DES-1226G manual

Johnson Controls

Johnson Controls FS80-C installation instructions

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Configuration guide

MicroNet

MicroNet SP1200A user manual

Ruijie

Ruijie RG-PF2920 Series Hardware installation and reference guide

Altinex

Altinex DA1914SX user guide

MiLAN

MiLAN MIL-SM2401M user guide

RJM

RJM MASTERMIND PBC/6X user manual

Atlas

Atlas MMK-KVM8 owner's manual
