StarTech.com PCI3UV22F User manual

USB 2.0 and Firewire PCI Combo Card

PCI3UV22F Instruction Manual

Actual product may vary from photo

3 Port USB 2.0 and 2 Port IEEE-1394 FireWire Slot Saver PCI Card

FFCCCCCCoommpplliiaanncceeSSttaatteemmeenntt

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

UUsseeooffTTrraaddeemmaarrkkss,,RReeggiisstteerreeddTTrraaddeemmaarrkkss,,aannddootthheerrPPrrootteecctteeddNNaammeessaannddSSyymmbboollss

This manual may make reference to trademarks, registered trademarks, and other protected names

and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur

these references are for illustrative purposes only and do not represent an endorsement of a

product or service by StarTech.com, or an endorsement of the product(s) to which this manual

applies by the third-party company in question. Regardless of any direct acknowledgement

elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks,

registered trademarks, service marks, and other protected names and/or symbols contained in this

manual and related documents are the property of their respective holders.

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Hardware Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Software Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Instruction Manual

TTaabblleeooffCCoonntteennttss

Instruction Manual

Thank you for purchasing a StarTech.com 3 USB 2.0 and 2 Firewire PCI Combo Card. A

perfect solution for connecting USB and FireWire peripherals to a host computer,

PCI3Uv22F offers three USB 2.0 ports and two FireWire ports, while requiring only a

single PCI slot for installation - saving the space of having to install a second card for

added compatibility.

IInnttrroodduuccttiioonn

•Backward compatible with USB 1.1 devices

Features

System requirements

•

CPU: Intel Pentium 2 at 400MHz or faster, Intel Celeron at 900MHz or faster, AMD

Athlon of any speed. Mac - G3 original processor or fastercomputer with an

available PCI slot

Package contents

•PCI USB 2.0 and FireWire card (1)

This package should contain:

•Compliant with PCI specification 2.2

•Three external (plus one internal) USB 2.0 ports with data transfer rates up to 480

Mbps

•Two external (plus one internal) IEEE-1394 FireWire® ports with data transfer rates

up to 400 Mbps

•Operating system: Windows® 2000 / XP / Server 2003 / Vista

•Instruction Manual (1)

Instruction Manual

HHaarrddwwaarreeGGuuiiddee

P1, P2, P3, P6:USB 2.0 Ports

P4, P5, P7: FireWire (6-pin) Ports

IInnssttaallllaattiioonn

WARNING! PCI cards, like all computer equipment, can be severely damaged

by static electricity. Be sure that you are properly grounded before opening your

computer case or touching your card. StarTech.com recommends that you wear

an anti-static strap when installing any computer component. If an anti-static

strap is unavailable, discharge yourself of any static electricity build-up by

touching a large grounded metal surface (such as the computer case) for

several seconds. Also, be careful to handle the card by its edges and not the

gold connectors.

1. Power down the computer. As an additional precaution, you may wish to disconnect

the computer from the power source.

2. Remove the computer cover. For more detailed instruction on how to perform this

step, please refer to the documentation that was included with your computer at the

time of purchase.

3. Locate an empty PCI slot and remove the metal bracket covering the accompanying

empty port/socket.

P3 P4P2P1

Instruction Manual

4. Position the card above the open PCI slot, ensuring that the card is properly aligned

with the slot. Insert the card firmly into the slot, distributing force evenly across the

length of the board. Once inserted, secure the card into the adjoining socket

(previously covered by metal bracket), using the correct size screw.

5. Replace the computer cover and re-connect all power to the computer (if it was

removed in Step #1). If you will be using the internal ports, you may wish to leave the

computer chassis open, until the software has been installed and the intended

components have been connected.

Software Installation

Once the computer has been restarted following the physical installation of the card,

Windows® 2000/XP/Vista will automatically detect and install the correct drivers for the

newly installed card.

To verify that the driver has correctly been installed:

1. Right-click on the My Computer icon. If you are using Windows Vista, right-click on

Computer.

2. Select Manage, to open the Computer Management window.

3. In the left pane of the Computer Management window, click on Device Manager.

4. In the right pane of the Computer Management window, click on IEEE 1394 Bus host

controller. Here, you should see VIA OHCI Compliant IEEE 1394 Host Controller

listed.

5. In the right pane of the Computer Management window, click on Universal Serial

Bus controllers. Here, you should see the following:

- USB Root Hub (USB 2.0 Root Hub in Windows® 2000)

- USB Root Hub

- VIA Rev 5 or later USB Universal Host Controller (VIA USB Universal Host

Controller in Windows® 2000)

- VIA Rev 5 or later USB Universal Host Controller (VIA USB Universal Host

Controller in Windows® 2000)

- VIA USB Enhanced Host Controller

Instruction Manual

TTeecchhnniiccaallSSuuppppoorrtt

StarTech.com’s lifetime technical support is an integral part of our commitment to provide

industry-leading solutions. If you ever need help with your product, visit

www.startech.com/support and access our comprehensive selection of online tools,

documentation, and downloads.

WWaarrrraannttyyIInnffoorrmmaattiioonn

This product is backed by a lifetime warranty. In addition, StarTech.com warrants its

products against defects in materials and workmanship for the periods noted, following

the initial date of purchase. During this period, the products may be returned for repair, or

replacement with equivalent products at our discretion. The warranty covers parts and

labor costs only. StarTech.com does not warrant its products from defects or damages

arising from misuse, abuse, alteration, or normal wear and tear.

LLiimmiittaattiioonnooffLLiiaabbiilliittyy

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

officers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product. Some states do not allow the exclusion or limitation of

incidental or consequential damages. If such laws apply, the limitations or exclusions

contained in this statement may not apply to you.

SSppeecciiffiiccaattiioonnss

Chipset VIA VT6212 / VT6306

Bus Interface PCI bus 32 bit

Operating System Support Windows 98SE/ME, 2000 and XP, Vista

Connectors 3 X Firewire 6 pin Female

4 X USB A Female

Data Transfer Rates Supported

USB 1.1/1.0 Devices: Up to 12 Mbps

USB 2.0 Devices: Up to 480 Mbps

IEEE 1394A Devices: Up to 400 Mbps

Regulatory Certifications ROHS, CE, UL, FCC

17 August 2007 (Rev. A)

AAbboouuttSSttaarrTTeecchh..ccoomm

StarTech.com is “The Professionals’ Source for Hard-to-Find Computer Parts”.

Since 1985, we have been providing IT professionals with the quality products

they need to complete their solutions. We offer an unmatched selection of

computer parts, cables, server management solutions and A/V products and

serve a worldwide market through our locations in the United States, Canada, the

United Kingdom and Taiwan.

Visit www.startech.com for complete information about all our products and to

access exclusive interactive tools such as the Parts Finder and the KVM

Reference Guide. StarTech.com makes it easy to complete almost any IT

solution. Find out for yourself why our products lead the industry in performance,

support, and value.

Table of contents

Other StarTech.com PCI Card manuals

StarTech.com

StarTech.com ST10GSPEXNB User manual

StarTech.com

StarTech.com PCI2MPCIB User manual

StarTech.com

StarTech.com ST1000BT32 User manual

StarTech.com

StarTech.com PEX1TO16R User manual

StarTech.com

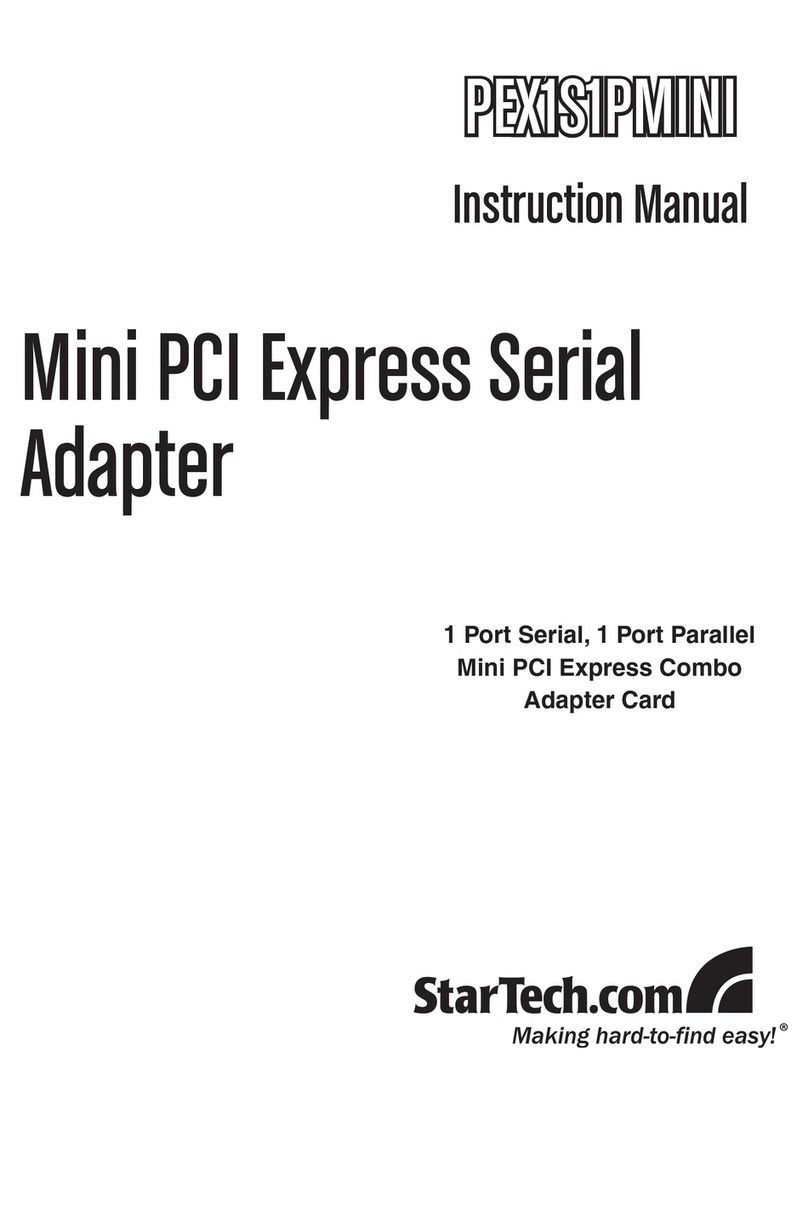

StarTech.com PEX1S1PMINI User manual
