StarTech.com USBPS2PLATE User manual

Manual Revision: 11/29/2011

For the most up-to-date information, please visit: www.startech.com

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

USBPS2PLATE

USB to PS/2 Keyboard and Mouse

Converter Adapter

*actual product may vary from photos

Instruction Manual

Table of Contents

Introduction ...........................................................................................1

Features ...................................................................................................1

Package Contents...................................................................................1

System Requirements............................................................................1

Hardware Guide .....................................................................................2

Connectors .................................................................................................................................................. 2

USB Pin Header Pin Assignment.......................................................................................................... 2

USB Header Cable (supplied): Pin Assignment............................................................................... 2

Installation ..............................................................................................3

Specications..........................................................................................4

Technical Support ..................................................................................5

Warranty Information............................................................................5

Instruction Manual

Introduction

Thank you for purchasing a StarTech.com USB to PS2 Keyboard and Mouse Adapter.

This innovative product allows you to connect two PS/2 devices, such as a keyboard

and mouse to an internal USB port on your desktop PC, enabling the use of a PS/2

keyboard and mouse as USB plug-and-play human interface devices (HID).

The USBPS2PLATE USB to PS2 Keyboard Mouse Adapter also allows two PS/2 devices to

be used simultaneously, and allows users to hot-plug and unplug PS/2 devices without

rebooting the system.

Features

• Designed with universal connectors allowing users to use either of the

two PS/2 connectors for either keyboards or mice

• Installs in any low prole or standard prole case, without the clutter of

having an external USB to PS/2 adapter

• Plug and Play compatible

Package Contents

• User manual

• Internal USB to PS/2 Adapter Card

• USB header to header cable

• Low Prole Bracket

•

System Requirements

• Desktop PC with a USB port and a vacant rear mounting bracket

position

• Windows 2000/XP/Server 2003/Vista/7/ Netware 4.11, 5.0 HP

Unix, Linux, Mac OS

Instruction Manual

Hardware Guide

Connectors

1. PS/2 Mouse Connector

2. PS/2 Keyboard Connector

3. USB 4-pin header

4. USB Female Port

USB Pin Header Pin Assignment

GND

D+ (USB DP)

D- (USB DM)

+5V (USB VCC)

USB Header Cable (supplied): Pin Assignment

Red wire

Please note: For USB boot-up support, the USB connector must be plugged in to a

built-in type A or header connector on the motherboard

Instruction Manual

Installation

1. Turn o your computer and all external devices connected to it.

2. Disconnect your computer from its power source.

3. Open the computer case.

4. Install the USB PS/2 card at any vacant rear mounting bracket position.

Secure it with the bracket screw.

5. Connect one end of the supplied USB cable to the J1 USB Pin Header

(shown as #3 on pg. 2). Connect the remaining end of the USB cable to

a vacant USB header on the motherboard as applicable. Please note

the orientation of the red wire (Pin 1)

If no 4-pin USB Header connection is available on the motherboard,

connect the USB Female port provided by USBPS2PLATE (shown as

#4 on pg.2) to an available USB port on the rear panel of the computer.

This will require a USB A-A (male/male) cable

CAUTION: Please refer to the documentation that accompanied your

motherboard for the location and pin assignment of the on-board USB

header. Incorrect installation of the USB cable will cause permanent

damage to the USBPS2PLATE.

6. Replace the computer case cover (see step #3).

7. Connect a PS/2 peripheral to the green connector provided (shown as

#1 on pg. 2)

Connect a PS/2 keyboard to the purple connector provided (shown as

#2 on pg. 2).

8. Restore power to the computer. The operating system should detect

the new device and automatically install the appropriate driver.

9. To enable your PS/2 Mouse or Keyboard’s functionality when

working in a DOS operating environment, change your motherboard’s

BIOS setting to enable “USB Mouse Support” or “USB Keyboard

Support”. For further clarication, please refer to your motherboard

user manual for details.

Instruction Manual

Specications

Connectors PS/2: 2 x 6-pin min-DIN

OS Compatibility Any Windows operating system with a

USB interface

Power Mode USB Bus Powered

Instruction Manual

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to

provide industry-leading solutions. If you ever need help with your product, visit

www.startech.com/support and access our comprehensive selection of online tools,

documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials

and workmanship for the periods noted, following the initial date of purchase.

During this period, the products may be returned for repair, or replacement with

equivalent products at our discretion. The warranty covers parts and labor costs only.

StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

ocers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product. Some states do not allow the exclusion or limitation

of incidental or consequential damages. If such laws apply, the limitations or exclusions

contained in this statement may not apply to you.

Hard-to-nd made easy. At StarTech.com, that isn’t a slogan. It’s a promise.

StarTech.com is your one-stop source for every connectivity part you need. From

the latest technology to legacy products — and all the parts that bridge the old and

new — we can help you nd the parts that connect your solutions.

We make it easy to locate the parts, and we quickly deliver them wherever they need

to go. Just talk to one of our tech advisors or visit our website. You’ll be connected to

the products you need in no time.

Visit www.startech.com for complete information on all StarTech.com products and

to access exclusive resources and time-saving tools.

StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology

parts. StarTech.com was founded in 1985 and has operations in the United States,

Canada, the United Kingdom and Taiwan servicing a worldwide market.

Other manuals for USBPS2PLATE

Table of contents

Other StarTech.com Adapter manuals

StarTech.com

StarTech.com ICUSB232C User manual

StarTech.com

StarTech.com USB2HDMI User manual

StarTech.com

StarTech.com USB867WAC22 User manual

StarTech.com

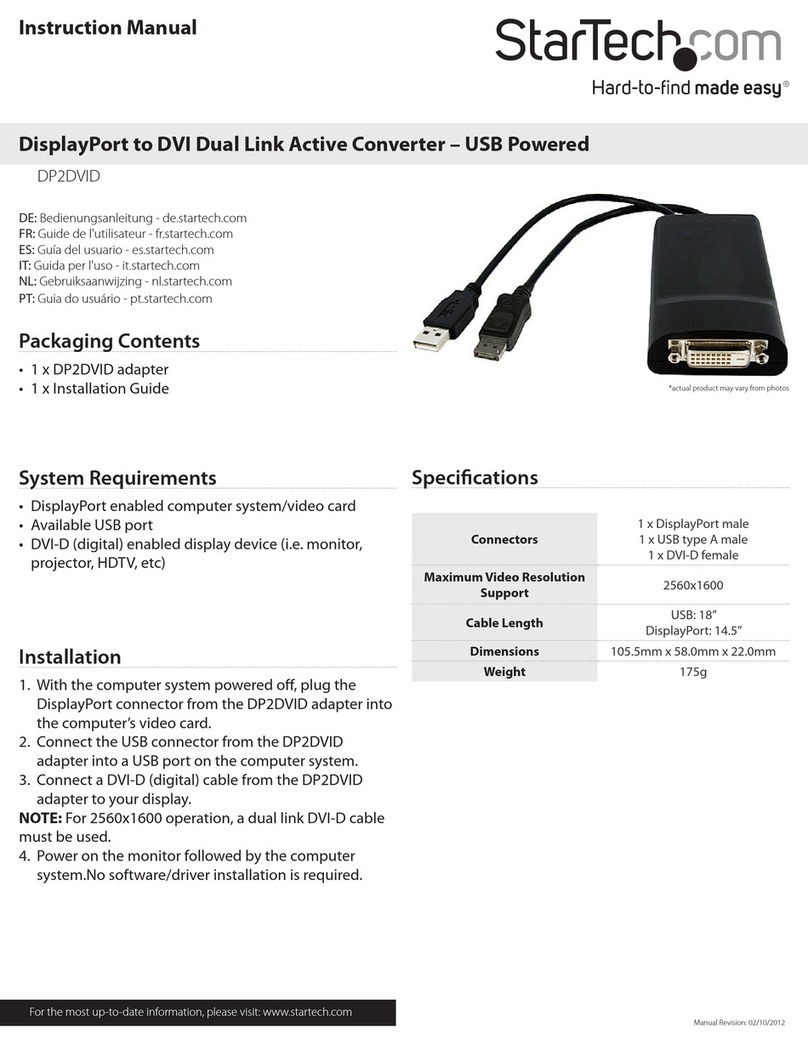

StarTech.com DP2DVID User manual

StarTech.com

StarTech.com FCREADMICRO User manual

StarTech.com

StarTech.com ZIF2IDE35 User manual

StarTech.com

StarTech.com IP2DVI User manual

StarTech.com

StarTech.com DKT31CVHPD3 User manual

StarTech.com

StarTech.com USB2VGA2 User manual

StarTech.com

StarTech.com US1GC303APD User manual

StarTech.com

StarTech.com DP2VGDVHD User manual

StarTech.com

StarTech.com USB32DP24K60 User manual

StarTech.com

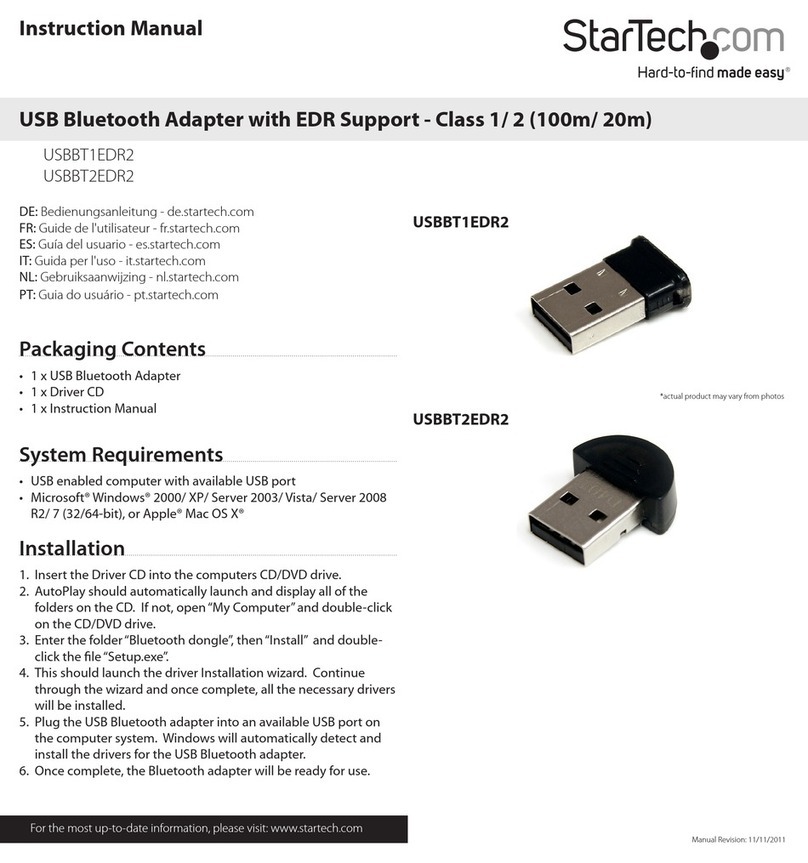

StarTech.com USBBT1EDR2 User manual
