StarTech.com IP2DVI User manual

Ethernet to DVI Video

Adapter

Ethernet to DVI Video Adapter

over IP

IP2DVI

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide rea-

sonable protection against harmful interference in a residential installation. This equip-

ment generates, uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio com-

munications. However, there is no guarantee that interference will not occur in a particu-

lar installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.•

Increase the separation between the equipment and receiver.•

Connect the equipment into an outlet on a circuit different from that to which the receiver•

is connected.

Consult the dealer or an experienced radio/TV technician for help.•

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and

do not represent an endorsement of a product or service by StarTech.com, or an en-

dorsement of the product(s) to which this manual applies by the third-party company in

question. Regardless of any direct acknowledgement elsewhere in the body of this doc-

ument, StarTech.com hereby acknowledges that all trademarks, registered trademarks,

service marks, and other protected names and/or symbols contained in this manual and

related documents are the property of their respective holders.

Table of Contents

Introduction..................................................................... 1

Packaging Contents.....................................................................1

System Requirements .................................................................1

Installation....................................................................... 1

Hardware Installation...................................................................1

Driver Installation.........................................................................2

Display mode................................................................... 7

Speciﬁcations.................................................................. 8

Technical Support........................................................... 9

Warranty Information ...................................................... 9

Introduction

Packaging Contents

1 x IP2DVI video adapter•

1 x Power Adapter•

1 x Driver and Software CD•

1 x Instruction Manual•

System Requirements

DVI enabled monitor/projector•

TCP/IP network access•

Microsoft Windows• ®XP/Vista (32-bit)

Installation

Hardware Installation

LAN Port

LAN Link

Indicator

Power Indicator

DVI Connector

Reset Button

Power

Connector

LED Indicator

LED Colour Description

Power Red ON: receiving power from adapter

OFF: no power supplied from adapter

Link Green

ON: network connection detected

OFF: no network connection detected

Flashing: data transfer

Driver Installation

Windows XP

Insert the provided CD into your disc drive. Locate and double-click1.

the Setup.exe ﬁle in the Driver folder to launch the setup program.

During the installation, the screen may ﬂicker a couple of times. This2.

is normal. When this section of the installation is complete, click

‘Finish’ to proceed.

When the ‘Install DisplayLink Software’ screen appears. Accept the3.

terms in the license agreement to proceed.

If you have a ﬁrewall enabled on the computer, make sure to unblock4.

the Cat5ShareStation utility.

Connect the IP2DVI unit to your router/switch and power it on.5.

When the Found New Hardware Wizard screen appears, select6.

‘Install the software automatically (Recommended)’ and click Next.

Click ‘Finish’ to complete the installation.7.

Launch the Cat5ShareStation utility from the icon on the Desktop.8.

A list of all available IP2DVI units detected on the network will9.

appear.

Select ‘Generic DoIP’ and click the ‘Connect’ button. When the10.

connection is ready, you will see the Generic DoIP icon become

orange as below.

Then a pop-up message will appear in the notiﬁcation area11.

indicating the installation is complete.

If your monitor is not yet connected to the IP2DVI, make the12.

connection and power on your monitor.

After the connection, the remote monitor should display an image13.

from the computer.

Windows Vista

Insert the provided CD into your disc drive. Locate and double-click1.

the Setup.exe ﬁle in the Driver folder to launch the setup program.

During the installation, the screen may ﬂicker a couple of times. This2.

is normal. When this section of the installation is complete, click

‘Finish’ to proceed.

When the ‘Install DisplayLink Software’ screen appears. Accept the3.

terms in the license agreement to proceed.

After the installation completes, select Yes to restart your computer.4.

Connect the IP2DVI unit to your router/switch and power it on.5.

Launch the Cat5ShareStation utility from the icon on the Desktop.6.

Click ‘unblock’ when you see the Windows Security Alert or other

ﬁrewall warning.

Select ‘Generic DoIP’ and click the ‘Connect’ button. When the7.

connection is ready, you will see the Generic DoIP icon become

orange as below.

A pop-up message will appear in the notiﬁcation area indicating the8.

installation is complete.

If your monitor is not yet connected to the IP2DVI, make the9.

connection and power on your monitor.

After the connection, the remote monitor should display an image10.

from the computer.

Display Mode

To change the display mode, right-click on the tray icon located in the

System Tray, next to the clock.

The IP2DVI connected monitor can be conﬁgured to:

Extend your Windows desktop (default)

Extend your Windows desktop to Right / Left / Above / Below the

primary display

Mirror your Windows desktop

On Windows XP

On Windows Vista

Table of contents

Other StarTech.com Adapter manuals

StarTech.com

StarTech.com ICUSB2324852 User manual

StarTech.com

StarTech.com ICUSB232PRO User manual

StarTech.com

StarTech.com ST3300GU3B User manual

StarTech.com

StarTech.com USB2SATAIDE System manual

StarTech.com

StarTech.com USB3S2ESATA User manual

StarTech.com

StarTech.com 120B-USBC-MULTIPORT User manual

StarTech.com

StarTech.com MDVIHDMIMF User manual

StarTech.com

StarTech.com USB32HD4K User manual

StarTech.com

StarTech.com RJ45SPLITTER User manual

StarTech.com

StarTech.com HD2DPVGADVI User manual

StarTech.com

StarTech.com U2M2E125 User manual

StarTech.com

StarTech.com PEX4SFF8639 User manual

StarTech.com

StarTech.com US1GA30SFP User manual

StarTech.com

StarTech.com IDE502CFE User manual

StarTech.com

StarTech.com USB150WN1X1 User manual

StarTech.com

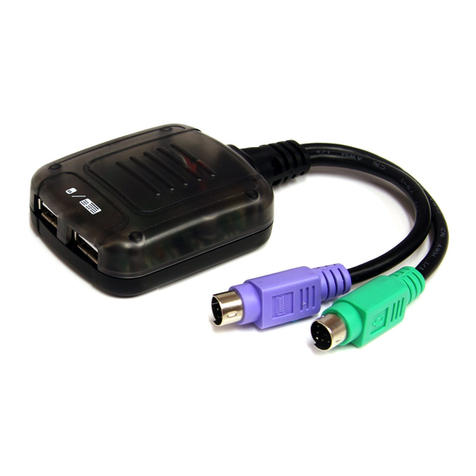

StarTech.com PS22USB User manual
