SOMFY Sunis WireFree RTS Light Sensor User manual
Sunis indoor
WireFree™ RTS
Ref : 5066683A
Installation guide
Guía de instalación
Guia de instalação
EN
ES
PT
EL
www.somfy.com
Somfy hereby declares that this product conforms to the essential
requirements and other relevant provisions of Directive 1999/5/EC.
A Declaration of Conformity is available at www.somfy.com/ce. Images are
not contractually binding.
Installation guide page 1
EN
Por la presente, Somfy declara que este producto cumple con los requisitos
básicos y demás disposiciones de la Directiva 1999/5/CE. Podrá consultar
una declaración de conformidad en la página web www.somfy.com/ce.
Las imágenes no son contractualmente vinculantes.
Guía de instalación página 15
ES
Pelo presente documento, a Somfy declara que o aparelho está em
conformidade com as exigências fundamentais e outras disposições
pertinentes da directiva 1999/5/CE. Está disponível uma Declaração de
Conformidade em www.somfy.com/ce. As imagens não têm vinculação
contratual.
Guia de instalação página 29
PT
43
EL
" ,#) #", Somfy + ) %) " ,#"() %μμ"#+
μ$ "%+$ ,$ $ ",$ &$ !$ $
$ 1999/5/. ' %μμ)#'$ *%
www.somfy.com/ce. ) $ %μ μ%$.
Installation guide
1
Copyright © 2010 Somfy SAS. All rights reserved.
Sunis indoor WireFree™ RTS
EN
1. Introduction 2
2. Safety 2
2.1. Safety and liability 2
2.2. Specific safety advice 3
3. Contents 4
4. The Sunis indoor WireFree™ RTS in detail 4
5. Commissioning 5
5.1. (OFF/ ) selector switch 5
5.2. Adding/Deleting a Sunis Indoor WireFree™ RTS 5
5.3. Positioning of the Sunis Indoor WireFree™ RTS 6
5.4. Sunlight simulation 7
5.5. (Mode) button 8
5.6. Setting the sunlight threshold 9
6. Use 10
7. Tips and recommendations 12
7.1. Questions about the Sunis Indoor WireFree™ RTS? 12
7.2. Replacing the battery 13
8. Technical data 14
CONTENTS
Installation guide
2
Copyright © 2010 Somfy SAS. All rights reserved.
Sunis indoor WireFree™ RTS
EN
1. Introduction
The Sunis Indoor WireFree RTS is a wireless solar sensor that
transmits radio signals using Radio Technology Somfy (RTS).
Depending on the detected level of sunlight intensity, the sensor
sends a raise or lower order to the motors or RTS receivers.
This permits automatic control of the sun protection end-products that
protect your interiors (e.g. your furniture, plants, etc.) and to assist
you in saving energy (in summer only).
2. Safety
2.1. Safety and liability
Before installing and using this product, please read this guide
carefully.
This Somfy product must be installed by a professional motorisation
and home automation installer, for whom this guide is intended.
Moreover, the installer must comply with the current standards and
legislation in the country in which the product is being installed, and
inform the customer of the operating and maintenance conditions for
the product.
Any use outside the sphere of application specified by Somfy is
prohibited. Doing so would void the warranty and releases Somfy of
all liability, as does any failure to comply with the instructions given
herein.
Never begin installing without first checking the compatibility of this
product with the associated equipment and accessories.
Installation guide
3
Copyright © 2010 Somfy SAS. All rights reserved.
Sunis indoor WireFree™ RTS
EN
2.2. Specific safety advice

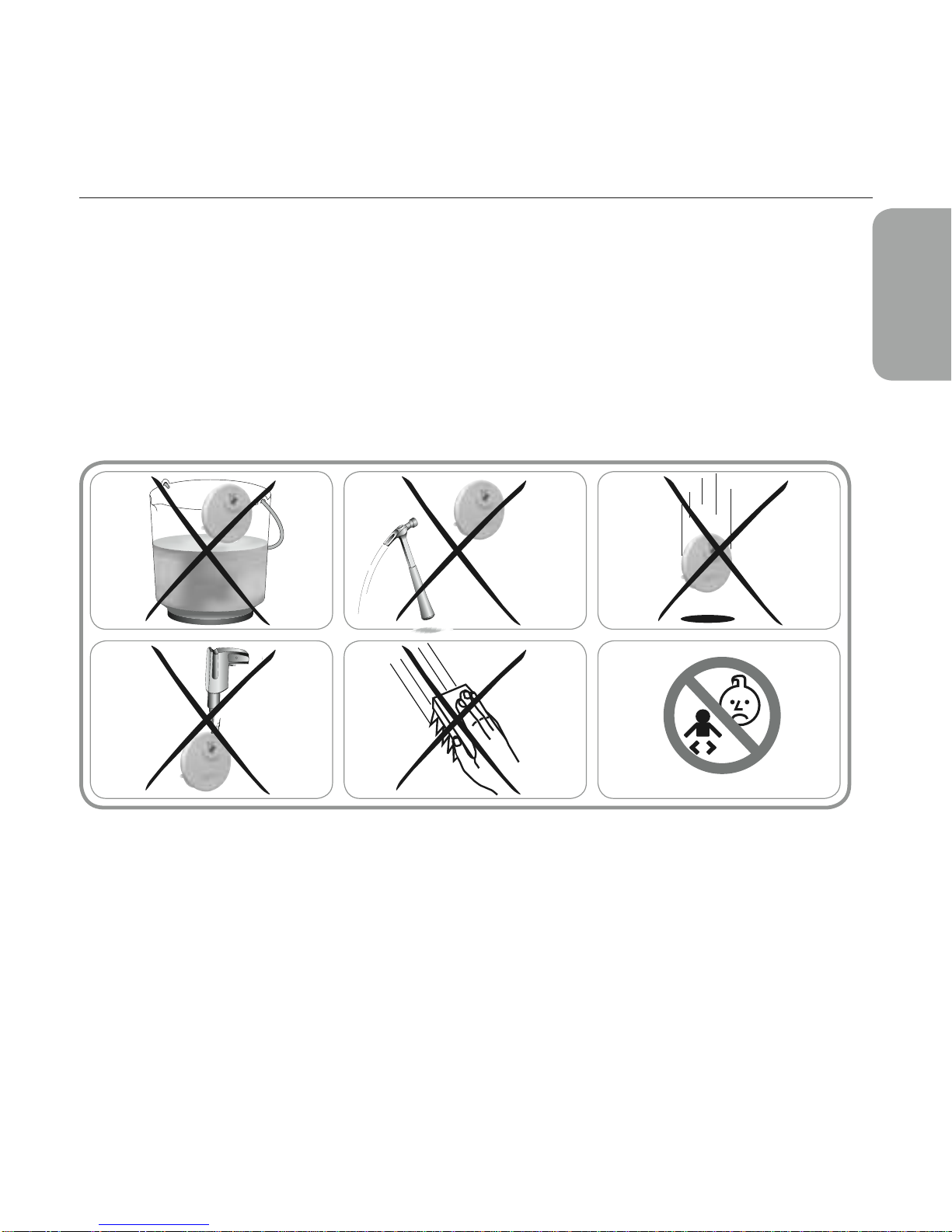

To avoid damage to the product:
1) Never immerse it in a liquid!
2) Avoid sharp bumps or blows!
3) Do not let it fall!
4) Never pierce it!
5) Do no use abrasive products or solvents to clean the product.
6) Keep out of the reach of children.
1
4
2
5
3
6
Installation guide
4
Copyright © 2010 Somfy SAS. All rights reserved.
Sunis indoor WireFree™ RTS
EN
3. Contents
1 Sunis indoor WireFree™ RTS
1 Suction cup
4. The Sunis indoor WireFree™ RTS in detail
Protective front covera) Sun sensorb) Batteryc) Rear coverd) Sunlight detection areae) Suction cupf) Potentiometer for setting the sunlight thresholdg) Sun LEDh) (OFF/i) ) selector switch
Programming button (PROG)j) (Mode) buttonk) b gdc jka h if
e
Installation guide
5
Copyright © 2010 Somfy SAS. All rights reserved.
Sunis indoor WireFree™ RTS
EN
5. Commissioning
5.1. (OFF/ ) selector switch
Slide the (OFF/ ) selector switch to to activate the sunlight
sensor functions.
OFF
Sunlight function inactive
(PROG) button inactive.
(Mode) button inactive.
Sun LED inactive (No energy
consumption).
Sunlight function active
(sun LED glows for 5 seconds).
(PROG) button active.
(Mode) button active.
Sun LED active.
5.2. Adding/Deleting a Sunis Indoor WireFree™ RTS
Theprocedureforaddingordeletingasensor
is the same.
To add or delete a Sunis Indoor WireFree™
RTS, use the RTS control point already
programmed to the end-product.
Slide the (OFF/1) ) selector to .
Press on the sides of the front protective2) cover and pull to remove it.
Installation guide
6
Copyright © 2010 Somfy SAS. All rights reserved.
Sunis indoor WireFree™ RTS
EN
Press and hold the (PROG) button on3) the already assigned RTS control point
until the end-product moves back and
forth: the motor or RTS receiver RTS
enters programming mode for 2 minutes.
4)
Briefly press the (PROG) button on the Sunis
Indoor WireFree™ RTS. The end-product
moves back and forth: the Sunis Indoor
WireFree™ RTS is programmed.
Repeat operations 3 and 4 for each of the end-
products to be assigned to this sensor.
5.3. Positioning of the Sunis Indoor WireFree™ RTS
Clean the surface on which the sensor is to be mounted.
Check that there is nothing that can cast a shadow on the sensor.
5.3.1. On an inside window sill
Screw the suction cup to the bottom of the1) sensor (A).
Moisten the suction cup.2)
Position the sensor with the sunlight intensity3) detection area (B) towards the exterior and
press on the sensor to fix it in place.
AB
Installation guide
7
Copyright © 2010 Somfy SAS. All rights reserved.
Sunis indoor WireFree™ RTS
EN
5.3.2. On the inside surface of a window
Screw the suction cup to the back of the1) sensor (C).
Moisten the suction cup.2) Position the sensor below the area to be3) protected by the end-product (D) and press
on the sensor.

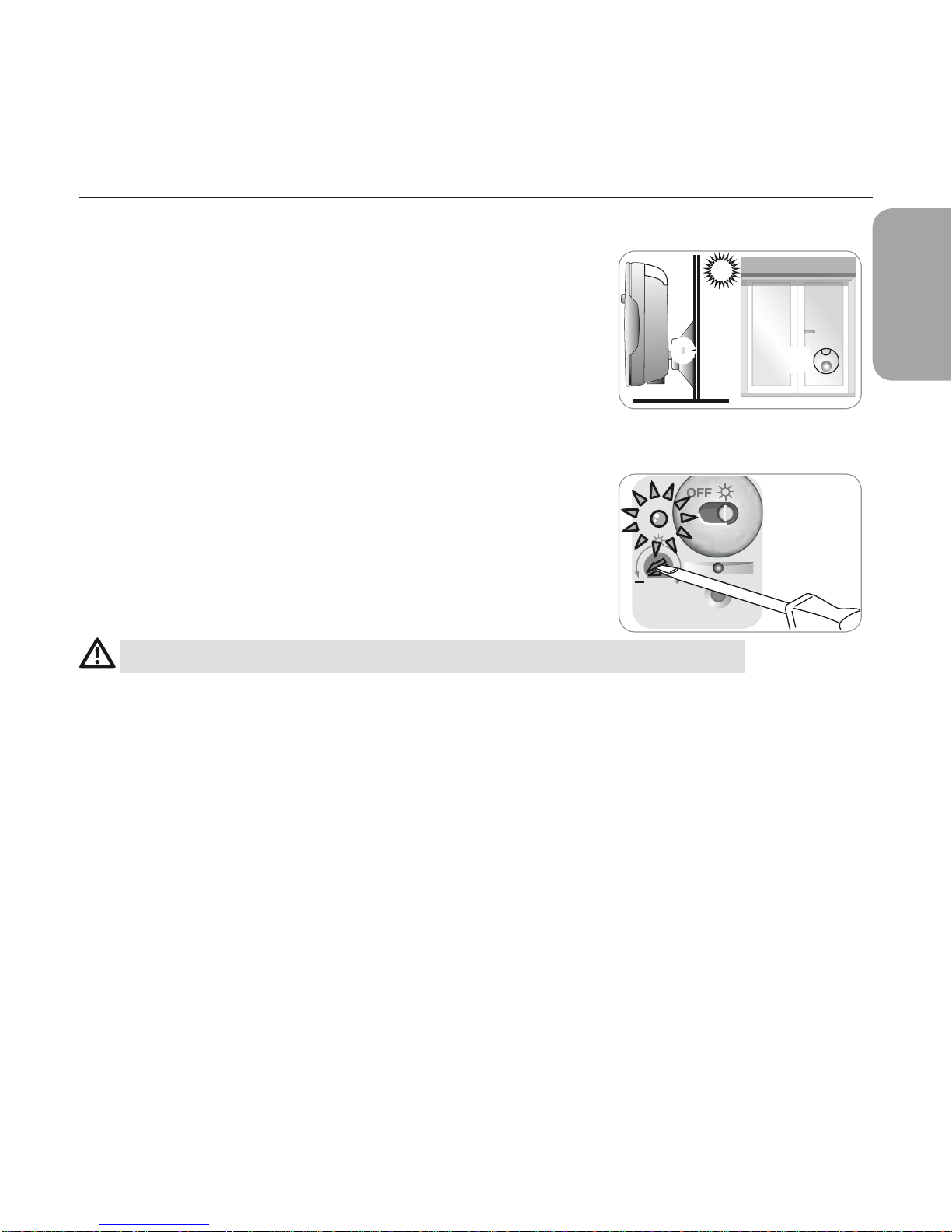

5.4. Sunlight simulation
If you turn the potentiometer to the (-) position,
the sensor simulates continuous sunlight,
the LED glows green and the end-product is
lowered, stops level with the sensor and is then
raised slightly above the level of the sensor.
Do not leave the sunlight threshold setting at this level.
CD
Installation guide
8
Copyright © 2010 Somfy SAS. All rights reserved.
Sunis indoor WireFree™ RTS
EN

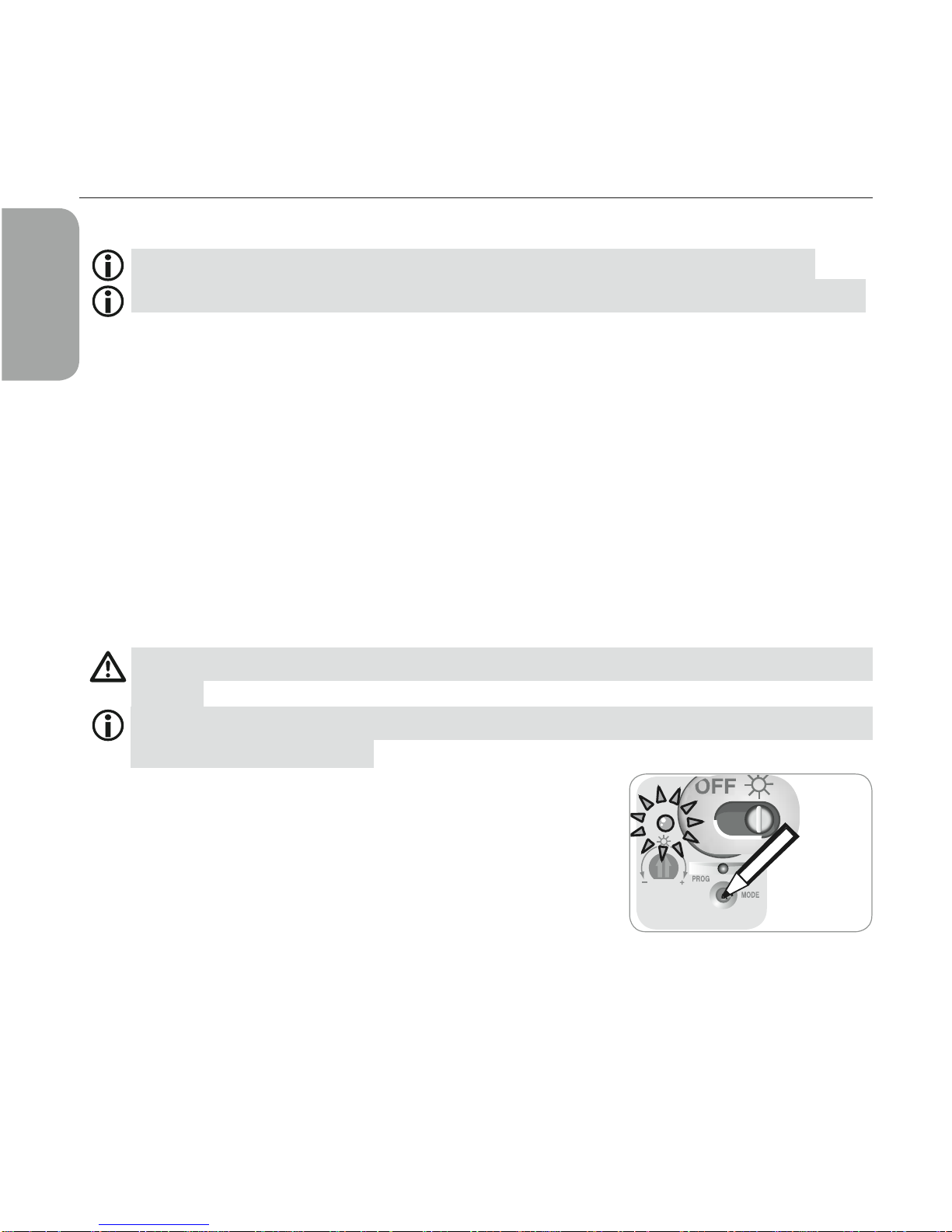

5.5. (Mode) button
Briefly press the (Mode) button to activate information mode.
Press and hold the (Mode) button to activate demonstration mode.
5.5.1. Information mode
- Briefly press the (Mode) button to find out the status of the sensor.
If the LED (red/green) flashes: the sensor is in demonstration mode.
If the LED (red/green) is permanently lit: the sensor is in operating mode.
If the LED is red: the level of sunlight intensity is lower than the set
sunlight threshold.
If the LED is green: the level of sunlight intensity is greater than the
set sunlight threshold.
5.5.2. Demonstration mode
The very short response times in demonstration mode make it
possible to check the installation.
Do not change the sunlight threshold setting in demonstration
mode.
The same procedure is used to activate or deactivate
demonstration mode.
- Press and hold (>2 sec.) the (Mode) button to
activate or deactivate demonstration mode.
If the red/green LED flashes for a few
seconds (30 sec.) then demonstration mode
is activated. > 2 s
