Soleus Air MAC 7500 User manual

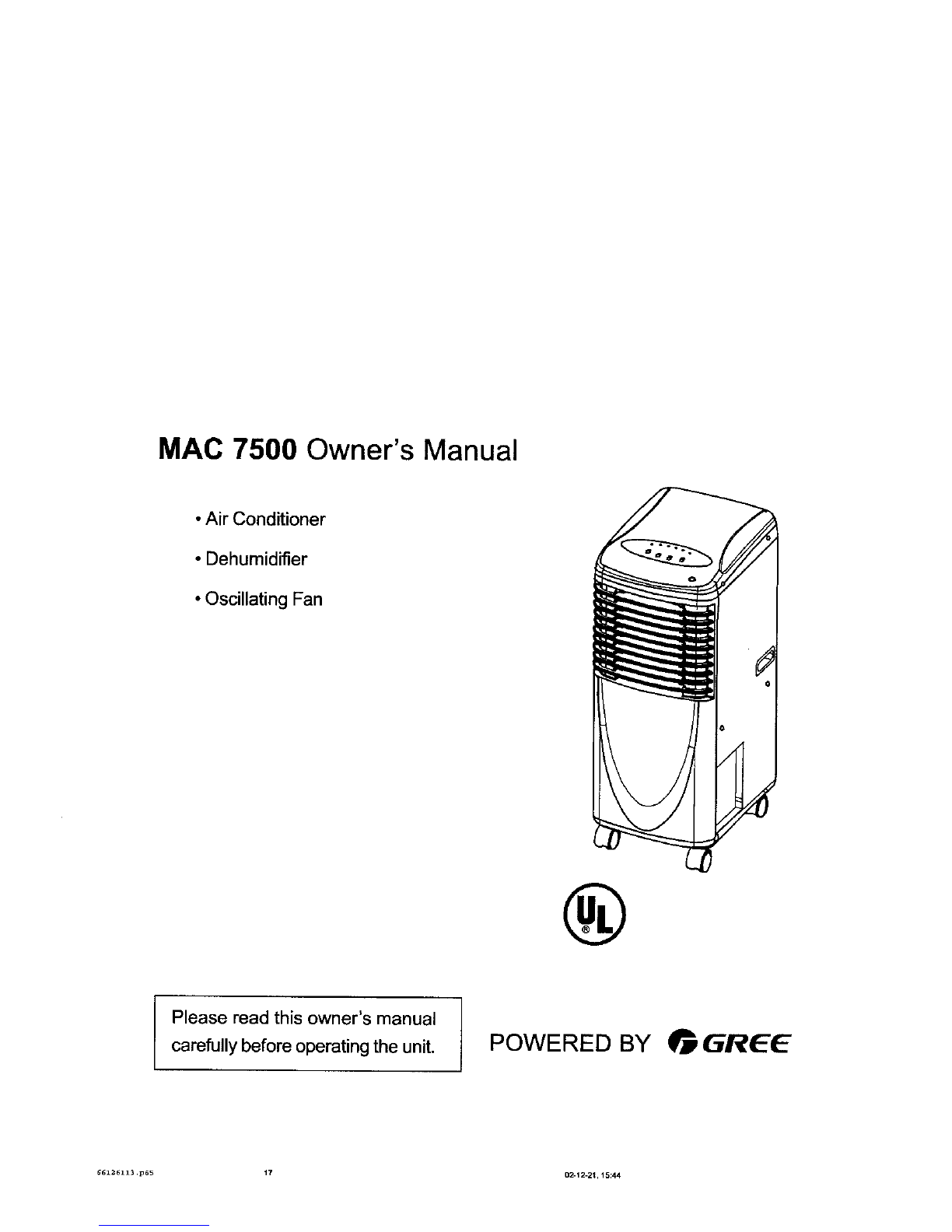

MAC 7500 Owner's Manual

• Air Conditioner

• Dehumidifier

• Oscillating Fan

Please read this owner's manual

carefully before operating the unit. POWERED BY 41_GREE

66126113 .p65 17 02.12.2_ ' 15:44

INTRODUCTION

Thank you for purchasing the 5ofeus .-_ Mac 7500 portable air-conditioner. This unit is

designed for improving living and working comfort by providing cooling, dehumidifying and

fan functions only with a minimum installation required. With its whisper quite operation and

attractive design, you will enjoy the convenience and comfort that this unit provides for many

years to come.

When operating as an air conditioner, this unit is designed for spot cooling or cooling for a room

no larger than 150 square feet with the standard ceiling height 7-1/2ft.

ALERT SYMBOLS

The following symbols used in this manual, alert you to potentially dangerous conditions to

users, service personnel or the appliance:

_[CAUTION ]

this symbol refers to a hazard or unsafe practice, which can

result in severe personal injury or death.

this symbol refers to a hazard or unsafe practice, which can

result in personal injury or product or property damage.

IMPORTANT SAFEGUARDS

1_ • Read these instructions carefully before using this air

conditioner. If you still have any ditticulties or problems, con-

sult your dealer for help.

• Never use or store gasoline or other flammable vapor or

liquid near the air conditioner.

This air conditioner has no ventilator for taking in fresh air

from out of doors. You must open doors or windows fre-

quently when you use gas or oil heating appliances in the

same room ,which consume a lot of oxygen from the air.

Otherwise, there is a risk of suffocation in extreme cases.

--1--

66Z26113 p65 1 D2-12_21,15:44

_/_L cAUTION J

• Unplug unit from the electrical outlet when not in use and

before cleaning it.

•Do not use an adapter plug extension cord.

• Do not use near gas appliances, open flames (fireplaces) or

near the vicinity flammable liquids.

• Do not operate this unit if ithad a damaged cord or plug or if

it is not warking properly, or has been dropped or damaged

in any manner. Take the unit to the nearest authorized. Ser-

vice Facility for examination, repair or electrical/mechanical

adjustment.

• The use of accessories and attachments not recommended

or sold by 5'o/eu_ .=_. may cause fire, electric shock or

injury.

• To protect against risk of electrical shock, do not immerse

the unit, cord or plug in water or any other liquid.

• Do not cut or remove the third (ground) prong from the power

cord.

• If the plug gets hot, call a qualified electrician.

• Close supervision isrequired when the unit isused by or near

children.

• Do not stick anything into the air outlet of the air conditioner.

• Do not use in a room with poor air circulation.

• Do not expose the unit to direct sunlight.

•Do not use the unit near water.

6E126113 p65 2 02=12-21.15:44

PACKAGE CONTAINS:

Mobile Air Conditioner

Air Exhaust Duct

Exhaust Duct Window Kit Adapter

Remote Controller

LITHIUM BATTERY 3V-

Window Kit - 3 Sliding Panels

Window Kit Fastener Screws (4)

User Manual

NAMES OF PARTS

FRONT

control pane' .__

air flow guider _ _

front air outlet grill_ _I_ I

castol -_ _ !

--handle

water tank

_ cable(power

cord and plug)

BACK

hot air outlet grill-

lower air inlet grill"

3er air

inlet grill

"- Outlet for Continuous Drainage

"Use exclusively for continuous

drainage.

"Don't pull out the outlet except

for this application. Otherwise

the drain will leak.

661261J.3 p65 3 02.12.21,15:44

Exhaust Duct

Unit Terminal End

Window Kit Adaptor

Window Kits

Exhaust Duct

When you use the unit as an air conditioner, the hot exhaust air must be directed out of the

room. The exhaust duct is used to allow the hot air out. DO NOT INSTALL OR USE THE

EXHAUST DUCT WHEN THE UNIT IS OPERATED AS A DEHUMIDIFIER OR FAN.

Slide exhaust connector all the

over the hot Air outlet grill.

Mount the external and of the ex-

haust duct onto a bole of 51/4"(132

mrn) on the wall for optional wall

hot air outlet installation.

I_1"1

4--

6_126113 .p_s 4 _ °2-_2-21' 15:44

c) Or connect the window kit adaptor to the external end of the exhaust duct for a window

or sliding door hot air outlet installation.

NOTE: In order to increase the efficiency, the exhaust duct should be keep as short and

straight as possible, The exhaust hose can be cut shorter by unthreading either end of the

exhaust duct counter clockwise. It is not recommended to increase the manufacturer's length

of the exhaust hose. This may impede or damage the unit.

Window Kit Installation

a) Open window or sliding door for approximately 5 inches (130 mm).

b) Adjust the length of the window kit to the same length of the window or the sliding door.

Use all three panels if necessary.

c) Use screws to affix the window kit length.

d) Place the window kit to the window or sliding door. Close the window or door as far as

it goes.

e) Mount the window kit extension of the exhaust host onto the window kit.

f) Use screws on the window kit extension if necessary.

NOTE: When using the window kit on a window or sliding door it will cause the window or

sliding door not to be properly closed and locked. Additional security measurements should be

taken.

_windows

exhaustair opening

5--

66z2611J .p65 5 02.12-21,15:44

CONTROL PANEL

Mode/function indicators

/cool " op._u speed swing !

Mode button -- Fan speed button

REMOTE CONTROLLER

f©

ON/OFF

FAN SPEED

G ©

SWING MODE

--6 m

6512_Z3 p_5 8 02-12.21, 15:44

OPERATION USING CONTROL PANEL

1) For Manual Mode:

Press the Mode Button

a) Coot -Cooling function on indicator.

b) Dry - Dehumidify function on indicator.

c) Fan - Fan on indicator.

2) For Coolina Ooeration:

a) Be sure that the drain tank is properly placed in the unit.

b) Install the exhaust duct properly.

c) Plug the Power Cord to the power outlet,

d) Press the Mode Button until the cool indicator is on.

NOTE: During hot days, the unit will cool off the room most efficiently by setting the fan at the

lowest speed. Reducing the length of the exhaust duct, insulating the exhaust duct and keeping

direct sunlight to a minimum will also improve the cooling efficiency.

3) DehumidifYing Operation:

a) Be sure that the drain tank is propedy placed in the unit.

b) Plug the Power Cord to the power outlet

c) Turn on the unit by pressing the ON/OFF Button on the control panel,

d) Press the Mode Button until the DRY indicator is on.

NOTE: Do not use the exhaust duct when the unit is running at dehumidisying mode. You must

remove the exhaust duct from the unit. When the unit is running at dehumidifying mode, the fan

speed cannot be adjusted.

Keep the windows and the doors closed to aid the effectiyeness of the unit in removing the

moisture from the room.

--7--

G6126Z13 .p6S 7 02.12-21,15:44

4) Fan Oneration:

a) Plug the Power Cord to the power outlet.

b) Turn on the unit by pressing the ON/OFF Button on the control panel.

c) Press the Mode Button until 'FAN' indicator is on.

d) Select the fan speed by pressing the Fan Speed Button.

NOTE: When the unit is running on fan mode, the exhaust duct is inoperative and is not

required.

OPERATION USING REMOTE CONTROLLER

The remote controller provided with the unit may operate this portable air conditioner. The

remote controller uses one LITHIUM BATTERY 3V . Install the battery before using the re-

mote controller.

1. Press the On/Off key to turn on the unit.

2. Press Mode Key to:

a) Cool indicator is on = Cooling Function

b) Dry indicator is on = Dehumidify Function

c) Fan indicator is on = Fan Function

3. Fan Speed:

a) Press the Fan Speed key to turn fan speed to high or low.

4. Swinql

a) Press swing key to tum on auto swing function.

Do not dispose of batteries in fire, batteries may

explode or leak.

--8--

66_26113.p65 8 0_12-21,1544

CONDENSATE WATER DRAINAGE

1) Internal Water Tank

When operating in cooling or dehumidifying mode, the condensate water will drain into

the internal water tank. Depending on the surrounding humidity, the unit can continu-

ously operate for 2 to 12 hours before the internal water tank is full. When the internal

water tank gets full, a beep slarrn will sound eight times for 15 seconds. The compres-

sor stops running and the fan will continue to run in the set speed for three minutes

before the entire unit automatically shuts off.

When the water tank isfull, take out the entire water tank slowly and discard the water

inside the tank, place it back to its odginal position. You will then be able to tum on the

unit again.

If you want to take out the internal tank before it is full of water, please stop the unit

first. Wait for 3 minutes before taking out the water tank to prevent the condensate

water from discharging into the unit.

NOTE: Do not take out the water tank when the unit is running on either cooling or dehumidi-

fying mode or the alarm will sound and the compressor stops. The mode will automatically

change to FAN mode and the compressor will require approximately 3 minutes to restart to the

cooling/deh umidifying cycle.

--9--

6_12_113 .p_5 902-12.21 ' 15:44
