INTRODUCTION

Thank you for purchasing Soleus Air MAC-12K/10K portable air-conditioner. This unit is

designed for improving living and working comfort by providing cooling, dehumidifying and fan

functions only with a minimum installation required. With its quite operation and attractive

design, you will enjoy the convenience and comfort that this unit provides for many years to come.

When operating as an air conditioner, this unit is designed for spot cooling or cooling for a room

no larger than 400 square feet with the standard ceiling height.

The unit also has power outage auto reset function. The unit automatically returns to the original

setting after a power outage.

IMPORTANT SAFEGUARDS

Before you use your portable air conditioner, please read this operation manual carefully.

1) Never use or store gasoline or other flammable vapor or liquid near this unit.

2) Maintain at least 10” (25 CM) clearance space from this unit. Avoid air inlet or

outlet grilles from being covered or closed off.

3) The power supply must be properly grounded.

4) Do not use an adapter plug or extension cord.

5) Do not use the unit in the immediate surroundings of a bath, a shower or a

swimming pool.

6) Do not let children play near this unit.

PACKAGE CONTAINS:

Mobile Air Conditioner

Exhaust Duct (2)

Unit Terminal End (2)

Window Kit Adapter (2)

Remote Controller

AAA Batteries (2)

Window Kit - 3 Sliding Panels

Exhaust Outlet Wall Covers (2)

User Manual

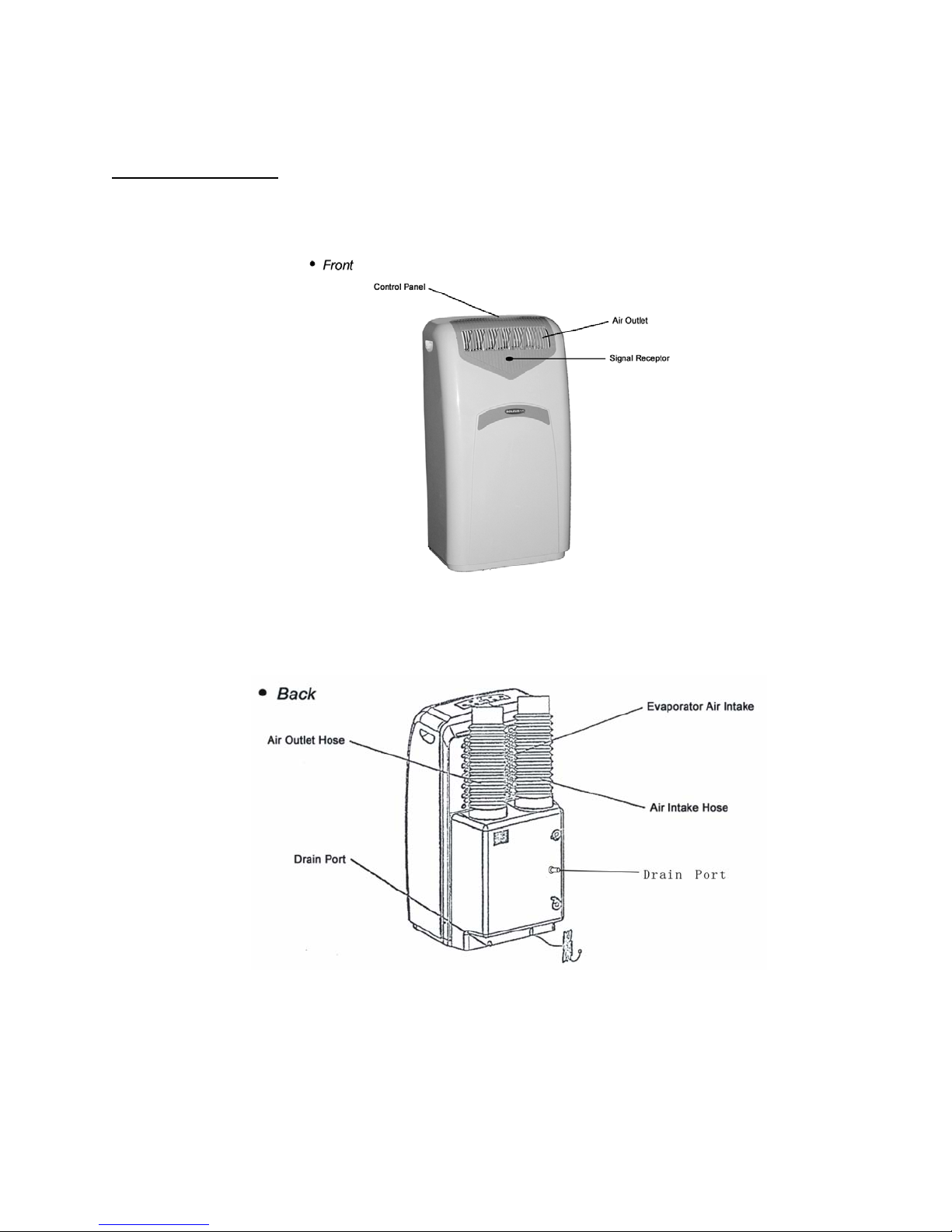

NAMES OF PARTS

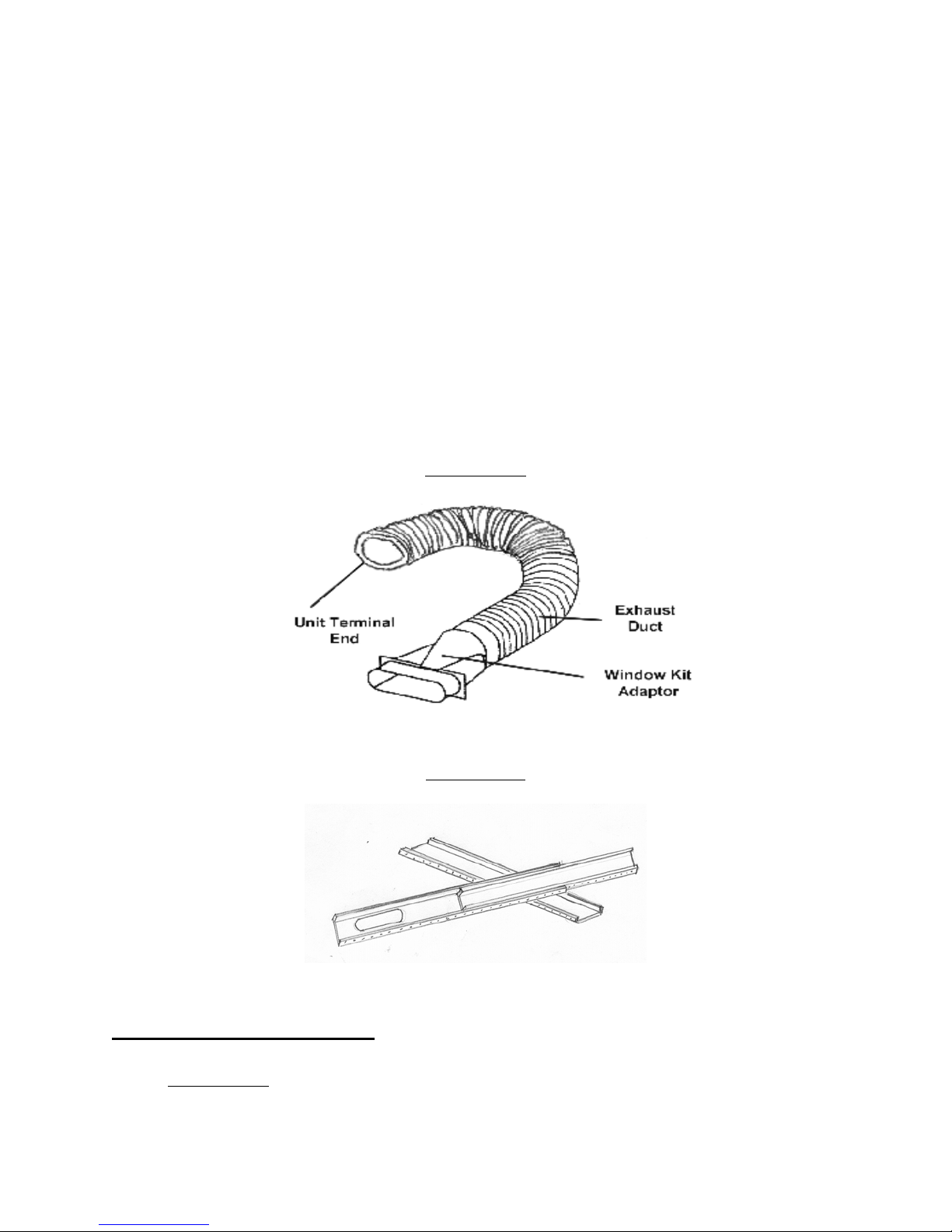

Exhaust Duct

Window Kits

INSTALLATION BEFORE USE

1) Exhaust Duct

When you use the unit as an air conditioner or a dehumidifier, the fresh outdoor air must

be directed to the unit and the hot air must be exhausted out of the room to complete the air

exchange. When the unit is operating on fan or heating models, no outdoor air exchange

takes place. You do not need to hookup the window kits and exhaust hose when you use the

unit as a fan or a heater.

a) Pull out of both ends of the exhaust ducts for approximately 6”.

b) Screw clockwise the exhaust ducts with one end to the terminal end and other end

to the window kit adapter.

c) Remove exhaust outlet wall covers from the back of the unit by screwing the covers

counter-clockwise before lifting them up.

d) Mount terminal ends of the exhaust hoses to the unit.

e) Open window or sliding door for approximately 5 inches (130 mm)

f) Adjust the length of the window kit to the same length of the window or the sliding

door. Use all three panels if necessary. Cut the window piece as needed to fit the

length of your window or sliding door. Make sure that both holes on the main piece

are not covered by other pieces.

g) Place the window kit to the window or sliding door. Close the window or door as

far as it goes.

h) Adjust the lengths of exhaust hose and affix the window kid adapters onto the holes

on the window kit.

NOTE: When using the window kit on a window or sliding door it will cause the window

or sliding door not to be properly closed and locked. Additional security measurements

should be taken

Wall Mount

1) Do not use window kit adapter. Mount the one end of the exhaust ducts onto holes

of 5” on the wall.

2) Using exhaust outlet wall covers to cover the holes in the wall when the unit is not

in use.

NOTE: In order to increase the efficiency, the exhaust ducts should be keeping as short and

straight as possible. It is not recommended to increase the manufacturer’s length of the

exhaust hose. This may impede or damage the unit.

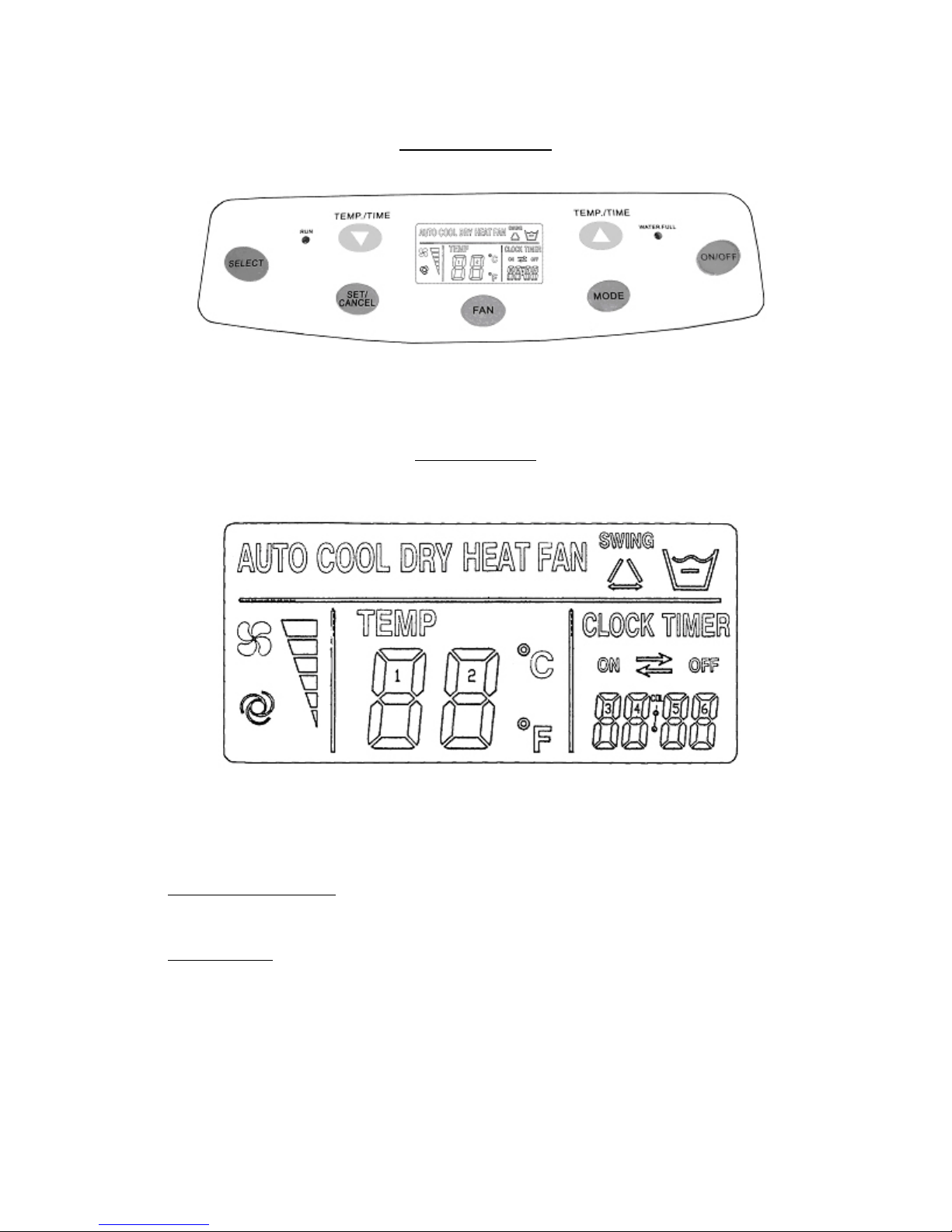

CONTROL PANEL AND LCD DISPLAY

CONTROL PANEL

LCD DISPLAY

Control Panel Functions

1) Power On/Off Control

Starts or Stops the Unit

2) Mode Control

Select the functions of the unit for:

Fan Mode

Air Conditioning Mode

Heating Mode

Dehumidifying Mode

Auto Mode

3) Fan Speed Control

Select the fan speed for:

High

Medium

Slow

Auto

4) Temperature/Time

Select the desired temperature by pressing either ∧or ∨ key when using the unit in cooling or

heating function. The LCD flashes to displays the desired temperature during the setting. The

LCD displays set temperature when it is not at temperature setting mode. The buttons are also

used for setting time and timer.

The LTD display either in Celsius or Fahrenheit. Press Temperature/Time /\ and \/ keys

simultaneously to change the display from Celsius to Fahrenheit or vice verse.

5) Select and Set/Cancel

Using Select and Temperature/Time keys to set clock and timer. To set clock, press the Select

key until the LCD display shows flashing current time. Pressing either /\ or \/ Temperature/Time

keys to change the clock to the current time. Press Select key again until the display shows

current time in a constant mode.

To program the timer, press Select key until the LCD display shows a flashing “on”. Pressing

either /\ or \/ Temperature/Time keys to change the clock to the desired time for the unit being

turned on. Press Select key one more time and the LCD display will show a flashing “off”.

Pressing either /\ or \/ Temperature/Time keys to change the clock to the desired time for the unit

being turned off. Press the Select key again until the display shows a constant clock

To activate the timer that you programmed, press Set/Cancel button to chose either on, off or

repeating (on-off) of the timer operation.

OPERATION USING CONTROL PANEL

1) Cooling Operation

a) Install the exhaust ducts properly.

b) Plug the Power Cord to the power outlet.

c) Turn on the unit by pressing the On/Off Button on the control panel.

d) Press Mode Button until “Cool” appears on the LCD display

e) Press the Temperature/Time Button ∧or ∨until the desired room

temperature appears on the LCD. The temperature ranges from 61oF-88

oF (16 oC-31 0C).

f) Select the fan speed by pressing the Fan Button.

NOTE: During hot days, the unit will cool off the room most efficiently by setting the temperature at the

lowest and the fan speed at the highest. Reducing the length of the exhaust duct and insulating the

exhaust duct and keeping direct sunlight to a minimum will also improve the cooling efficiency.

2) Dehumidifying Operation

a) Install the exhaust ducts properly

b) Plug the Power Cord to the power outlet.

c) Turn on the unit by pressing the On/Off Button on the control panel.

d) Press the Mode Button until the “DRY” appears on the LCD display.

NOTE: The unit operates at low fan speed during dehumidifying. The unit cools room slightly during

the dehumidification.

Keep the windows and the doors closed to aid the effectiveness of the unit in removing the moisture from

the room.

NOTE: The unit will not perform dehumidification when the room temperature is lower than 61 degree.

3) Fan Operation

a) Plug the Power Cord to the power outlet.

b) Turn on the unit by pressing the On/Off Button on the control panel.

c) Press the Mode Button until “FAN” appears on the LCD display.

d) Select the fan speed by pressing the Fan Speed Button.

NOTE: When the unit is running on fan mode, the exhaust duct is inoperative and is not required.

4) Heating Operation

a) Plug the Power Cord to the power outlet.

b) Turn on the unit by pressing the On/Off Button on the control panel.

c) Press the Mode Button until “HEAT“ appears on the LCD display.

d) Press the Temperature/Time Button ∧or ∨until the desired room

temperature appears on the LCD. The temperature ranges from 61 o F-88

o F (16 oC-31 oC).

e) Select the fan speed by pressing the Fan Speed Button. It is recommended

to use a low fan setting.

NOTE: When the unit is running on heating mode, the exhaust duct is inoperative and is not required.

5) Auto Operation

a) Install the exhaust ducts properly

b) Plug the Power Cord to the power outlet.

c) Turn on the unit by pressing the On/Off Button on the control panel.

d) Press the Mode Button until the “AUTO” appears on the LCD display.

e) Select the fan speed by using FAN button.

During the AUTO model, the unit operates at heating mode when the room temperature is below 68

degree. It operates at dehumidifying mode when the room temperature is between 68 to 80 degree. It

operates at cooling mode when the room temperature is above 80 degree. You may use the timer with the

AUTO mode.

6) Sleep Mode

a) The air conditioner in operation

b) Press SLEEP to enter into sleep mode

c) The fan motor of indoor unit runs in low speed

d) When in cooling mode, within the first two hours, the temperature will be increased 1℉

per hour. Then temperature will be keeping at 2℉higher than the original degree for 6

hours.6 hours later, temperature will return to original degree you set.

e) When in heating mode, within the first 2 hours, temperature will be decreased 1℉per

hour. Then temperature will be keeping at 2℉Lower than the original degree for 6

hours.6 hours later, temperature will return to original degree you set.

g) When in dehumidify mode, the temperature will not be changed.

NOTE: When the room temperature is low and the indoor humidity is high, the condensate of the air

conditioner may not be discharged in time. Water will accumulate in the unit that leads to the unit stops

working automatically for a long time. (At the moment, the indicator lamp “WATER FULL” in the LCD

is light.) In order to let your unit recover working quickly, you can pull out the “Drain Port” which is

located in the middle and bottom of the back of the unit. The condensate will be discharged several

minutes after water be drained. Please use at least 1.5 liter pan to catch the dripping water.

It is not advised to use continuous drain method when the room temperature is higher than 90℉.

OPERATION USING REMOTE CONTROLLER

The remote controller provided with the unit may operate this portable air conditioner. The remote

controller uses two - AAA batteries (provided). Install the batteries before using the remote controller.

REMOTE CONTROLLER

You may use the remote controller to do all the operations. You can only turn on or off the swing

operation from the remote controller.

The LTD displays on remote controller either in Celsius or Fahrenheit. Press + and - keys

simultaneously to change the display from Celsius to Fahrenheit or vice verse.
