Smeg SY93BL User manual

Table of contents

1 Instructions 58

1.1 General safety instructions 58

1.2 Manufacturer liability 62

1.3 Appliance purpose 63

1.4 Identification plate 63

1.5 This user manual 63

1.6 Disposal 63

1.7 How to read the user manual 64

2 Description 65

2.1 General Description 65

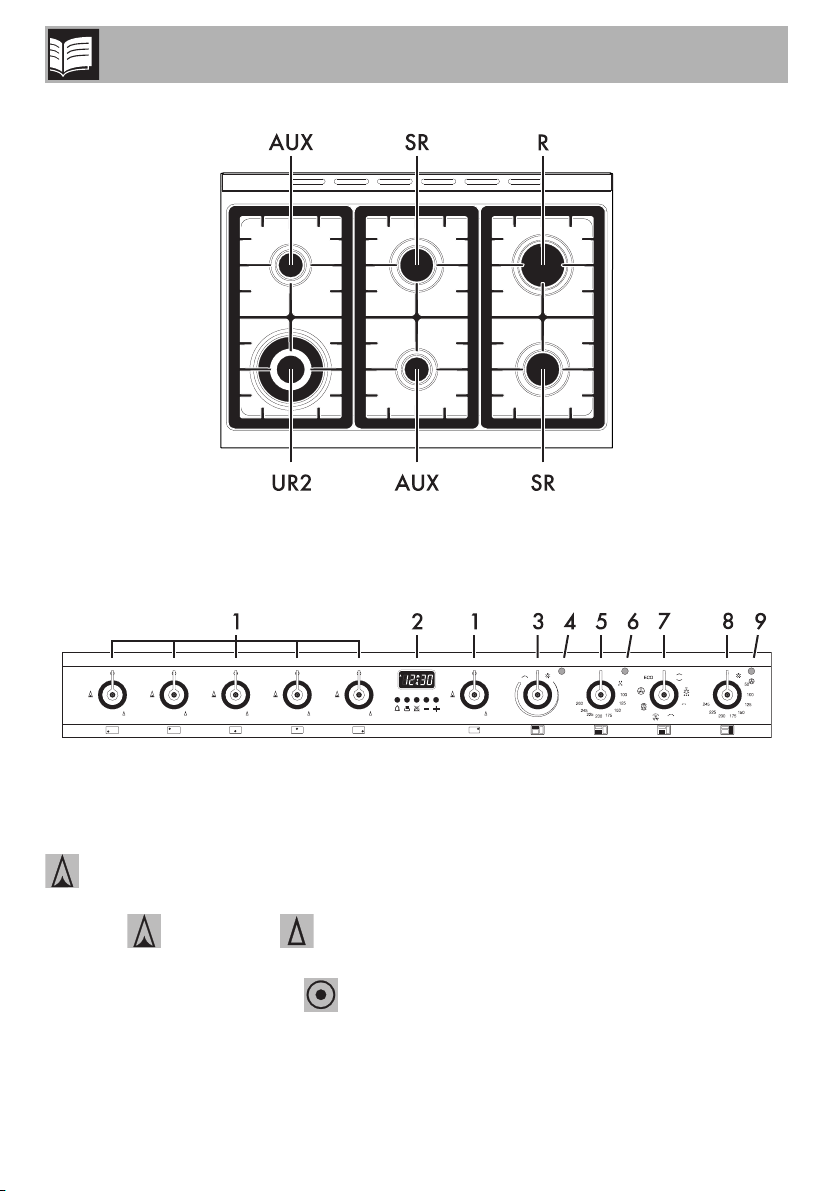

2.2 Cooking hob 66

2.3 Control panel 66

2.4 Other parts 67

2.5 Available accessories 68

3 Use 70

3.1 To save energy 72

3.2 Using the accessories 72

3.3 Using the hob 74

3.4 Using the ovens 75

3.5 Cooking advice 79

3.6 Programmer clock 80

4 Cleaning and maintenance 86

4.1 Cleaning the hob 87

4.2 Cleaning the doors 88

4.3 Cleaning the oven cavities 91

4.4 Vapor Clean (multifunction oven only) 92

4.5 Extraordinary maintenance 94

5 Installation 96

5.1 Gas connection 96

5.2 Adaptation to different types of gas 99

5.3 Positioning 104

5.4 Electrical connection 108

5.5 Instructions for the installer 110

We advise you to read this manual carefully, as it contains all the instructions for maintaining

the appliance’s aesthetic and functional qualities.

For further information on the product: www.smeg.com

TRANSLATION OF THE ORIGINAL INSTRUCTIONS

Instructions

1 Instructions

1.1 General safety instructions

Risk of personal injury

• During use the appliance and its

accessible parts become very hot.

Never touch the heating elements

during use.

• Protect your hands by wearing

oven gloves when moving food

inside the oven.

• Never try to put out a fire or

flames with water: turn off the

appliance and smother the flames

with a fire blanket or other

appropriate cover.

• This appliance may be used by

children aged at least 8 and by

people of reduced physical,

sensory or mental capacity, or

lacking in experience in the use of

electrical appliances, provided

that they are supervised or

instructed by adults who are

responsible for their safety.

• Children must not play with the

appliance.

• Keep children under the age of 8

at a safe distance unless they are

constantly supervised.

• Keep children under the age of 8

away from the appliance when it

is in use.

• Cleaning and maintenance must

not be carried out by

unsupervised children.

• Make sure that the flame-

spreader crowns are correctly

positioned in their seats with their

respective burner caps.

• Be aware of how rapidly the

cooking zones heat up. Do not

place empty pans on the heat.

Danger of overheating.

• Fats and oils can catch fire if they

overheat. Do not leave the

appliance unattended while

preparing foods containing oils or

fats. If fats or oils catch fire, never

put water on them. Place the lid

on the pan and turn off the

relevant cooking zone.

• The cooking process must always

be monitored. A short cooking

process must be continuously

surveyed.

Instructions

• While cooking do not place

metal objects, such as cutlery or

dishes on the hob surface as they

may overheat.

• Do not insert pointed metal

objects (cutlery or utensils) into the

slots in the appliance.

• Do not pour water directly on very

hot trays.

• Keep the oven door closed

during cooking.

• If you need to move food or at the

end of cooking, open the door

5 cm for a few seconds, let the

steam come out, then open it fully.

• Do not open the storage

compartment (where present)

when the oven is on and still hot.

• The items inside the storage

compartment could be very hot

after using the oven.

• DO NOT USE OR STORE

FLAMMABLE MATERIALS IN

THE STORAGE

COMPARTMENT (IF AVAILABLE)

OR NEAR THE APPLIANCE.

• DO NOT USE AEROSOLS IN

THE VICINITY OF THIS

APPLIANCE WHILST IT IS IN

USE.

• Switch off the appliance

immediately after use.

• DO NOT MODIFY THIS

APPLIANCE.

• Always use any necessary/

required personal protective

equipment (PPE) before

performing any work on the

appliance (installation,

maintenance, positioning or

movement).

• Before performing any operation

on the appliance, switch off the

power supply.

• Have qualified personnel carry

out installation and assistance

interventions according to the

standards in force.

• Do not try to repair the appliance

yourself or without the intervention

of a qualified technician.

• Do not pull the cable to remove

the plug.

• If the power supply cable is

damaged, contact technical

support immediately and they will

replace it.

Instructions

Risk of damaging the appliance

• Do not use abrasive or corrosive

detergents (e.g. scouring

powders, stain removers and

metallic sponges) on glass parts.

• Use wooden or plastic utensils.

• Racks and trays should be

inserted as far as they will go into

the side guides. The mechanical

safety locks that prevent them from

being removed must face

downwards and towards the

back of the oven cavity.

• Do not sit on the appliance.

• Do not use steam jets to clean the

appliance.

• Do not obstruct ventilation

openings and heat dispersal slots.

• Never leave the appliance

unattended during cooking

operations where fats or oils

could be released, as these could

then heat up and catch fire. Be

very careful

• Never leave objects on the

cooking surface.

• DO NOT USE THE APPLIANCE

TO HEAT ROOMS FOR ANY

REASON.

• Do not spray any spray products

near the oven.

• Do not use plastic cookware or

containers for cooking.

• Do not place sealed tins or

containers in the oven cavity.

• Remove all trays and racks which

are not required during cooking.

• Do not cover the bottom of the

oven cavity with aluminium or tin

foil sheets.

• Do not place pans or trays

directly on the bottom of the oven

cavity.

• If you wish to use greaseproof

paper, place it so that it will not

interfere with the hot air circulation

inside the oven.

• Do not use the open door to

place pans or trays on the internal

glazing pane.

• Cooking vessels or griddle plates

should be placed inside the

perimeter of the hob.

Instructions

• All pans must have smooth, flat

bottoms.

• If any liquid does boil over or spill,

remove the excess from the hob.

• Take care not to spill acid

substances such as lemon juice or

vinegar on the hob.

• Do not put empty pans or frying

pans on switched on cooking

zones.

• Do not use steam jets to clean the

appliance.

• Do not use rough or abrasive

materials or sharp metal scrapers.

• Do not use cleaning products

containing chlorine, ammonia or

bleach on parts made of steel or

that have metallic surface finishes

(e.g. anodizing, nickel- or

chromium-plating).

• Do not use abrasive or corrosive

detergents (e.g. scouring

powders, stain removers and

metallic sponges) on glass parts.

• Do not wash the removable

components such as the hob

grids, flame-spreader crowns and

burner caps in a dishwasher.

• Never use the oven door to lever

the appliance into place when

fitting.

• Avoid exerting too much pressure

on the door when open.

• Do not use the handle to lift or

move this appliance.

Installation

• THIS APPLIANCE MUST NOT BE

INSTALLED IN A BOAT OR

CARAVAN.

• The appliance must not be

installed on a pedestal.

• Position the appliance into the

cabinet cut-out with the help of a

second person.

• To prevent any possible

overheating, the appliance should

not be installed behind a

decoration door or a panel.

• Have the gas connection

performed by authorised staff.

Instructions

• Installation using a hose must be

carried out so that the length of

the hose does not exceed

2 metres when fully extended for

steel hoses and 1.5 metres for

rubber hoses.

• The hoses should not come into

contact with moving parts and

should not be crushed in any way.

• If required, use a pressure

regulator that complies with

current regulations.

• After carrying out any operation,

check that the tightening torque of

gas connections is between

10 Nm and 15 Nm.

• At the end of the installation,

check for any leaks with a soapy

solution, never with a flame.

• Have the electrical connection

performed by authorised

technicians.

• The appliance must be connected

to ground in compliance with

electrical system safety standards.

• Use cables withstanding a

temperature of at least 90 °C.

• The tightening torque of the

screws of the terminal board

leads must be 1.5 - 2 Nm.

For this appliance

• Ensure that the appliance is

switched off before replacing the

bulb.

• Do not rest any weight or sit on

the open door of the appliance.

• Take care that no objects are

stuck in the doors.

1.2 Manufacturer liability

The manufacturer declines all liability

for damage to persons or property

caused by:

• Use of the appliance other than

that specified;

• failure to comply with the

instructions in the user manual;

• tampering with any part of the

appliance;

• use of non-original spare parts.

Instructions

1.3 Appliance purpose

• This appliance is intended for

cooking food in the home

environment. Every other use is

considered inappropriate.

• The appliance is not designed to

operate with external timers or with

remote-control systems.

1.4 Identification plate

The identification plate bears the

technical data, serial number and

brand name of the appliance. Do not

remove the identification plate for

any reason. Once installed the rating

plate can only be accessed from the

rear of the cooker, for this reason

you are strongly advised to stick the

spare rating plate (included in the

packaging of the cooker), to the

back of this user manual for

reference.

1.5 This user manual

This user manual is an integral part of

the appliance and must therefore be

kept in its entirety and within the

user's reach for the whole working

life of the appliance.

Read this user manual carefully

before using the appliance.

1.6 Disposal

This appliance must be

disposed of separately from

other waste (Directives

2002/95/EC, 2002/96/EC,

2003/108/EC). The appliance

does not contain substances in

quantities sufficient to be considered

hazardous to health and the

environment, in accordance with

current European directives.

To dispose of the appliance:

• Cut the power supply cable and

remove it along with the plug.

Power voltage

Danger of electrocution

• Disconnect the mains power

supply.

• Unplug the appliance.

Instructions

• Deliver the appliance to the

appropriate recycling centre for

electrical and electronic

equipment waste, or return it to

the retailer when purchasing an

equivalent product, on a one for

one basis.

Our appliances are packaged in

non-polluting and recyclable

materials.

• Deliver the packing materials to

the appropriate recycling centre.

1.7 How to read the user manual

This user manual uses the following reading

conventions:

1. Use instruction sequence.

• Standalone instruction.

Plastic packaging

Danger of suffocation

• Do not leave the packaging or

any part of it unattended.

• Do not let children play with the

plastic bags.

Instructions

General information on this user

manual, on safety and final

disposal.

Description

Description of the appliance and its

accessories.

Use

Information on the use of the

appliance and its accessories.

Cleaning and maintenance

Information for proper cleaning and

maintenance of the appliance.

Installation

Information for the qualified

technician: Installation, operation

and inspection.

Safety instructions

Information

Advice

Description

2 Description

2.1 General Description

1 Cooking hob

2 Control panel

Rack/tray support frames

3 Auxiliary oven light

4 Auxiliary oven seal

5 Auxiliary oven door

6 Multifunction oven light

7 Multifunction oven door

8 Multifunction oven seal

9 Multifunction oven fan

10 Vertical oven seal

11 Vertical oven door

12 Vertical oven light

13 Vertical oven fan

Description

2.2 Cooking hob

AUX = Auxiliary

SR = Semi-rapid

R= Rapid

UR2 = Ultra-rapid

2.3 Control panel

1 Hob burner knobs

For lighting and adjusting the hob burners.

Press and turn the knobs anti-clockwise to

in order to light the relative burners.

Turn the knobs to the zone between the

maximum and minimum setting to

adjust the flame.

Return the knobs to the position to turn

off the burners.

2 Programmer clock

For displaying the current time, setting

programmed cooking operations and the

minute minder timer.

3 Auxiliary oven variable grill knob

It turns on the light inside the oven or starts

the grill heating element to a temperature

ranging from a minimum of 50 °C to a

maximum of 245 °C.

Table of contents

Popular Cooker manuals by other brands

Modena

Modena FC 7645 SGM User manual book

Electrolux

Electrolux Insight EKG6049 user manual

Stanley

Stanley Donard 60 Installation and operating instructions

Bartscher

Bartscher 201TC manual

Parkinson Cowan

Parkinson Cowan 50 GR/BU installation instructions

Siemens

Siemens HK9P00020U instruction manual

Creda

Creda S150E Installation and user instructions

Creda

Creda HB48309 instructions

Bosch

Bosch HCE743220F instruction manual

Tricity Bendix

Tricity Bendix SE545P manual

NEFF

NEFF E1461A2/01 Instructions for use

Zanussi

Zanussi ZCM 700 X Instruction booklet

RiverGrille

RiverGrille TF2002501-RG Assembly instruction

Vollrath

Vollrath 69504F Operator's manual

Tricity Bendix

Tricity Bendix CSIE500 Operating and installation instructions

AEG

AEG Competence 5731 V Instruction book

Euromaid

Euromaid ES60 Installation and operation manual

Hotpoint

Hotpoint HUI 62 TP Instructions for installation and use
