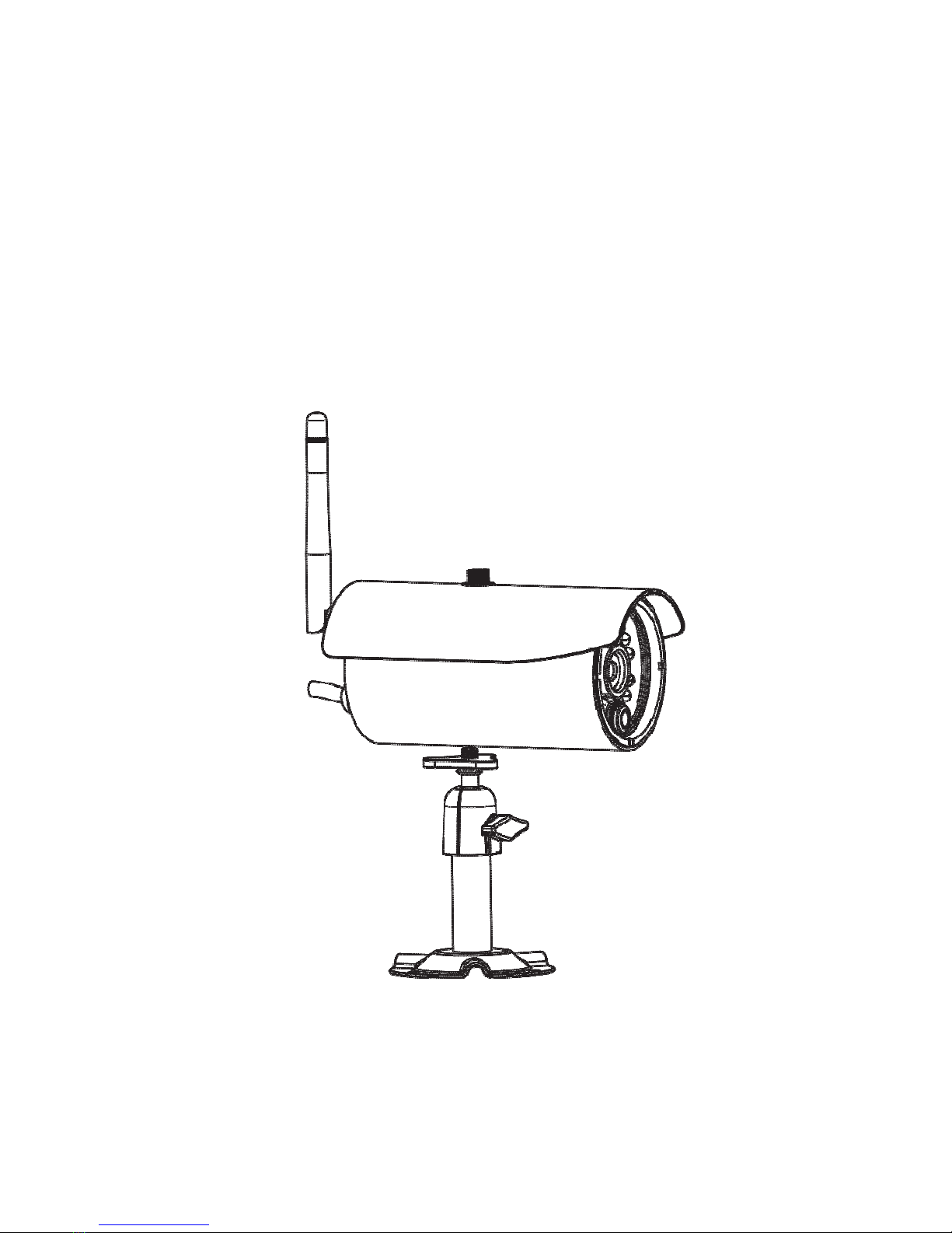

Smartwares C935IP User manual

Wireless APP Camera

Installation and Operating Instructions

C935IP

Version 1.0

PLEASE READTHESE INSTRUCTIONSCAREFULLY BEFOREUSINGTHISPRODUCT

AND KEEP THIS MANUAL FOR FUTURE REFERENCE.

Camera Stand x 1

Power Adapter x 1

Rj45 Connect Jack x 1

Quick Start Guide x 1

KIT CONTENT

Wireless App Camera x 1

Camera Antenna x 1

Screw Pack x 1

Manual CD x 1

Tools Required:

Electric drill

5mm masonry drill bit

15mm masonry drill bit

No. 2 Philips screwdriver

For best system performance:

-iOS: iPhone4S / iPad2 / Mini iPad or above. Maximum 12 registered camera

connections.

-Android: 1.5G dual core processor or above / 960*540 pixel or above. Maximum 12

registered camera connections.

-Storage: Class 10 memory card.

-Bandwidth: 1Mbps or above upload/download speed suggested.

SAFETY AND INSTALLATION TIPS

Do not attempt to open the units with the power adaptor plug connected to

avoid any risk of personal injury.

When installing CCTV camera(s), always follow manufacturer's advice

when using power tools, steps, ladders, etc. and wear suitable protective

equipment (e.g. safety goggles) when drilling holes. Before drilling holes

through walls, check for hidden electricity cables and water pipes. The use

of cable/pipe detector is advisable.

It is also advisable to avoid exposing any cameras to extreme weather

conditions (e.g., under a gutter which is prone to any water leaks). When

installing any cameras with this unit, it is advisable to use cable conduit to

protect any video/power extension cables from being exposed externally

and to prevent/reduce the chances of the cables being tampered with. After

drilling any hole though an external wall for a cable, ensure the hole is

sealed up around the cable using a sealant to prevent drafts.

To prevent a fire or electrical shock hazard, do not attempt to open the

housing while the unit is exposed to rain, water or wet conditions. There

are no user serviceable parts inside. Refer servicing to qualified service

personnel. Avoid pointing the camera(s) directly at the sun or any bushes,

tree branches or moving objects that might unnecessarily cause the camera

to record.

NIGHTVISION

The camera has built-in infrared LEDs to allow you to view at night for

24-hour surveillance. The LEDs will automatically activate at night and the

picture viewed will turn to black and white. The night viewing range is up

to 5 meters.

CAMERA INSTALLATION

Secure camera stand on the

stable surface.

Loosen up the Thumb screw.

Adjust proper view angle then

secure the joint with T-bolt.

Ceiling Mount Wall Mount

CAMERA OVERVIEW

Antenna

Power Indicator

Signal Indicator

SD Card Slot

PIR

Infrared LEDs

Stand

RJ-45 Cable

Power Cable

DOWNLOAD AND SETUP THE APP

The Wireless APP camera is designed todeliver live video footage directly

to your smart phone or tablet device. Please follow these steps to download,

setup and use the APP.

APP Name: OMGuard HD

Download the App

1. From you smart phone or tablet device, click the APP Store/Google Play

and search for “OMGuard HD”.

2. Once located the APP, select download.

3. Once download completed, you will find the APP icon on your mobile

device screen.

APP Setup

△

BEFOREYOUSTART

Before connecting the camera to power source, first connect the camera to your

Wi-Fi router by using only the Ethernet cable provided.

After the camera is connected to the Wi-Fi router, connect the camera to power

source and wait until both RED and GREEN LED begin flashing. DO NOT begin

the setup process until both LEDs become steady on (roughly 45 seconds).

Please follow the steps in the following pages to complete the setup.

1. Make sure the mobile device you are using is connected to the same

Wi-Fi router the camera is connected to.

2. Locate the “OMGuard HD” icon in your mobile device and launch the

App.

3. Tap the ADD CAMERA icon to add a new camera. Then click

the SEARCH button for a quick setup. The APP will search available

camera(s) connecting to the Wi-Fi router and display the camera

information in the pop up list. Select the camera from the list and the

APP will automatically add the camera’s DID code to the DID column.

Enter the default password 123456.

(iOS) (Android)

Note: After you have entered the default password, the APP will remind you to

change the default password.

4. Click SAVE to complete the camera settings. The system confirms the

user identity and grants permission to user access.

5. You can refer to "ADD CAMERA" section for detail on adding additional

camera(s).

In most cases, you can successfully add the camera according to the steps

above. However, the camera will not find the network if Wi-Fi router turns

off the SSID broadcasting function. Please enable the SSID broadcasting to

complete the settings.

Note: Most Wi-Fi routers broadcast the Service Set Identifier (SSID) by default. This

is the name of your wireless network, and SSID broadcasting is how Wi-Fi-enabled

devices find networks.

The camera will only accept SSID composed with English alphabet charactors and

arebic numbers, none-English and special charactors (!@#$%, ect.) will not be

accepted.

LIVE VIEW / SNAPSHOT / RECORDING

Tap to take snapshot image(s) of the

video. The captured snapshots will be

stored in your mobile device.

Tap to turn ON/OFF the volume.

Tap to Start/Stop recording.

The recorded video file will be stored

in the memory card of your camera.

Tap to return to the main page.

The APP allows users to have access to live video. User can take snapshot

image(s) and record the live video.

When you launch the App on the smart phone or tablet, the image

displaying on the main screen is the very last automatically captured

snapshot from the live view of the previous established session. Tap the

image to enter live view mode.

The controls and layout of the APP have been customized to meet the

operating system requirements of the mobile device. The main page may

vary, depending on your mobile device. By default, the live view is

displayed in portrait mode. You can also turn the device sideways to switch

to landscape mode for a larger view.

Note: Once the recording is started by motion detection or manually, the APP will

continue the recording for 1 minute. User cannot stop the recording during this period.

VIEWING YOUR SNAPSHOTS

For iOS

You snapshots will be named with the time stamp and saved into the

Camera Roll location of your mobile device.

For Android

You snapshots will be named with the time stamp and saved into the

Photo Gallery > snapshot folder on your mobile device.

PLAYBACK YOUR VIDEOS

The recorded video file(s) on your camera is automatically saved to the

memory card inserted in your camera. You can remotely access the file(s)

for playback via your mobile device.

Tap the CAMERA SETTING icon on the main page.

(iOS) (Android)
