Manufacturer Carrier Manufacturing Polska Sp. Z o.o. Ul. Kolejowa 24.
39-100 Ropczyce, Poland
Year of manufacture See device serial number label
Certification
Certification body
CPR DoP 0359-CPR-00266
Approved to
EN54-11:2001. Incorporating amendment no. 1 and
corrigendum no. 1. Fire detection and fire alarm
systems. Part 11: manual call points.
EN54-13:2005. Fire detection and fire alarm systems.
Part 13: Compatibility assessment of system
components.
EN54-25:2008. Incorporating corrigenda September
2010 and march 2012. Fire detection and fire alarm
systems. Part 25: components using radio links.
European Union
EMS declares that the radio equipment type
SmartCell
directives Fire Manual
Call Point is in compliance with Directive
2014/53/EU. The full text of the EU declaration of
conformity is available at the following internet
address: www.mysmartcell.com
2012/19/EC (WEEE directive): Products marked with
this symbol cannot be disposed of as unsorted
municipal waste in the European Union. For proper
recycling, return this product to your local supplier
upon purchase of equivalent new equipment, or
dispose of it at designated collection points. For more
information see www.recyclethis.info
Dispose of your batteries in an environmentally
friendly manner according to your local regulations.
Specification
19
0905
Regulatory information

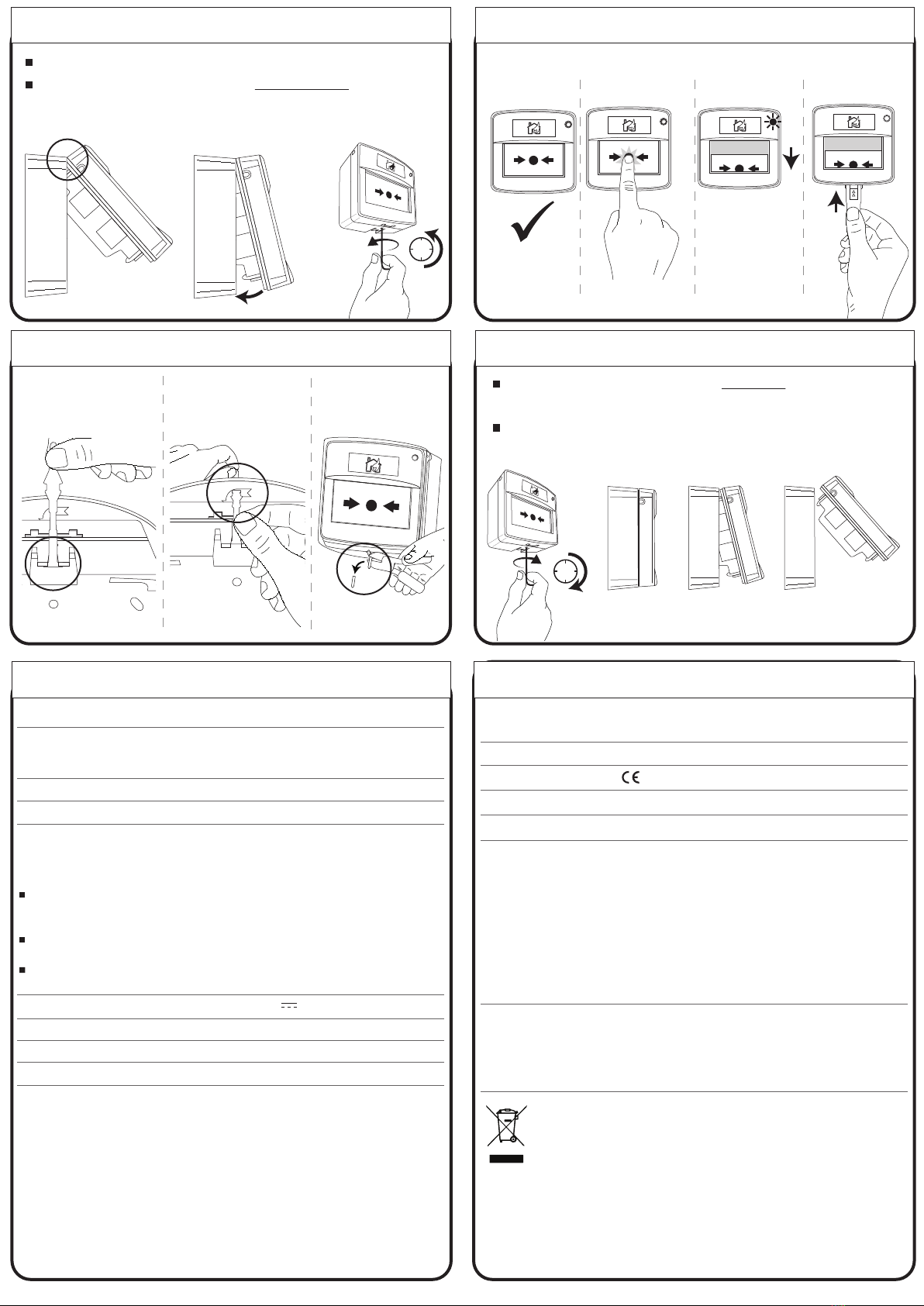

Device unlocking
If the device is locked, turn the Allen key CLOCKWISE to release the locking
mechanism.
Once unlocked, carefully unclip the two sections.
9 Optional breakable tag fitting
1. Locate the end of the
tag under the retaining
clip as shown
2. Pull the tag through
the cavity, until the tag is
secure
3. Carefully remove
excess using cutters
Test once added (programmed) to the system.
8 Testing and resetting
1. Normal state 3. Alarm condition 4. Resetting2. Push to activate *
7 Completing the installation
Reassemble the unit, observing the hinged connection as shown.
1. 2. 3.
Lock the device, by turning the Allen key ANTI-CLOCKWISE, until the screw is
flush with the casework.
©2021 EMS Ltd. All rights reserved. Page 2 of 2 TSD087-0001-99 (Issue 3) 25/08/2021 AJM
Operating temperature -10 to +55 °C
Storage temperature
With batteries -10 to +30 °C
Without batteries -10 to +55 °C
Humidity 0 to 95% noncondensing
Location Type A: for indoor use
Supply 2 x ER14505M 3.6 V lithium thionyl chloride
batteries (Fanso or Titus)
CAUTION!
Operating voltage 2.7 to 3.65 VDC
Operating frequency 868MHz
Output transmitter power 14 dBm / 25 mW
Signalling protocol X5
Dimensions (W x H x D) 92 x 97 x 47 mm
This is a life safety product. Only use manufacturer approved battery types.
Failure to do so may result in damage to the product.
DO NOT mix batteries of different type or age.
When replacing batteries; remove all old batteries before fitting replacements.
* (With transparent
cover lied)
