Simplicity 2415 Setup guide

Rev. 10/2000

TP 400-2415-00-AT-SMA

Attachment

Illustrated

Parts List

MANUFACTURING, INC.

500 N Spring Street / PO Box 997

Port Washington, WI 53074-0997 USA

TP 400-2415-00-AT-SMA

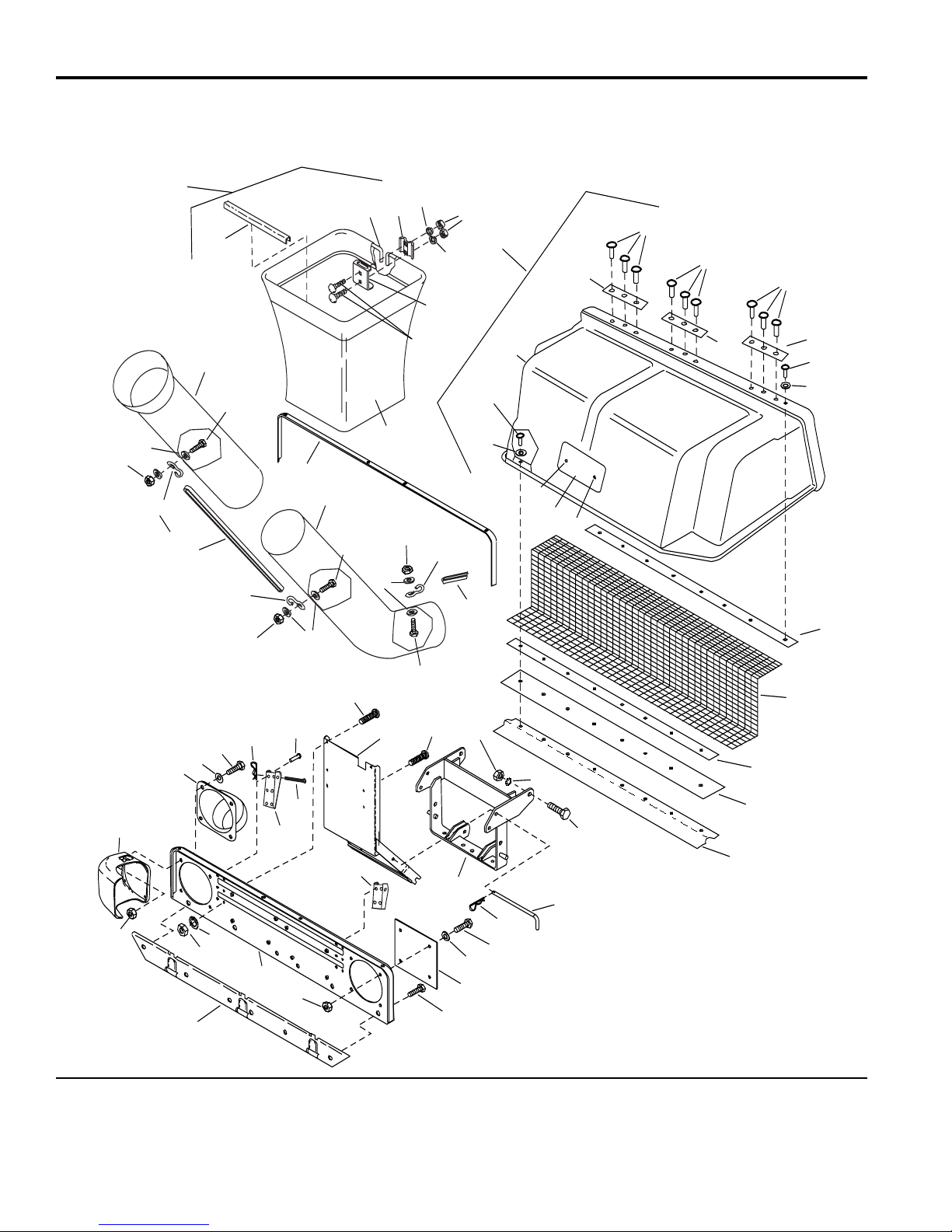

Triple Catcher, Hitch & Tube Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

985304

The above parts group applies to the following Mfg. Nos.:

1693204 Triple Catcher W/ Hitch & Tube

37 36

TP 400-2415-00-AT-SMA

Triple Catcher, Hitch & Tube Group

1 1717025 1 COVER & SCREEN ASSEMBLY (Inc. Ref. No. 2,3,4,5,6,9,10,11,12,13)

2 1 COVER, GRASS CATCHER, See Ref. #1

3 1960241 9 RIVET

4 1717067 3 PLATE ASSEMBLY

5 925160 25 RIVET

6 1910531 16 WASHER

7 1667248 6 CLIP, Canoe

8 1704405 1 DECAL, Safety

9 1716970 1 CLAMP

10 1717041 1 SCREEN

11 1717524 1 CLAMP, Seal

12 1716968 1 SEAL

13 1716972 1 ANGLE, Screen

14 1921176 6 CAPSCREW, Hex Head, 1/2-13 x 2

15 1916966 6 LOCKWASHER, 1/2

16 1916951 6 NUT, Hex, 1/2-13

17 1720948 1 HITCH ASSEMBLY

18 1717085 1 ROD

19 1960033 1 HAIR PIN

20 1921333 8 CAPSCREW, Hex Head, 5/16-18 x 1

21 1919326 8 WASHER, 5/16

22 1717037 1 COVER

23 1925003 3 CAPSCREW, Taptite, 1/4-20 x 1/2

24 1919438 8 LOCKNUT, 5/16-18

25 1716973 1 CHANNEL & BRACKET ASSEMBLY

26 1716966 1 PLATE & BRACE ASSEMBLY

27 1720945 1 HINGE

28 1917372 10 NUT, 5/16-18

29 1917356 10 LOCKWASHER, 5/16

30 1717039 1 DEFLECTOR

31 1717038 1 DUCT INLET

32 1720875 2 HINGE

33 1672344 3 PIN, 3/8 x 2-3/4

34 1960074 3 PIN, Hair

35 928707 16 RIVET

36 1960223 2 CARRIAGE BOLT, 5/16-18 x 1-1/4

37 1717027 1 SUPPORT ASSEMBLY

38 1931333 10 CARRIAGE BOLT, 5/16-18 x 3/4

39 1921319 3 CAPSCREW, Hex Head, 1/4-20 x 1-1/4

40 1921319 6 WASHER, 1/4

41 1920397 3 LOCKNUT, 1/4-20

42 1672689 3 HOOK, “S”

43 172744 2 STRAP

44 1686761 1 TUBE, Lower

45 1717071 1 TUBE, Upper

46 1717082 1 SEAL

47 1703764 3 BAG, Grass

48 1703807 3 HANGER

49 1672023 3 CLIP

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1693204 Triple Catcher W/ Hitch & Tube

TP 400-2415-00-AT-SMA

Triple Catcher, Hitch & Tube Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

985304

The above parts group applies to the following Mfg. Nos.:

1693204 Triple Catcher W/ Hitch & Tube

37 36

TP 400-2415-00-AT-SMA

Triple Catcher, Hitch & Tube Group

50 1703855 3 HOOP, Basket Frame

51 1675707 3 EDGING

52 1659804 3 GRASS BAG & HOOP ASSEMBLY (Incl. Ref. Nos.

28,29,38,47,48,49,50&51)

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1693204 Triple Catcher W/ Hitch & Tube
